- Beam: 14' 6''
- Hull Material: Composite
29 views

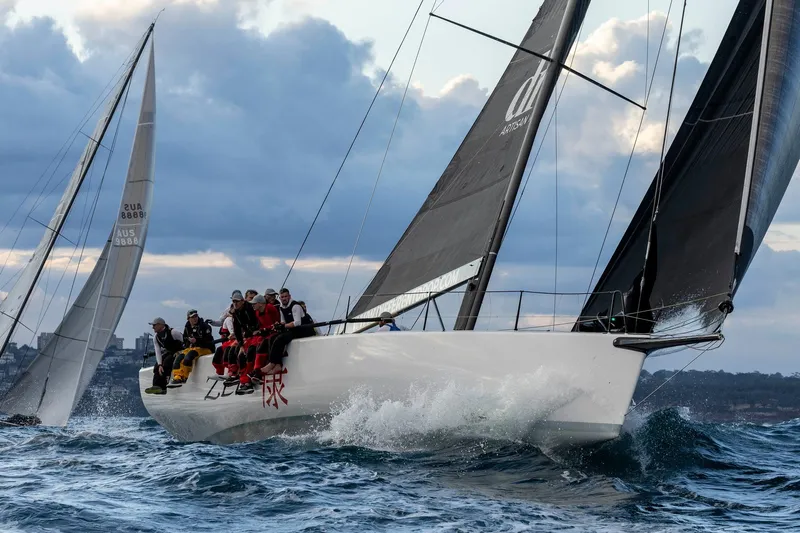

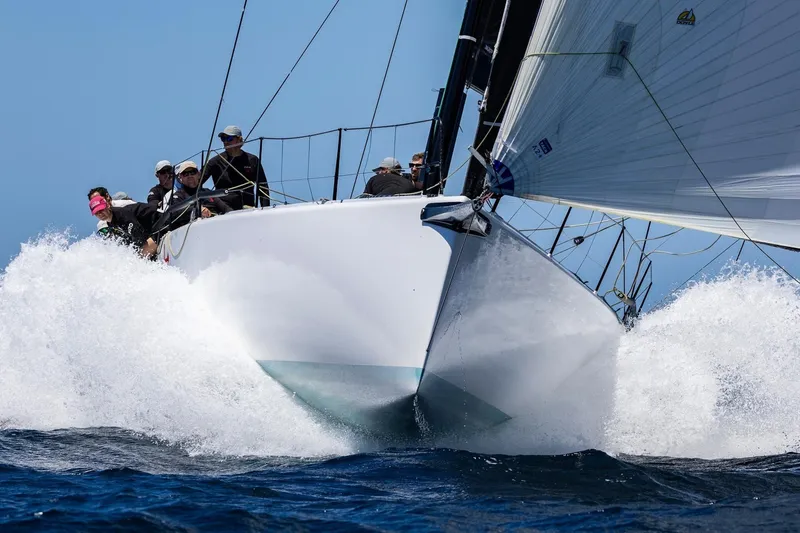

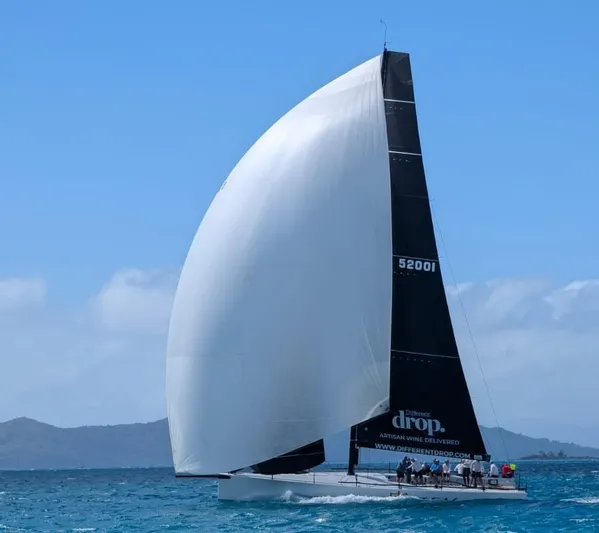

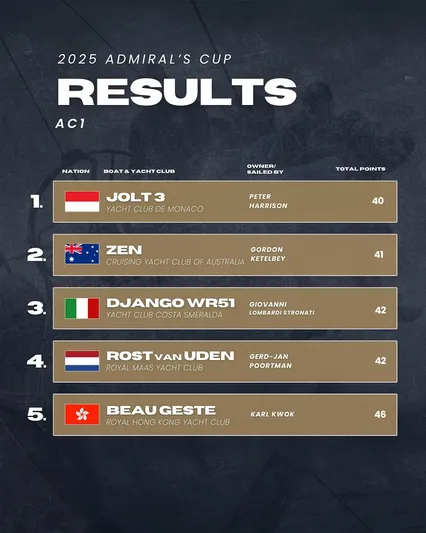

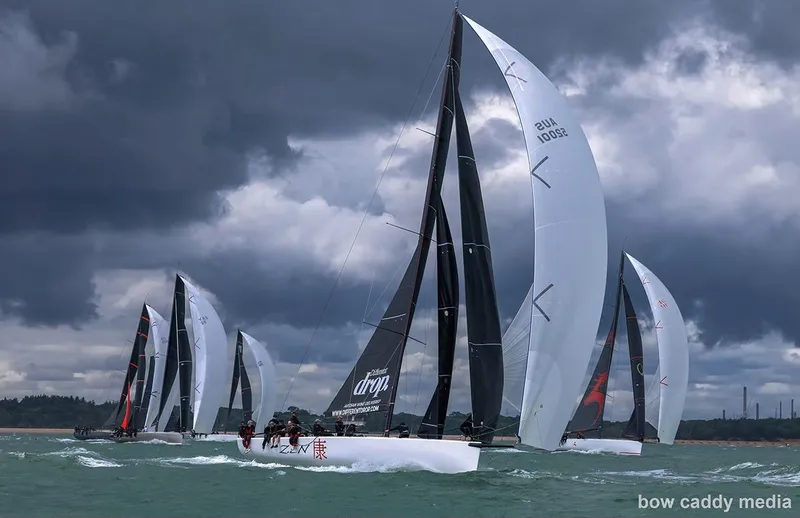

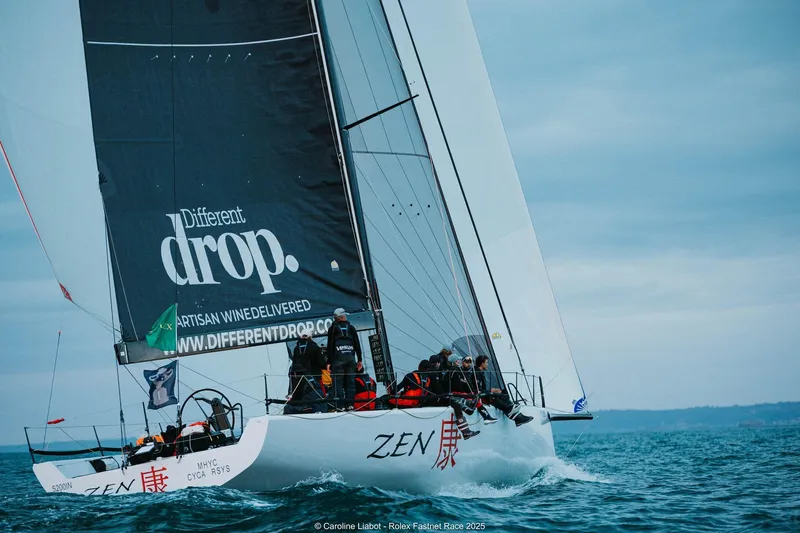

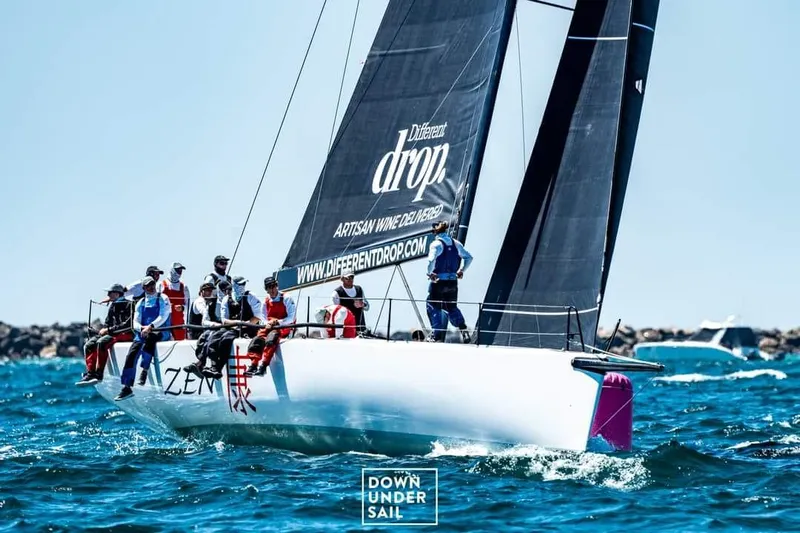

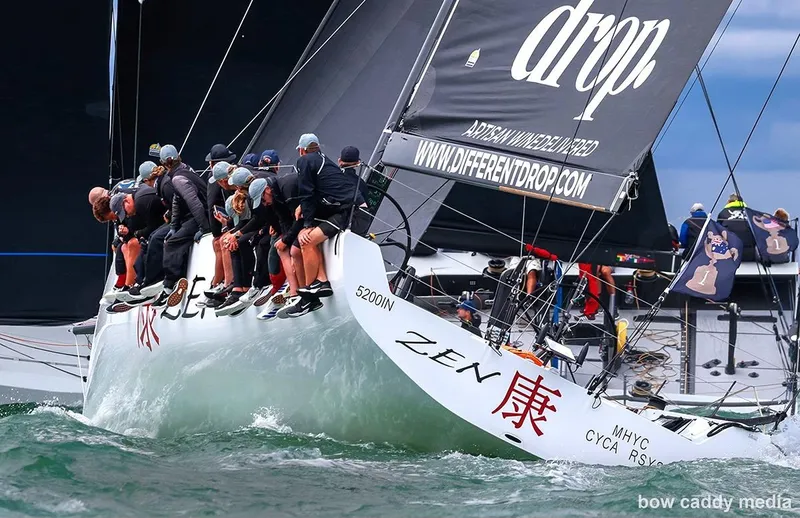

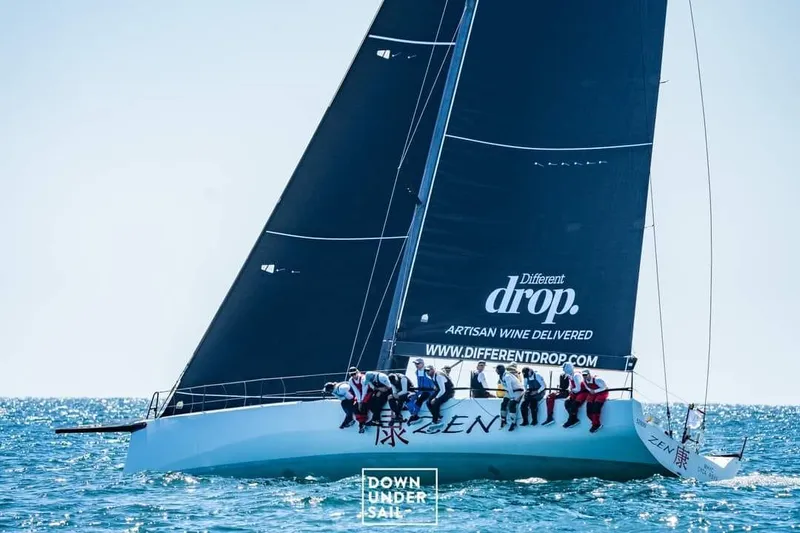

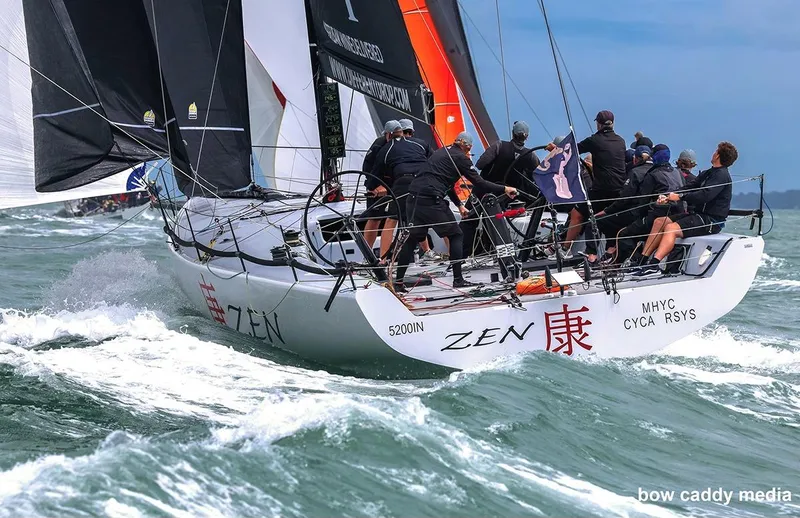

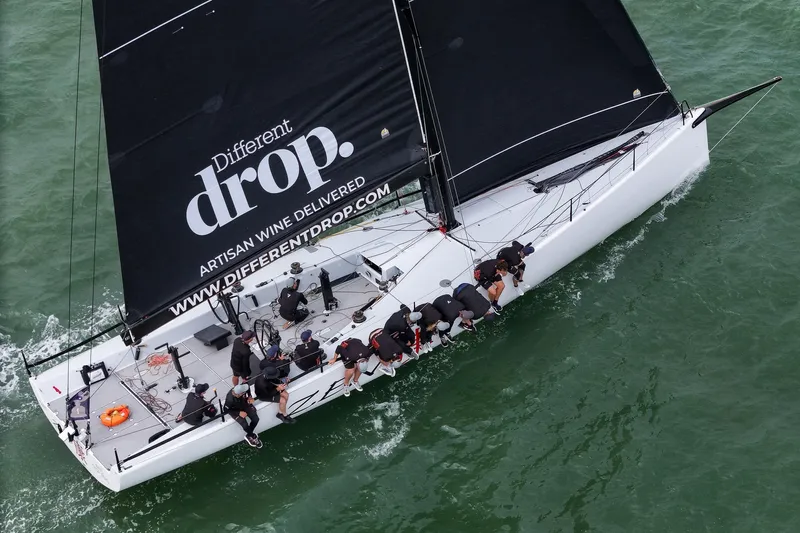

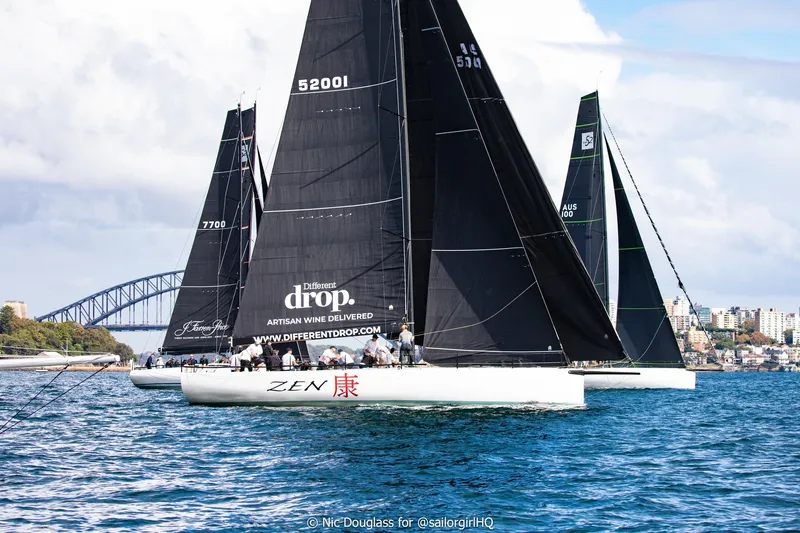

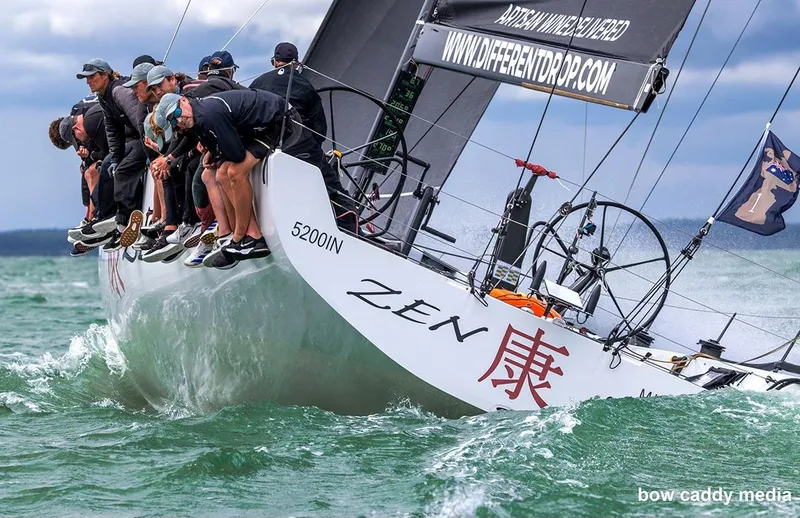

TP52 Zen has been meticulously optimised and refined to compete at the highest level under both IRC and ORC rating rules. Recently undergoing a full refurbishment, Zen boasts an extensive list of upgrades across her inventory, all in preparation to proudly represent Australia at the prestigious Admiral's Cup.
Versatility is a hallmark of Zen's design. She features a dual-configuration setup:

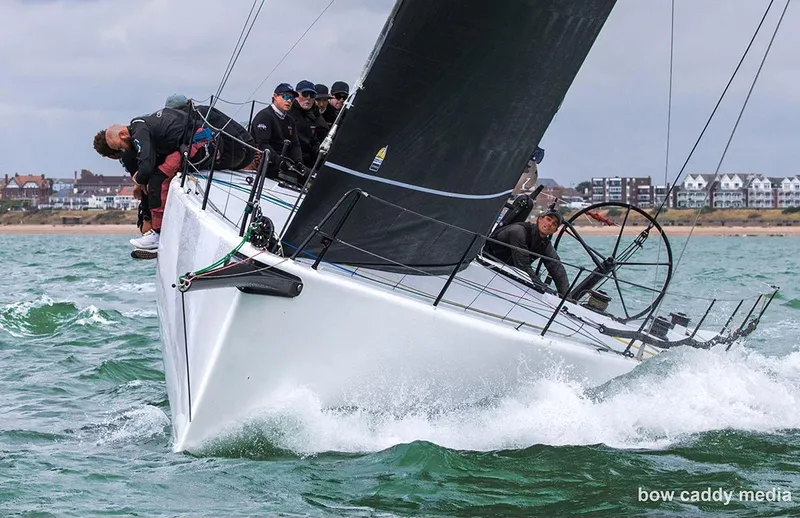

Offshore mode with twin wheels for long-distance racing and optimal offshore handling

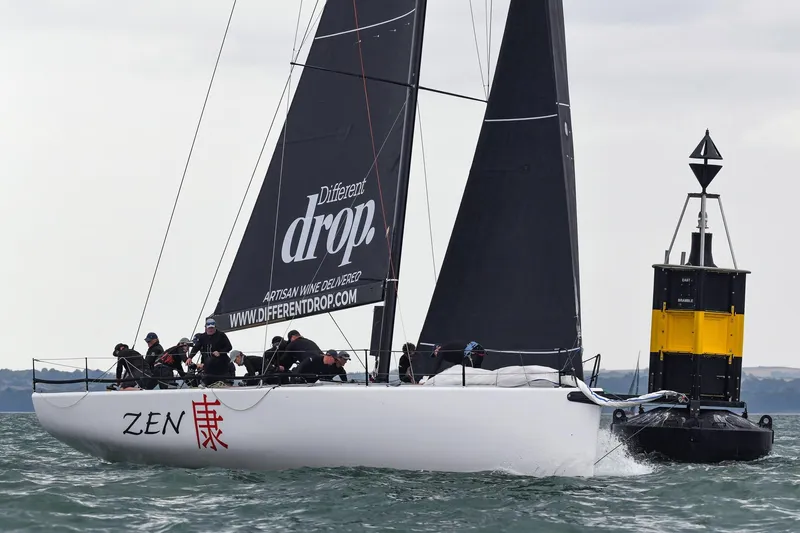

Inshore mode with tiller steering for lightweight, high-performance buoy racing
Whether offshore or around the cans, Zen is a proven, race-ready weapon built for serious competition.
ECsix rigging new in 2023
9 x Doyle Sails new in 2025 - Inshore & Offshore mains - J1, J2, J3 - A1, A2
B & G & Garmin instruments
Inshore & offshore booms
Starlink coms
Offshore safety equipment
Available October 2025 in Mediterranean
BATTERIES HOUSE ELECTRICAL
• 1 x Lithium light weight battery with management system
• 1 x Starter battery – lead acid
• Battery Charger
• Starlink Satellite Phone and Internet system
• 2 x hand held VHF Radios
• Fixed VHF radio
• ZEN 30 - 30 litre/hour water maker
SPARS & RIGGING MAST
• Hall Spars (NZL) three spreader mast
• Mast locks - Main, MH x 2, FRO
• Rig upgraded to EC6 from rod in late 2023
• All rigging cordage updated for Admirals Cup 2025
• Spare set of spreaders
BOOMS
• 1 x Lightweight inshore
• 1 x Offshore Boom setup with 3 reef locks – High modulus carbon
• Low windage Carbon Vang strut for both Booms
EC6 STATUS
• Lateral Rigging – New late 2023
• Lateral Rigging service interval – 10 years from 2023
• 2 x Brand new Backstays due March 2022 - Inshore Backstays.
• New EC6 Headstay 2023
• Spare EC6 backstay pending service - These backstays have HF aerials fitted.
WINCH SYSTEM
• 1x 650.3 STR-BS – 3 Speed, Carbon Top & Skirt, Base Sheave, Racing Winch
• 1x 650.3 STR-BS-LH – 3 Speed, Carbon Top & Skirt, Base Sheave, Left Hand Racing Winch
• 2x 650.3 STR – 3 Speed, Carbon Top & Skirt, Racing Winch
• 2x 650.3 STR-LH – 3 Speed, Carbon Top & Skirt, Left Hand Racing Winch
• 1x 500.2 STR – 2 Speed, Carbon Self-Tailing Racing Winch
PRIMARY PEDISTAL SYSTEM
• 1x PED/BD/MX 1 DISC – Carbon MX Pedestal, Below Deck, 1 Carbon Disconnect
• 1x PED/BD/MX/1 OUT – Single Speed Carbon MX Pedestal, Below Deck, Single Output
• 4x Carbon Handles
• 2x 606 – 1:1 Oil Bevel Box
• 1x 606 – 1:1.2 Oil Bevel Box
• 1x 606T – Oil Bevel T-Box
• 1x 606T/2 – Oil Bevel T-Box with 2 Disconnects, 1:1.2 Speed Up
• 1x 606X/3 – Oil Bevel X-Box with 3 Disconnects
• 11x Drive Shafts – Carbon with CV Couplers
• 1x Button Direct – AC7 Direct Foot Button
• 5x Button Remote – AC7 Remote Foot Button
• 5x Tensioners – For Remote Button
• Custom string drop take down wheel system connected to pedestal system
• Forestay ram pump connected to pedestal winch system
GEAR AND OTHER EQUIPTMENT
• Harken / Spinlock /Custom deck gear
• Harken Pro trim
• JP3 Rudder bearings ??-
• Composite stanchions
• Custom tail bags
• Custom forehatch with take down roller
• Inshore and offshore front hatch covers
• Inflatable front hatch seal with compressor, above and below deck functionality
• 3 x Spare hatch seals
• 2 x spin sheet take up unreelers 1 x Spinnaker halyard take up unreelers.
• Portable Deck gear bag with all required snatch blocks tweakers etc.
FURLERS
2 x KZ 4T Drums with Ti 2:1 clips and furling lines with custom leads
2 x KZ 4T Head swivels, 1 Brand new
1 x Doyle Top Down Integrator for 2024 A-0
1 x KZ Top Down Integrator for 2018 A-0
1 x 1T KZ Spinnaker Staysail Furler and Head Swivel
1 x KZ2T Doyle Custom Top down Jib Staysail furler with 2:1 Head swivel with integrated sheave
1 x Karver 0.9 Staysail Furler and head Swivel
HYDRAULICS
• Built in Mast Jacks
• Forestay ram is hydraulic with pressure sensitivity driven by pedestal system
ADDITIONAL PERFORMANCE UPGRADES
• Additional carbon structure added – bow stringers and internal reinforcement from mast back to make hull capable of CAT1 - 2018
• Upgrade from Super Series to CAT1 required modification of many deck penetrations, on deck in out up down system for jibs, on deck traveller etc.- 2018
• Mast upgrade for CAT1- 2018
• Major upgrade of water proofing and bilge pump systems to improve offshore leaks
• New stronger/lighter Carbon STL 9m Prod with 2 Tack Lines (Single tack line bowsprit also included)
• Optimised machined bulb with galleries 230kg lighter to improve downwind performance 2023
•Interchangeable Carbon Wheels / Tiller steering with protection bars, ramps etc
• Offshore dodger
INSTRUMENTS
• H5000 Processor supplied and fitted 2018
• 7 x Garmin GNX 120 mast displays
• 1 x B&G Graphic Display cockpit
• 2 x B&G 10/10 dedicated runner displays
• Precision 9 compass
• Mesa 2 Deck screen
• 2 x Ipad Deck screens
• Digital Barometer
• Depth-Temperature sensor
• Lightweight mast cable
• Potentiometers on forestay rake and rudder angle
• Getac Laptop with dock
• Lightweight wiring looms throughout
• Internal LED lighting
• B&G Autopilot
LICENCED SOFTWARE
• Sailing Performance – Onboard Assistant licenced to Mesa 2.
• Expedition – licenced to both Getac & Mesa 2. To be transferred to new owner’s name
• Microsoft Office suite – licenced to Getac and Mesa 2 IP
SAFETY GEAR
• Inshore, coastal and offshore set of polars & targets
• 2 x 8 man Ocean Safety life rafts
• 16 life jackets
• Full CAT2 First Aid Kits
• 2 x Anchor kits
• All other safety items required for CAT2
ADDITIONAL INCLUSIONS
• Jib Stick
• Boom Tent
• Mainsail cover
• Full set pedestal and winch covers
• Cockpit deck covers, aft deck
• Halyard tail bags
• Padded transport covers for rudder, 2 x boom covers
• 20ft Container Storage and Workshop – Container in survey from March 25 for 5 years
• 4 wheel box trailer to easily move sails and spares to regattas (Located in Sydney)
• Galvanized Adjustable cradle (2 heights) with legs/splashes, Separate keel and bulb cradle - Cradle can be disassembled for storage / transporting - $10,000 service March 25 – Capable of transporting keel/mast on or flat-pack
• Large inventory of spare sheets, runners, halyards and all control lines
• Spare stanchions; Spare lifelines
• Jack Stays
• Electrical and mechanical bilge pump system onboard
• Puppy style bilge pump
• Custom quick install Galley
• Custom quick install Head
• Custom Food Bags.
• Offshore onboard Tool kits
• 2 X Dehumidifiers
• Large inventory of spares in container and onboard kits
• Various power tools. drill, grinder, polisher dehumidifier wetvac.
• Spare Carbo-Link Forestay
• All Previous Rod Rigging available and ready to re-fit if required
• 2 x Brand new Rod bob stays, plus spare
SAILS
Current inventory
2025 A-1
2025 A-2
2025 J-1 Stratis 1100CT Structured Luff
2025 J-2 Stratis 1100CT Structured Luff
2025 J-3+ Stratis 1100CT Structured Luff
2025 Stratis ICE Storm Jib
2025 Storm Tri-Sail
2025 Inshore Main Stratis 110CT
2025 Offshore Main Stratis 1100CT (New set of CT22 Battens shared between 2025 Mainsails)
2024 Spinnaker Staysail
2024 J-2 Stratis 1100CT Structured Luff
2024 Genoa Staysail Stratis 1100CT Structured Luff With KZ 2T Top down Furler
2024 A-0 Stratis 1100CT Structured Luff
2024 A-1.5
2024 A-2
2023 J-3 Stratis 1100CT Structured Luff
2022 J-1 Stratis 1100CT Structured Luff (First used 2023)
2022 Inshore Main Stratis 1100CT-Complete set of CT22 Full length Battens and Seaman Leech battens (TBC, cant recall right now) (First Used 2023)
2022 A-1.5
2021 J-2 Stratis 1100CT Structured Luff
2021 A-2
2021 A-2+
2020 Jib Top-Stratis 1100CT Structured Luff
2019 Spinnaker Staysail
2019 J-4 Stratis 1100CT
2019 J-3+ Stratis 1100CT
2019 J-2 Stratis 1100CT
2018 J-5 Stratis 1100CT
2018 J-6 Radial Carbon
Plus other older sails
