254 Expedition 1974 Yacht for Sale

PARTICULARS:

• BUILDERS: SCHICHAU UNTERWESER AG, BREMERHAVEN
• DATE OF KEEL LAID:1974
• DATE OF DELIVERY:MARCH 1975

CONSTRUCTION:

• Material: STEEL
• No. of Decks: Three (3)
• No. of Watertight Compartments: Two (2): low/lower deck in Engine
• Bulbous Bow: N/A

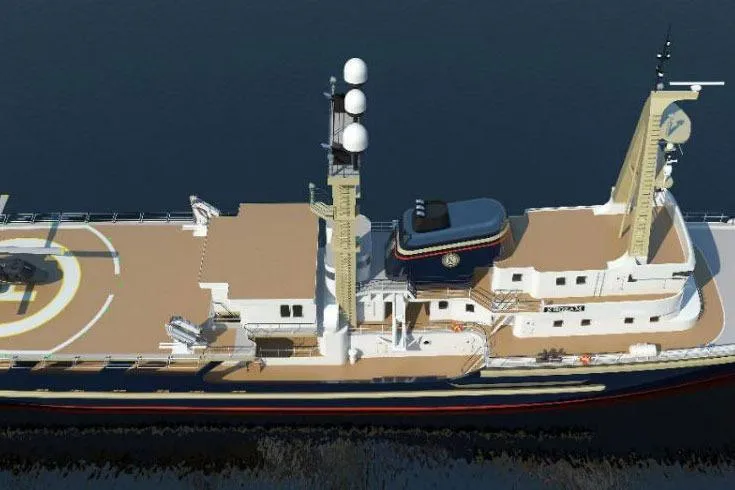

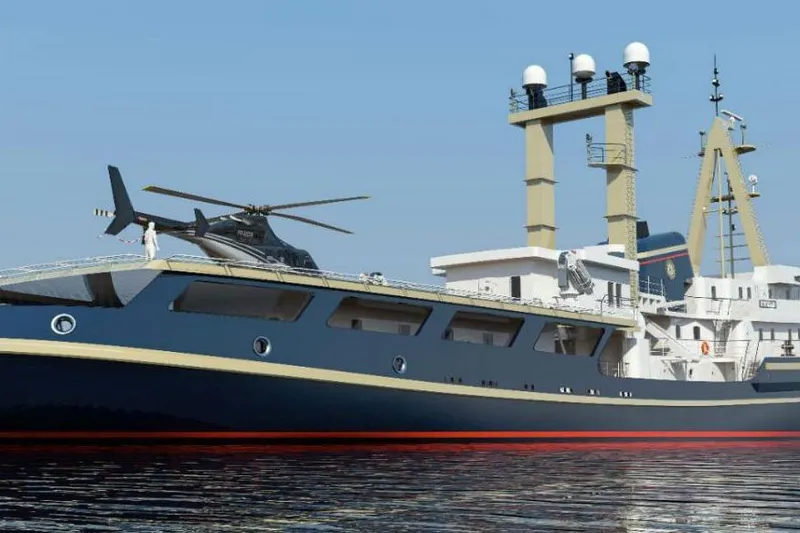

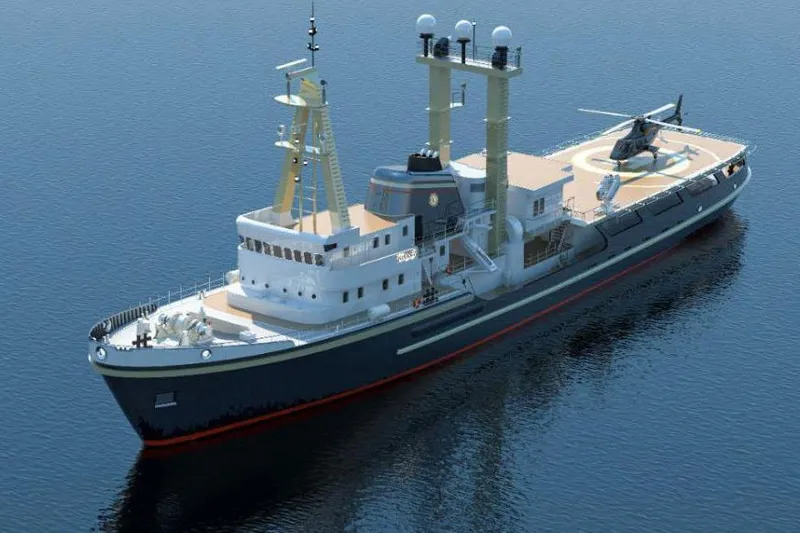

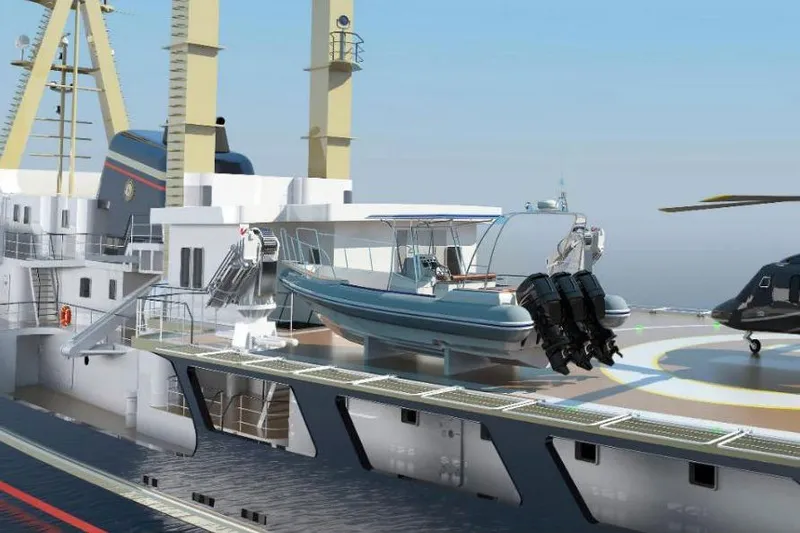

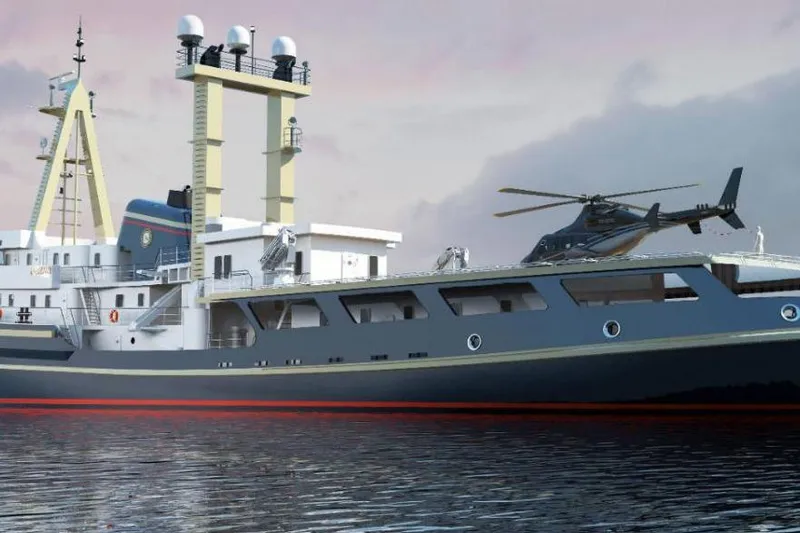

HELIDECK:

• Dimensions: 13,6 x 23,9 = 325 M2
• Location: After part of the Vessel
• Compliance with ICS guidelines: Yes
• TONNAGE
• Gross: 1826
• Net: 547

CANAL TONNAGE:

• Suez Gross: 1864,26 tons
• Suez Net: 1247,59 tons
• Panama Gross: 1547,29 tons
• Panama Net: 164,42 tons

DISPLACEMENT

• Fully loaded: 3353,8 T
• DEAD WEIGHT 1041,0 T
• LIGHT SHIP 2360,5 T

PRINCIPAL DIMENSIONS

• L.O.A. : 77,40m
• L.B.P. : 69,70m
• Beam: 13.219 mtrs
• Draft: 5,80 m
• Air Draft: (Mast height 33.50 mtrs)
• Keel to Masthead: 40.50 mtrs
• Parallel body: 39.00 mtrs

SPEED

• Maximum: 16 Knots Range/miles: 5700
• Cruising: 15 Knots Range/miles: 6080
• Long range: 13 Knots Range/miles: 7015

FUEL

• Type: GAS OIL

MACHINERY ETC.

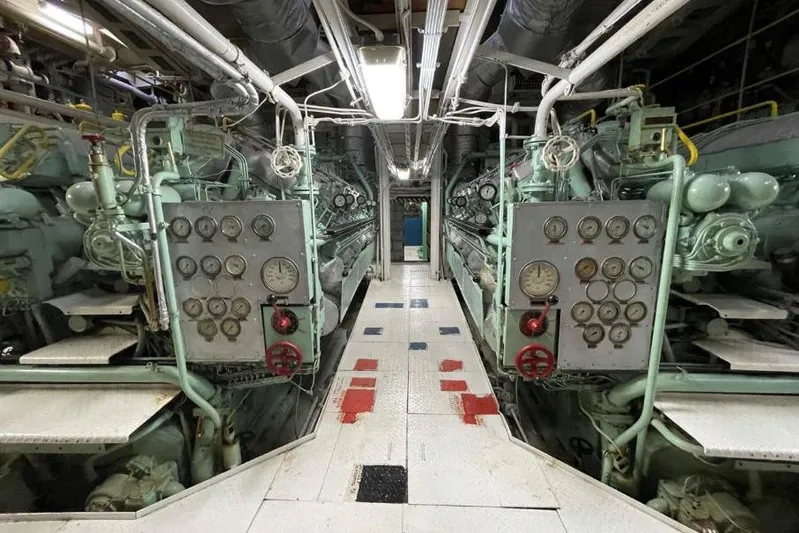

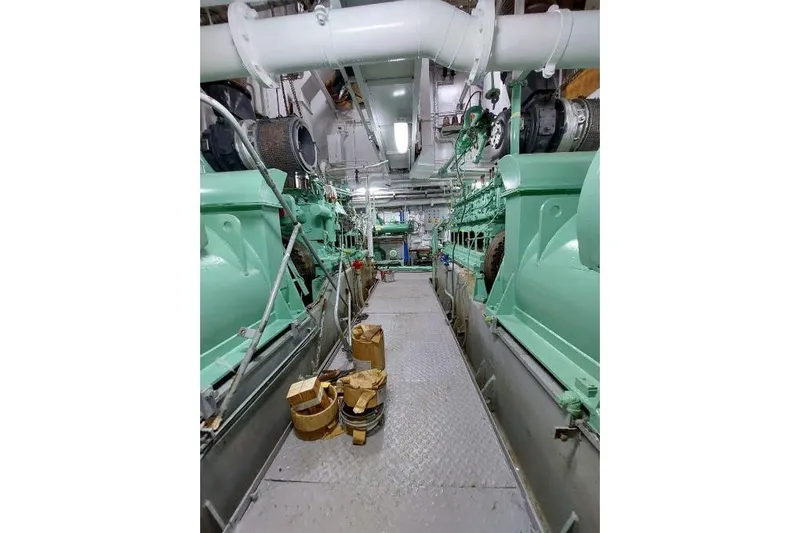

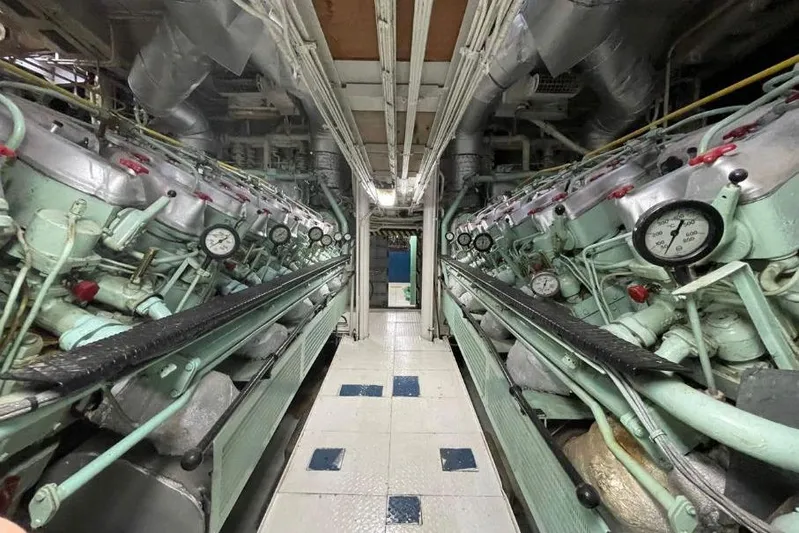

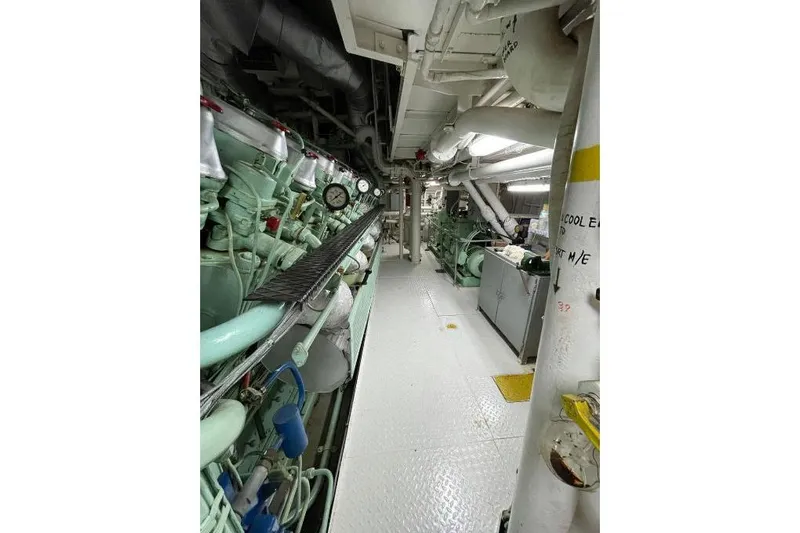

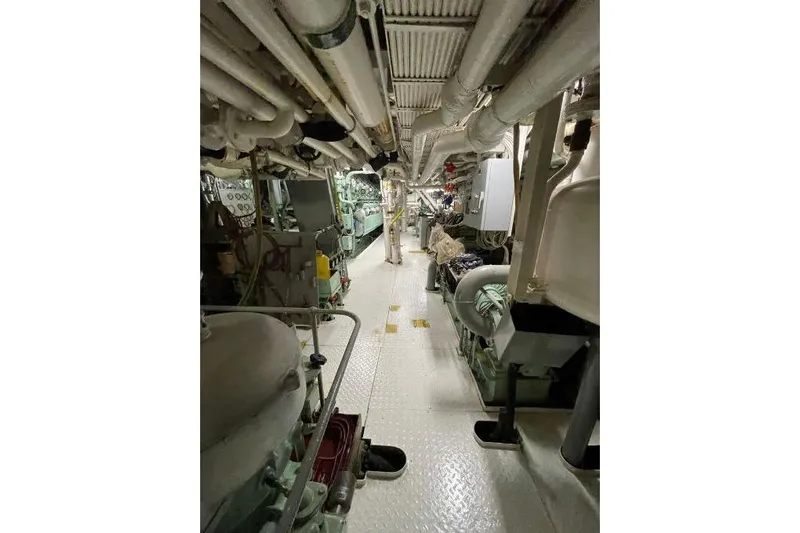

• MAIN ENGINES
• No.: Two (2) Running hours: P: 74801, S=74801
• Makers: DEUTZ-AIWA
• Type: RBV 12M-350
• HP/RPM: 4400/430 each
• Serial No.: Port 5251648 Stbd:52516477
• GEAR BOXES
• Makers: RENK GEAR
• Type: BUS-80
• Reduction: 430/148 rpm, Serial No.: P: 640415, S:640327
• BOWTHRUSTER
• Makers: GARBE-LAHMEYER
• Type: A15/800
• Capacity: 400 HP-245 Kw
• GENERATOR SETS
• No: Three (3)
• Engine Makers: DEUTZ
• Type: BA6-M528
• KW: 441 each Voltage: 380V/50 Hz
• Generator Makers: SMBS / 110-51
• Power: 441 kW Phases: 3/50
• Voltage: 380V Run. Hrs: 64953,64415,65405
• EMERGENCY GENERATOR
• Engine makers: DEUTS
• Type: BF6M 716
• KW: 167
• Voltage: 380v V / 50 Hz
• Generator Makers: SMB54 / 73-34-50-60
• Power: 150Kw
• Phases: 3 / 50 Hz
• Voltage: 380 V
• Run. Hrs: 30000

ELECTRICITY

• Shore Power: 380V, AC 220 Amp / 50 Hz
• Average Consumption In Port: 70 Kw for 24 Hrs

TANKS CAPACITY (litres)

• Fuel: 460000 ltrs Fresh water: 350M/T
• Lub. Oil: M/E + Pitch Oil: 46000 Ballast: 193 M/T ltrs
• Dirty oil: 58,3 m3
• Grey water: 3 m3

ANCHORS & CHAINS

• Anchor type: Spek – patentanker
• Anchor Weight: 1644 kg each
• Anchor Maker: Blohm & Voss AG
• Chains type: K2a Stud links
• Chains Length: 248,5 each
• Size of links: 40mm

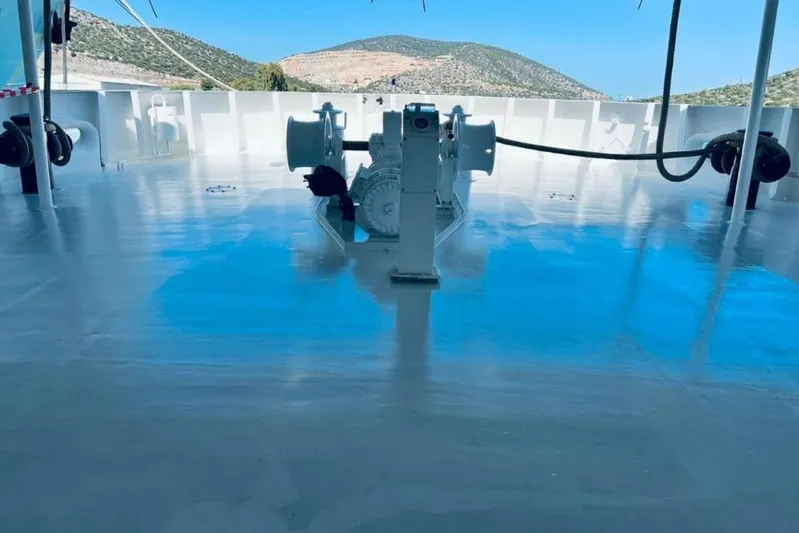

WINDLASS

• No : One (1)
• Makers: GARBE-LAHMEYER
• Capacity: 12 Tons-Pull

CAPSTANS

• No : 1
• Makers: GARBE-LEHMEYER
• Capacity: 6 Tons-Pull

PROPELLERS

• Makers: ZEISE-LIAAEN VERSTELL
• Type: 2 Shafts twin screw variable pitch / EF115/4, Diam 4000mm
• Material: Bronze

STABILIZERS

• Makers: N/A

WATER MAKERS

• N/A
• Daily consumption of fresh water only the Crew 4 to 6 tons
• Daily consumption of fresh water with Guests 8 to 10 tons
• Makers: LIFTSTAR 600 R/Air winch
• Location: Main Deck (middle port, std)
• Capacity: B.W.L=0.7 tons, S.W.L=0.6 tons

LIFE SAVING EQUIPMENT

• Type: Motorboat (M.B)
• Makers Hatteche, Stade
• Capacity: 35 persons each boat

LIFE RAFTS

• No.: Two (2)
• Makers: (SURVIVA)
• Type: SURVIVA
• Capacity: 25 persons each
• Description: Model: Projet yung, series: 2053
• Particulars:
• Length: 4.20m,
• Weight empty: 257 Kg
• Capacity: 6 persons or 450 kg,
• Max.power: 50hp
