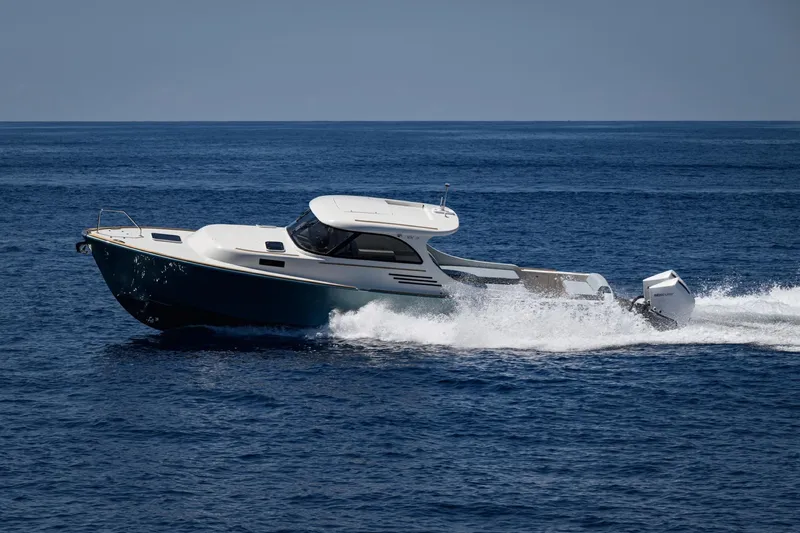

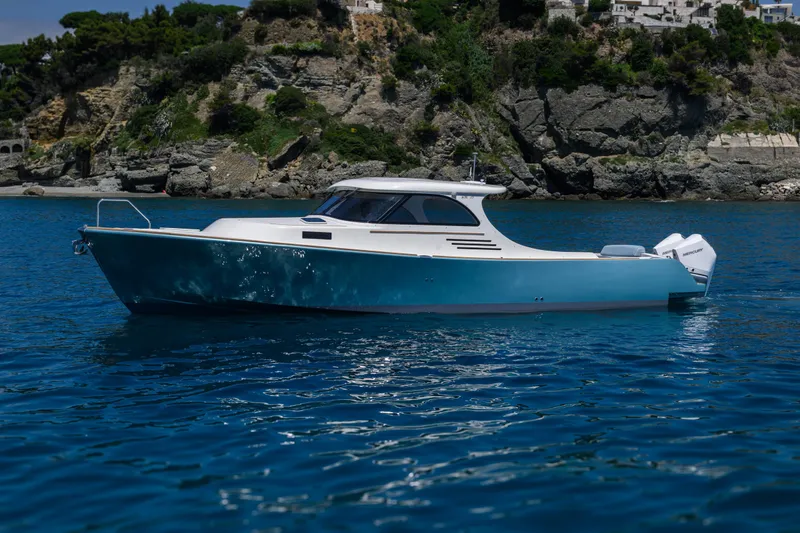

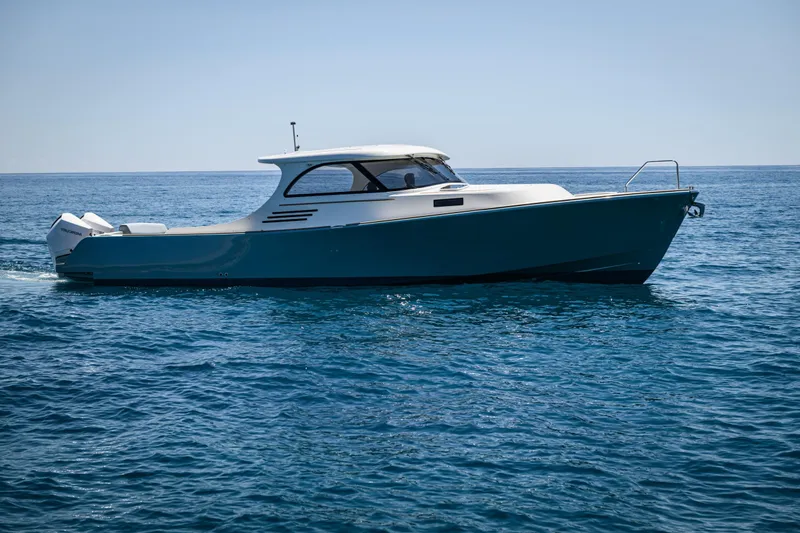

39 OUTBOARD Boat for Sale

Hull length 11,90 mt. 39.0 ft

Length overall 12,05 mt. 39.53 ft

Beam 3,80 mt. 12.5 ft

Draft (max) 0,80 mt. 2.6 ft

Displacement (half load) 7.5 tons.

Engines N. 2 Mercury Verado 300 CV

Steering system Integrated Electro Hydraulic system

Fuel capacity 242 UK gallons (1100 Lt)

Maximum Theoretical Cruising Autonomy 3000 RPM – 28 Knots = 300 Nautical Miles

Water Capacity 105,6 UK gallons (400 Lt)

Cruising speed 28 knots

Top speed 36 knots

Design: Nauta Design/Hydrotec

Certification CE – B off shore

• Vessel built in accordance with CE certification, cat. B offshore.
• Sandwich in sides and bottom.
• GRP swimming platform with teak gratings. and folding swimming ladder
• Hinged transom door.
• Watertight bulkheads: bow - midship / storage room - stern.
• Electrical trim tabs model INTRUDER.
• Antifouling bottom and water level paint.
• Cathodic protection with sacrificial anodes.

• Deck and superstructure laminated in GRP sandwich with PVC core.
• White gelcoat finish with sprayed non-skid.

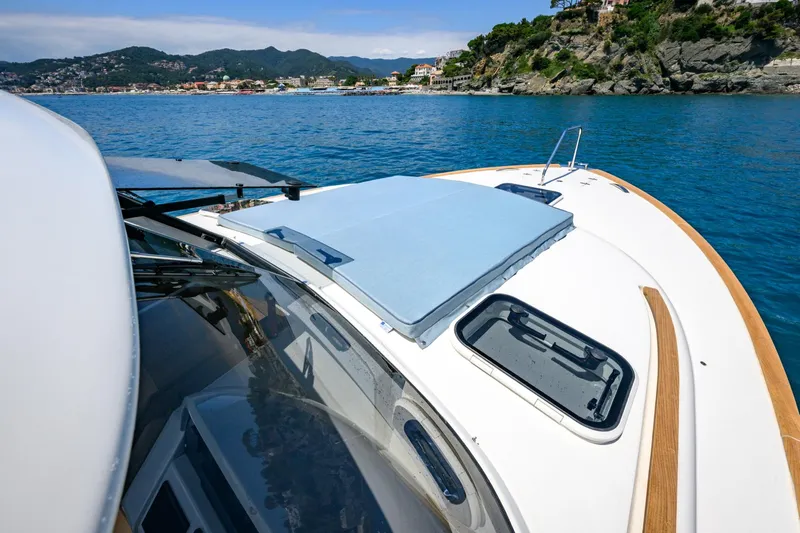

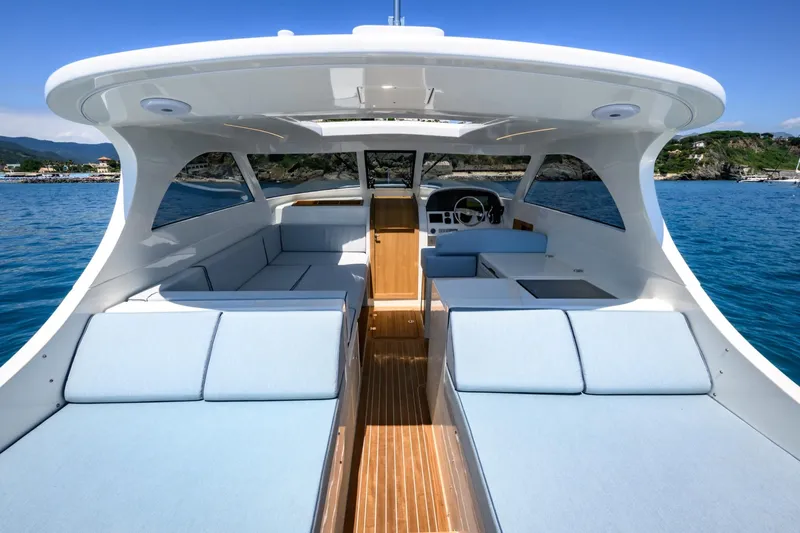

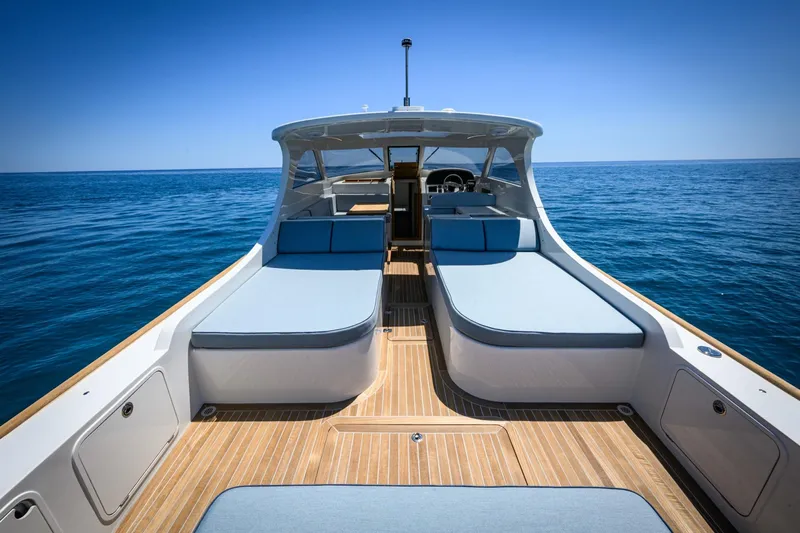

• N.2 cockpit sun beds on hatches and on foredeck.
• N.2 storage hatches.
• N.1 systems locker hatch and anchor locker.
• N. 4 handrails, on roof top and bow deck.

Teak

• Cockpit, helm station and dinette sole covered with 10 mm teak and solid side coamings.
• Solid teak sheer line toe rail.

Hatches, portlights and windows

• Low profile deck hatches with nets and blackout sheets.
• Custom smoke grey plexi windshield shatterproof.
• Windshield center section opening with upper hinges.
• N.2 wipers with freshwater washer. Pump connected to freshwater tank.
• Hatches handles and hinges in stainless steel.
• Electrically sliding pilothouse roof hatch.

Deck accessories

• Mooring and steaming light mast.
• Teak Flagpole.
• Watertight inlet for shore power.
• Hidden deck shower with hot and cold fresh water.
• Courtesy foot-lights.
• Inox Swimming ladder removable.

Mooring system

• Anchor windlass 1000 W with remote switches at helm and forepeak.
• Stainless Steel Trefoil type anchor Kg 10.
• Stainless Steel stem plate with mooring fairlead integrated.
• Galvanized 8 mm steel chain, 75 mt length with swivel.
• N. 6 flush deck cleats,N. 2 on the bow, N 2 mid ships, N. 2 at stern.
• N. 8 Pushlock along the toerail toward the CL. for fenders.

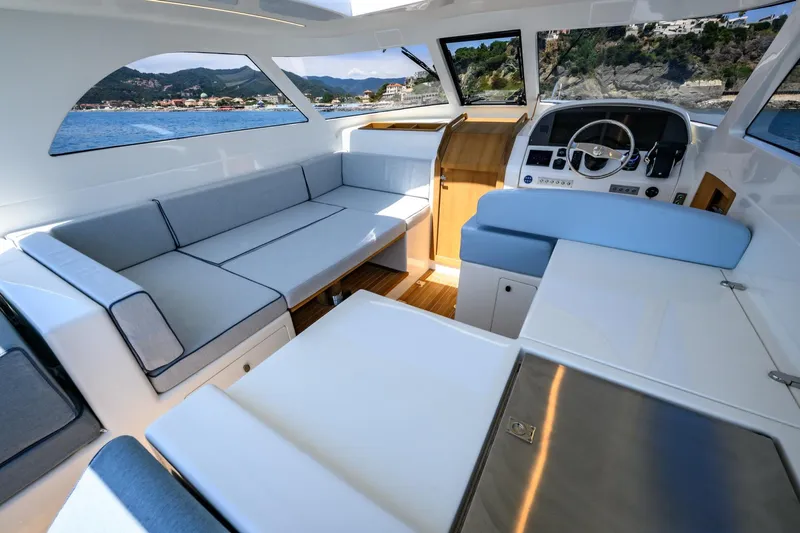

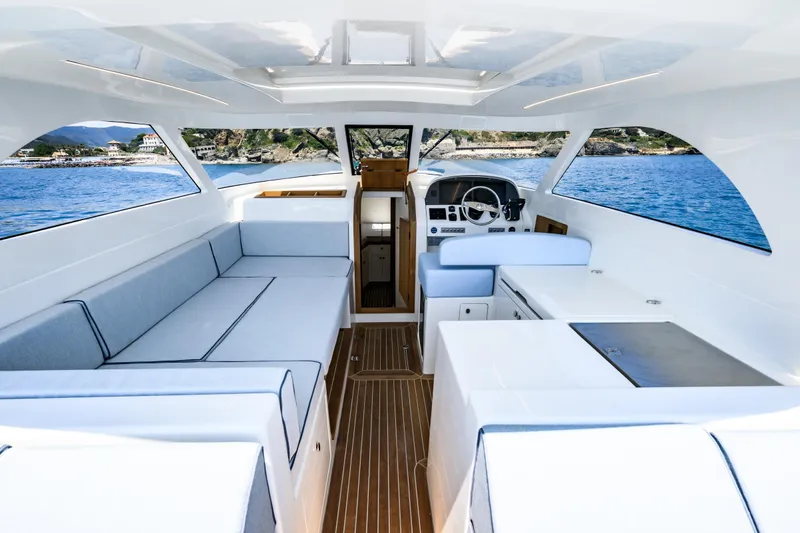

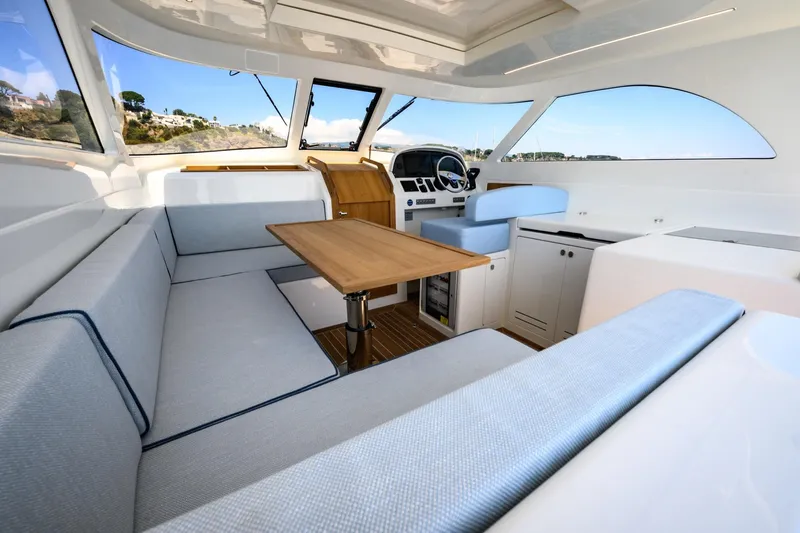

Dinette

• C shaped lounge with folding CL seat.
• Drawer below seats.
• Teak covered hi-low table.
• Hatch with direct access to bilge area.
• Hatch with access to gasoline tank inspections.

Galley

• Stainless steel sink with hot-cold mixer faucet.
• Refrigerator 110 l.
• Freezer sunk in countertop 50 l.
• Induction cooktop with two burners.

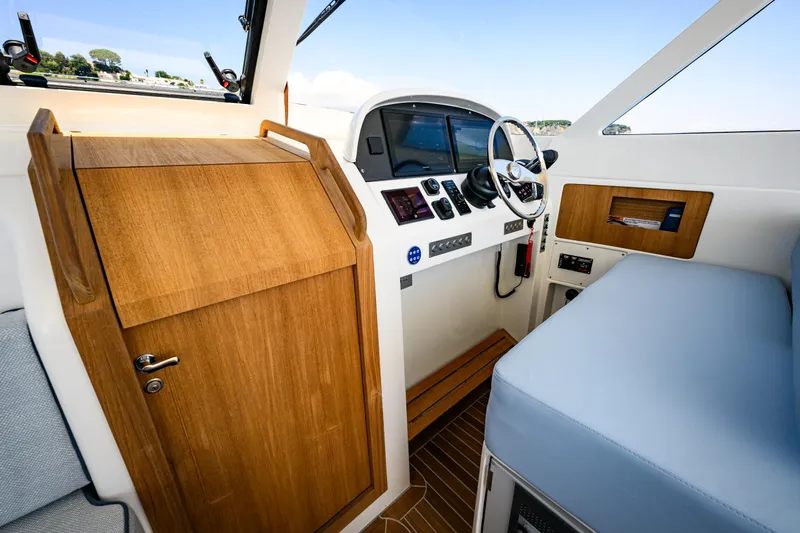

Steering station

• Double helm seat in front of the galley.
• Helm console with instruments and engine controls and various, 2 Garmin Display 12”.
• 3” magnetic compass.
• Mercury electronic engines controls.
• Ongaro stainless steel steering wheel.
• Hydraulic steering pump.

Upholstery and canvas

• Dinette cushion with Sunbrella washable external cover.
• External cushions with closed cell foam and with Sunbrella washable external cover.

Interior material

• Furniture and bulkheads and hull linings off white lacquered with teak trims, doors frames bulkhead and teak doors.
• Cabin sole made of marine grade plywood and finished with teak.
• Door handles, and interior fittings in polished stainless steel black mat.

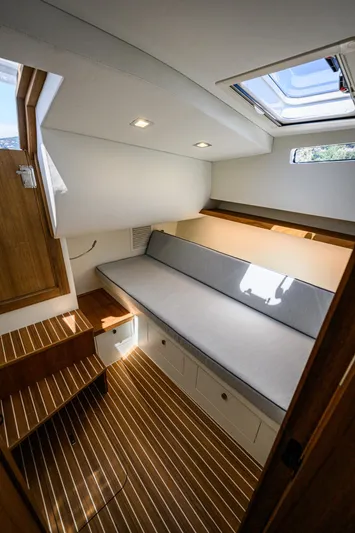

Cabins

Twin size bed with “V” layout.

• N. 2 locker with drawers.
• Drawers and storage under berth.
• 220V outlets.
• 1 opening deck hatch.

N. 1 sliding sofa / bed.

• - Cabinets and bookshelf.
• - Hatch and fixed porthole

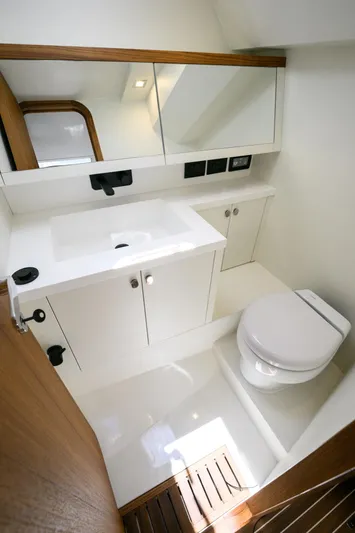

Bathroom

• Sink with shower mixer & support. storage below and vanity mirror.
• Retractable shower.
• Hot-cold lever mixer.
• Electric toilet.
• 220 V AC outlet.
• Complete set of bathroom accessories.
• Opening deck hatch.

Upholstery

• Foam berth mattresses with lining.
• Bedspreads and cushions made of Sunbrella fabric.
• Clear leather like vinyl ceilings.

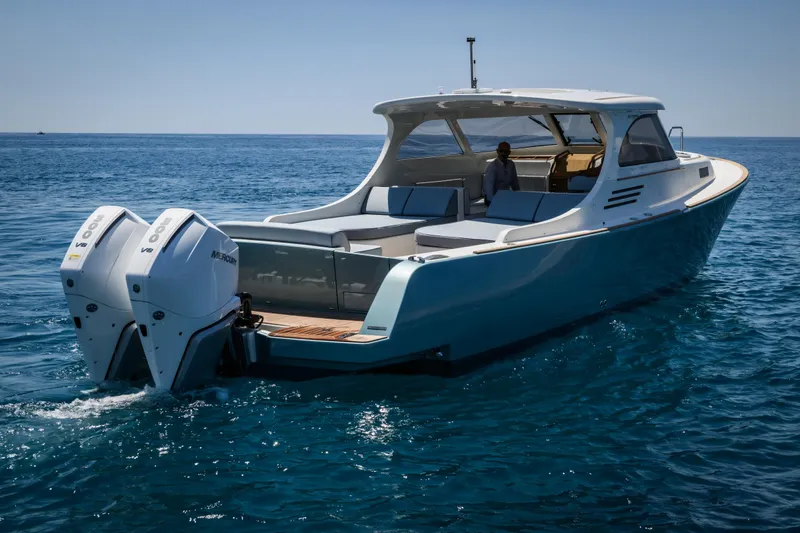

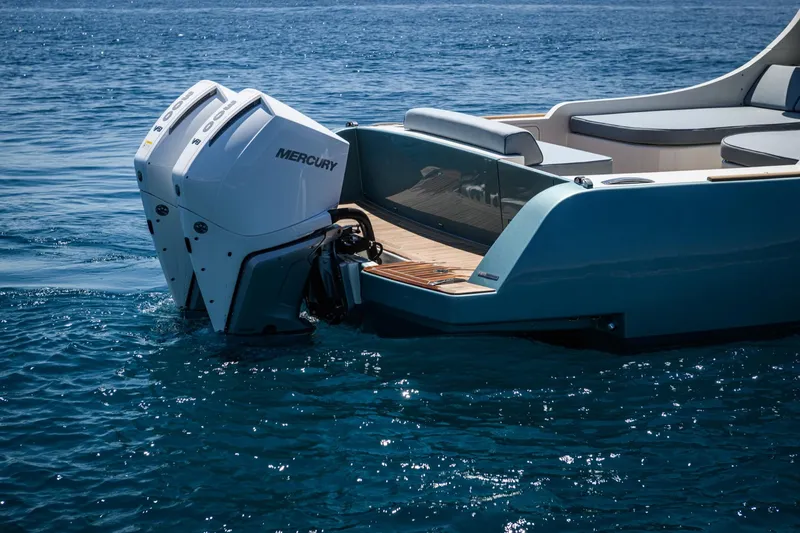

• N. 2 out board engines Mercury Verado 300 cv V8 4.6L.
• N. 2 integrated gearboxes.
• N. 2 Stainless steel propellers.

Fuel system - Petrol

• N. 2 drains in stainless steel of 50 mm on portside deck.
• Aluminium fuel tank of 242 UK gallons (1100 lt) capacity with fills and supplying engines.
• Tank level gauge at steering station.
• RINA approved flexible fuel pipings.
• Racor filters for each engine.

Fuel system – Diesel

• 50 mm Stainless steel fuel fills on Starboard deck with drain.
• PVC fuel tank of 15 Uk gallons (57 lt) capacity, with inspection and cleaning port
• including fills, supplying generator.
• Tank level gauge at steering station.
• Racor filter
• RINA approved flexible fuel piping.

Cooling and exhaust system

• Engine cooling system with heat exchanger.
• Bronze seacocks with valve.
• Raw water strainers with removable stainless steel filters.

Ventilation

• Air intakes from deck house sides grids for the ventilation of the petrol tank and the
• and bildges.

Fresh water system

• Stainless steel flush fill on deck.
• N°2 structural GRP 132 UK gallons (200 lt.) each tank with inspection ports.
• Water level gauge at steering station.
• Fresh water pressure pump.
• 220V AC, 25 lt boiler.
• Water distribution system for galley, head and cockpit shower.
• Cockpit shower with hot and cold water.

Salt water system

• Raw water pressure pump.
• Manifold for distribution to WC
• Anchor locker chain washer.

Grey water system

• Grey water tank for head sink and shower including 12V drain pump.
• Galley sink with overboard discharge.

Black water system

• N. 1 electric toilets.
• Black water polypropylene tank, 42 lts. Capacity, with electric sump pump and Y
• valve.
• Alarm for full tank, valves manifold for dock / overboard discharge.

Bilge system

• N. 4 12V DC automatic bilge pumps. One in aft peak, one mid ship / storage bay,
• one for cabin / forepeak.
• Bilge pumps have automatic switch floats and manual override switches on helm
• console.
• N.1 emergency bilge pump in cockpit with three-way valve to drain all bilges and
• overboard discharge with siphon and safety valve.

220 V AC

• Watertight inlet for shore power 32 Amp.
• Generator 6.0 KW 220V 50HZ.

12 V DC

• Service batteries set 12V 510Ah.
• Engines and genset start batteries set 12V 200Ah.

Electrical panels

• Main distribution panel.
• Batteries switch panel.
• N. 2 Garmin display da 12”.
• Cockpit control panel.

Equipment

• 1 12V 80Ah battery charter.
• 2 12V 80A engine alternators.
• 1 Inverter 1000 W.

Lighting

• Watertight led spots in head, dinette and galley.
• Led spots in accommodation.
• Bed reading lights.
• N. 5 watertight cockpit foot lights.
• C.E. approved navigation lights

Various

• Register approved navigation lights. Switches for navigation lights on helm console.
• Earthing system.
• Cathodic protection with sacrificial anodes.

• N. 1 Garmin VHF.
• Integrated Hi-FI music system, 2 dinette speakers and 2 watertight speakers in cockpit.

• Firefighting system near the gas tank compartment as per RINA regulations.

Delivery and documents

• Sea trials.
• System test.
• CE / RINA certification (16 people).
• CE approved owner’s manual.
