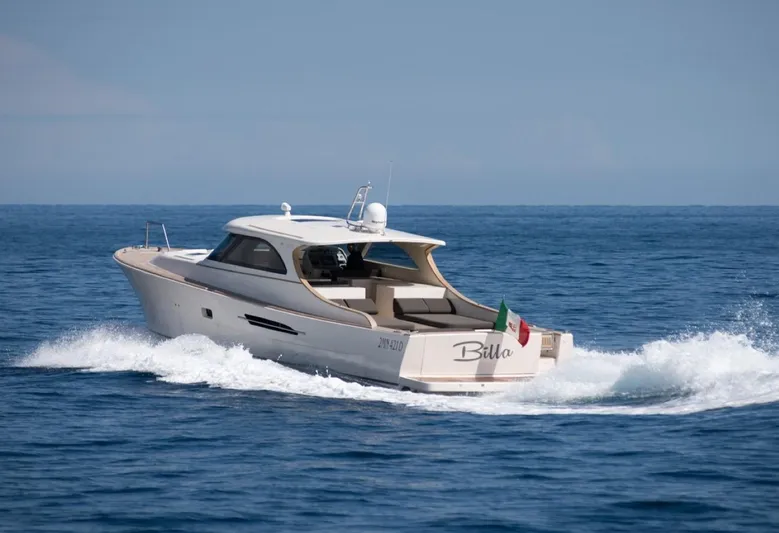

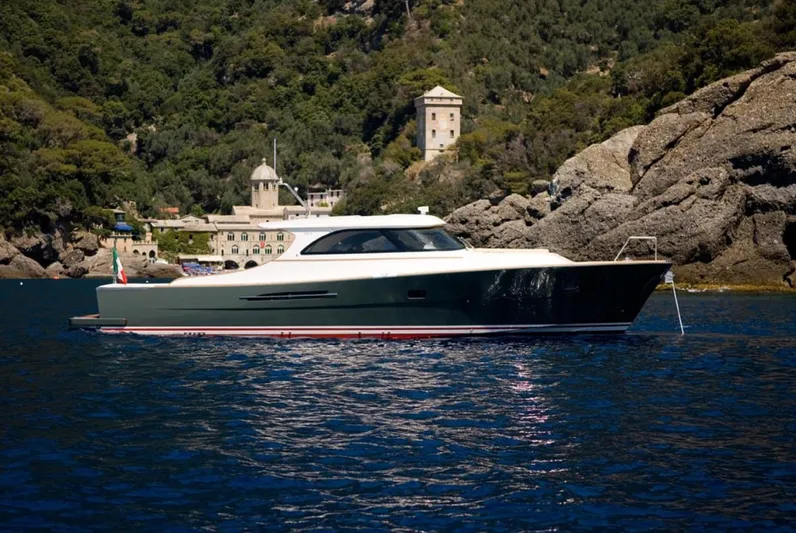

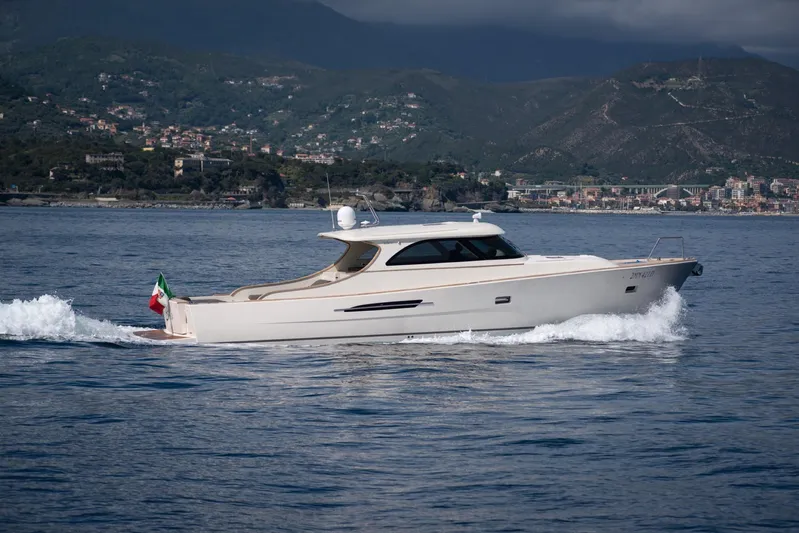

51 Boat for Sale

Hull length 15,01 mt. 49.3 ft

Length overall 15,74 mt. 51.6 ft

Length at waterline 13,64 mt. 44.7 ft

Beam 4,80 mt. 15.9 ft

Draft (max) 0,90 mt. 2.9 ft

Displacement (half load) 19 tons

Engines N. 2 Volvo D8 600Hp

Propulsion IPS 800

Fuel capacity 580 UK gallons (2200 Lt)

Water Capacity 130 UK gallons (500 Lt)

Cruising speed 26 knots

Top speed 33 knots

Design: Nauta Design

Certification CE – B offshore

• Vessel built in accordance with CE certification, cat. B offshore
• Sandwich hull sides and single skin bottom
• Structural bulkheads in marine grade plywood
• Watertight bulkheads: bow - midship / engine room
• Hull colored gelcoat in accordance with client’s selection
• Hinged transom door
• GRP swimming platform with teak gratings

• Deck laminated in GRP sandwich with PVC core
• White gelcoat finish with sprayed non-skid
• Engine room accesses, N.1 systems locker hatch and anchor locker hatch
• Forepeak for anchor winch and chain

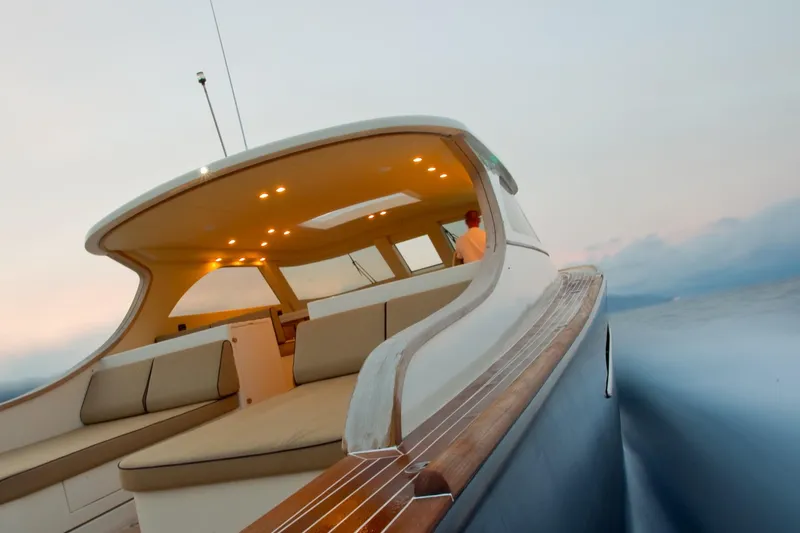

Teak

• Cockpit, helm station and dinette sole covered with 10 mm teak and solid side coamings
• Solid teak sheer line toe rail

Hatches, portlights and windows

• Low profile deck hatches
• Custom smoke grey safety glass windshield with PVB and UV treatment
• Windshield center section opening with upper hinges
• N.2 wipers with freshwater washer. Pump connected to boat freshwater tank
• Hatches handles and hinges in stainless steel
• Electrically sliding pilothouse roof hatch
• Portholes with safety stainless steel enclosures / darkeners

Deck accessories

• Flagpole
• Stern recessed telescopic hydraulic gangway
• Hidden deck shower with hot and cold fresh water
• Courtesy foot-lights
• Tender lift
• Inox Swimming ladder withdrawn in the aft platform

Mooring system

• N.1 2000 W anchor windlass with remote switches at helm and forepeak
• Stainless Steel Trefoil type anchor Kg 20
• Stainless Steel stem plate with mooring fairlead integrated
• Galvanized 10 mm steel chain, 60 m length with swivel
• N. 6 flush deck cleats, N.2 on the bow, N.2 midships, N.2 at stern
• N. 2 flush deck stainless steel cleat on the swimming platform form tender mooring
• N. 4 mooring fairleads: N. 2 on the bow, N. 2 at stern
• N. 10 Folding padeyes on the deck toward the CL. for fenders

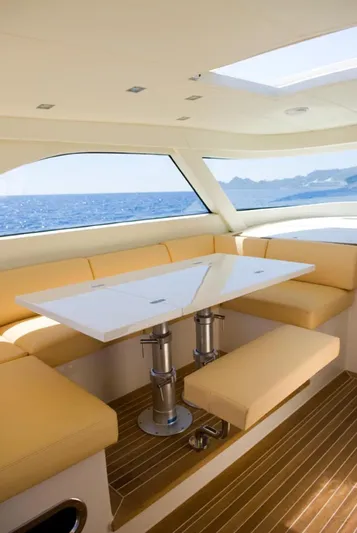

Dinette

• C shaped lounge with folding CL seat
• Teak covered hi-low table

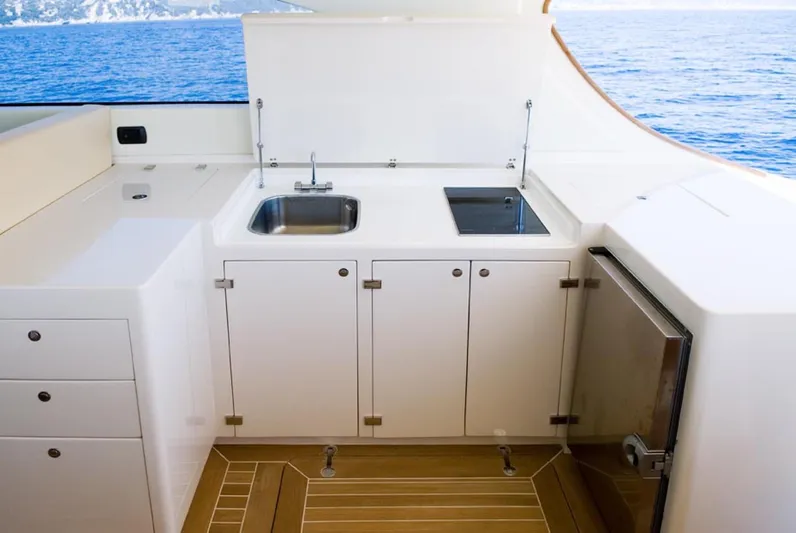

Galley

• Open galley on stbd side facing the dinette
• Induction cooktop with two burners
• Sink with hot-cold mixer faucet
• Refrigerator 110 l.
• Freezer sunk in countertop 50 l.

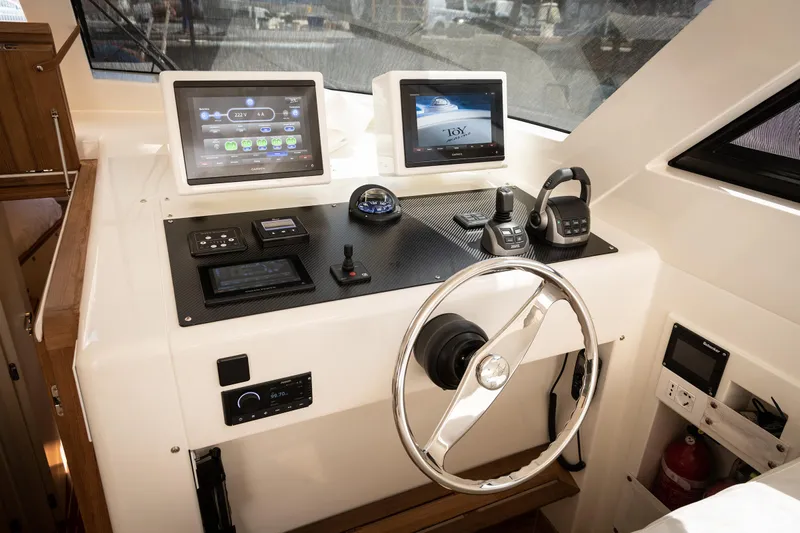

Steering station

• Double helm seat to the front of the galley
• Helm console with instruments and engine controls and various
• 3” Ritchie magnetic compass
• Ongaro Stainless steel steering wheel
• Hydraulic steering system

Upholstery and canvas

• Dinette cushion with Sunbrella washable external cover.
• External cushions with closed cell rubber foam and with Sunbrella washable external cover

Interior material

• Furniture and bulkheads and hull linings off white lacquered with teak trims or teak/mahogany veneered, door frames bulkhead flush and teak doors
• Cabin sole made of marine grade plywood and finished with teak, oak or mahogany veneer
• Door handles, and interior fittings in polished stainless steel or satin finish

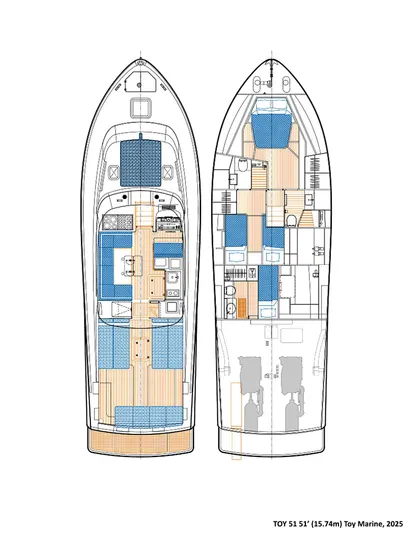

CABINS

Front cabin

• King size bed
• N. 2 hanging lockers with drawers
• Drawers and storage under berth
• 220V 60hz outlet
• N. 1 opening deck hatch
• N. 2 hull opening portlights
• N. 2 bookshelves at stbd and port side

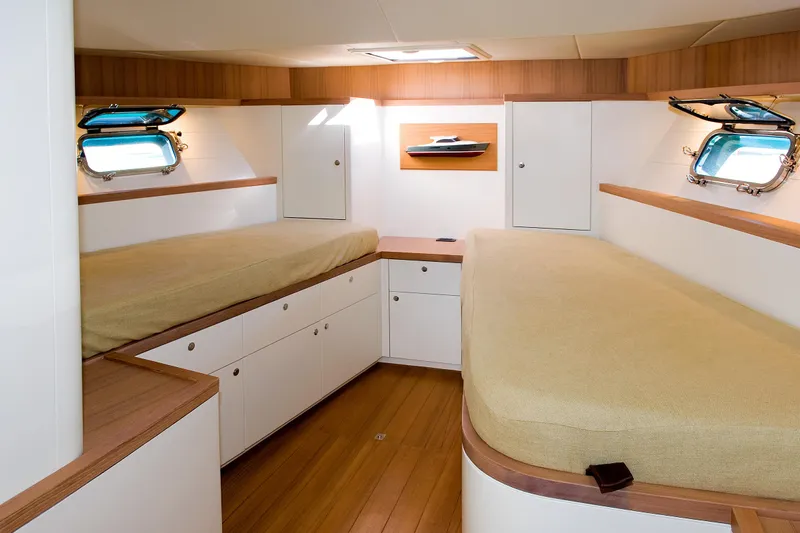

Guest cabin

• Twin beds
• N. 1 hanging locker with drawers
• Drawers and storage under berth
• 220V 60hz outlet
• N. 2 hull opening portlights

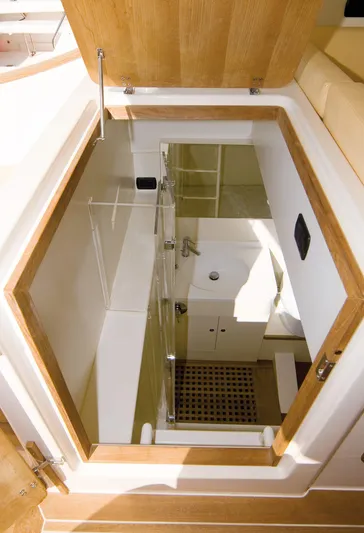

Heads

• Sink with storage below and vanity mirror
• Separate shower with teak gratin
• Hot-cold lever mixer faucet
• Electric toilet
• 220 V 60hz outlet
• Teak cabin sole
• Shower with mixer & support
• Complete set of bathroom accessories
• Opening deck hatch

Crew cabin

• Access hatch from port deck
• Single bed
• N. 1 hanging cocker
• Porthole
• Washbasin, WC and shower with grating

Upholstery

• Foam berth mattresses with lining
• Bedspread quilt and shams available in different colours
• Upholstered ceilings in sky leather

• Volvo D8; 600 hp.
• IPS 800
• Integrated Lowspeed
• Volvo Penta Interceptors system for stability control

Fuel system

• 50 mm Stainless steel fuel fills on deck with drain
• Structural GRP fuel tank of 2200 lt capacity, with stainless steel inspection and cleaning port including fills, supplying engines and generator
• Tank level gauge at steering station
• Racor filter for each engine

Cooling and exhaust system

• Engine cooling system with heat exchanger
• Bronze seacocks with valve
• Raw water strainers with removable stainless-steel filters
• Integrated exhaust

Ventilation and insulation

• Engines air intakes in hull top sides
• Engine compartments blowers
• Engine hatches and engine room acoustically insulated with fireproof and washable material

Fresh water system

• Stainless steel flush fill on deck
• N°2 structural VTR water tanks for a total of 500 ltrs with inspection ports
• Water level gauge at steering station
• Shore water supply connection with pressure regulator
• Fresh water pressure pump
• 220V AC, 50 lt stainless steel boiler
• Water distribution system for galley, head and cockpit shower
• Cockpit shower with hot and cold water

Salt water system

• Raw water pressure pump
• Manifold for distribution to WC, galley and anchor locker chain washer

Grey water system

• Grey water tank for head sink and shower including 24V drain pump
• Galley sink with overboard discharge

Black water system

• N. 3 electric toilets
• Black water polypropylene tank with electric sump pump and Y valve, 150 l.
• Alarm for full tank, valves manifold for dock / overboard discharge

Bilge system

• N. 3 24V DC automatic bilge pumps. One in aft peak, one mid ship / engine bay, one for cabin / forepeak
• Bilge pumps have automatic switch floats and manual override switches on helm console
• N.1 emergency hand bilge pump in cockpit with three-way valve to drain all bilges and overboard discharge with siphon and safety valve

220 V AC 60hz

• Watertight inlet for shore power 50 Amp.
• Power genset 9 KW 220V AC 60hz.

24 V DC

• Service batteries set 24V 640 Ah.
• Engines and genset start batteries set 24V 240 Ah.

Electrical panels

• Main distribution panel
• Fuse panel
• Batteries switch panel
• Cockpit control panel

Equipment

• N. 1 24V battery charter
• N. 2 24V 80A engine alternators
• 1 Inverter 2000 W

Lighting

• Watertight led spots in head, dinette and galley
• Led spots in accommodation
• Bed reading lights
• N. 4 watertight cockpit foot lights

Various

• Register approved navigation lights. Switches for navigation lights on helm console
• Earthing system
• Cathodic protection with sacrificial anodes

• N. 1 VHF
• Hi Fi integrated system, 2 dinette speakers and 2 watertight speakers in cockpit
• GPS and Plotter including depth sounder and autopilot

• Firefighting system in engine compartment with emergency control installed at
• steering station

Delivery and documents

• Sea trials
• System test
• CE / RINA certification (12 people)
• CE approved owner’s manual
