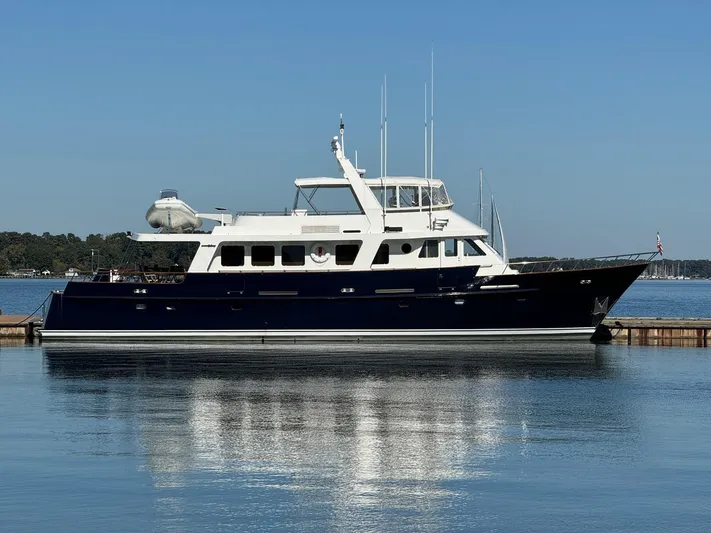

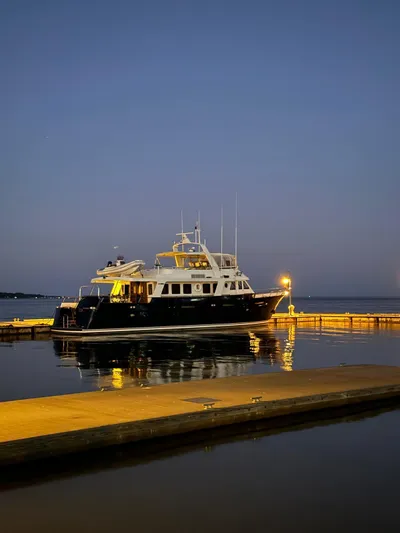

4 UMBRELLAS Yacht for Sale

• Beam: 19' 5''
• Hull Material: Aluminum
• Max Draft: 7' 4''
• Fuel Tank: 1 x 4350|gallon
• Fresh Water: 1 x 650|gallon
• Holding: 1 x 720|gallon

 4 Umbrellas is an incredible ship. Everywhere you look, you will be amazed at the quality of her build. The engines are Caterpillar work engines, not typical yacht engines. The generators are commercial equipment, they run at 1200 RPM, not 1800 RPM as the new units do now. Everywhere you look thought the yacht she has massive stainless fittings and you can easily see the quality built into the entire vessel.

The master stateroom with ensuite head is amazing. The master bath is huge with Jacuzzi tub, dual sinks and large shower, being aft and totally private. The shafts are sealed in oil and then cooled by sea water, which is an amazing feature. Almost all boats have shafts that are cooled by sea water. Chances are you have never seen an oil cooled shaft. This is “big ship stuff”. The advantage is complete quiet and no salt water damage to the shaft. Her current owners have slept in the master stateroom many times while running, and say they could've been staying in the “Four Seasons”. The naval architect that oversaw the current owners refit stated that these are normally only found on megayachts. Full real walkaround decks, oversized anchors and windlass, flybridge with comfortable seating throughout and room enough for any party.

It’s impossible to turn off the generators at anchor on most other Yachts of this size due to the power demand for household type appliances and poor ventilation. This is one of the few ships of this size that can be a “Dead Ship”. A term often used when anchoring out with all 110/220V power off; windows, hatches, doors, and ports open for ventilation. The ship has a massive battery room with 9 new batteries that weigh approx. 450 pounds each. With the use of the large inverter system and huge battery bank, the SubZero refrigeration/freezer and other systems allow everything to keep proper temperature for longer periods of time. All the staterooms have great ventilation with hatches, screens and dorades for fresh air. The salon and pilothouse areas have opening windows and screen doors. The screen doors are a work of art. Important to note that because she was originally built for an American owner, she is a 60 cycle boat.

Just one small example of the fine quality: the (8) deck chairs, the (4) arm chairs and the (2) Commodore Steamers on the aft deck are made by Barlow Tyrie. These are the finest English teak chairs (all chairs refinished).

4 Umbrellas received a fresh bottom paint job in March 2019. See a complete list of additional updates in the "UPGRADES" section of the listing specifications.

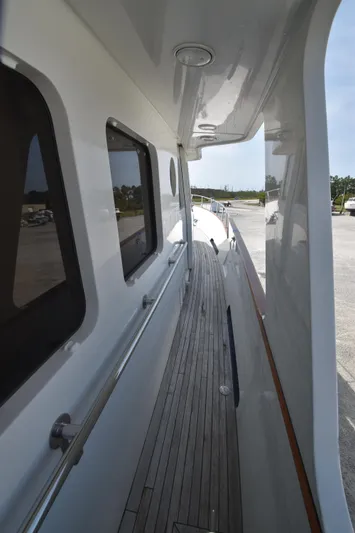

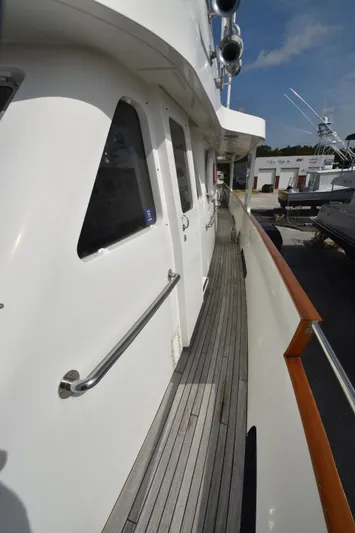

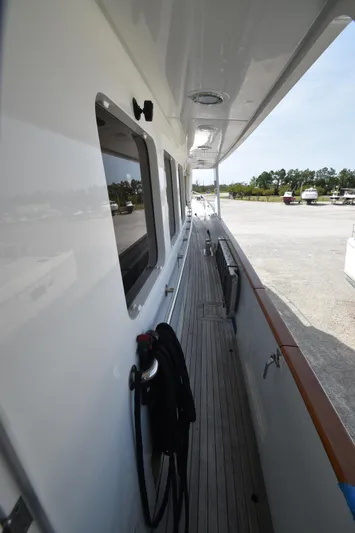

Full walkaround side decks
71' Hull extension designed and done at Jongert (1996)
Teak decks (2018)

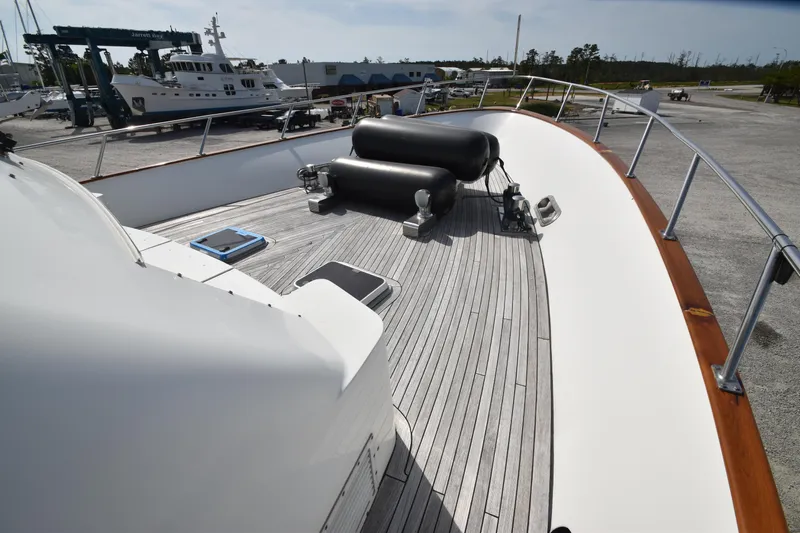

Dual Maxwell Windlass, hydraulic w/ remote, NEW 2018
(2) 300’ lengths of ½” anchor chain, NEW 2016
High Pressure sea water anchor wash system

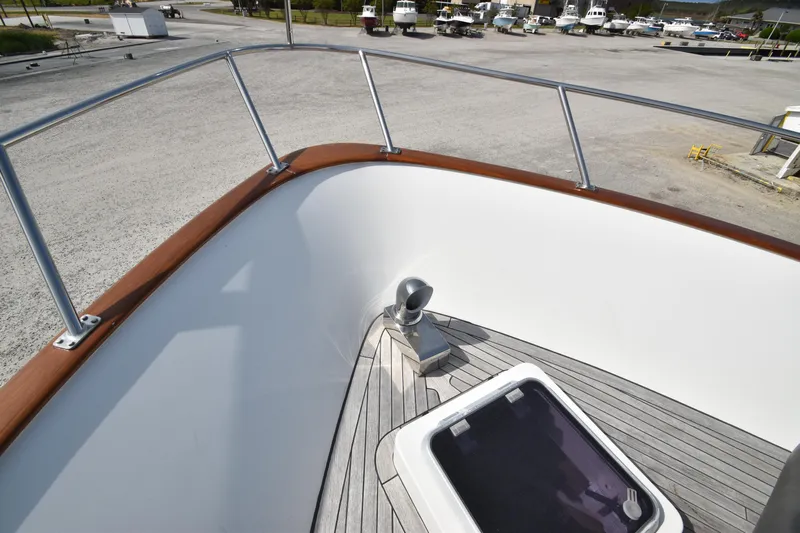

Bow anchor locker & storage area accessed via a Lewmar deck hatch
Bow seating area
Kahlenberg air horns (fully rebuilt 2014)
(2) Life rings w/ ACR SM-2 buoy lights
(1) Stand alone life ring

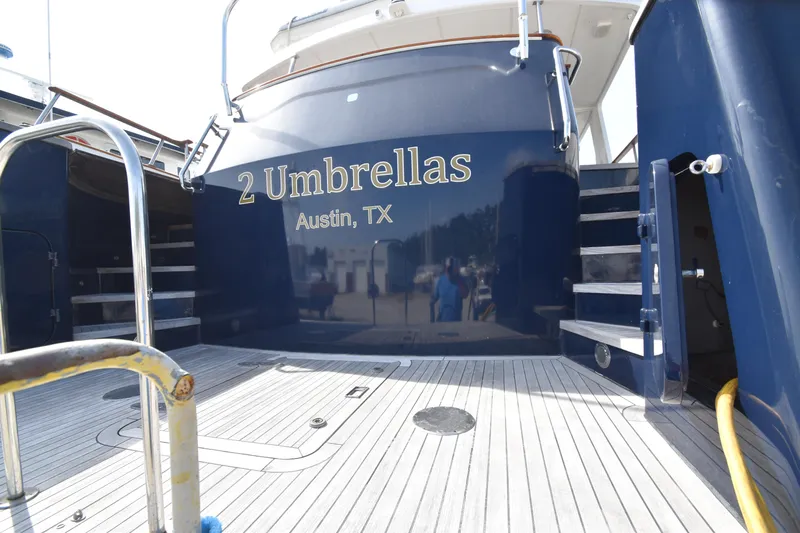

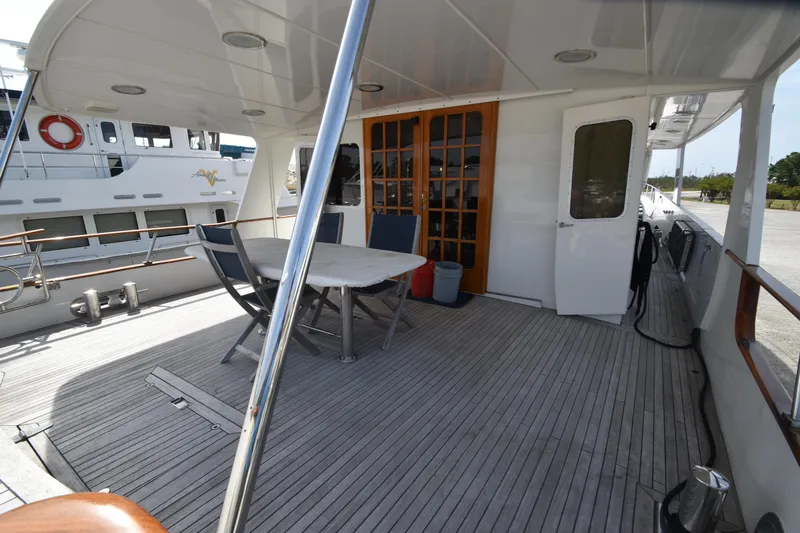

Aft deck dining area w/table, seats 6/8 comfortably
(8) Folding teak chairs with upholstered cushions; new chairs 2018
Ideal aft deck capstan
Large aft lazarette storage area
Port and starboard aft deck wing doors

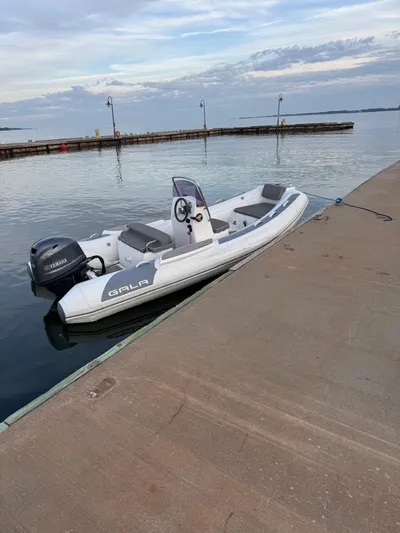

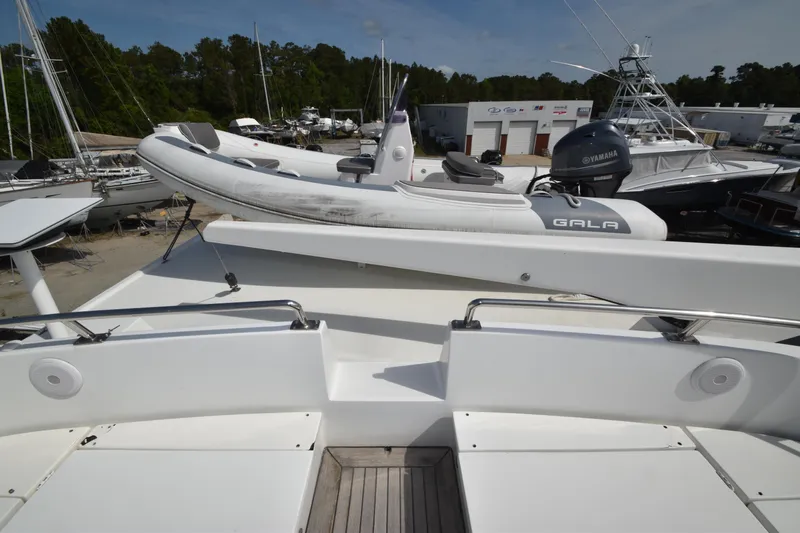

Novurania 430DL hard bottom tender w/ 60hp Yamaha 4-stroke engine 2017
(2) Spare props for yacht
14’ Custom ultra light Passerelle
Side boarding ladder with railings
Stainless swim ladder
Freshwater shower port side of swim platform
Engine room access door on port side midship

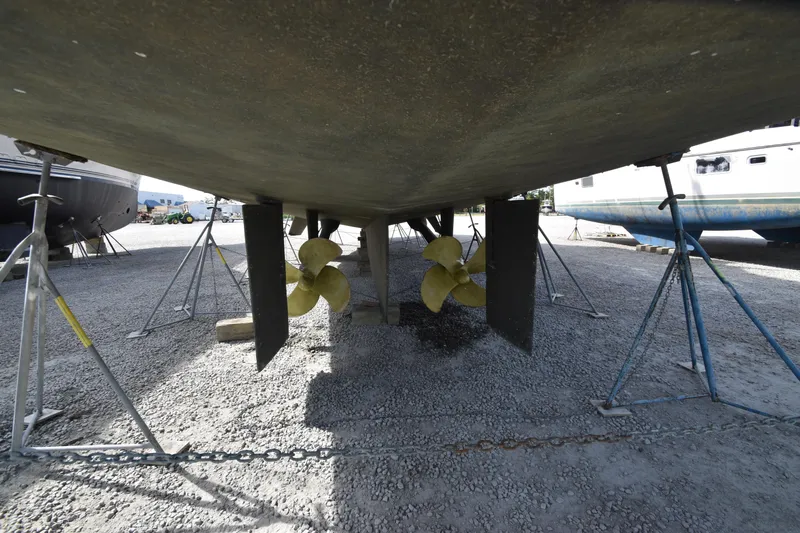

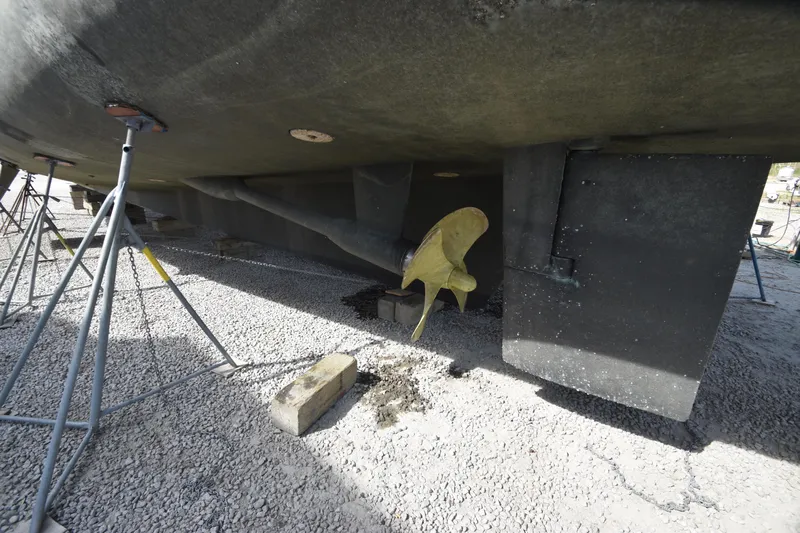

NEW Bottom paint job, March 2019

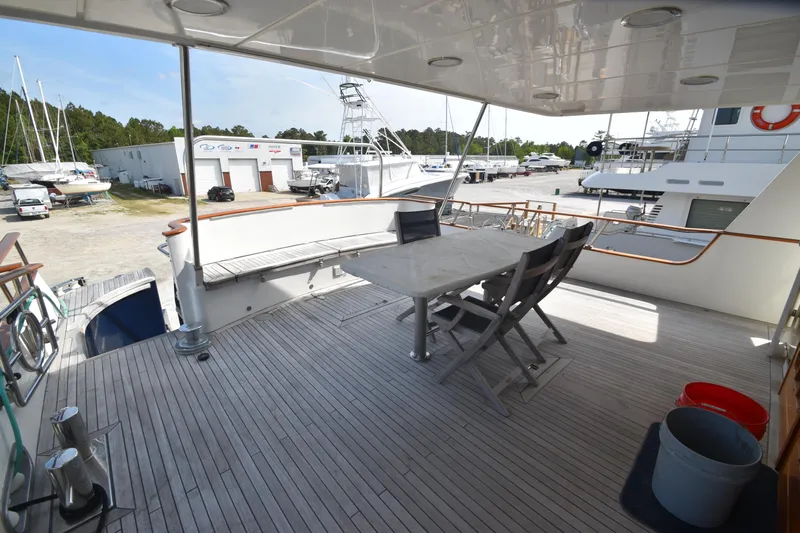

The spacious covered aft deck features built-in exterior seating aft, custom teak table and finest quality English teak by Barlow Tyrie: (8) deck chairs, (4) arm chairs (around teak table) and the (2) Commodore Steamers (all chairs hand finished). There are transom doors, both port & starboard, leading down to the swim platform; and a hatch to access the lazarette.

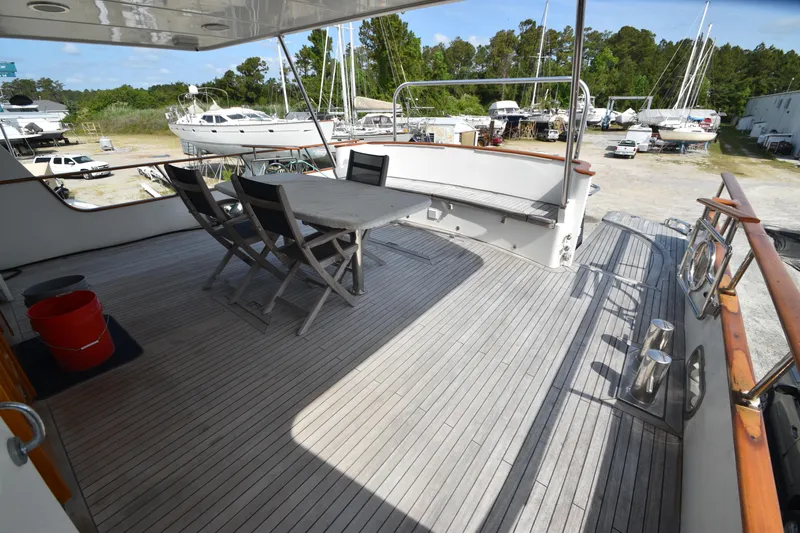

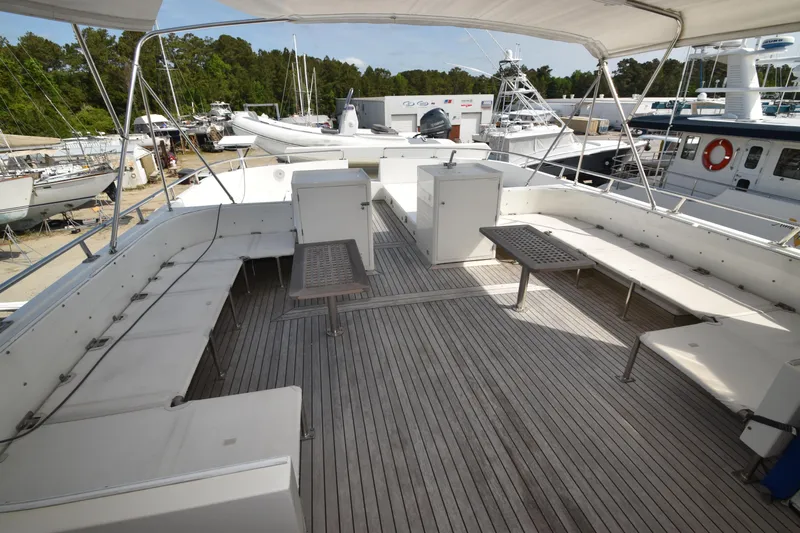

The expansive Foredeck has built-in seating on the forward cabintop with comfortable backrest and storage below each seat, along with storage cabinets both port and starboard. This is another lovely private entertaining or sunbathing area.

BBQ, top of the line, New 2014
Teak deck
Centerline helm with (3) Pompanette chairs
L-shaped seating areas w/cocktail tables
(2) Teak deck chairs
(2) Chaise lounge chairs
(2) Full-size Portable Dometic Refrigerator/Freezer
Wet bar
Sanyo mini refrigerator
8 person liferaft (New May 2016)
EPIRB
Nautical Structures EZ 1500 crane (rebuild 2018)
Bimini top (new 2019)

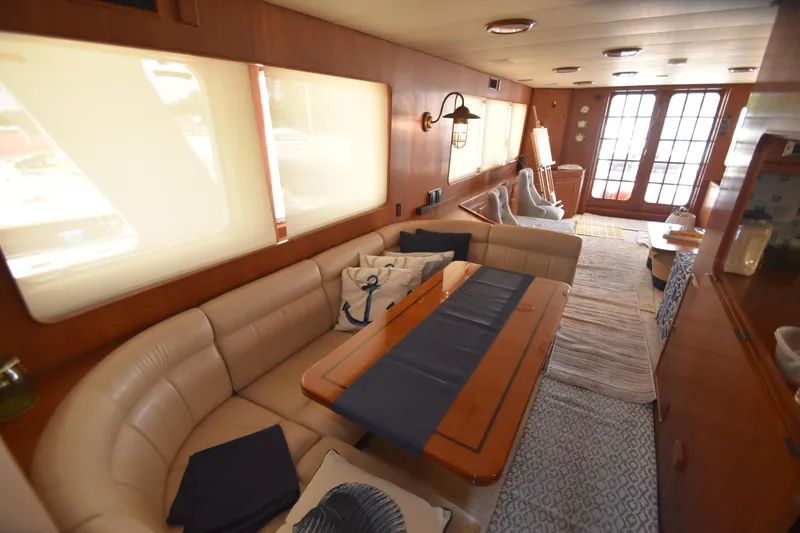

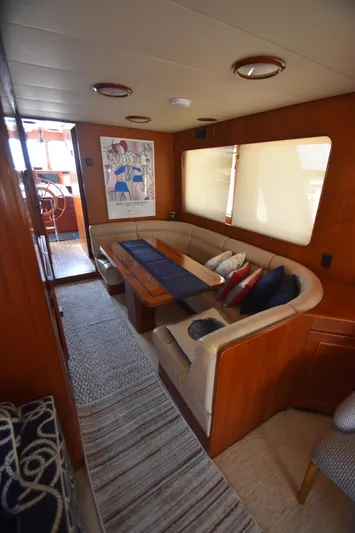

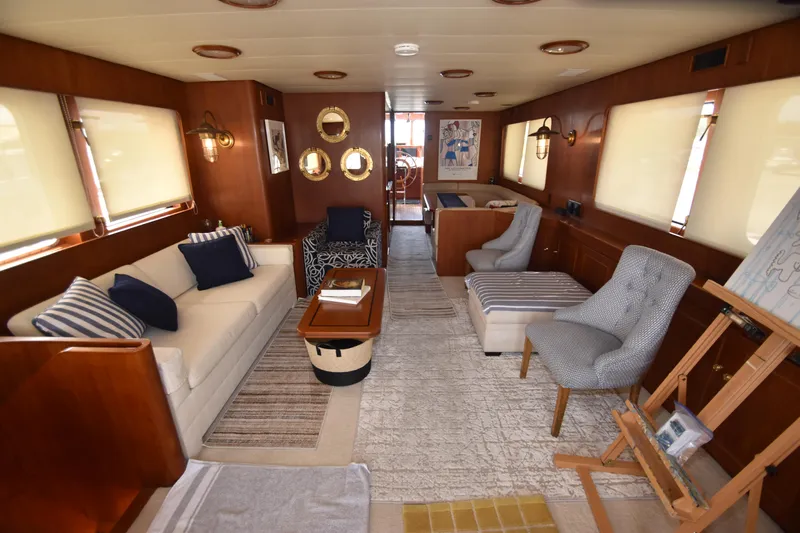

U-shaped dining area seats 6 guests with storage under and behind
(3) Full size opening windows and (3) overhead vents
New carpet and 2 LB Soundown (2018)
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)

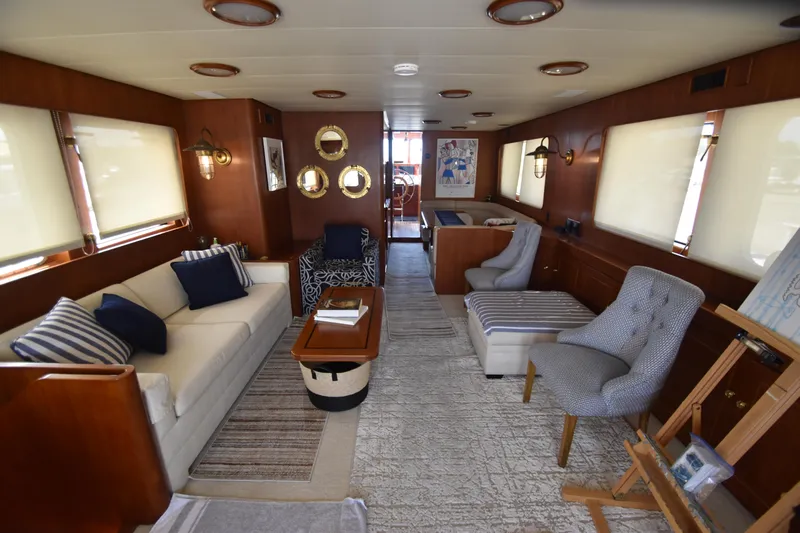

Full-size settee w/storage under
Chair w/Storage under Re-upholstered 2018
Fully appointed wet bar
U-Line Icemaker (2014)
Wempe quartz clock
Wempe barometer
Wempe thermometer
Double French sliding doors w/screens to aft deck
(2) Brass wall mounted sconces with lighting
All new soft goods (2012) Re-upholstered (2018)
Samsung 42” flatscreen TV, on push-button electric lift
HD Direct TV tuner box (2012)
New entertainment system (2014)

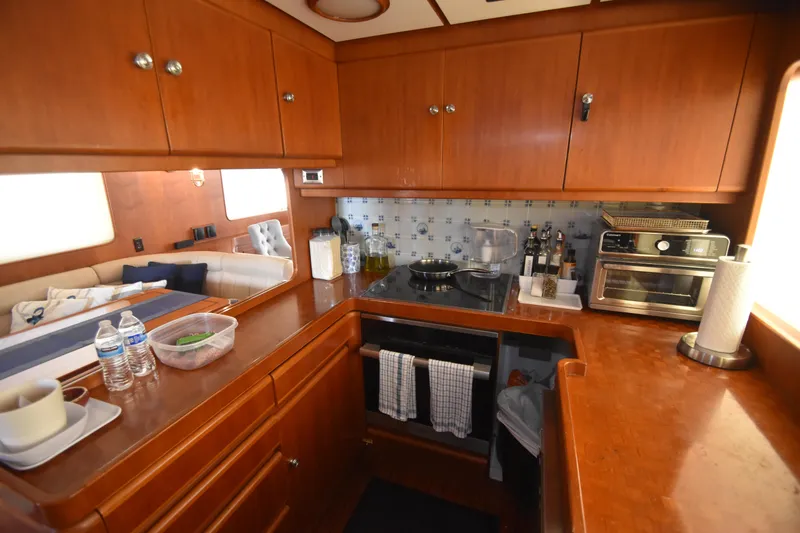

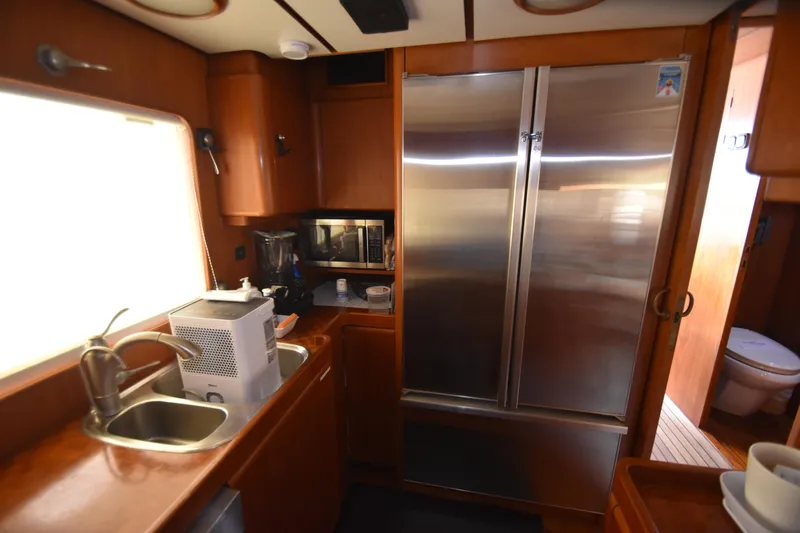

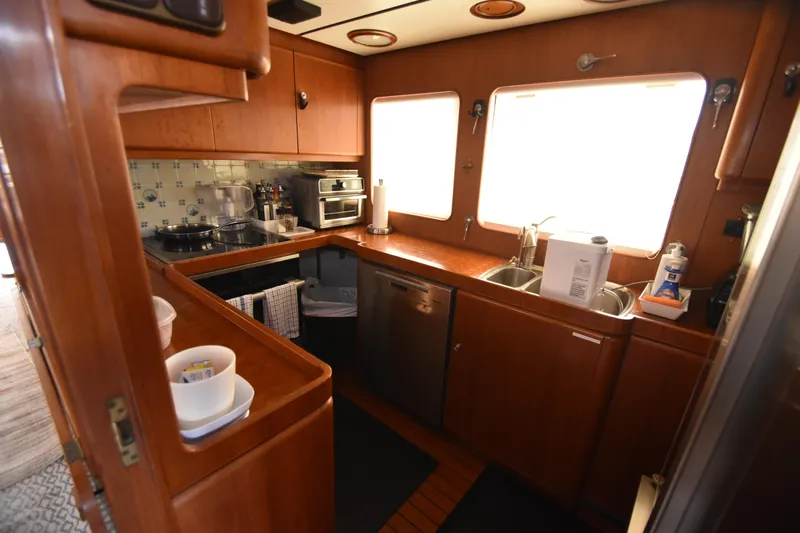

Double basin stainless steel sink
Panasonic turntable microwave oven
Miele full-size dishwasher, NEW 2017
Miele full-size oven, NEW 2017
Miele 4-burner glass cooktop, NEW 2019
Keurig espresso/coffee maker
SubZero Refrigerator/Freezer (2014) ($20,000)
(3) GFI outlets
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)
Teak floor in galley (2004)

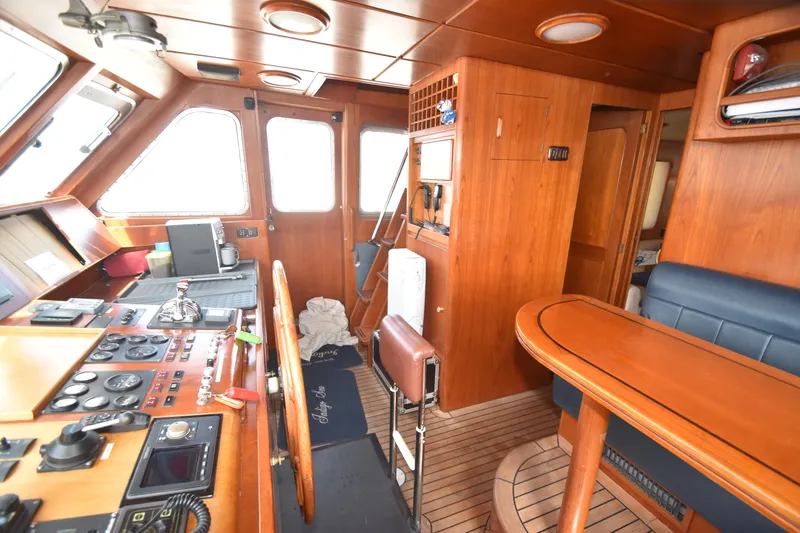

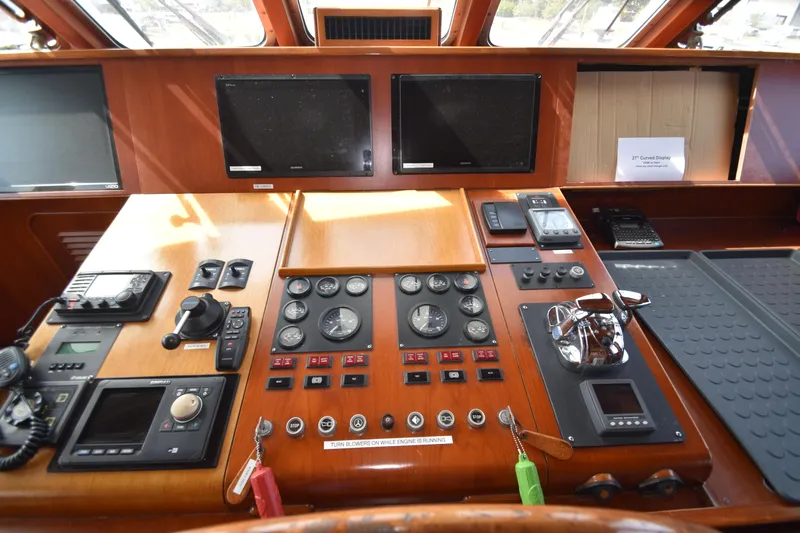

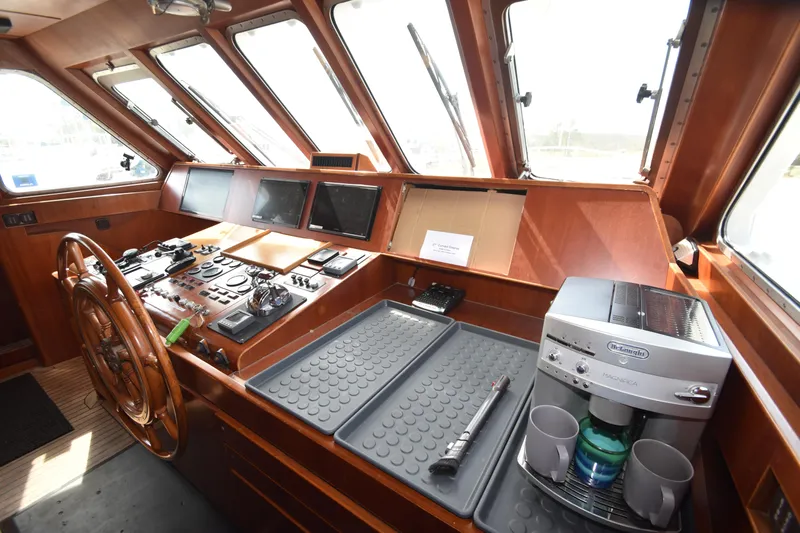

Rebuilt helm panel structure to accommodate new electronics (2018)
(2) Garmin 7616 Displays (2018)
(2) New Garmin Radar RD-30 Displays (2018)
Garmin universal AIS (2018)
Simrad AP70 Autopilot w/remote (2018)
ACR URC-100 200W spotlight control
New Icom VHF (2018)
ZF Digital electronic shift Throttle controls (2016)
Naiad Zero Speed Stabilizer controls (new 2014)
Full size chart table w/drawers

Accessed via watertight door in the starboard guest cabin or port side main deck

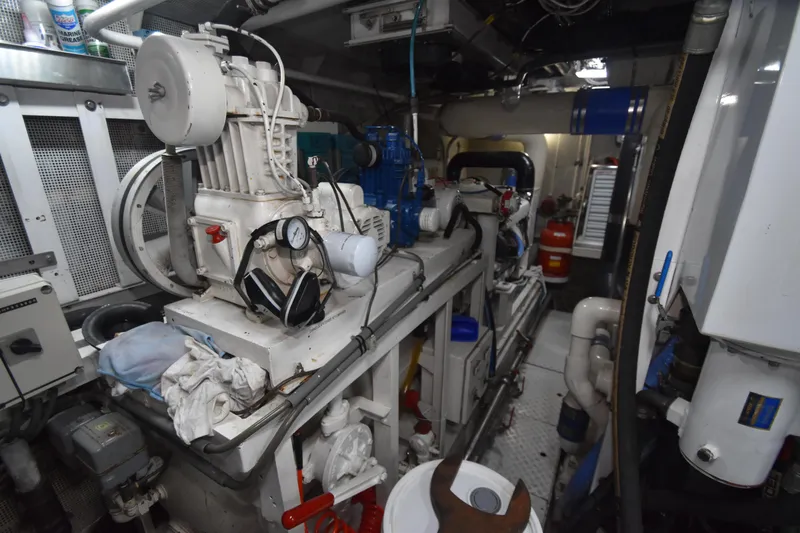

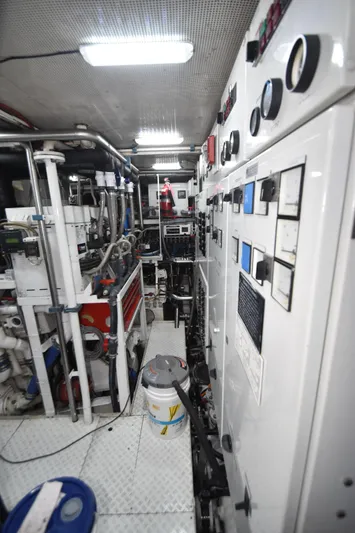

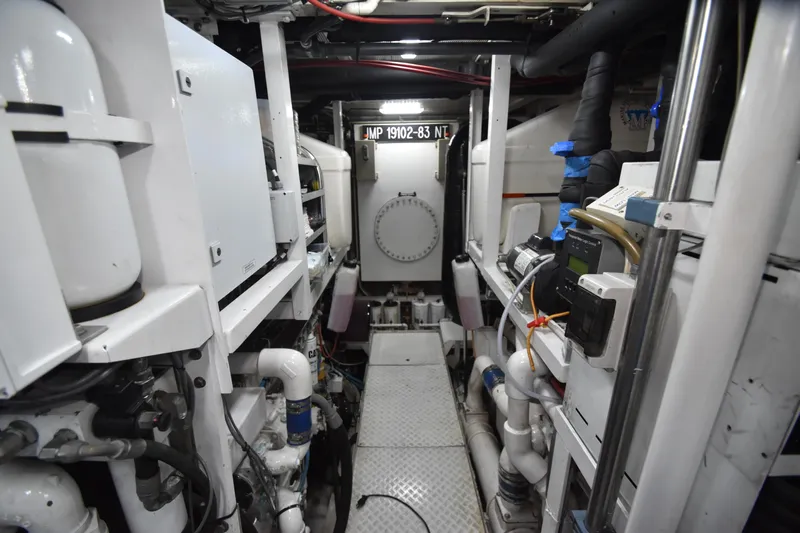

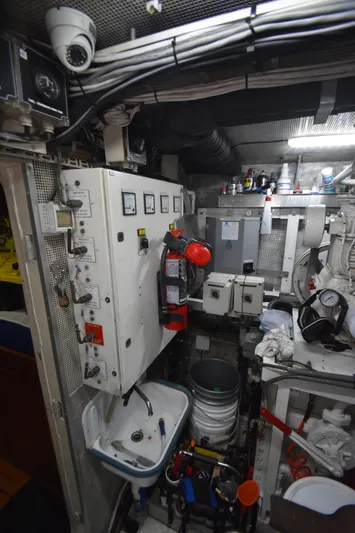

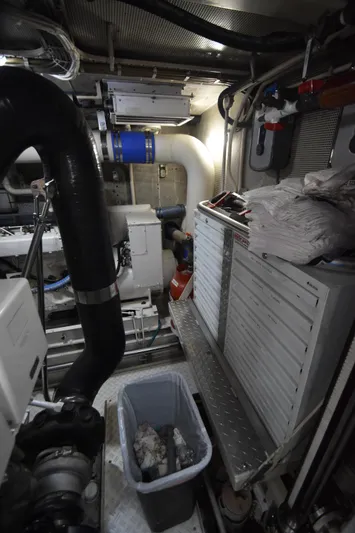

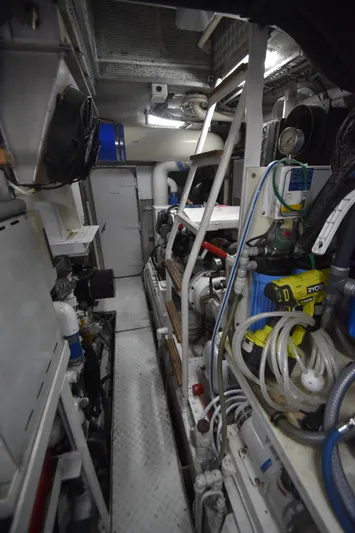

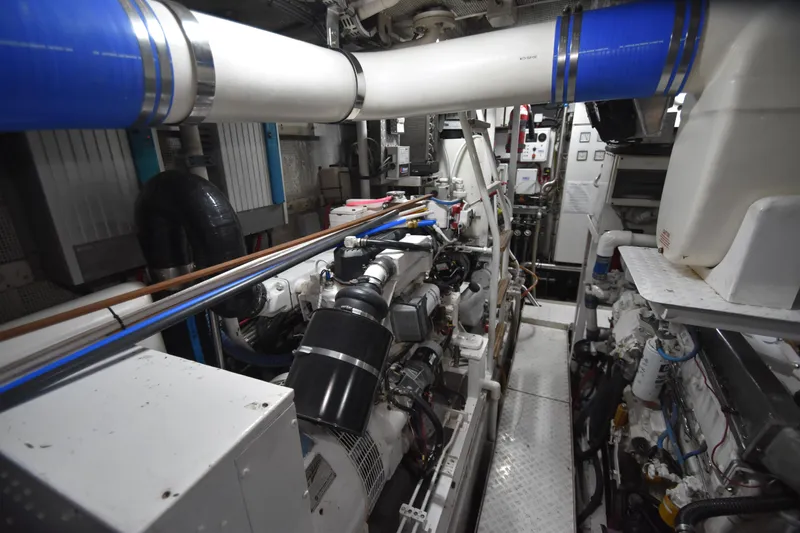

Well designed w/ full walkaround main engines and excellent access to generators
(2) Caterpillar 3406B TI main engines rated at 540hp (Completely went through engines and generators; rebuilt or replaced (parts) as needed; (2018)
Engine Hours since current owner's purchase: approx. Port ; Stbd

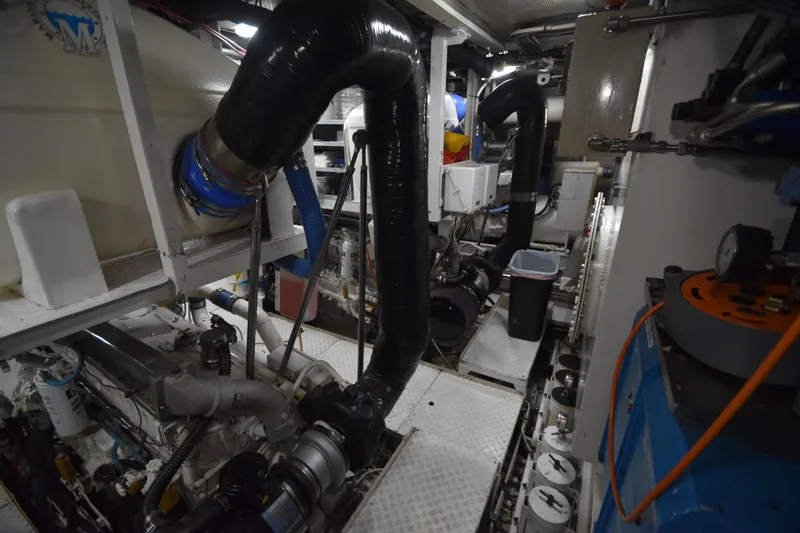

All New Exhaust Risers and Heat Shield Blankets (2018)
(2) New main engine water pumps (2012)
Main engine heat exchangers fully serviced and boiled out (2018)
All main engine injector lines removed, tested and re-installed (2018)
After coolers pulled, cleaned, and serviced on main engines (2018)
40 gal air tank with a 220V compressor and a 24V compressor New (2012) $10,000
(2) Fixed manual Halon fire extinguishing systems, battery room & engine room (new 2013; recertified July 2015)
(12) Portable fire extinguishers (6 foam, 4 Co2, 2 dry powder)
New PTO added to Starboard Engine and Starboard Generator
New Westmar dual prop bow Thruster (2018)
Wagner steering pump, hydraulic rams, hoses, fittings (2018)
New Jastram Steerim Hydraulic Steering system (2017)
(2) Engine room extractor fans/blowers (2012)
Naiad Zero Speed stabilizers (2014)
New watermaker (2013)
(3) New A/C Chillers including all new air handlers, digital controls and plumbing throughout vessel (2012)
(2) New galvanic isolators (2010)
(2) 35 gal hot water heaters (2014)

(2) Northern Lights 30kW generators (complete rebuild to Zero Hours in 2018)

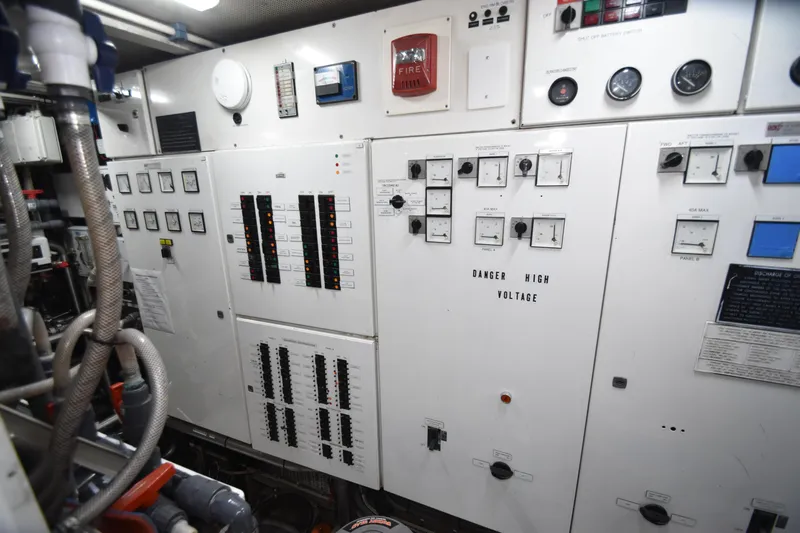

New 110 volt electrical panel, July 2015
New injectors on both generators (2018)
(2) New generator water pumps (2018)
(2) New generator regulators (2018)
New fuel lift pump for starboard generator (2018)

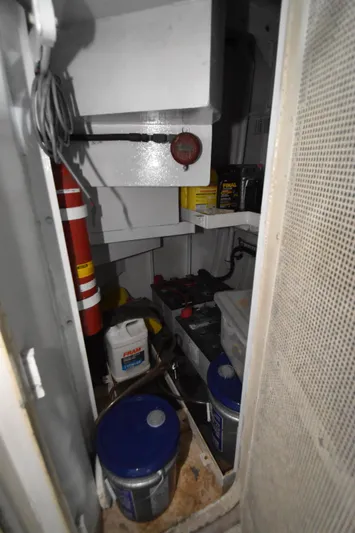

New battery room blower motor (2017)
New Victron inverter/charger (2012)
(2) 50/60 cycle A / Sea World Wide transformers (2012)
(4) Mastervolt 100 amp battery chargers
New SubZero Refrigerator/Freezer (2014)
KVH Broadband (2012)
KVH Sat TV (2012)

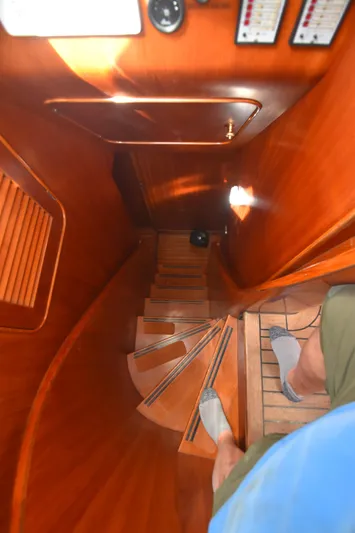

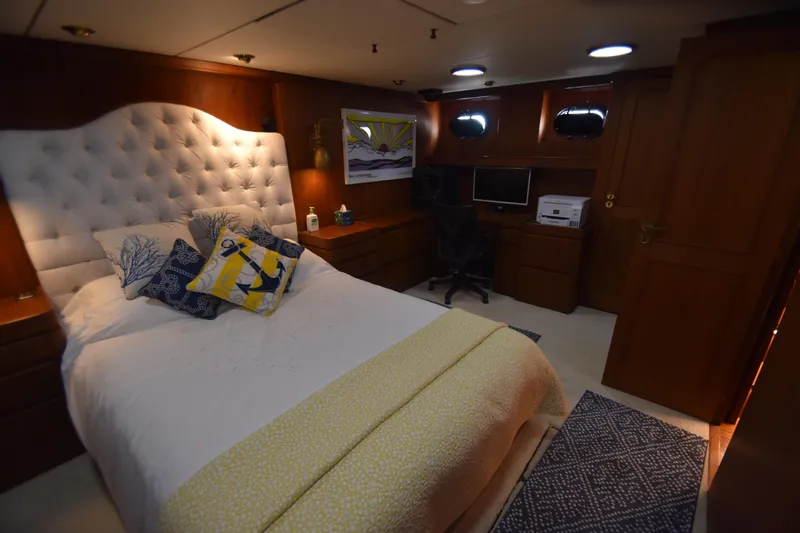

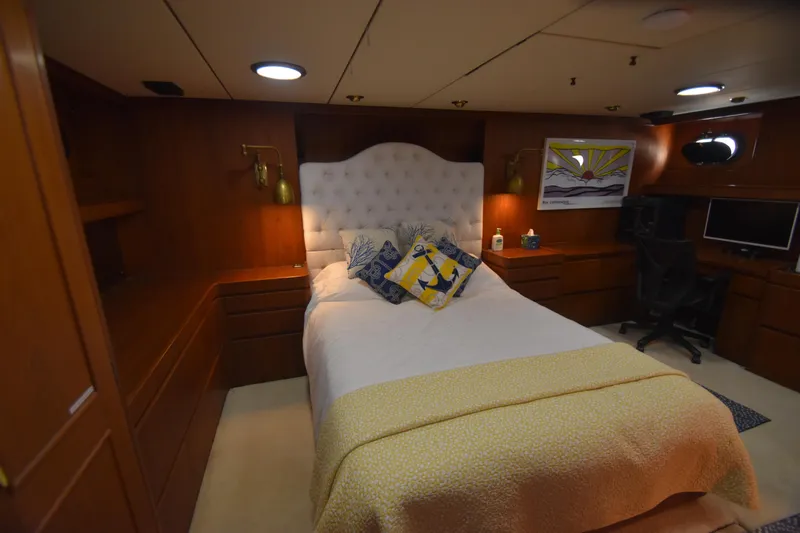

The large master stateroom is accessed via its own private companionway from the aft end of the salon ensuring complete privacy from crew and guests.

Centerline queen berth with storage under
Large amount of hanging locker and cabinet space
Ships safe
Gun closet within locker
LG 42” flatscreen TV (2015)
Bose surround sound system
Sony Blu-Ray disk player (2013)
HD Direct TV box (2012)

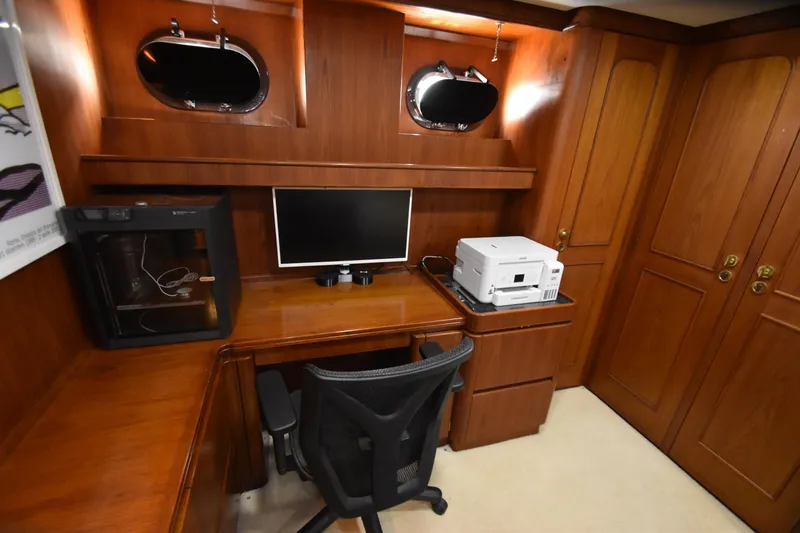

Custom built desk area to port (2009)
Overhead escape hatch to aft deck
(4) Opening ports w/screens
All new LED lighting (2018)
New Carpet with 2 lb. Soundown added for maximum sound insulation (2018)
New Zeno Mattress (2012)
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)
Wempe quarts clock
Wempe barometer

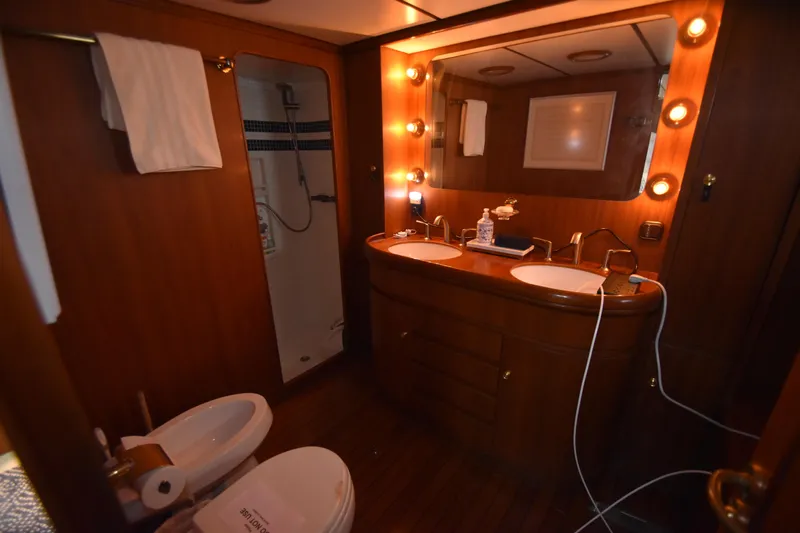

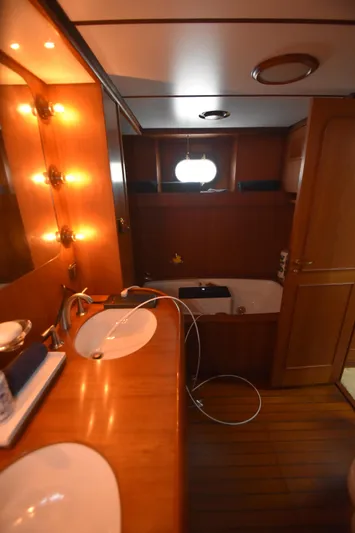

Vanity w/ his & her sinks
Full size Jacuzzi tub
Full size tiled stall shower (tile floor new 2010)
Microphor and bidet
Opening port w/ screen
GFI outlet
Extractor fan
New LED lights (2012)
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)

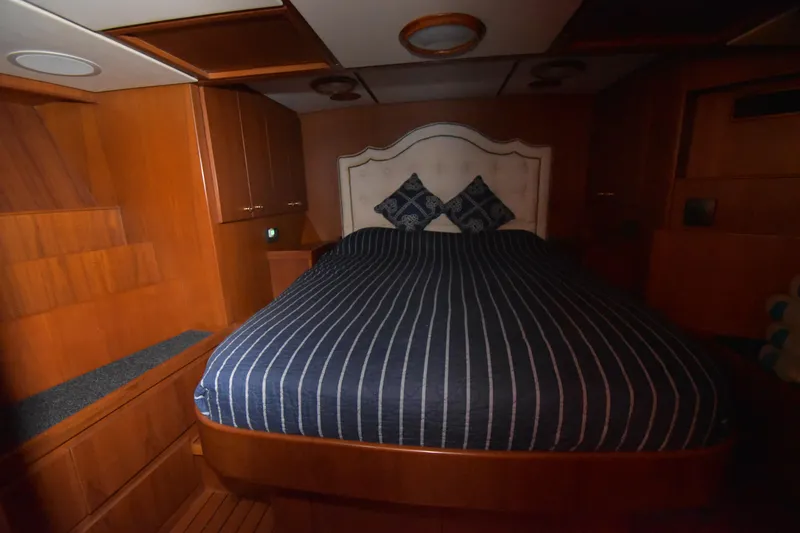

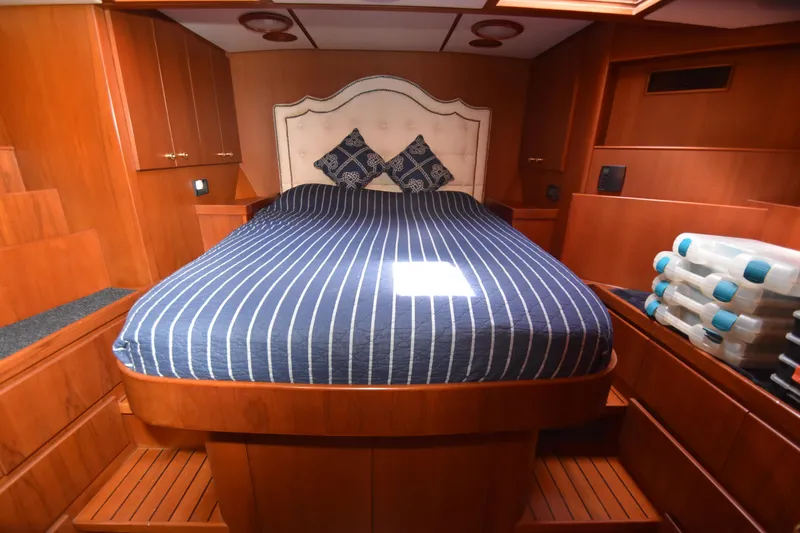

Accessed via the forward companionway from the pilothouse
Queen berth (2012)
Ensuite head & shower, separate rooms (2012)
Custom storage (2012)
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)
VIP room was gutted to the hull and rebuilt; this area was the old crew quarters area
(2) Overhead hatches w/screens and blackout shades
(2) Opening ports w/screens
Blower fan
New Entertainment system and Samsung 27” TV (2018)

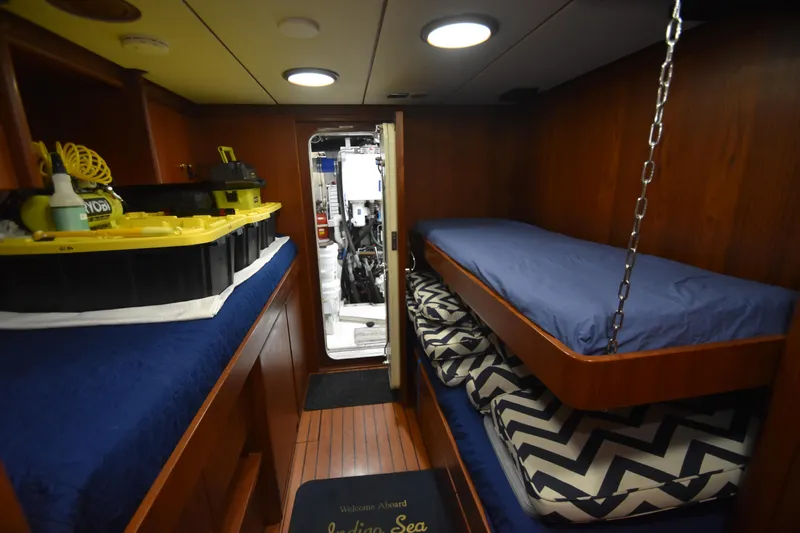

Accessed via the forward companionway from the pilothouse

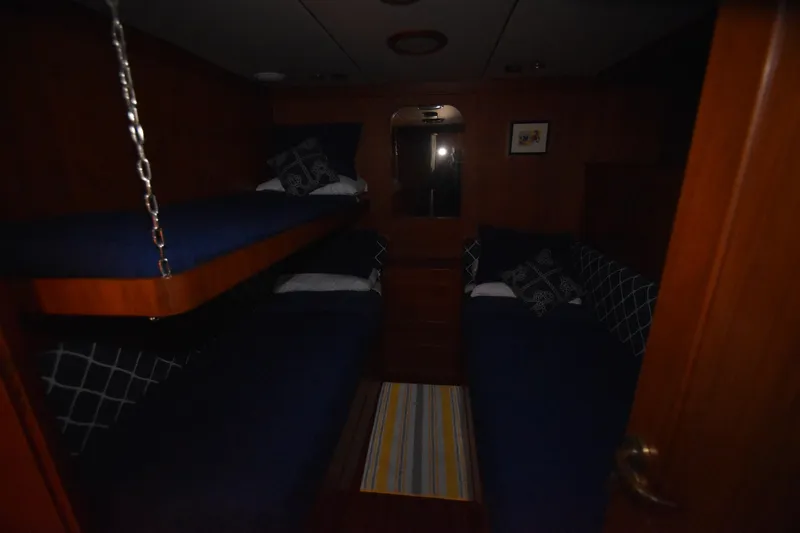

(3) Twin berths (2012)
Entrance door to the engine room
Opening port w/ screen
Large hanging locker
Good drawer storage (2012)
New Air Conditioning System including new air handler, new digital control, new wiring and plumbing (2012)
Wempe quartz clock
Wempe barometer
Miele Washer (2012)
Miele Dryer (2012)

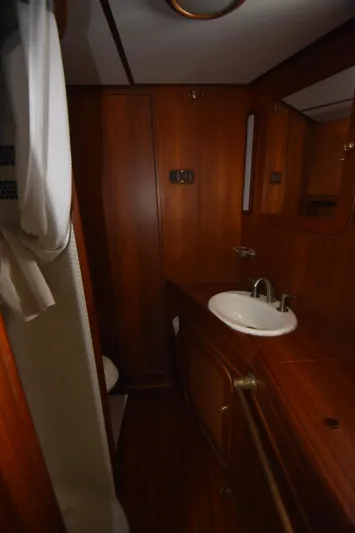

Vanity w/sink
Opening port w/screen

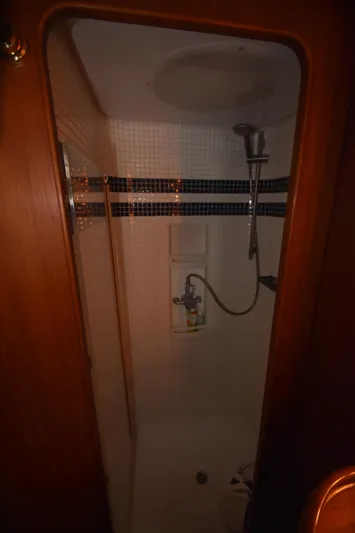

Full size stall shower (tile floor new 2010)
Microphor
Extractor fan
GFI outlet

The extremely knowledgeable, wealthy yachtsman that built the boat originally had several production boats. He wanted the finest yacht available that could cross the Atlantic and tour Europe and the Americas; no expense was spared. He chose Jongert for several reasons:

Finest Dutch quality. Dutch then and today, some of the finest builders in the world.
Even though they were sailboat builders, their boats routinely circled the globe.
The joinery work is incredibly finished.
He wanted a boat with a Lloyd 100A4 certificate. Note that almost all boats built today and then are “built to ABS or Lloyds standard”. They do not have a certificate. There is no one from outside to certify that the builder really met these standards when built.
He wanted an all aluminum boat, weight saving and great strength.
The boat was launched in 1988 at 71’ as LADY MARION. After two Atlantic crossings, he returned to Jongert in 1996 to lengthen the boat to approximately 80’. At that time, there was an extensive costly refit of the entire boat. The refit involved all systems. The added length was to:

Add 2,000 gallons of fuel capacity.
Have a larger, more comfortable aft deck to enjoy dining and entertaining.
Have a euro stern for easy access to the tender and water.
The boat crossed the Atlantic two more times on her own bottom. In approx. 2003, he went to Royal Huisman for another major refit. He went to Royal Huisman because he wanted to see the quality of the refit work. Obviously convinced of the workmanship, he ordered a 120’ Yacht “Arcadia” that could circle the globe. (Arcadia was launched in 2006).

Per the original owner, "LADY MARION never let us down, with all the cruising, and with all the remote spots we visited”.

She was then sold to a gentleman from Palm Beach in 2007. He made a few trips to the Bahamas and kept her in Palm Beach at the Brazilian docks. He spent approximately $500,000 on various upgrades and had a full time crew of two. Her current owner purchased the boat in early 2012.

GRAND CRU was purchased after an extensive search to take her current owner & family through the Caribbean, then to cross the Atlantic and cruise Europe for several years. The refit was done with an open checkbook as described in detail. The current owners are now ready for a much larger yacht, 5 staterooms and crew quarters for 4, to allow them to cruise with more of their family, 4 children and 6 grandchildren.

4 Umbrellas Upgrades, Latest Refit as reported by owner

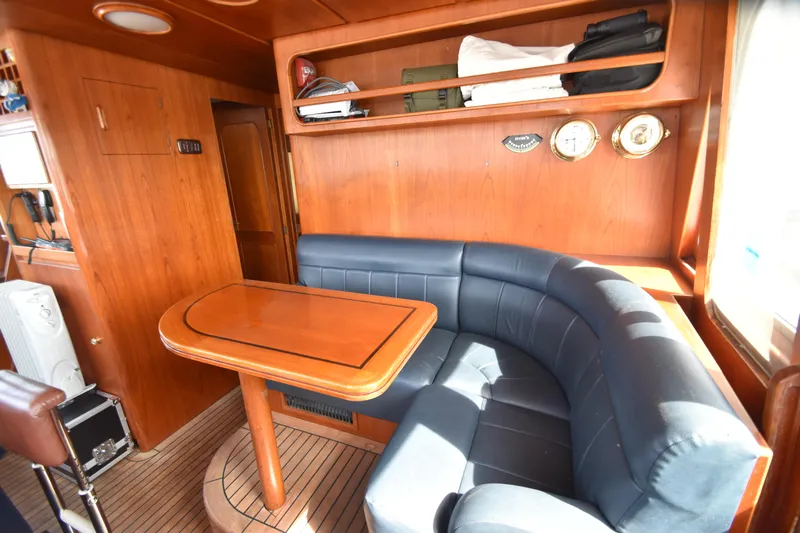

Wheel house settee - recovered - completely converted to a watch berth or full berth with custom mattress . Easily converted from one to another. Can use day head if needed.

New Carpet, settee, chairs redone
New dual station Simrad AP-70 top of the line commercial Autopilot

New Jastram steering system - dual station, Jog levers, Three system steering systems on boat

Two new Garmin GPS 8617 - top of their line; other two lower station Garmin 7616 two years old; (4) total on yacht
New Garmin Radar; 2nd Garmin radar 2 years old

VHF Radios, New

Remote switches for the anchors; anchors dual independent hydraulic, New

New Bimini Top, 2019
Grand Cru Upgrades, 2017/2018 Refit as reported by owner

New Teak decks: Over $100,000

Major work on both engines: Over $100,000

Both generators to Zero hours: Over $100,000; Factory recommended rebuild over new. About the same price but our generators are like tanks. These are massive industrial size generators. About 350 hours on each generator now (Sept 08, 2018).

Custom sound shields for generators. 1200 RPM so were quiet, now very quiet.

Upgraded electrical system by Lean Marine; $25,000

Removed entire hydraulic system and replaced with state-of-the-art system. PTO’s on second engine and second generator. Now if we lose an engine or generator no problem with loosing steering, bow thruster, etc. Second PTO on Generator for Zero Speeds if we lose one Major service on Naiad stabilizers.

Major service on oil sealed shafts

Remove entire raw water system, rebuild and replace - big costly job

Many new electronics even though old was only 4 years: Radar, Autopilot, GPS, AIS, etc.; all top of the line

New freshwater system - two Headhunter pumps

All heads removed and sent to factory for complete rebuild
Clean and pressure test all tanks - fuel, black & grey water

New dual prop bow thruster - tremendous difference; really moves the boat

Replaced single electric anchor windlass with dual independent hydraulic windlasses; New windlass literally tears the anchor off the bottom

Stripped the rails to bare wood and 14 coats fresh varnish

New custom lightweight Passerelle
New custom boarding ladder
New engine on inflatable
4 Umbrellas Upgrades - 2016/2017

Replace manual engine controls with electronic; needed for below:
Wired hand-held docking remote - not only engine controls adjustable but also bow thruster; can be plugged in fore or aft; makes docking very easy
Top of the line BBQ installed on flybridge
All new galley appliances installed
 4 UmbrellasUpgrades - July, 2015

Balance and true Shafts and Props
New PropSpeed applied
All new zincs
New 110 volt electrical panel installed
Liferaft recertified
Fire system recertified
Black & grey water tanks professionally cleaned
Bilges steam cleaned
New ZF/Mathers controls (these convert present mechanical engine controls to electric at both stations) with wired handheld remote with 25 feet of cable (plugs for and aft for remote; wired chosen over wireless as it controls: forward & reverse; adjusts throttles; controls thruster; has engine kill switch; makes docking & anchoring easier)
4 Umbrellas Upgrades 2013/2014

Paint entire boat including bottom $225,000
New Naiad Zero Speed Stabilizers $250,000
New SubZero Refrigerator/Freezer $20,000
New Bridge helm instrument panel
Many upgrades to helm stations such as cameras, electronics, etc.
Remove oil sealed shafts and replace with all new parts from Rudder Design Holland $60,000. Also remove rudders and replace with Rubber Design; all new parts.
Balance and true Shafts and Props $12,000
New entertainment system
Completely rebuild Tender $16,000
New warning system, alarms for theft, fire & carbon monoxide
New Flybridge 3-sided enclosure
New windscreen on Flybridge
Remove salon doors, strip and re-varnish w/ 14 coats
Windlass complete rebuild in Rhode Island
Anchors sand blasted and re-galvanized
New 600’ of chain
2 New custom hot water heaters
New Head Hunter black water pump
Rebuild grey water pump
Professionally clean black, grey and fresh water tanks
Rebuild engine controls
Rebuild Auto Pilot
All work supervised and overseen by Murray & Associates Naval Architects
Much more
Over $750,000 approximate
 4 Umbrellas Upgrades 2012/2013

Carpentry: $200,000 plus approximate
Forward crew quarters to VIP queen with all new added head & shower in two separate rooms
All new crew quarters with 3 berths (2 prior), storage and new Miele Washer & dryer
Add third Pullman berth to guest quarters
New proper ladder to bridge with railing
Plus much more
Naval Architects $15,000 approximate
All work was designed and supervised by Murray & Associates Naval Architects
Spare parts: Cost $50,000; approximate value over $100,000 to $150,000
Warehouse full of spare parts. Everything from the smallest breaker, to pumps ($5000 each), motors, seals for shaft ($7000 each) to a new fin for the stabilizers ($9000); New shaft (approximate $20,000), etc. etc.
Electrical: $150,000 plus approximate
All new overhead LED lights inside
All new LED lights outside & flybridge
All new lighting on stairs

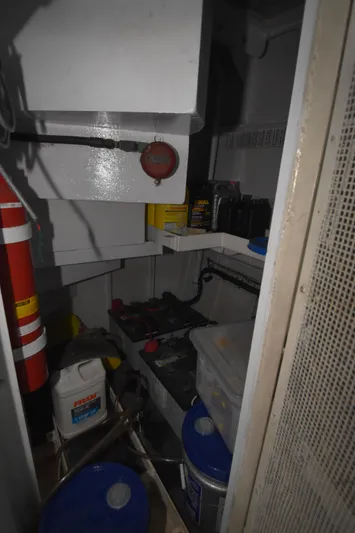

All new top of the line batteries:
Gel Engine start
Emergency batteries on flybridge
Massive house batteries 400 lbs. or more each-Rolls ($15,000 plus installation just for house batteries)
Field test both generator electrical ends – both tested excellent
A/Sea worldwide power converters added 50/60 cycles (2) new, $50,000 approximate
Entire boat electrical system upgraded as necessary
New bow and stern power inlets
Engines & Generators: $150,000 plus approximate
Completely went through engines and generators; rebuilt, serviced or replaced (parts) as needed; 2012 (cost approx. $150,000)
Engine Hours since current owner's purchase: approx. Port 1,200; Stbd 1,200
Engine Hours reported prior to owner's purchase: approx. 1,550 since rebuild in approximately 2003
(cost approx. $150,000)
Engine room immaculate as to appearance.
Decorator: $70,000 approximate
All new top of the line HMC mattresses
All new carpet with 2 lb Soundown & canvas covers, Salon & Master Stateroom; this makes a tremendous difference in providing noise-free environment
All new double drapes
Re-cover sofa, chairs, dining settee & wheelhouse settee
All new headboards
New lighting
Much more
A/C - $80,000 approximate
Completely replace entire A/C system with top of the line chiller system. Three new chillers (2 prior). All new air handlers throughout entire boat. All new electronic controls. New insulations, ducts, etc.
Full time crew of 2 to 4; cleaning and supervising
*Dates and cost approximations for upgrades & services provided by current owner.
