Specifications
-
Beam:
22' 3''
-
Hull Material:
Composite
-
Max Draft:
3' 8''
- Fuel Tank: 1 x
476.96|liter
-
Fresh Water:
1 x
700.3|liter
-
Heads:
2
Manufacturer Provided Description

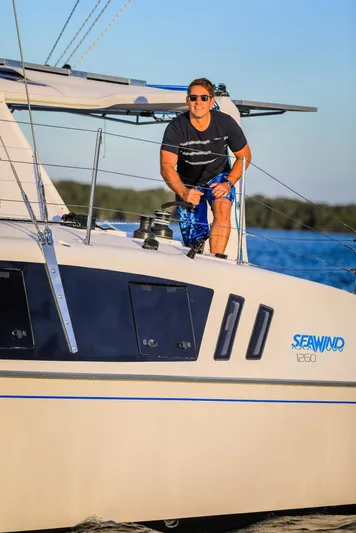

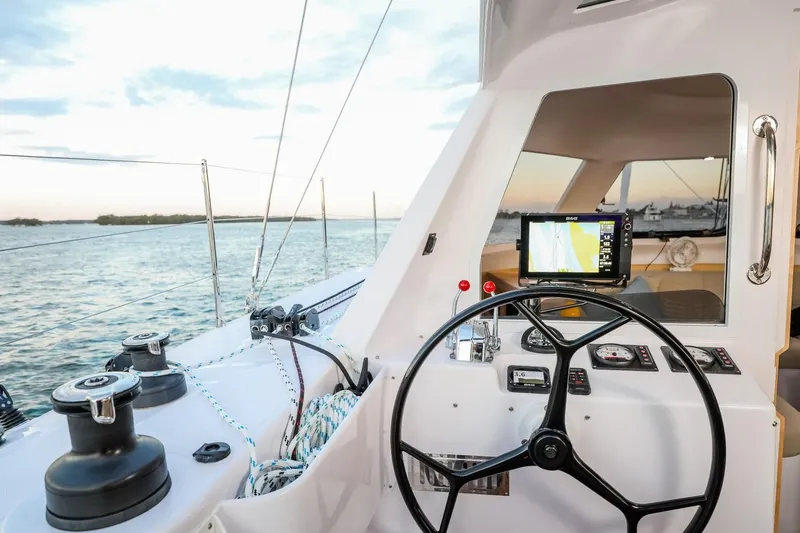

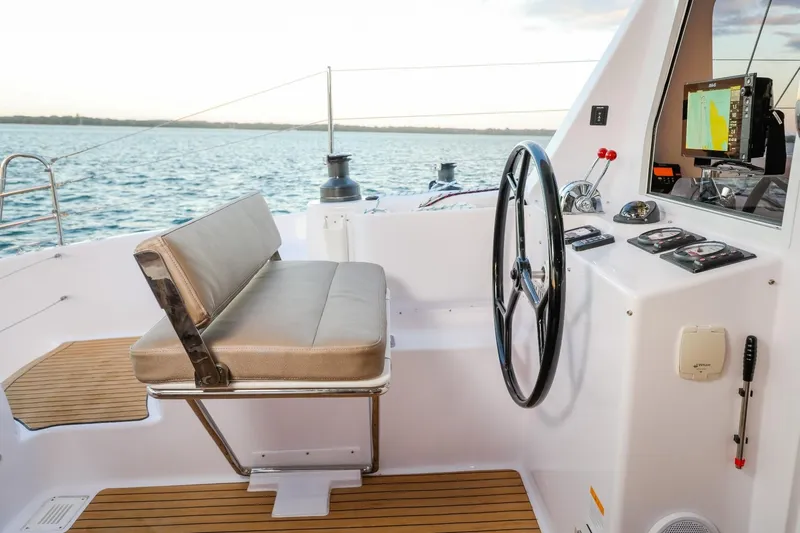

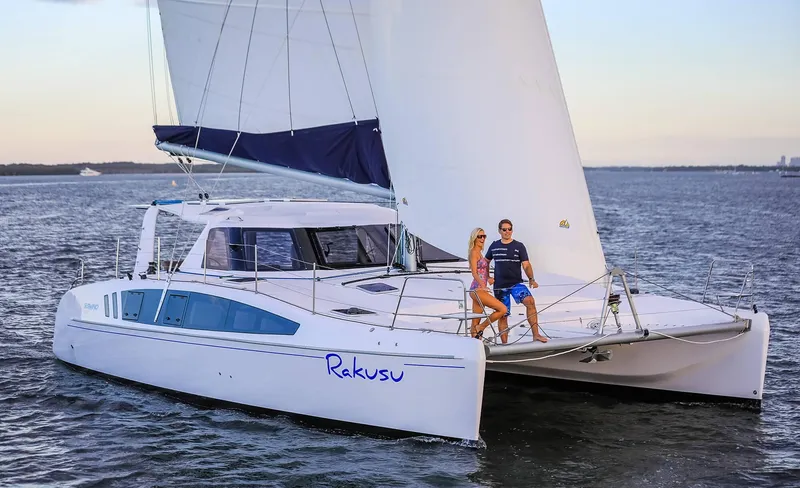

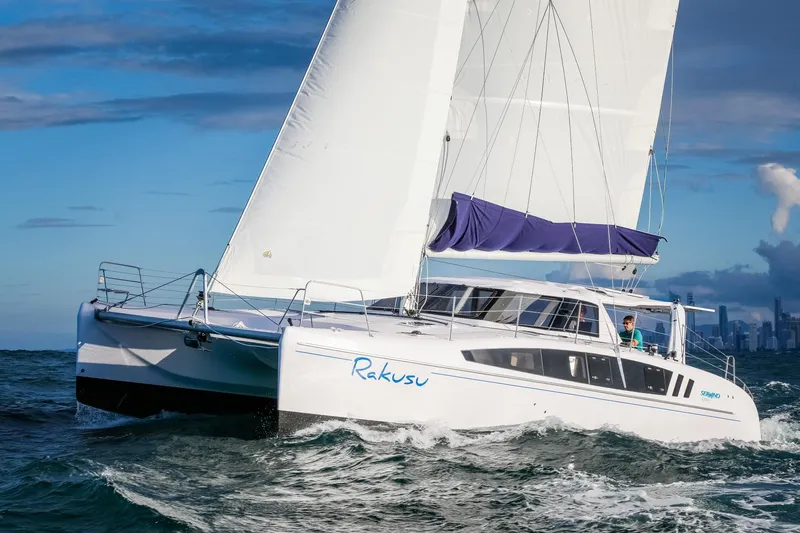

A COMFORTABLE INDOOR/ OUTDOOR LIFESTYLEContinuing the line of legendary 12-metre Seawinds, this is the perfect balance of cruising practicality and powerful performance. Twin helm positions are a must for any true sailor, the Seawind 1260 offers the perfect balance between excellent 360 degree visibility and total protection from the weather in any conditions, whilst always offering the skipper full control and comfortable navigation around the cockpit.
Deck

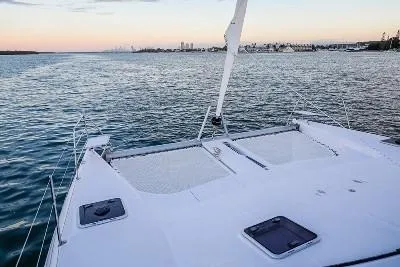

Aluminium Hatches & portholes (9 in total) 4 x Forward Hatches 470mm x 470mm 2 x Mid cabin hatches 470mm x 470mm 1 x Port Bathroom window hatch 507mm x 377mm 1 x Galley window hatch 507mm x 377mm 2 x Aft Cabin window hatch (1 x Port, 1 x Starboard) 507mm x 377mm Fibreglass Deck Hatches: Forward anchor & storage hatches x 5 Cockpit storage hatches Cockpit Icebox & hatch 6 x Docking cleats. Each side: bow, stern & amidships. 1 x Heavy duty mooring cleat on forward walkway. Ventilation: 2 x forward cabin hatch vents. Mast base turning blocks. All halyards & sail controls to cockpit. 12 x Rope clutches. Manual Sheet winches: 2 x 46ST – 2 speed self tailing& 2 x 40ST – 2 speed self tailing. Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. 700mm high to meet Australian survey requirements.. 2 x transom access gates with pelican hook releases. 2 x side access gates with pelican hook releases. Aft swim ladder: folding stainless aft swim ladder
Accommodations

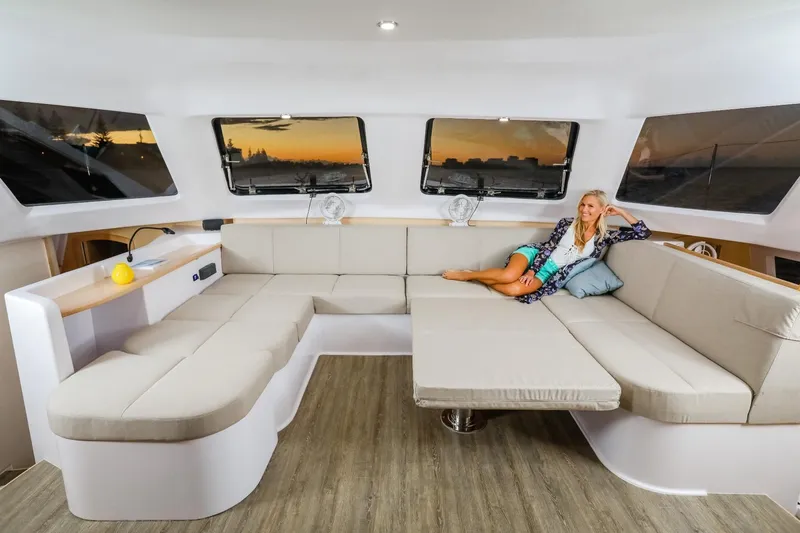

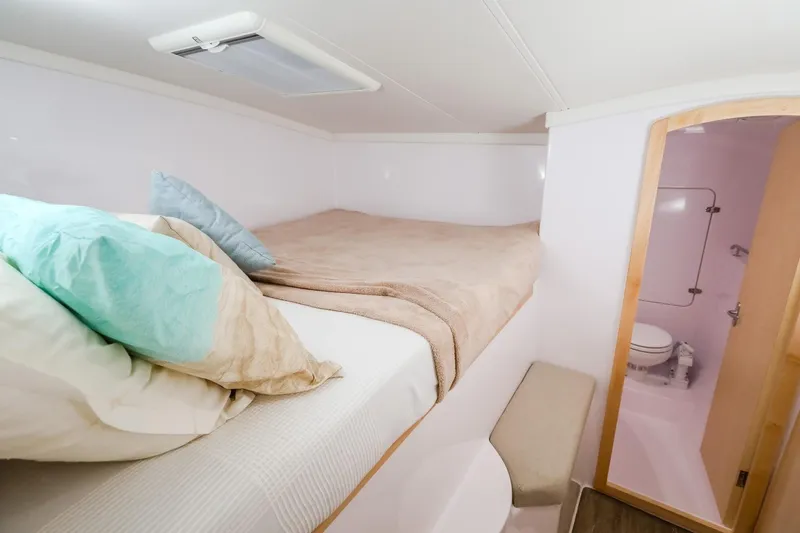

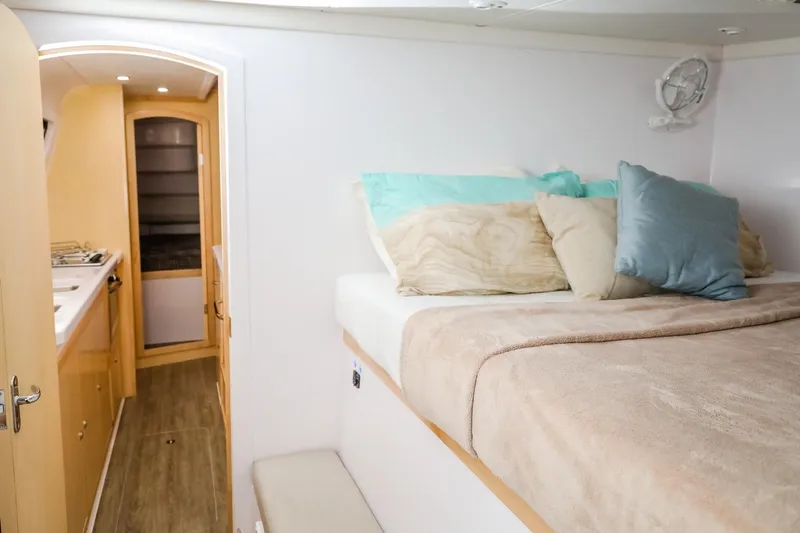

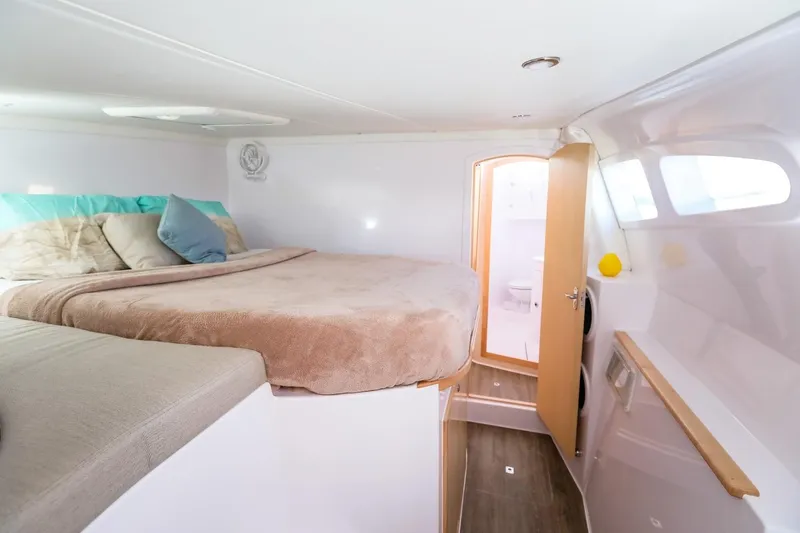

Luxuryfinish interior. Sides and cabin top lined with vinyl or moulded gelcoat. Floors: Common area soles simulated timber. SALOON Timber dining table: Lowers to create coffee table or double bed. Upholstered settee with day lounge Cocktail cabinet/storage under day lounge Timber chart table Forward opening windows in 10mm toughened glass in marine anodised aluminium frame. Side windows in 6mm toughened glass. Simulated timber flooring. Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway. SLEEPING CABINS: Timber doors on all private cabins. Port & Starboard fwd cabins : Each queen sized bed (2050mm x 1540mm) Aft Starboard cabin : Double bed (1990mm x 1230mm) Mattresses to be 150mm ( 6” ) quilted foam upholstered. Cabins lined. Recessed 12volt lighting. Storage/Cupboards. Simulated timber flooring. PORTHEAD : Timber lockable door. Manual toilet. Discharge via holding tank. Holding tanks built in. Discharge Pump out by shore station or directly overboard. Port 130L and Stb 110L. Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements. Vanity basin with pressure hot & cold water. Wall mounted shower head & mixer tap. Electric shower bilge pump with direct overboard discharge. Large quantity cupboards / shelves to very high quality. Toilet roll holder, towel rack & mirror mounted. STARBOARDHEAD : Timber lockable door. Manual toilet. Discharge via holding tank. Holding tank built in. Discharge Pump out by shore station or directly overboard. Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements. Vanity basin with pressure hot & cold water. Shower head and basin mixer tap with electric shower bilge pump. Cupboard/shelves to very high quality. Toilet roll holder, towel rack & mirror mounted.
Galley

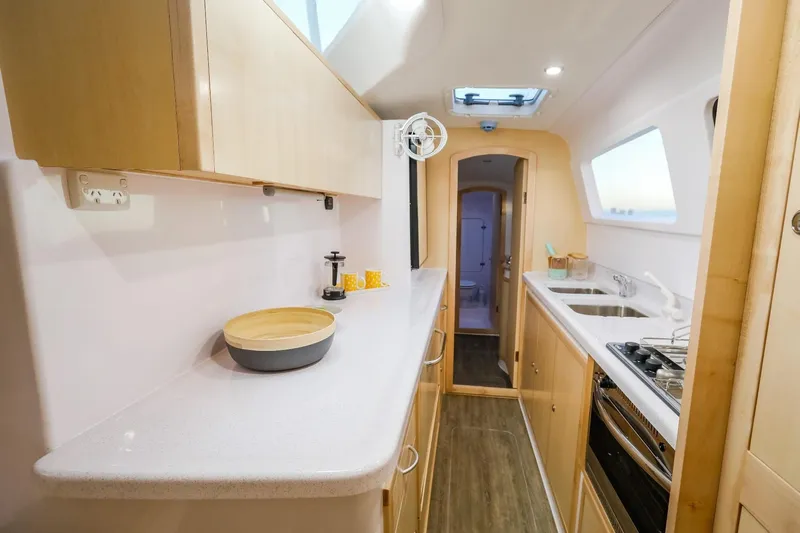

Spacious galley with co-ordinated Polystone counter surfaces, timber accents. Three (3) burner LPG stove. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out. Double bowl stainless steel sink. Pressure hot & cold fresh water system. Single lever mixing tap. Refrigerator : Front opening upright fridge 130 litres. Under bench storage with timber door fronts & cutlery drawers. Inboard side of galley: Over-bench cupboard with sliding door fronts. Simulated timber flooring. LPG solenoid control in galley.
Engines
Twin Yanmar 29hp saildrive diesel engines. Fresh water cooling, rubber isolation mounts on reinforced fibreglass bed with integral oil drip pan. Two bladed folding propellers. Fuel tanks: Total 440 litres (98 gallons) in two survey approved pressure tested aluminium tanks. Fuel gauges fitted. Water intakes for engines protected by external strainer. ( 1 per engine) Twin primary Racor ( or similar) water separator / fuel filters, secondary engine fuel filters. Engine, fuel tank & fuel line installation to Australian standards. Console mounted engine instruments with electric tachometers, engine monitoring & warning systems, engine hour meters.
Electrical
High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display. Marine grade tinned electrical wiring with extensive use of heat sealed connectors.. Batteries x 3 comprising: House System (400 amp hrs) : 2 x 200 amp hr AGM (Absorbed Glass Matt) deep cycle / heavy duty batteries. One engine cranking battery – 700 CCA AGM. 230amp heavy duty isolation switch. BEP Battery Monitor 12 V lighting : Numerous 12V LED interior lamps and courtesy lights throughout including recessed lights in cockpit. Dome lights in cockpit. (All lights except fluros are LED) 4 x 12V Outlets. Survey approved LED navigation lights. Port & Starboard mounted on bow rails. Deck floodlight mounted on spreaders. Mast head anchor / riding light. 2x 125w Solar Panels and 40amp regulator.
Mast, Boom, Sails
Clear anodised aluminium mast and boom. Single Spreader, 7/8 rig. Standing Rigging – Forestay 3/8 (10mm) 1 x 19 Dieform wire. – Sidestays 3/8 (10mm) 1 x 19 Dieform wire – Diamonds 5/16 (8mm) 1 x 19 Dieform wire. All fitted with turnbuckles and T-ball end fittings. Halyards – Main halyard: 12 mm Spectra rope : Heavy duty shackle. – Genoa halyard: 8 mm Spectra rope. Heavy duty shackle. – Topping lift: 10 mm rope, Heavy duty shackle. – Spinnaker Halyard: 12mm rope with snap-shackle spliced to end. Boom outhaul. 2 x mainsail single line reefing fitted. All halyards, reefing lines to be lead back to cockpit through turning blocks, rope clutches. Fully battened mainsail – Fibreglass sail battens. Mast adjustable ball bearing batten car. Cruising mainsail cover with integrated lazy jack system. Self-tacking headsail. Curved headsail traveller track with end stops. Control sheet to cockpit. Headsail furler.
