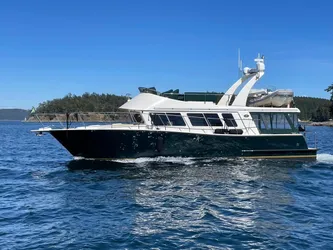

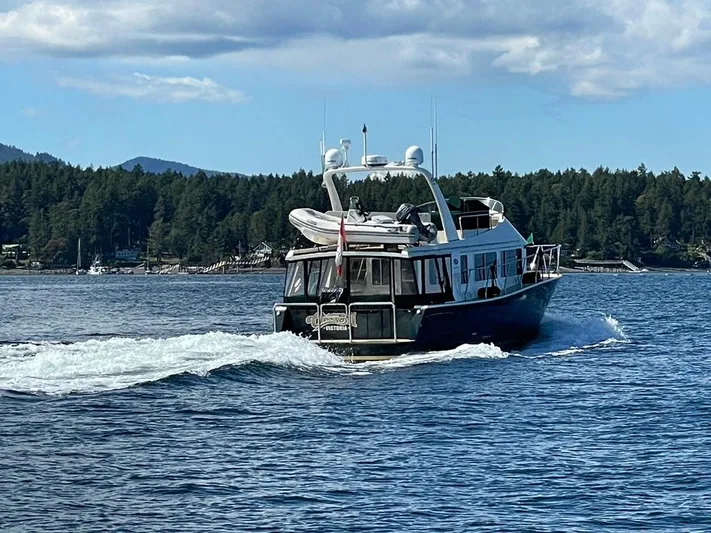

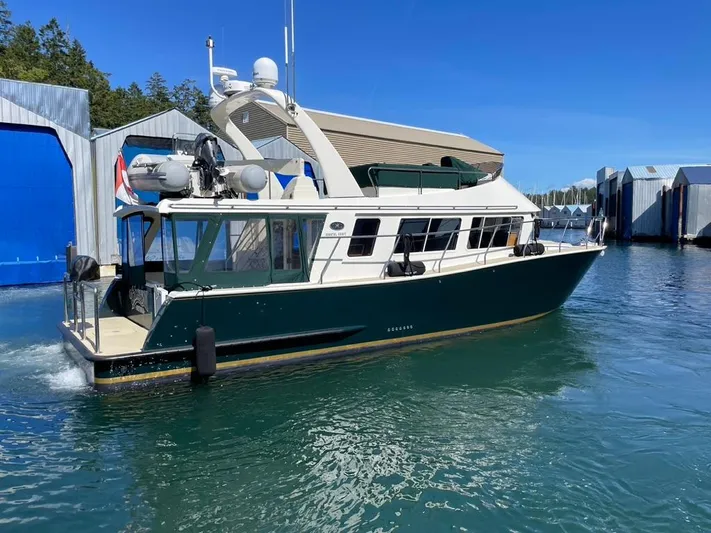

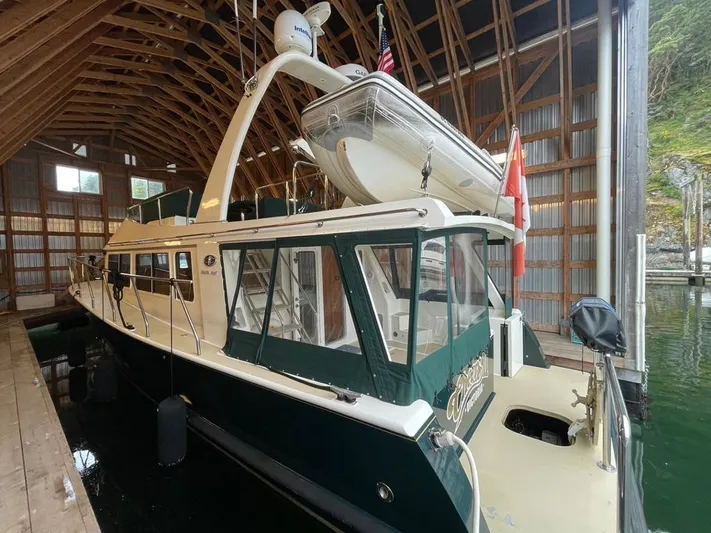

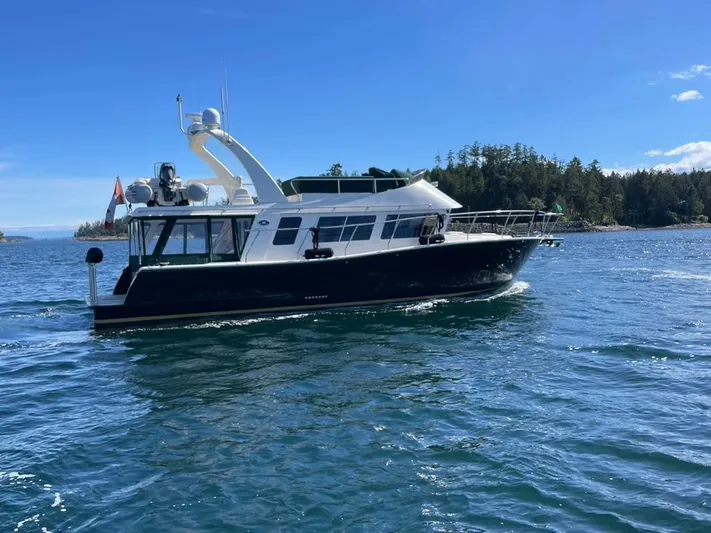

45 Coastal Craft 2015 Boat For Sale

Two staterooms with two heads

Marine aluminum construction

7 to 28 knot cruising speeds

34 knots top speed

Extended range capacity

Low sound levels

IPS Joystick offers ease of handling

Large swim step area

2 helm stations

Sport fishing cockpit

Davit & tender on upper deck

Spacious master stateroom

Large head with separate shower

E-Plex network switching & monitoring

Garmin Radar/Plotter/Sounder/Autopilot

Automatic fire suppression system

Fusion stereo with salon & cockpit speakers

Length overall                                                   49’ 6”

Length on deck                                                 46’ 6”

Beam – maximum                                           15’ 3”

Draft                                                                    3’ 6”

Displacement – fully loaded                36,500 lbs

Fuel capacity                                         800 US gal

Fresh water capacity                               60 US gal

Black water capacity                              28 US gal

Propulsion                                 (2) Volvo IPS 600

Engine                                         (2) Volvo D6-435

Propellers                                    (2) Volvo “Nibral”

Fuel                                                                    Diesel

Generators                                  Nex Gen 3.5 KW

Maximum Speed (fully loaded)                34 knots

Max Cruising Speed (fully loaded)         28 knots

Fuel Economy @ 28 knots         .8NM per gallon

Range @ 28 knots (10% reserve)            600 NM

 Construction

Marine aluminum construction

5/16” 5086-H116 bottom plates

1/4” 5086-H116 transom & chines

3/16” 5086-H116 side plates

5/32” & 3/16” 5052-H32 decks

5/32” 5052-H32 superstructure

Welding- Pulse Mig & Tig

Soundown® hull, deck and cabin insulation

Alexseal® complete fairing & paint system

 Deck Hardware

Fittings all in 316 stainless steel

3” D-Rubber fender rail around swim step

(9) 10” cleats (welded billet aluminum)

Anchor windless (2 station remote)

55 lb Delta® anchor with swivel

100’ chain & 300’ X 5/8” rope (marked)

Pulpit with anchor roller assembly

Safety glass (Tempered) windshield

Side windows (4 sliding, 2 non-opening) (tinted)

Rear windows (2 sliding, 1 non-opening) (tinted)

Hinged rear door with upper window (tinted)

“Lewmar” deck hatches (2-20”, 2-12”) in foredeck

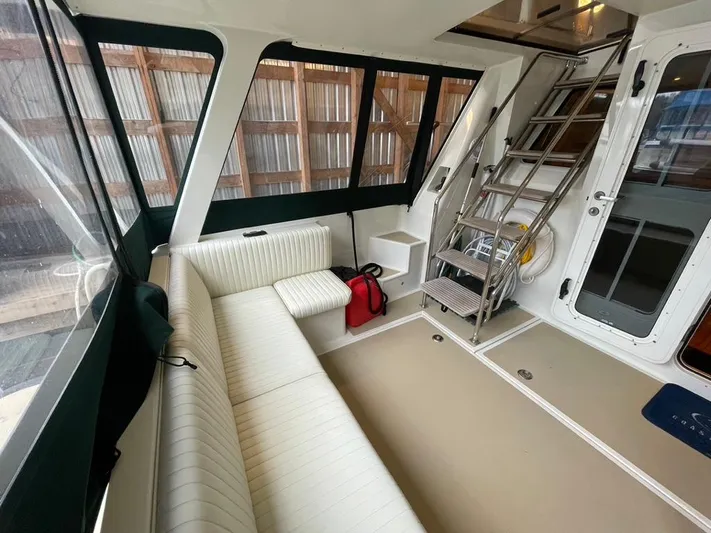

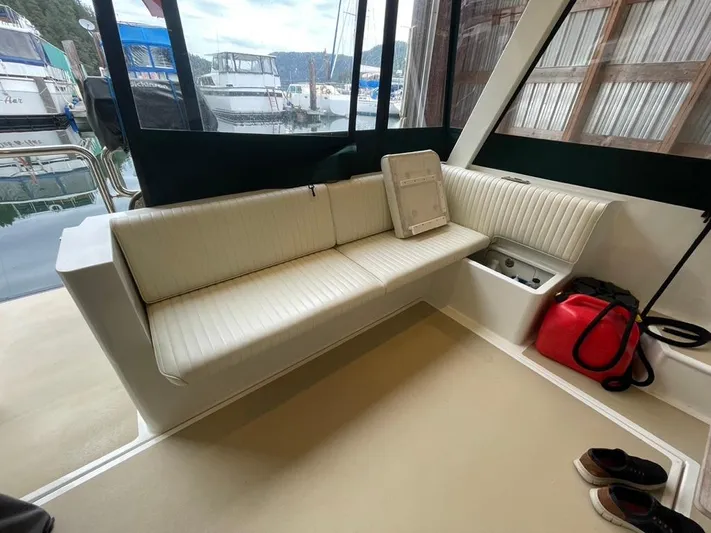

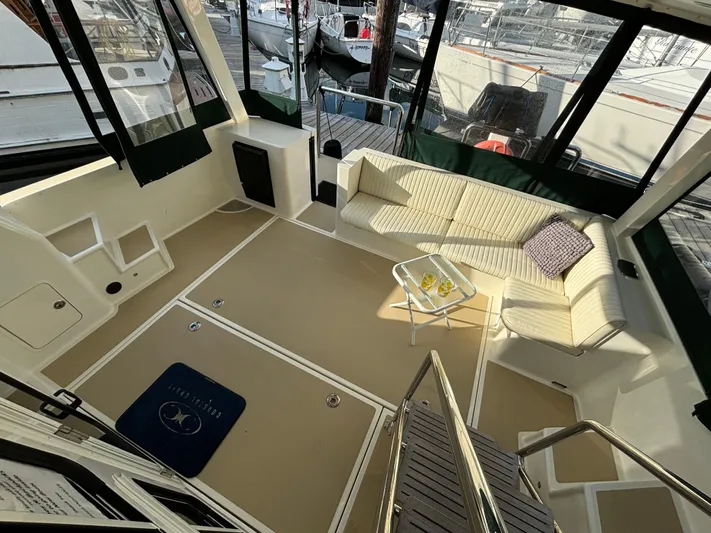

Aft Cockpit

42” overhang hardtop

(2) Rod holder rocket launchers (3 rods each)

Self-bailing cockpit with deck scupper drains

Cockpit steps from cockpit deck up to side decks

Transom cabinet with tackle and general storage

- Tackle (3) drawers and (2) cupboards

- SS Sink and faucet with retractable spray head

- Raw water wash down

Handheld fire extinguisher

Hinged transom door (Starboard side)

Propane locker

Engine deck hatch & storage bin deck hatch

Swim platform 54”

(integral hull design with 12” extension)

Swim platform staple rails with two side gates

- (4) Burnewiin GM300 Rail Mount (staple rails)

- (4) Scotty power points (staple rails & cockpit)

- (1) 42” Cutting Board

(4) Burnewiin GM650 Deck Mount (cockpit)

Boarding ladder (under swim step mounted)

(2) Imtra Vixen LED courtesy lights

Cockpit Helm Station

- Volvo engine management panel

- Volvo Joystick

- Volvo engine start/stop panel

- Volvo dual engine controls

- Volvo tilt steering with Edson wheel

- Garmin 8215 Display

- Garmin GHC 20 Autopilot Control Unit

- Garmin GHS 10 VHF Remote

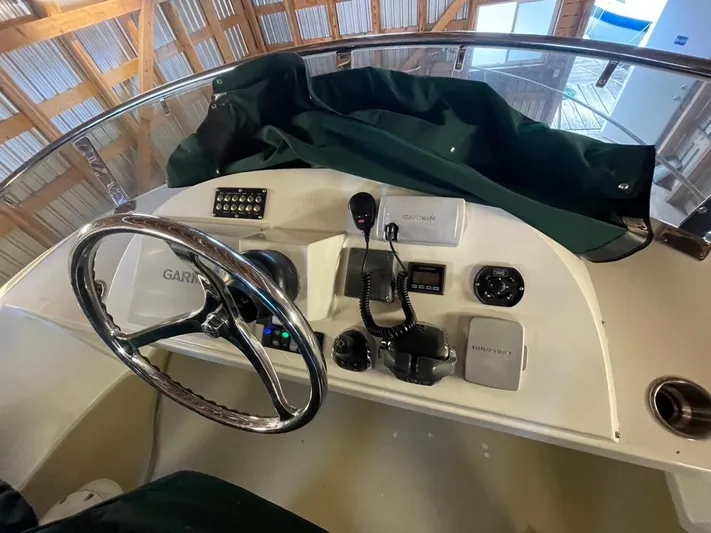

Upper Deck

SS ladder with overhead deck hatch

Deck drains

Non-slip deck coatings

Radar Mast (short forward mounted)

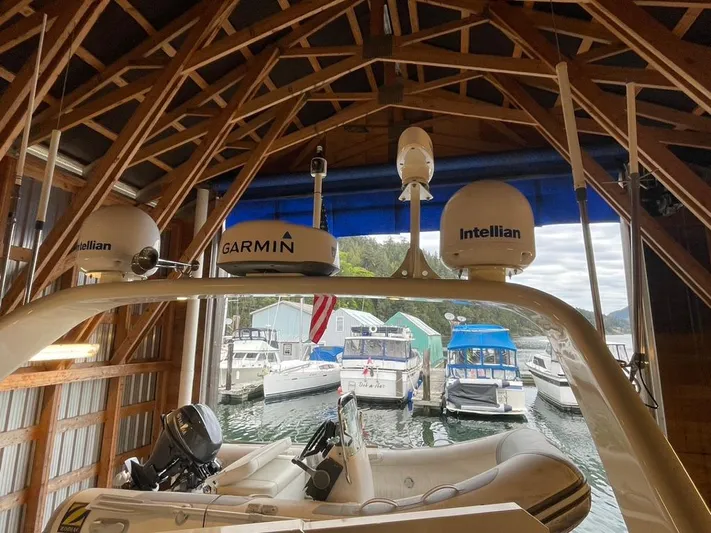

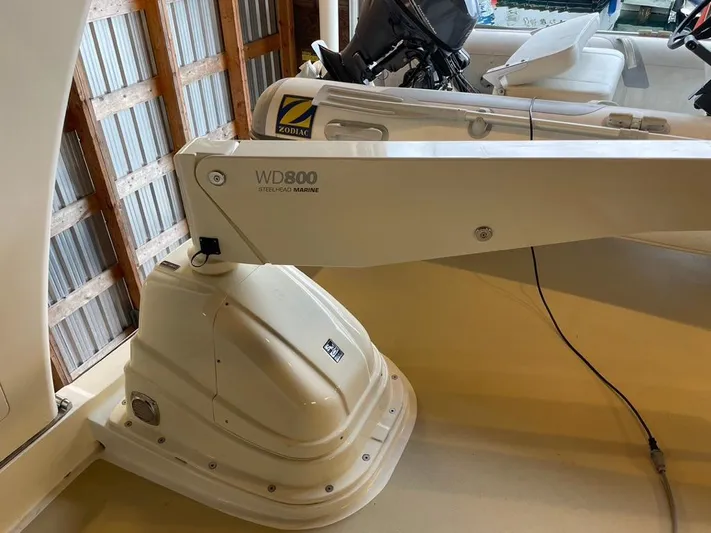

CC Pipe Davit Crane (300 pound capacity)

Tender caulks (aluminum pipe rails on center line)

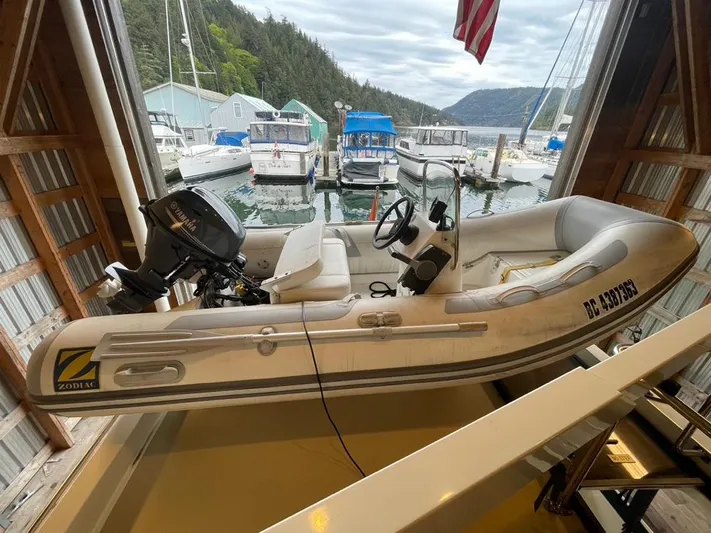

AB Lammina AL 9’ Tender with Yamaha 9.9 4 Stroke

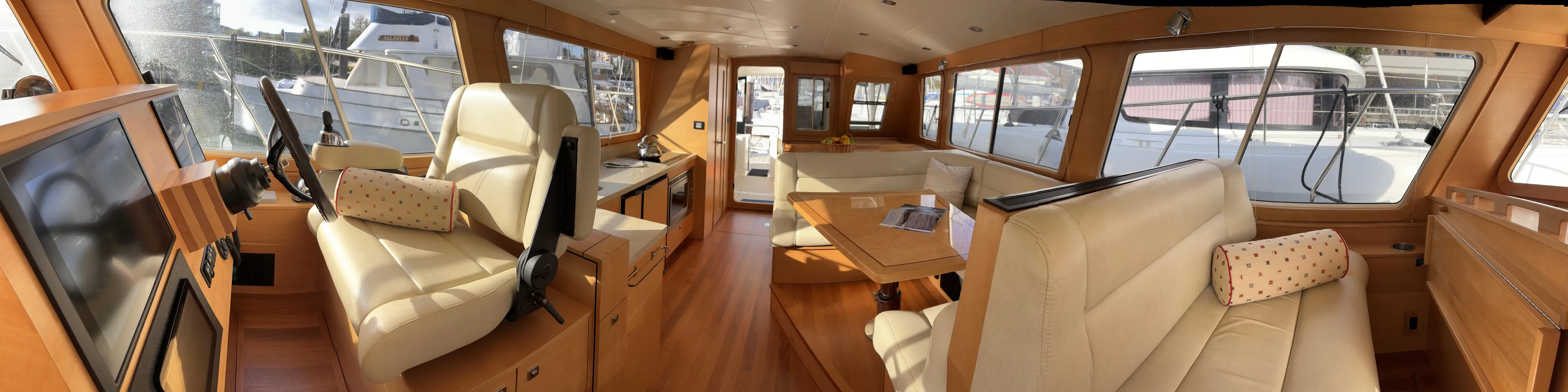

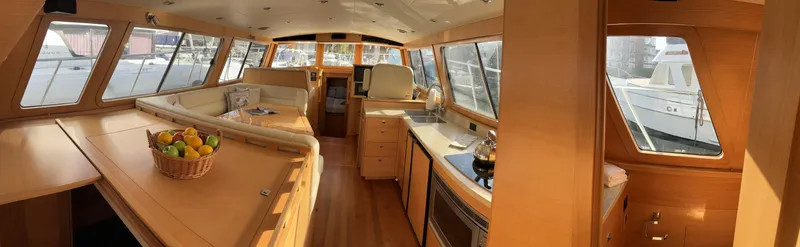

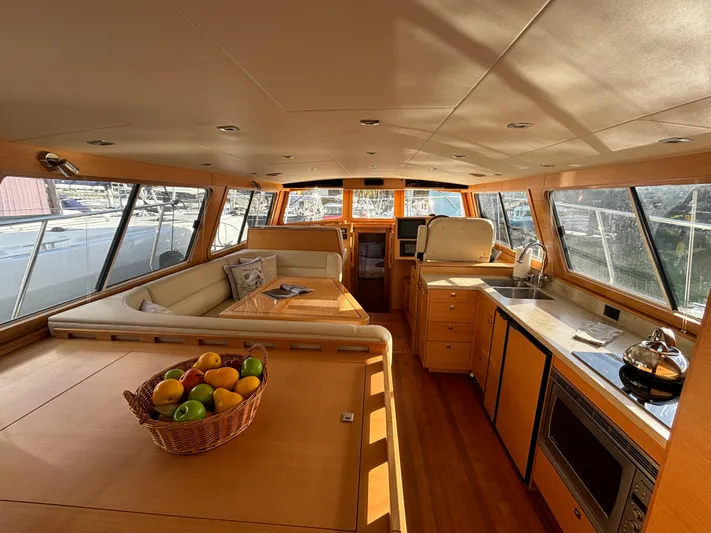

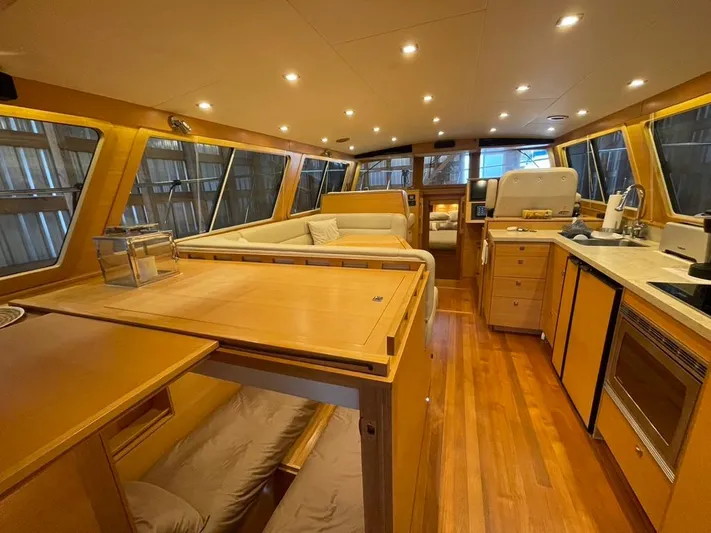

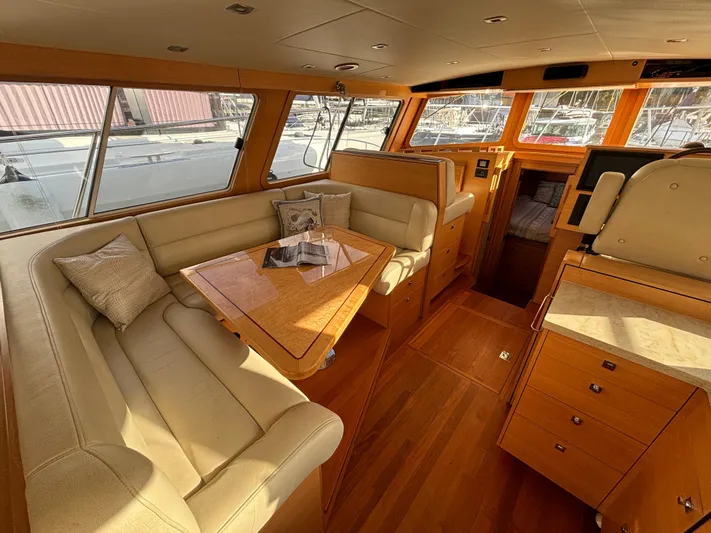

Salon

Cherry joinery

Italian Lite Plywood used with all veneer panels

Nida-Core panels used extensively T/O the interior

Teak & Holly flooring

Cherry window frames

“Jackson” window blinds mounted in valances

Majilite ceiling panels

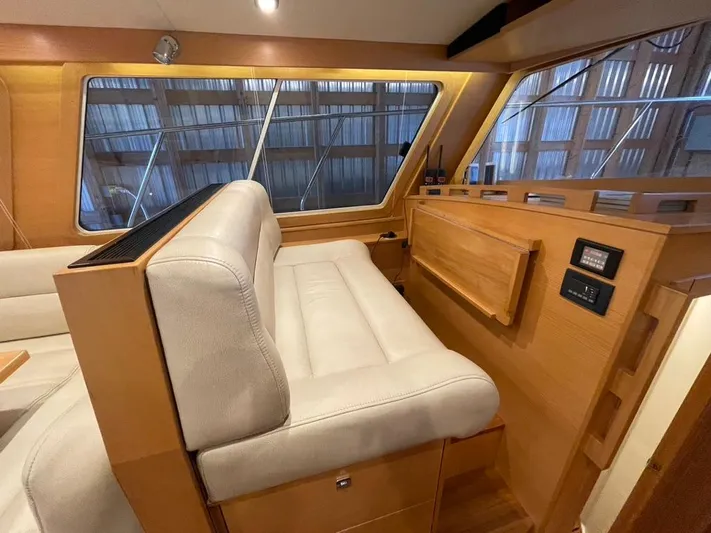

Double-wide helm seat with armrests (Joystick mount)

(storage cabinet with drawers in helm seat cabinet)

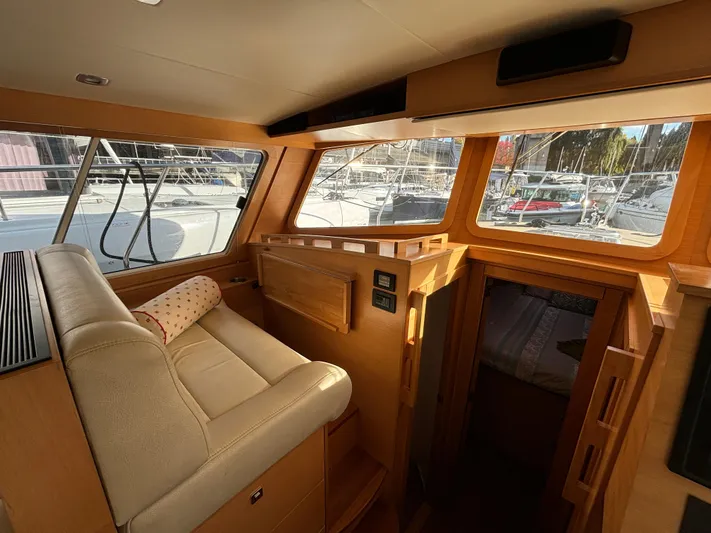

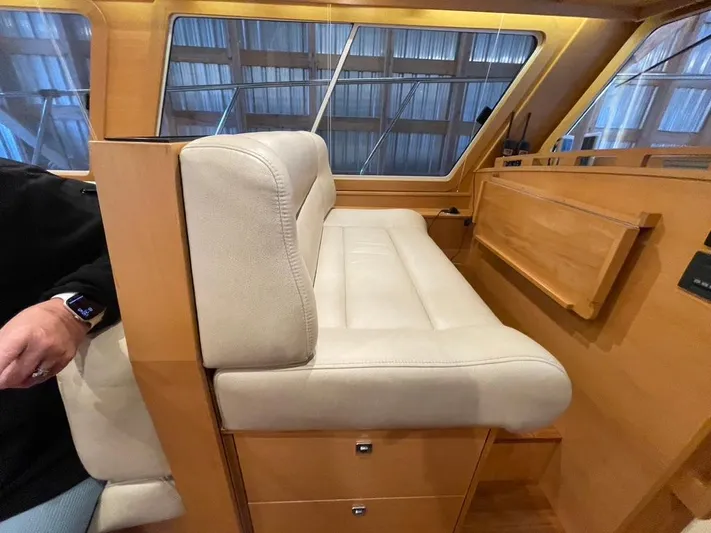

Port side doublewide passenger seating (forward)

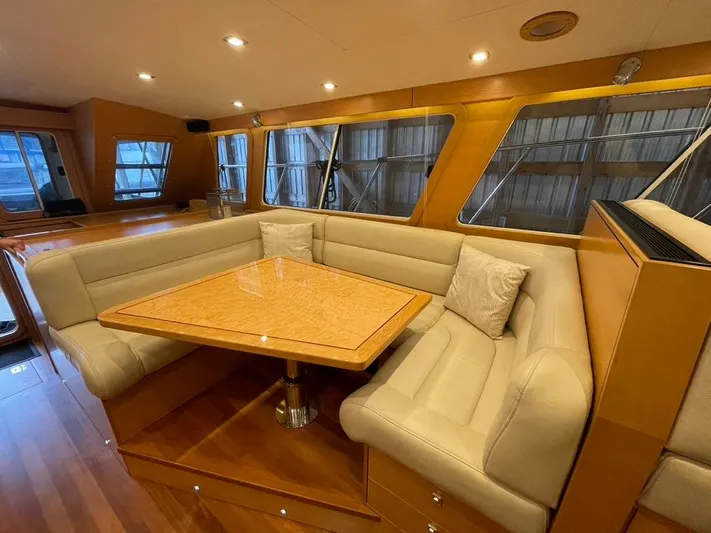

Port side “U” shaped Settee (seating for 6)

“Ultra Leather” upholstery

Starboard galley (L Shaped)

32” drop down TV (ceiling mount)

Fusion stereo with AM/FM, CD, iPod

Imtra Vixen LED courtesy lights

(16) Imtra Ventura LED ceiling lights on dimmer

(2) Imtra reading lights

Storage compartment under salon floor

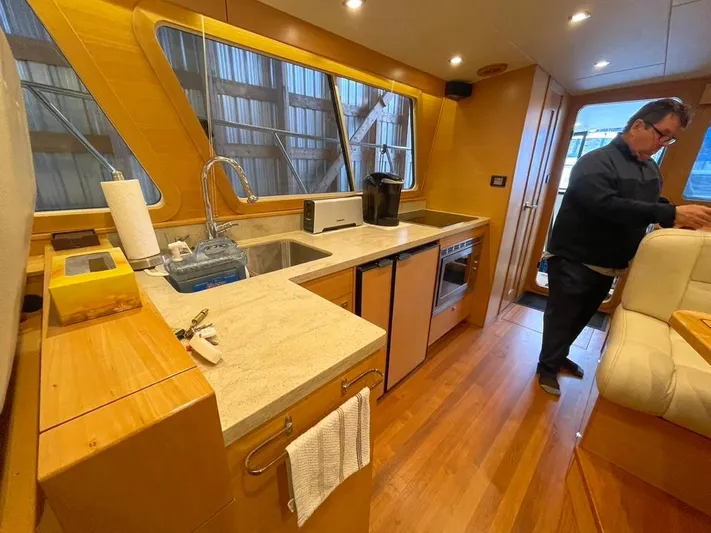

Galley

Galley includes lower cabinets “L” shaped

Pantry (pull out) with upper locker in seat bulkhead

(6) galley drawers and (1) cupboard

(5) settee drawers adjacent to galley

Brushed stainless steel flush latches (locking)

Avonite® countertops and back splash

Novakool® fridge/freezer (7.5 cu/ft side by side)

Seward® cook top stove (3 burner propane)

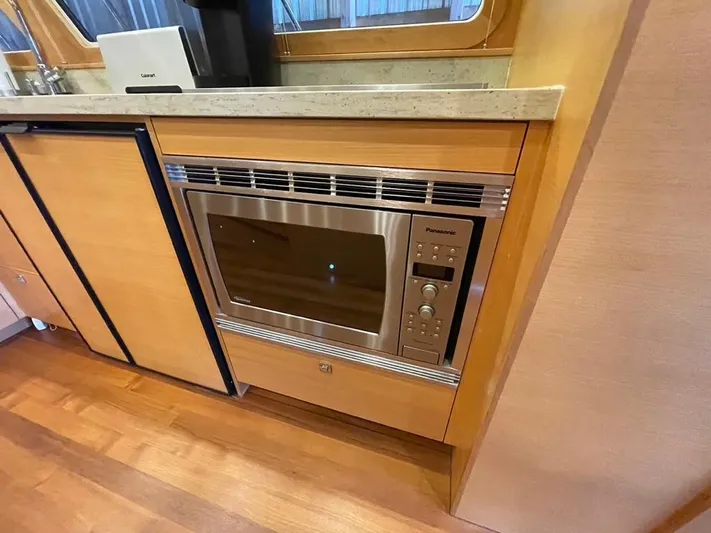

Built in Panasonic® convection microwave

Stainless steel (double) under mount galley sink

Grohe® Galley faucet (single lever)

Hot and cold water

(2) AC outlets

Handheld fire extinguisher

Teak & Holly flooring

Majillite ceiling panels

Imtra Vixen LED courtesy lights

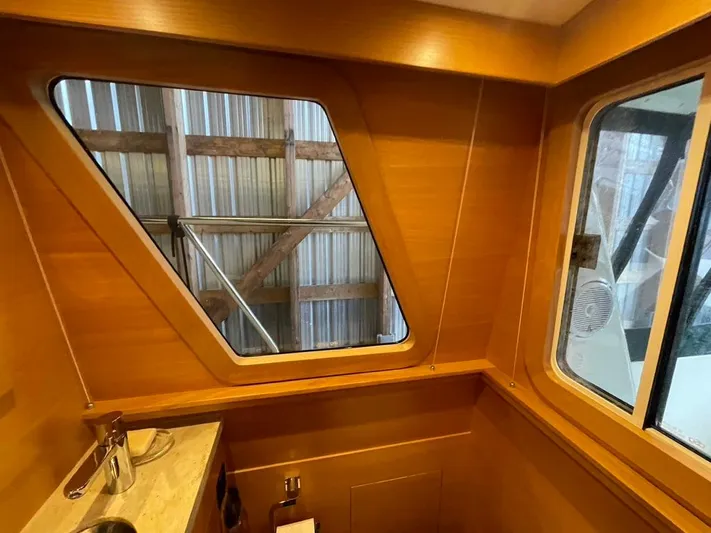

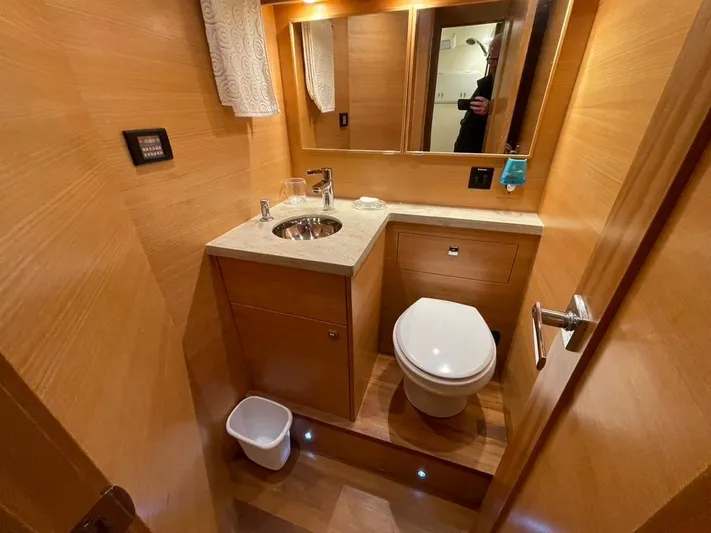

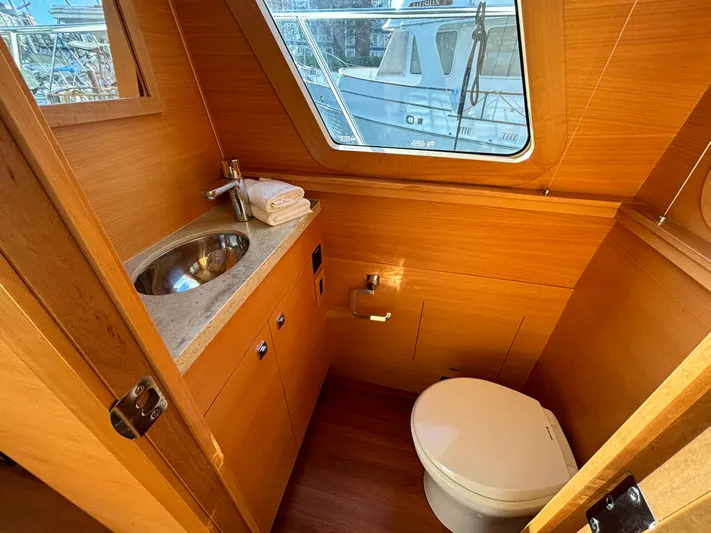

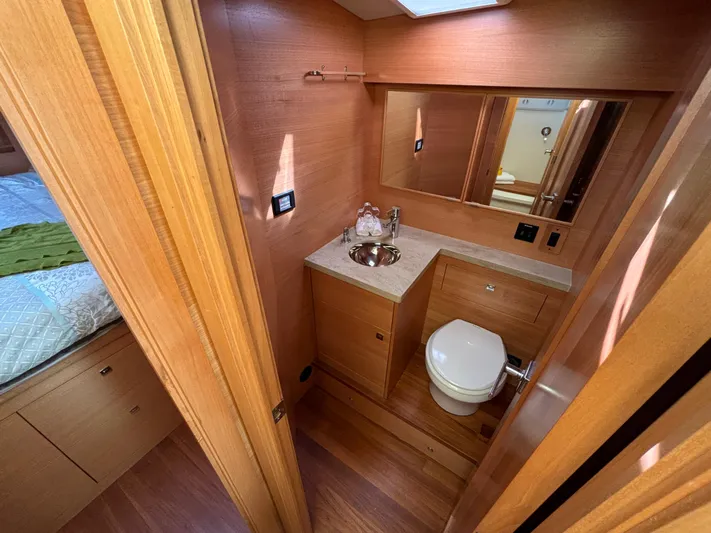

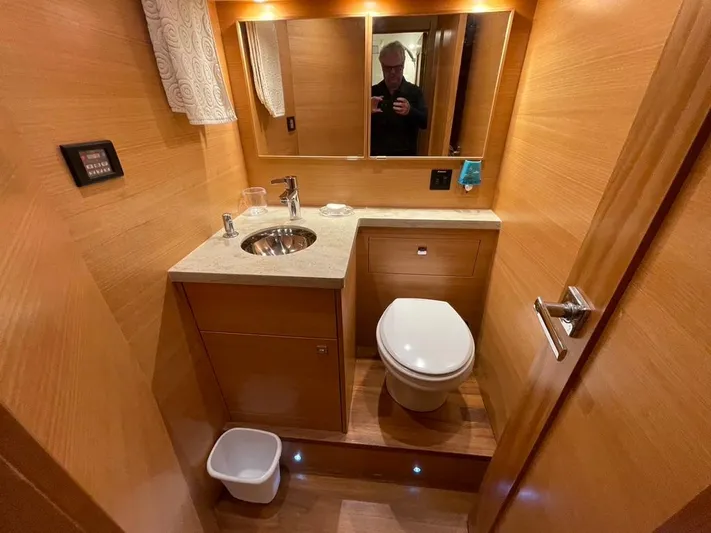

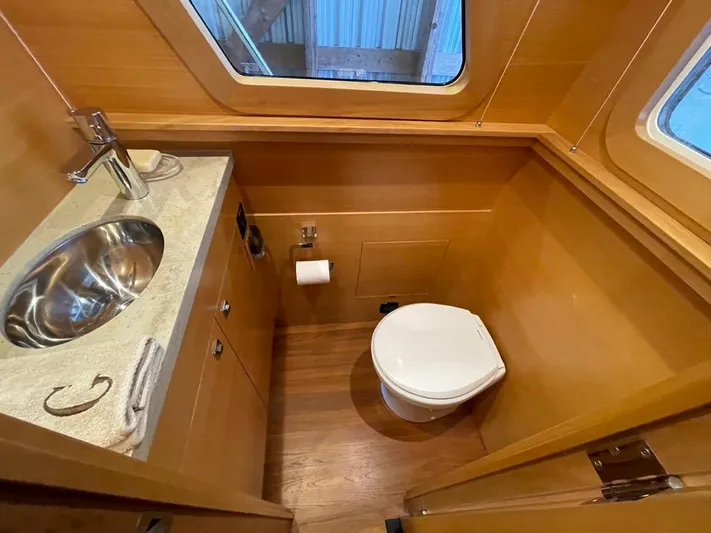

Forward Head

Vanity cabinets (lower and upper)

Vanity drawers and mirrored upper cabinet doors

Avonite® or Corian® countertop and backsplash

Stainless steel under mounted vanity sink

Vanity faucet and soap dispenser

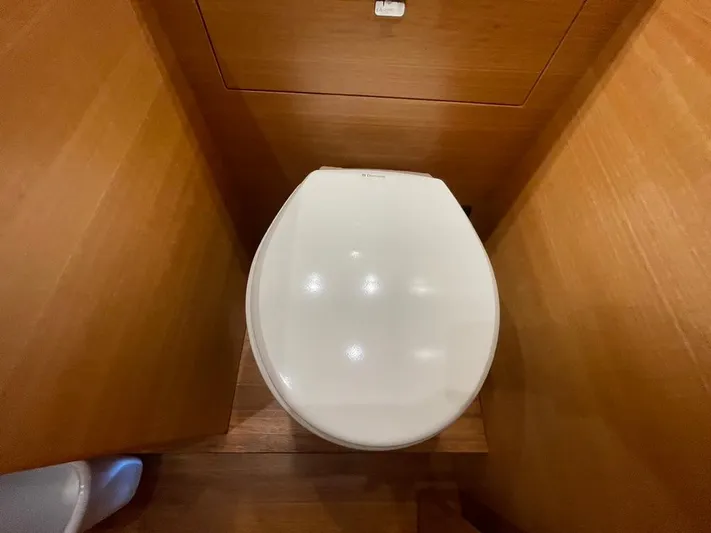

Electric toilet (full size)

AC outlet

Towel bar

Teak & Holly flooring

(2) Imtra Ventura LED ceiling lights, (2) vanity lights

Overhead deck hatch with screen

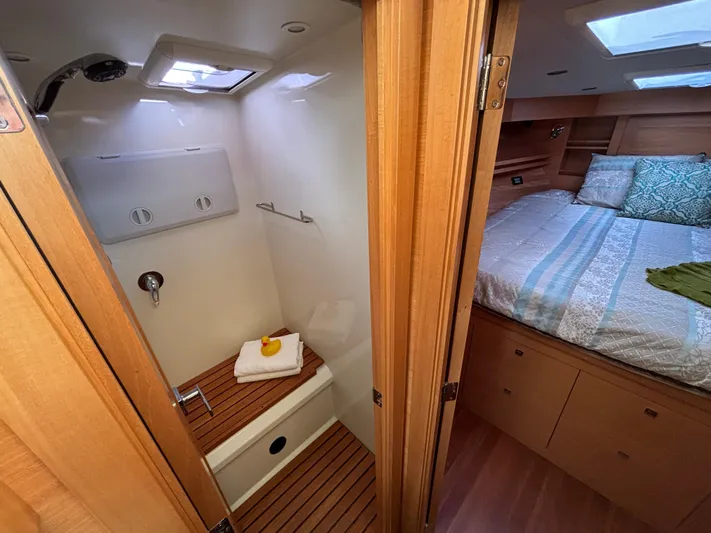

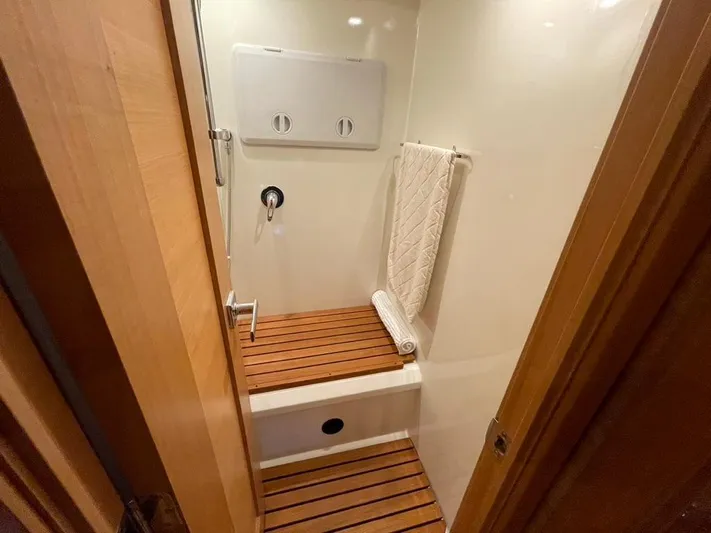

Forward Shower

Watertight shower stall with seat

Non-Slip coatings on floor

Wall mounted mixing valves and showerhead

Towel (dry) locker

Towel bar

(2) Imtra Ventura LED ceiling lights

Overhead deck hatch with screen

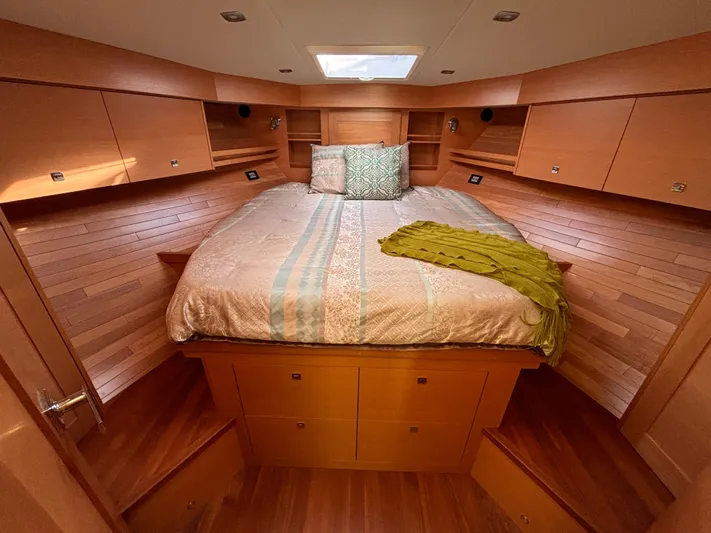

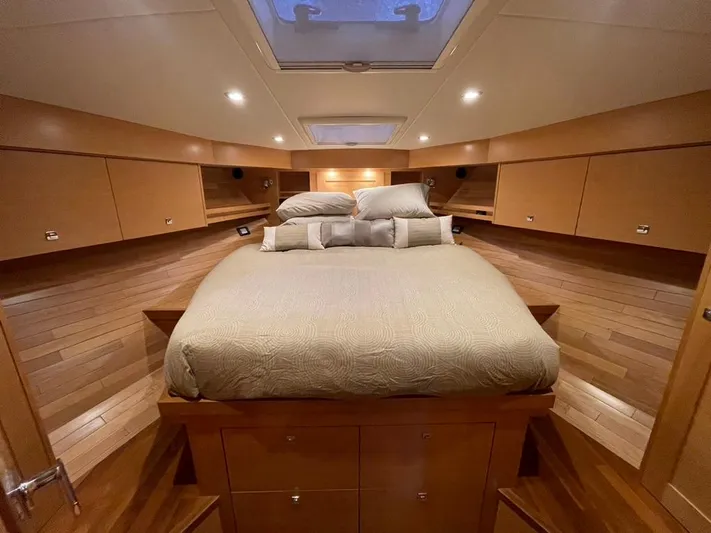

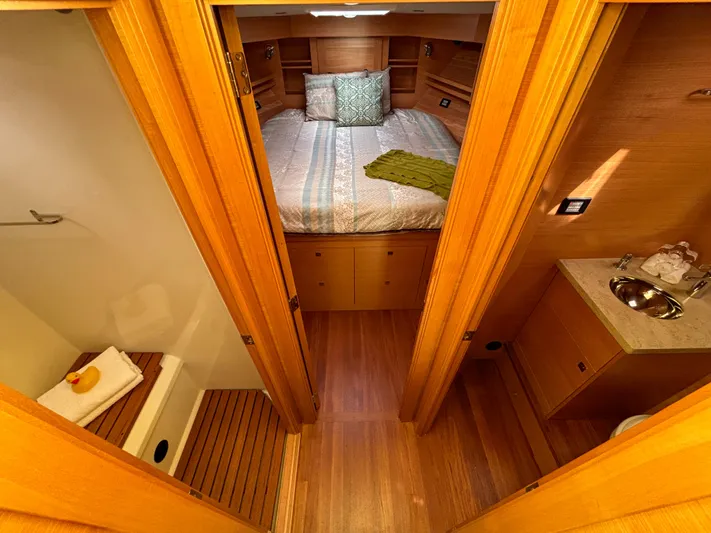

Master Stateroom

Teak & Holly flooring

Island berth (66” X 78”) with 8” mattress

Step platforms on either side of berth for easy access

Port full height locker with shelves

Starboard full height hanging locker

(4) Drawers under foot of berth

Upper side cabinets/lockers

Hull sides lined with cherry planking (2 ¼”)

(2) 20” deck hatches with Oceanair screen/shade

Soft Touch ceiling panels with foam backing

(8) Imtra Ventura LED ceiling lights on dimmer

(2) Imtra reading lights

Imtra Vixen LED courtesy lights

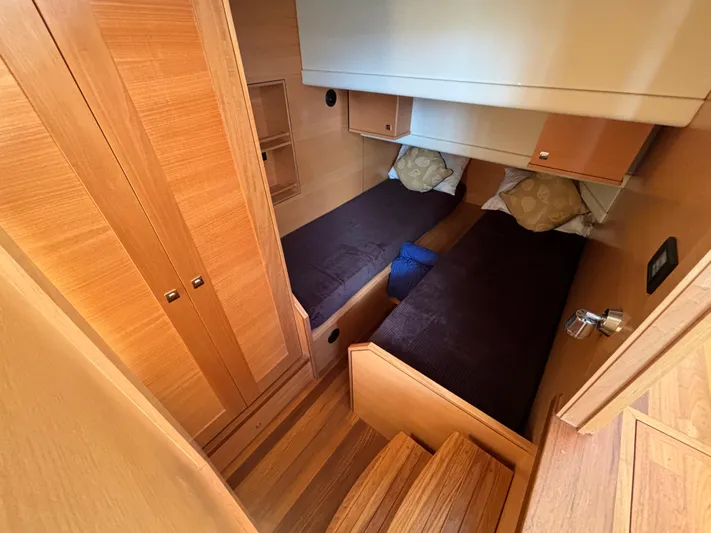

Guest/Aft Stateroom

Teak & Holly flooring

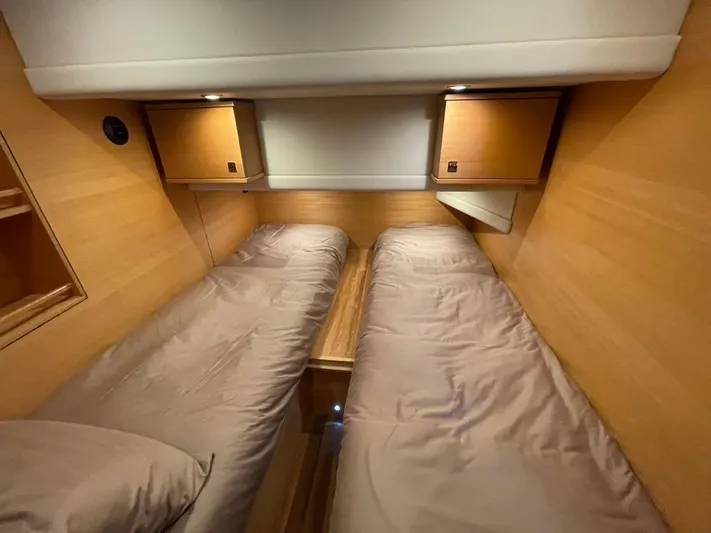

Twin single bunks

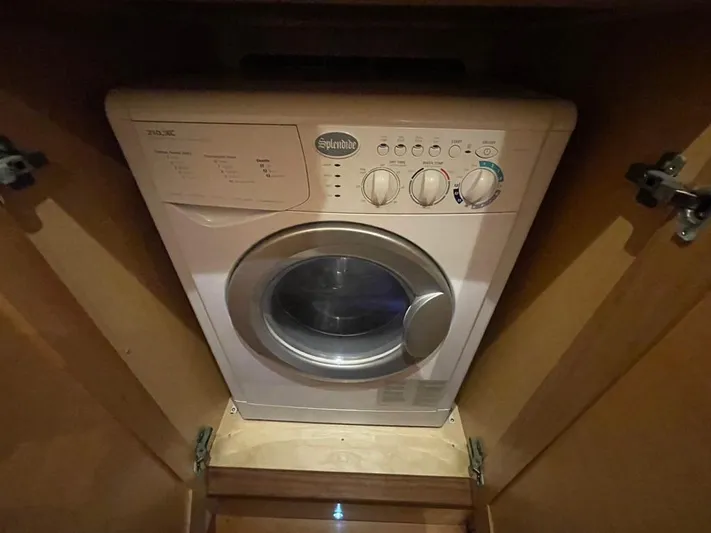

Locker with storage (prepped for washer/dryer)

Stateroom finished in Cherry

Majilitte ceiling panels

Imtra Hatteras LED ceiling lights

Imtra Vixen LED courtesy lights

Imtra reading lights

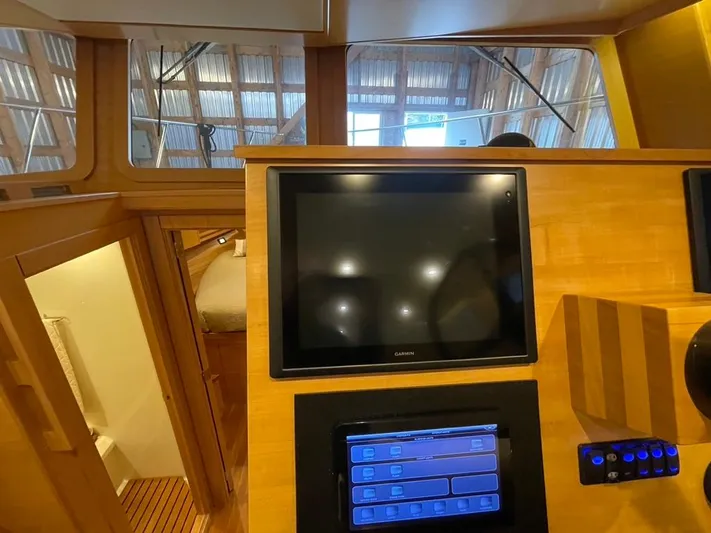

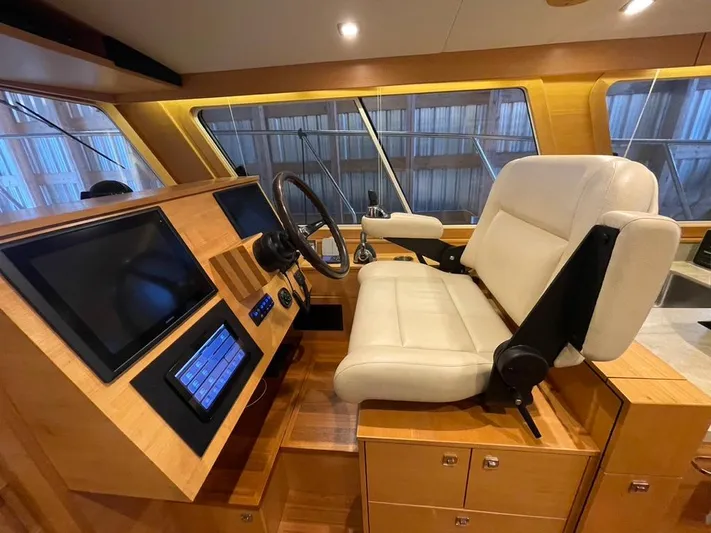

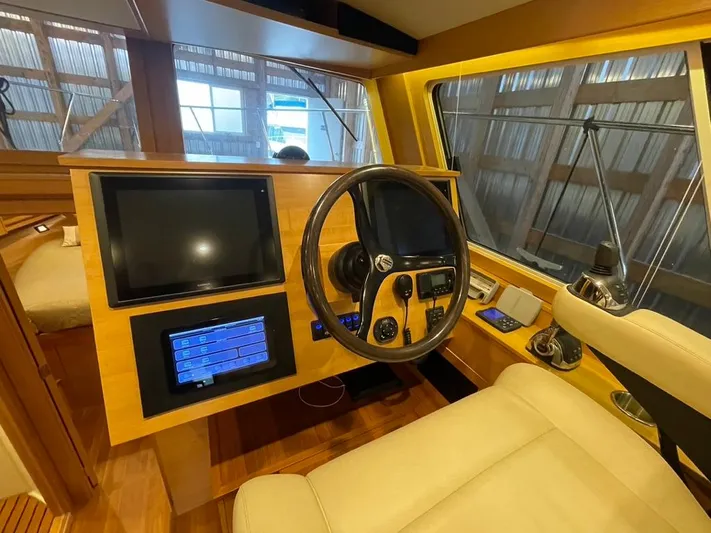

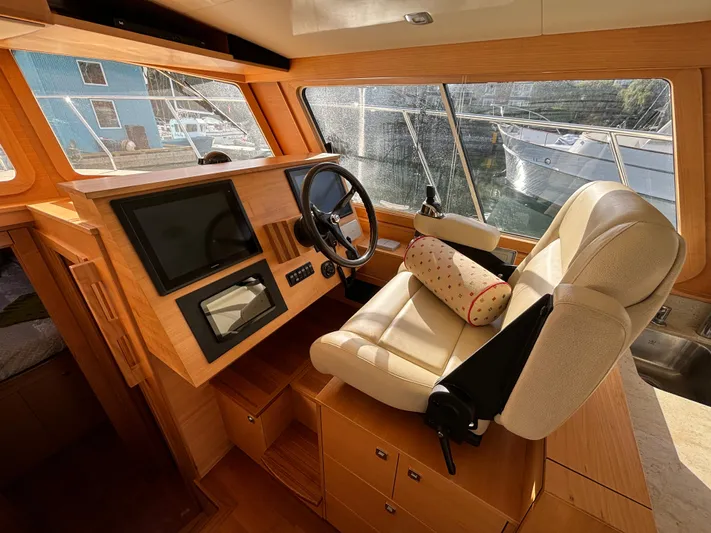

Main helm console

Volvo® tilt steering with Edson® steering wheel

Volvo® dual engine controls

Volvo® key fob ignition panel

Volvo® engine management panel (7” color)

Volvo® Joystick control (helm seat armrest)

Eplex switch panel

Humphree vessel trim system panel

Ritchie® Navigator Compass

(2) Garmin® 8215 displays

Garmin® VHF 200

Garmin GHS 10 VHF Remote (VHF 300)

Garmin® GHC 20 Autopilot Control

iPad Vessel Control with iRoom dock

Navigation electronics

(3) Garmin® 8215 displays

- Radar/GPS plotter/Sounder

Garmin 19X GPS sensor

Garmin® GMR 24xHD Radar

Garmin® GSD 26 Sounder Module

Airmar® thru hull transducer

 (2) Garmin GHC 20 control panels

(1) Garmin® VHF 200 radio with Morad® antenna

(1) Garmin® VHF 300 radio with Morad ® antenna

(2) Garmin GHS 10 VHF Remote

Garmin AIS600

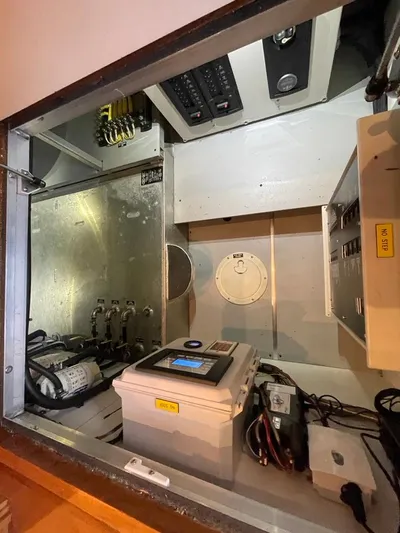

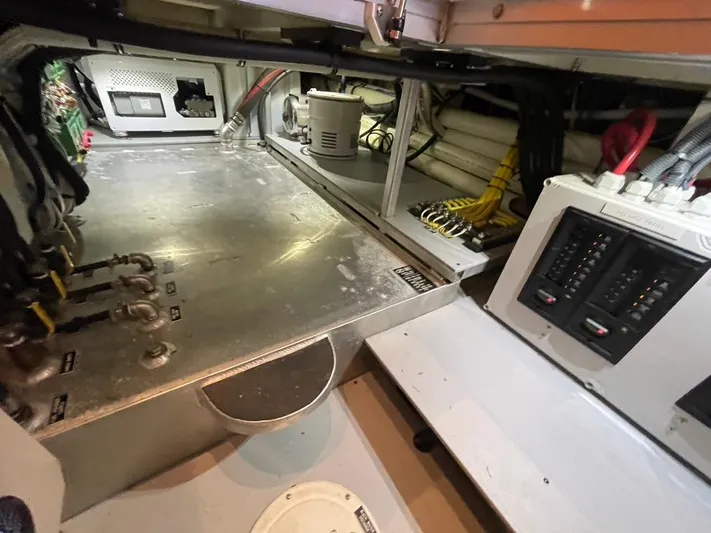

Machinery & Systems

Nex Gen® 3.5KW generator with sound shield

Centek® waterlift & water/gas separator mufflers

(2) Racor® FG900 (dual) fuel/water filter (engines)  (1) Racor® FG500 fuel/water filter (generator)

Manual Whale bilge pump

(2) Z4A hull zinc anodes

Soundown® engine room insulation

Air intake and ambient air venting and ducting

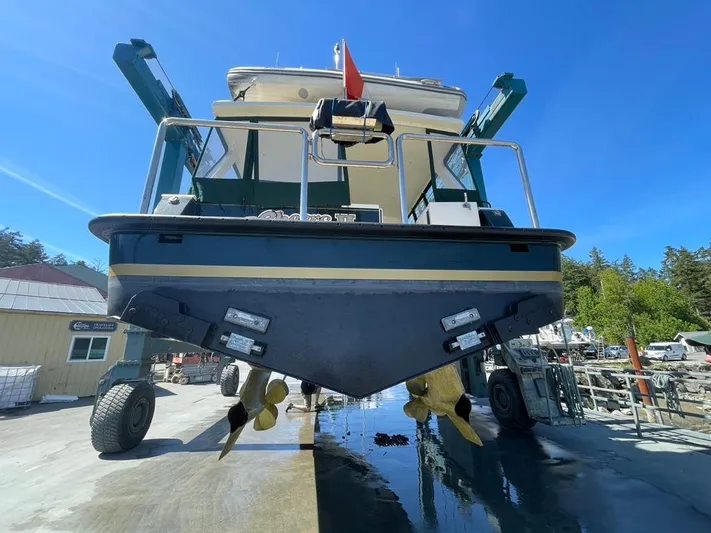

Humphree Trim System

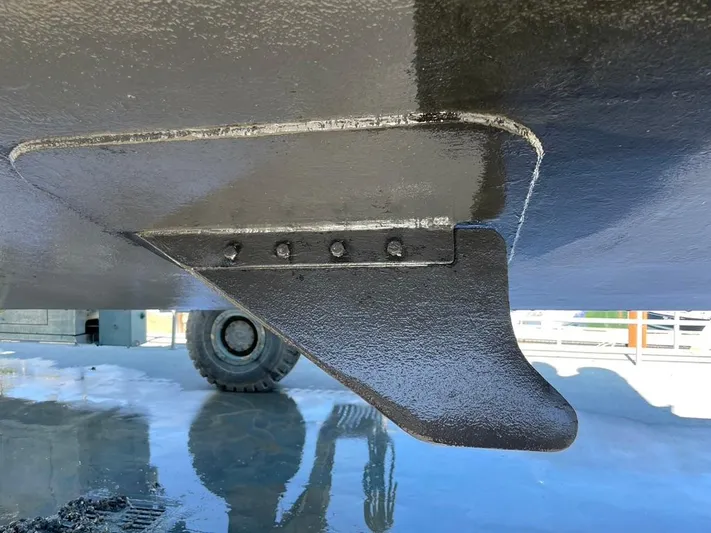

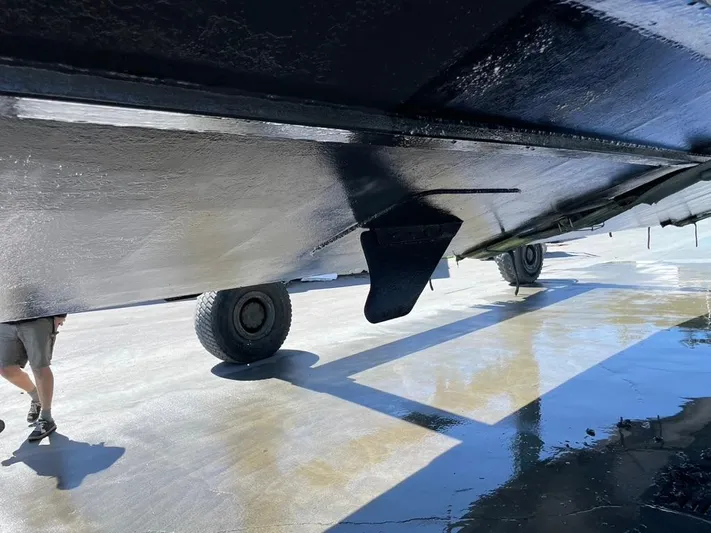

- 750MM interceptor tabs with ACTIVE feature

Air Horn (dual trumpet)

Windshield wiper & washer system

(5) Rule 2000 GPH bilge pump

(1) Whale manual bilge pump

Fireboy fire suppression (engine & mechanical spaces)

Spectra Water Maker Ventura 200T with MPC

Tankage

800 USG fuel tank (aluminum) with sender

50 USG domestic water tank (SS) with sender

28 USG black water waste tank (plastic) with sender

Techtronic shower sump pump

Propulsion

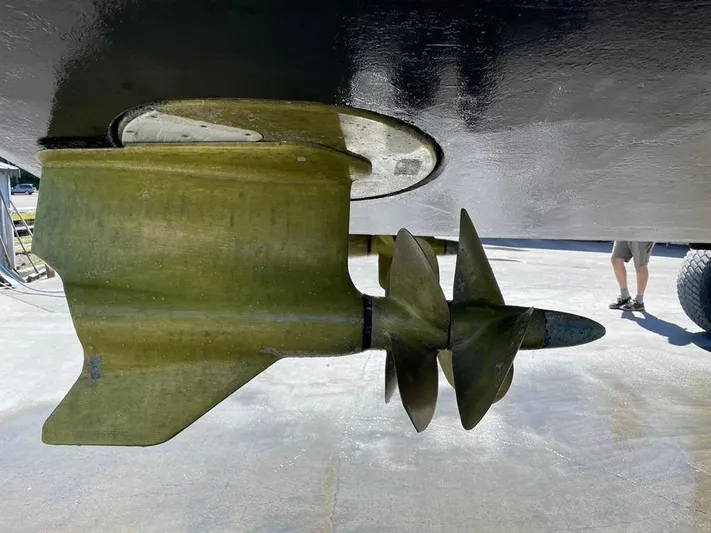

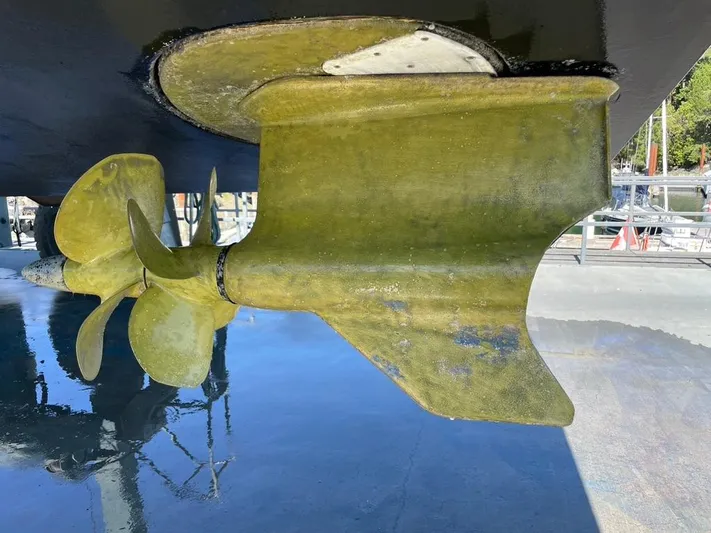

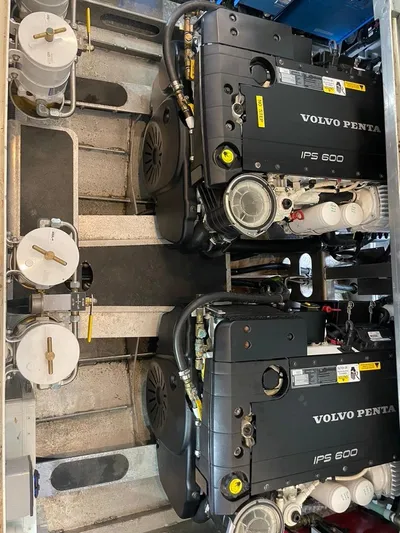

Two Volvo® IPS600 (D6-435 diesel engines)

(2) Volvo engine management panels (7” color)

(2) Volvo Joystick control

Volvo Dynamic Positioning System (DPS)

Volvo Slow Speed Trolling

Volvo Single Lever Control

Volvo Cruise Control

Volvo spare parts kit

Volvo Joystick Steering

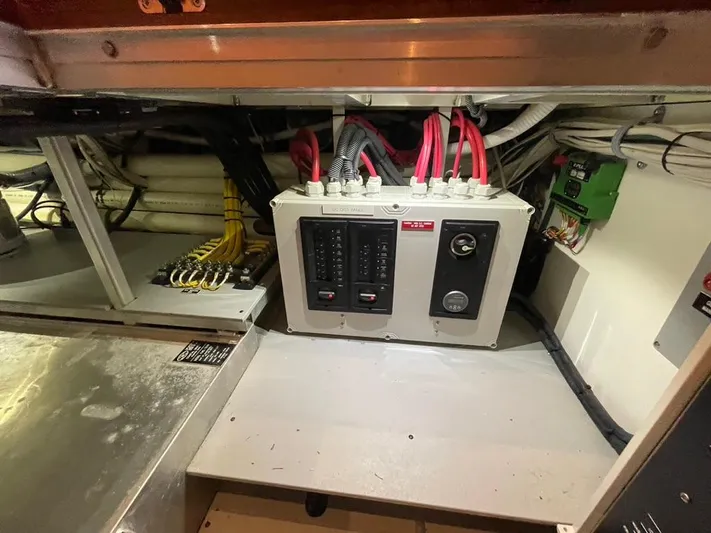

Electrical equipment

12V DC House & Engine

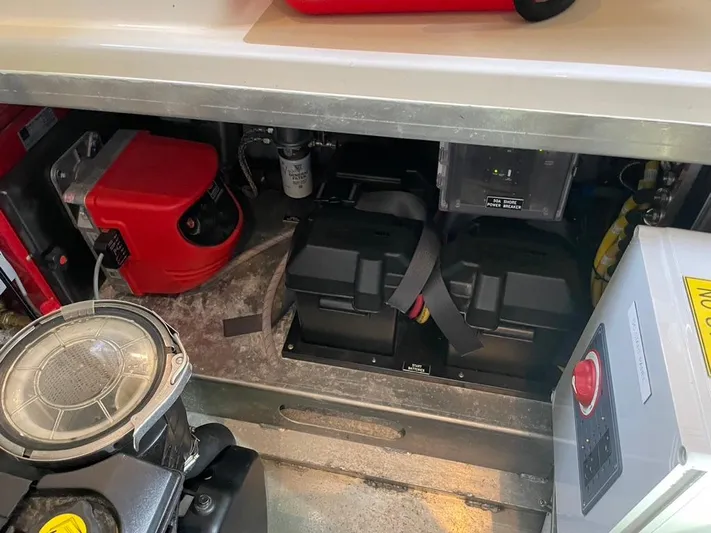

(2) Genasun Lithium-Ion

- 12V@360 AH = 720 AH total (house bank)

(2) Northstar® Energy One AGM (12V) engine

(1) Victron Quattro 5KW inverter/charger

Pro-Sine Charger (Start bank)

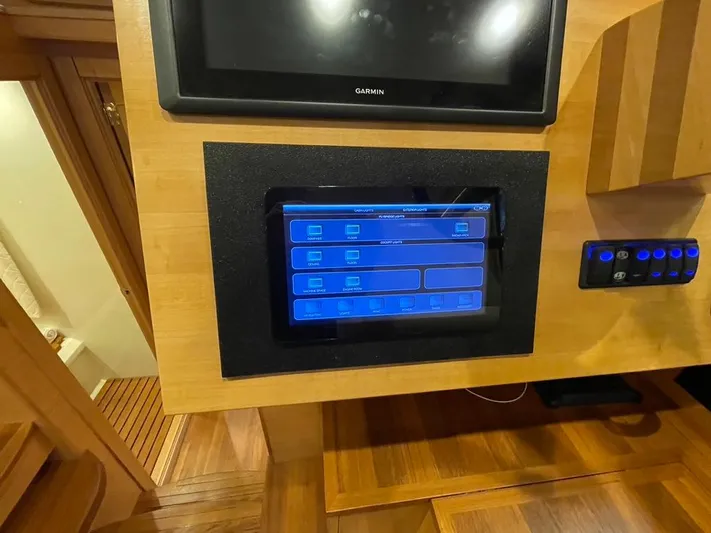

E-Plex network switching & monitoring

-iPlex vessel control (iRoom dash mount)

ACR Remote Searchlight

120V/30A Shore Power

Charles® galvanic isolation transformer

Battery coupling system

Navigation lights (LED)

High water bilge alarms

High temperature alarms in engine room

Domestic water pump

Imtra LED recessed ceiling lights on dimmers

LED lights in engine & mechanical compartments

Climate control

Defrost system (engine heat)

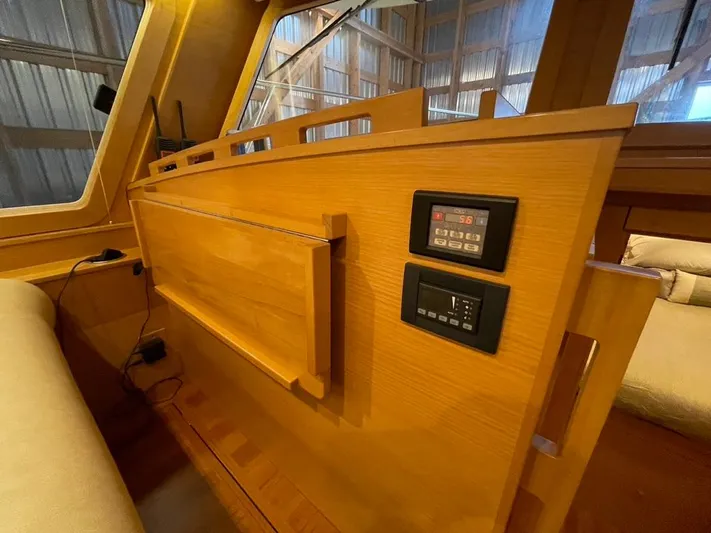

Espar D5 diesel furnace (hot air)

Espar D2 diesel furnace (hot air)

Hurricane Domestic Hot Water Heater

- Hot water on demand (diesel fired)
