47' Mckinna 2001

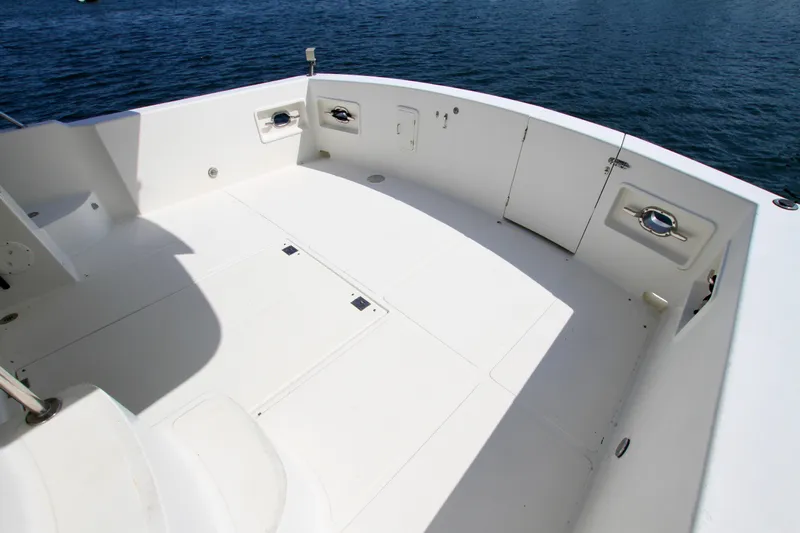

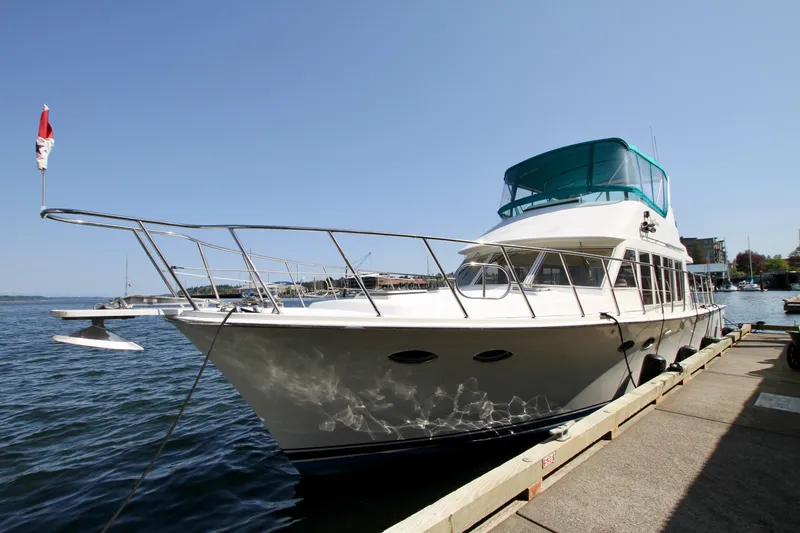

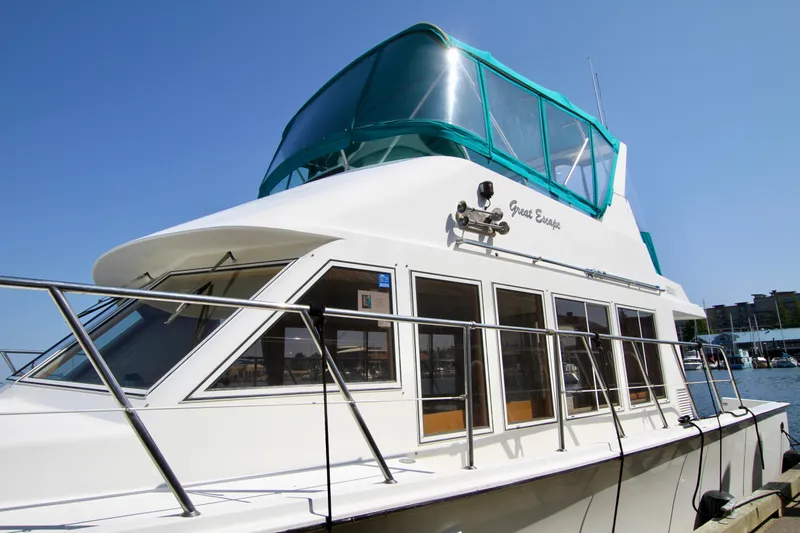

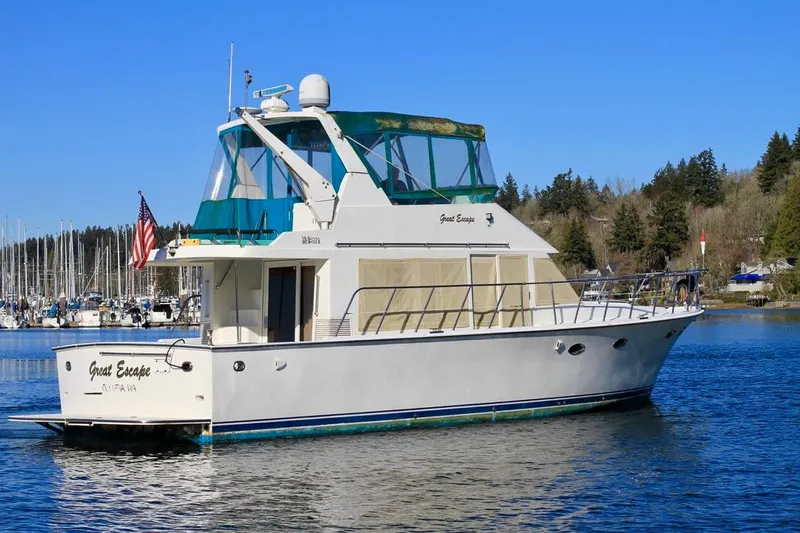

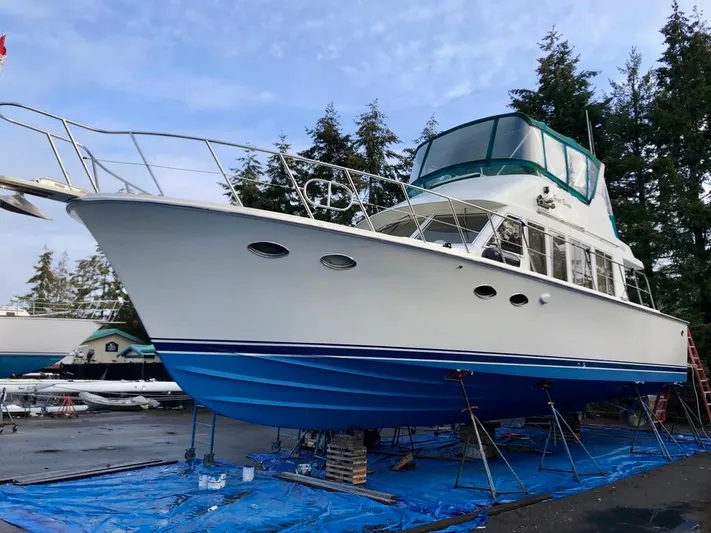

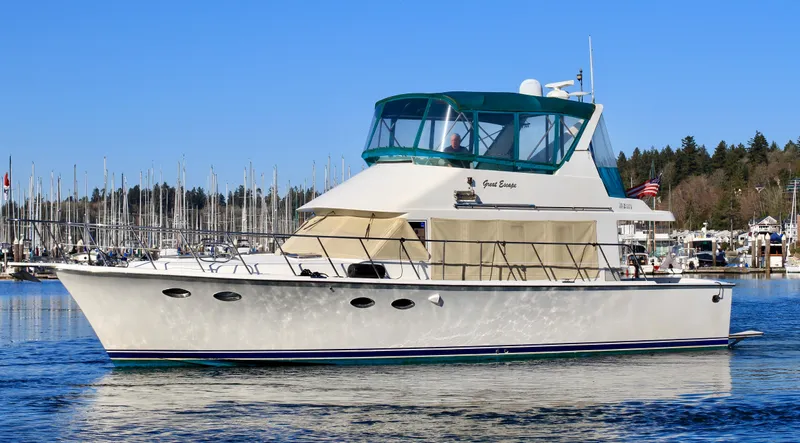

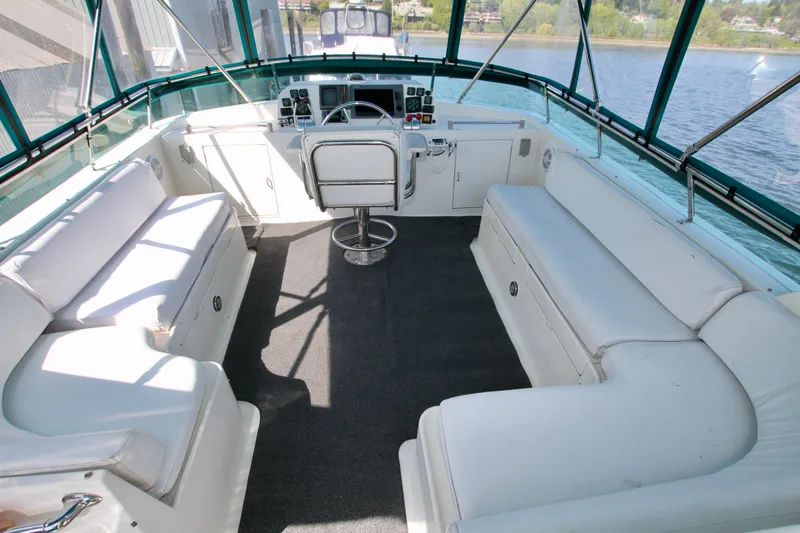

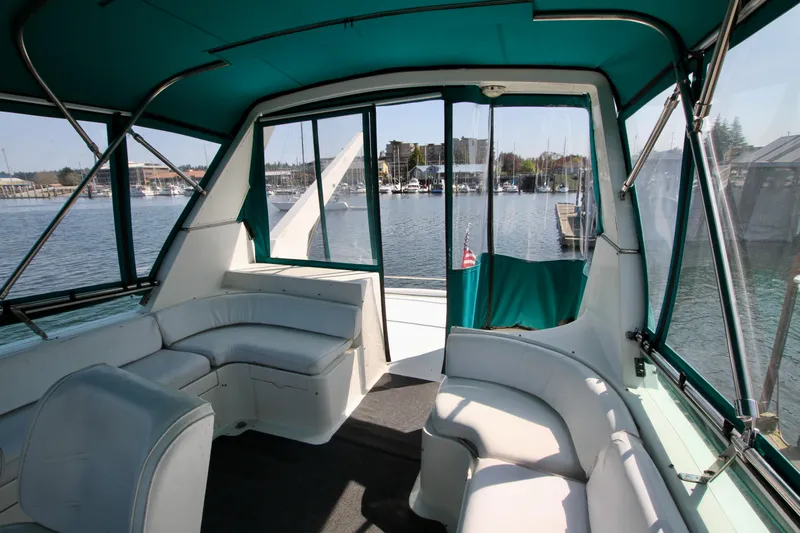

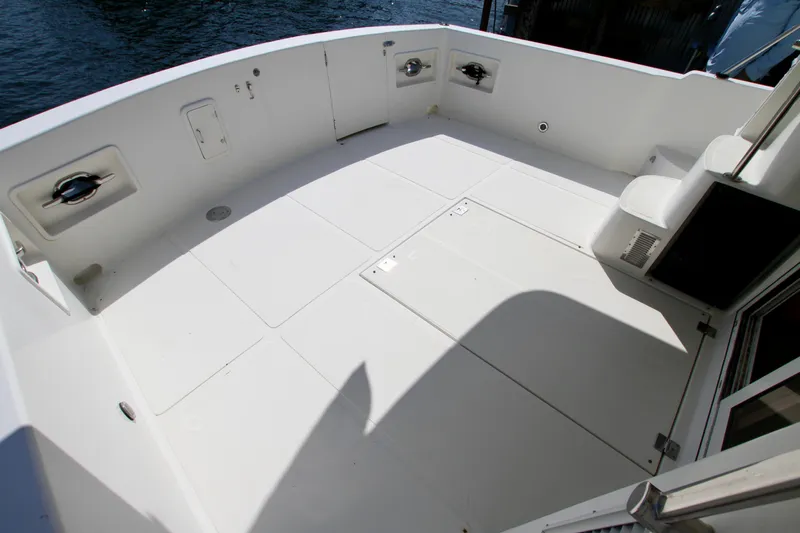

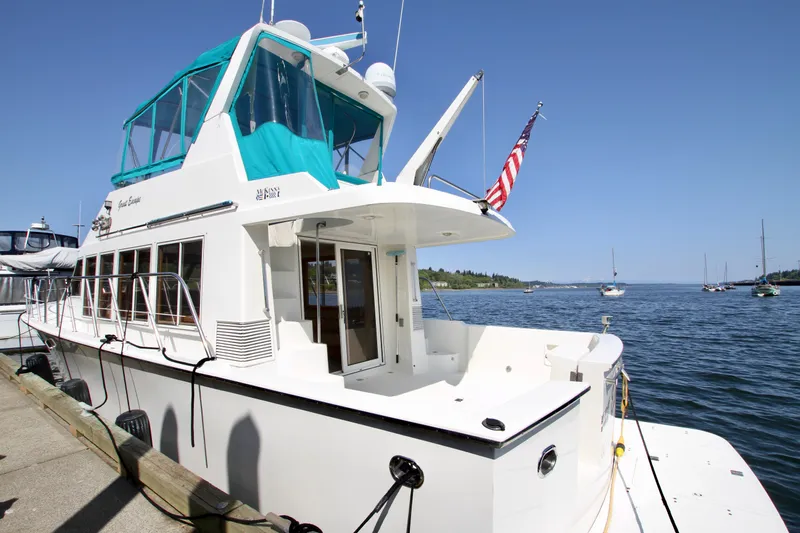

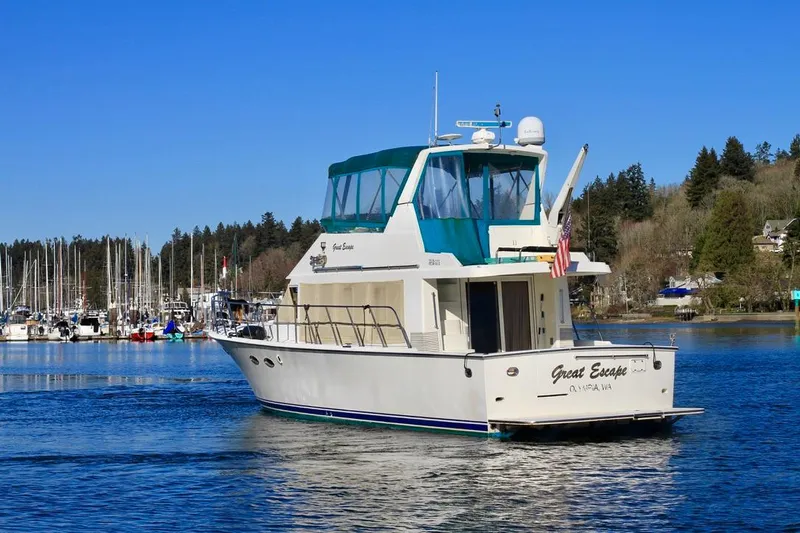

The McKinna 47 is a Taiwan-built sedan that's conservative profile masks a surprisingly space-efficient interior. She rides on a conventional modified-V hull with a well-flared bow, a shallow keel for stability, and a relatively wide 15-foot beam. Her spacious galley-up floor plan is arranged with two staterooms, both with queen-size berths and built-in vanities, and two heads that share a common shower stall. An L-shaped sofa dominates the salon where the large, wraparound cabin windows provide excellent natural lighting and outside visibility. The interior is finished out in handcrafted maple woodwork. While the McKinna is clearly designed with cruising in mind, her large cockpit partially shaded by the bridge overhang is suitable for a couple of light-tackle anglers. Topside, the flybridge is huge with the helm forward and seating for eight.

Great Loop Accessible Arch Folds Down!!!

RECENT UPDATES FALL 2023

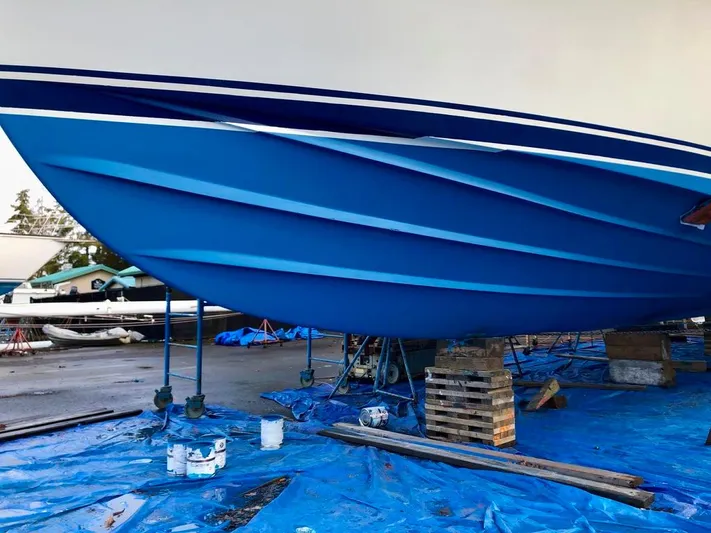

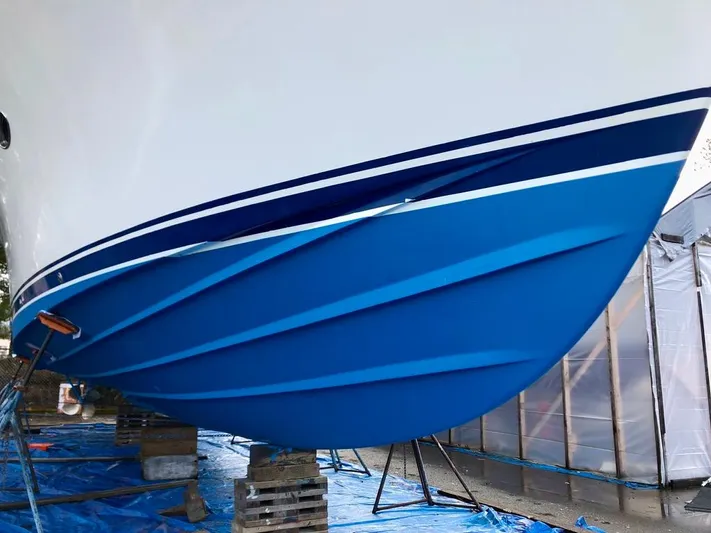

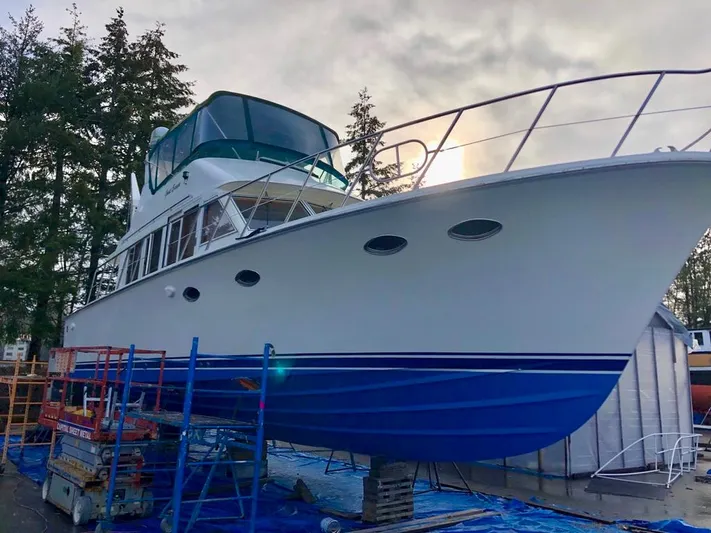

1. Fresh bottom

2. Prop Speed

3. New trim tab hoses

4. New Injectors on Mains

5. New port oil cooler

6. New STBD aftercooler

7. New oil hoses

8. both new airseps

9. Davit completely rebuilt

10. Engines and generator serviced

11. New AC strainer

12. Tender - new tubes, new bimini top, new full cover, engine service

Denison Yachting is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Mar Azul Marine Group.

Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.

INQUIRE ABOUT 47' MCKINNA

Have questions about this yacht? Fill out the form below and our team of experts will contact you soon.

Sending your Message. Please wait . . .

Your privacy is important to us. Find out how we protect it. Privacy Policy

47' Mckinna HIGHLIGHTS

Yacht Details: 47' Mckinna 2001
Location: Key Largo, FL
Engines: Cummins
Last Updated: Mar 5, 2024
Asking Price: $399,900
Max Draft: 3' 10''

47' Mckinna additional information

Specifications

Beam: 15' 0''
Hull Material: Fiberglass
Max Draft: 3' 10''
Displacement: 40,700 lb
Fuel Tank: 1 x 700|gallon
Fresh Water: 2 x 110|gallon
Holding: 1 x 80|gallon
Cabins: 2
Heads: 2

Exterior

Hull Painted Awlcraft - 2000 color in Greystone

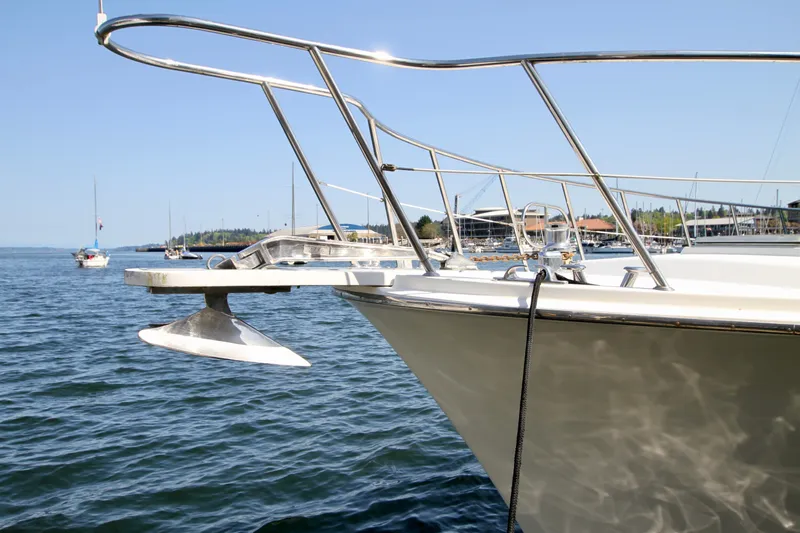

Mantus 85# anchor with 200 ft. 5/16 G40 chain
Washdown hoses, fresh and raw at cockpit and anchor locker - separate 12v pump
Transom shower - hot/cold
Swim platform ladder - retractable & hidden under hatch
Deck drains piped to waterline - no standing water
Hatches and Portlights 316 SS by Manship

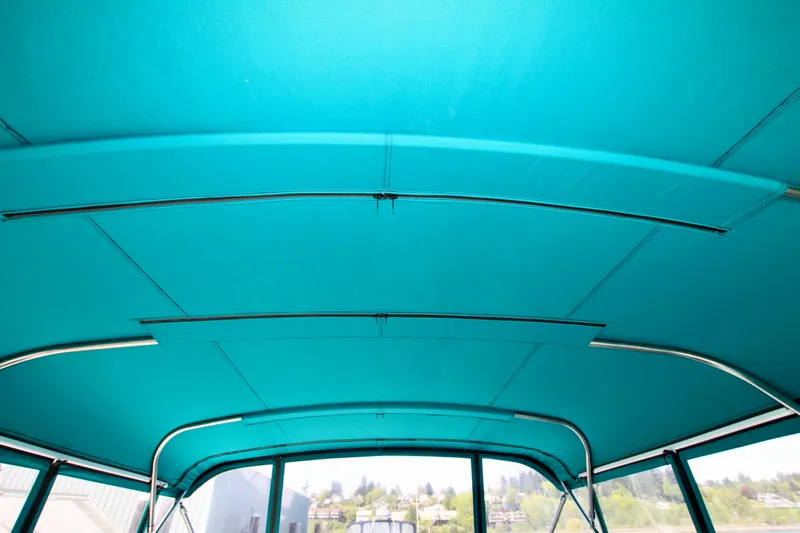

Exterior covers:

Windshield tan Phifertex

Dinghy, white Stamoid

Flybridge sofas Sunbrella Grey Tweed - 2x

FB pilot chair Sunbrella Grey Tweed

FB instrument console Sunbrella Grey Tweed

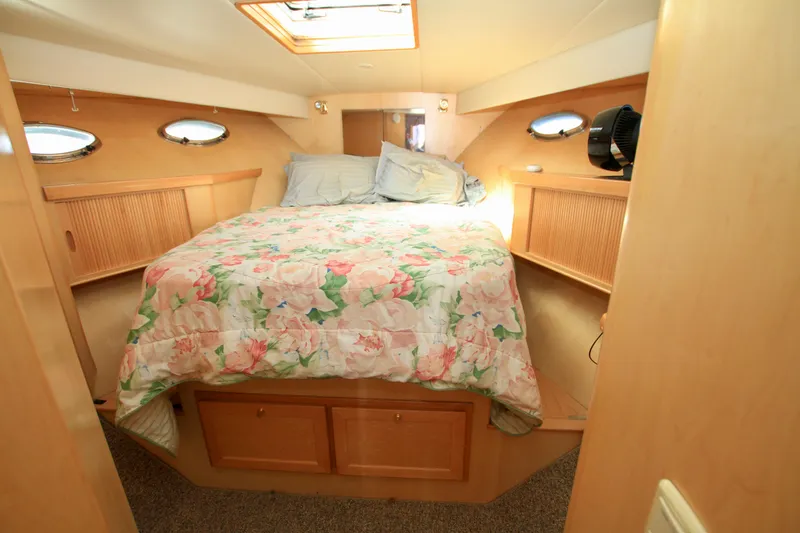

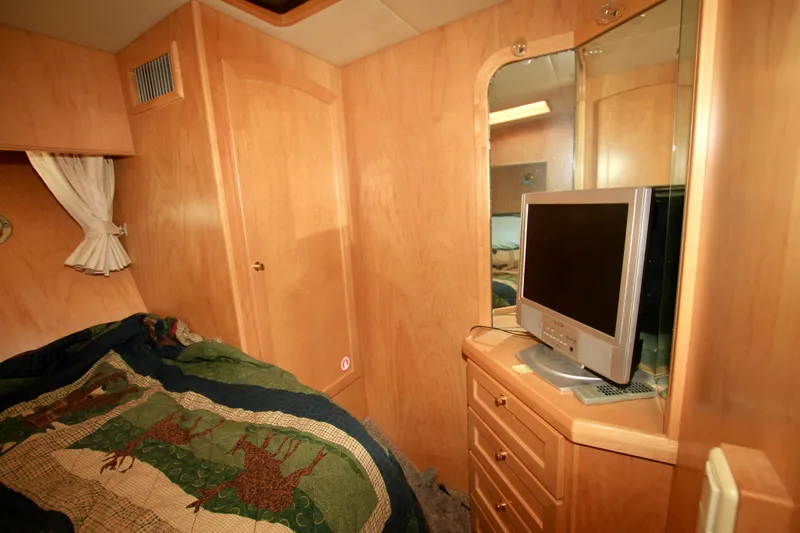

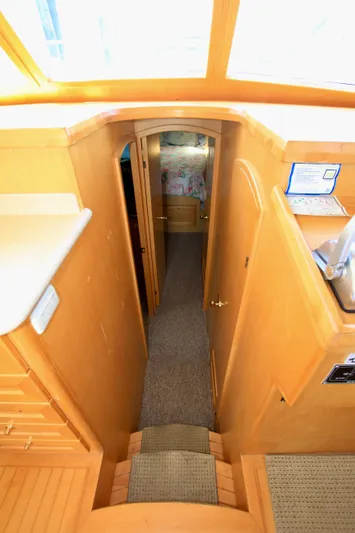

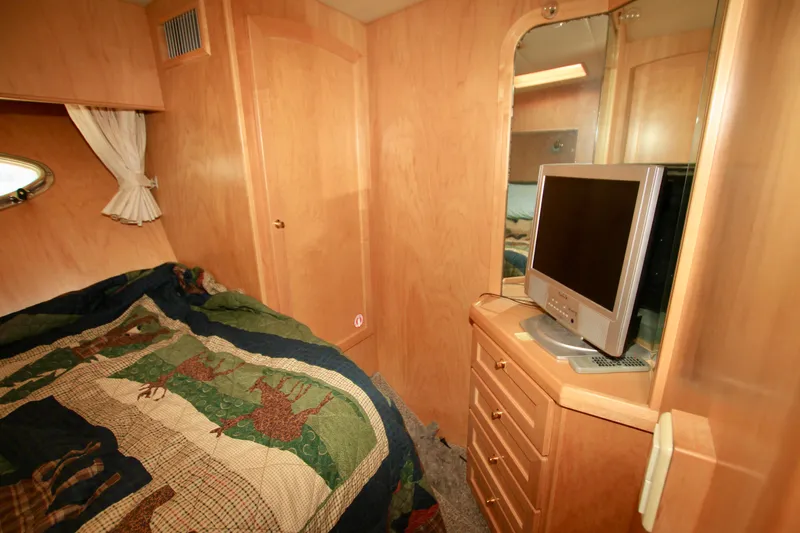

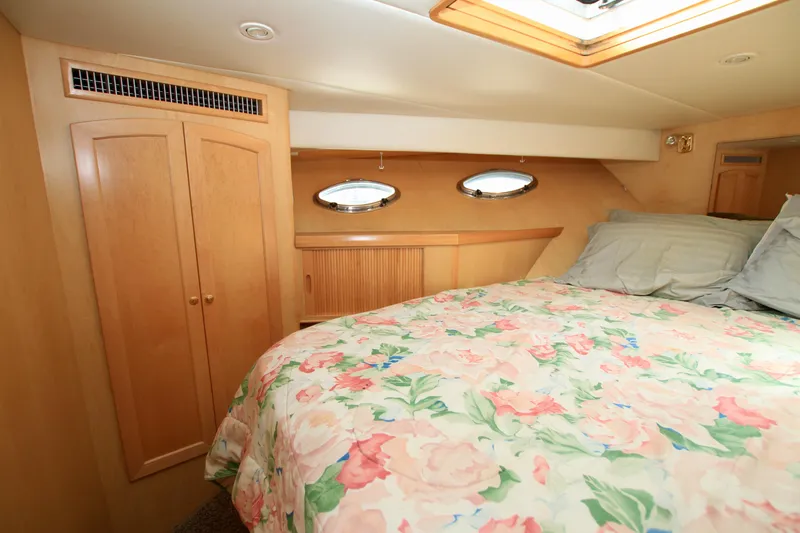

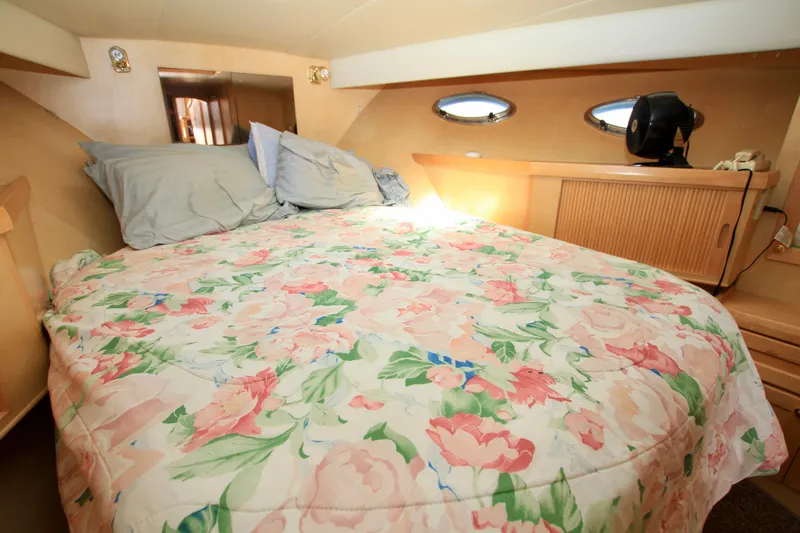

Staterooms

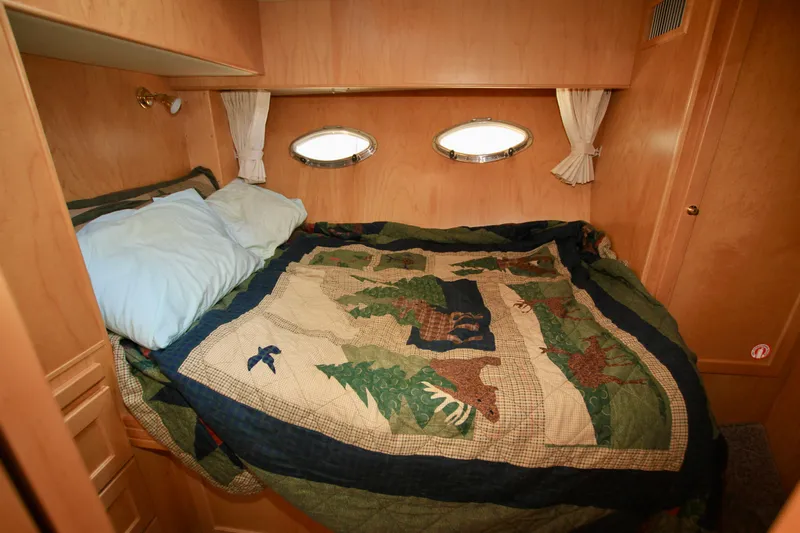

Master centerline queen forward
Guest bunks to port
Flatscreen televisions in each statereoom
Mattresses are all custom Handcraft
Cedar lined clothes lockers w/12v auto lighting
Two opening ports in each with removable insect screening and fabric deadlights
Both staterooms feature opening hatches with retracting insect shields & sunshields
Both staterooms feature accent LED rope lighting

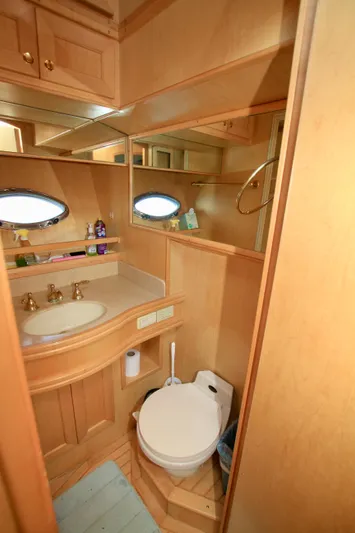

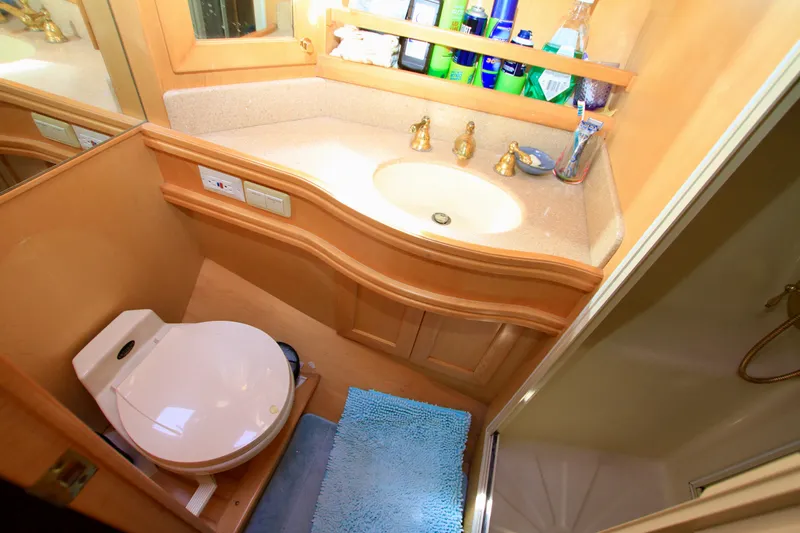

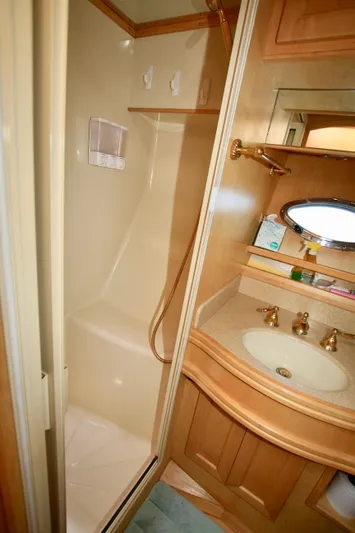

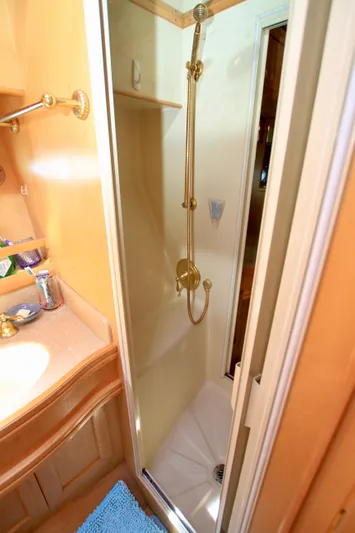

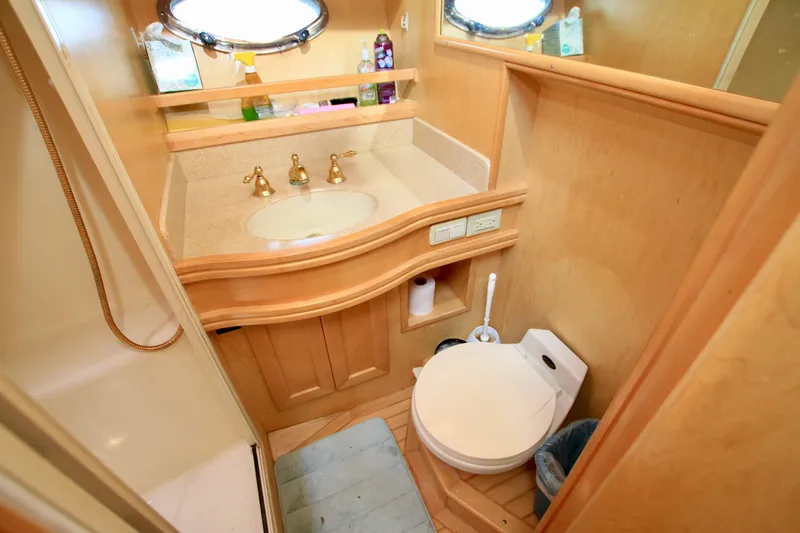

Heads

Jabsco Quiet Flush heads with fresh water
Toilet blue water disinfectant injection system by Seasmart Marine
Marble countertops and decks
Brasstech Faucets and Shower Accessories
Opening port in each
Exhaust fans - 12v

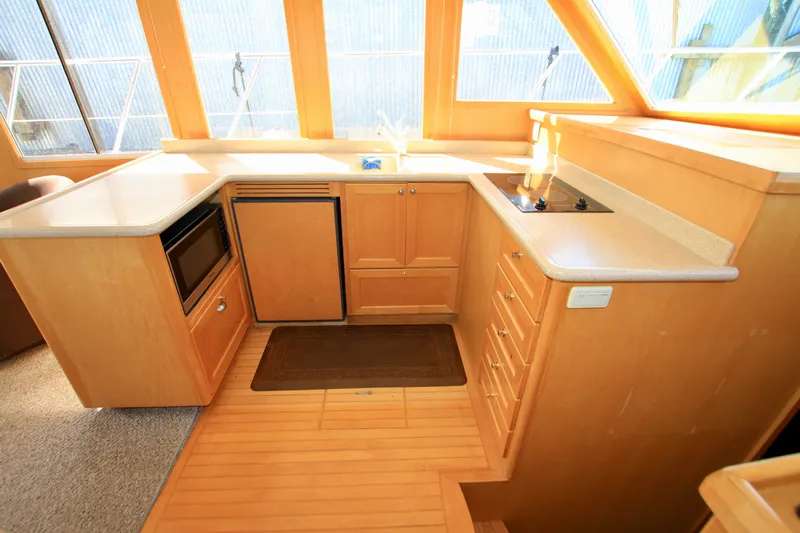

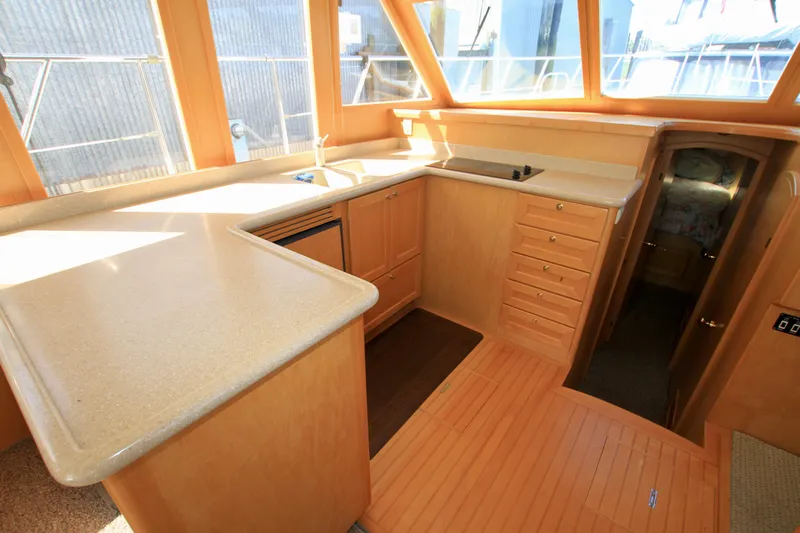

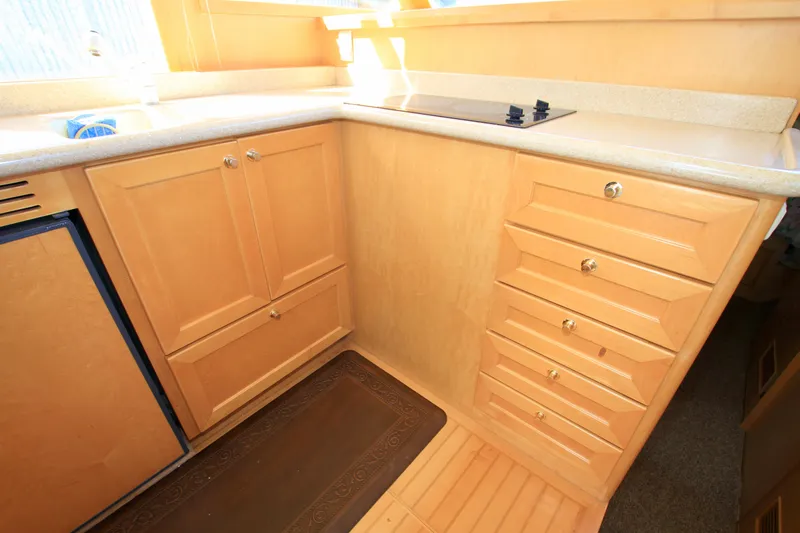

Galley

Cooktop Kenyon 2-burner ceramic glass

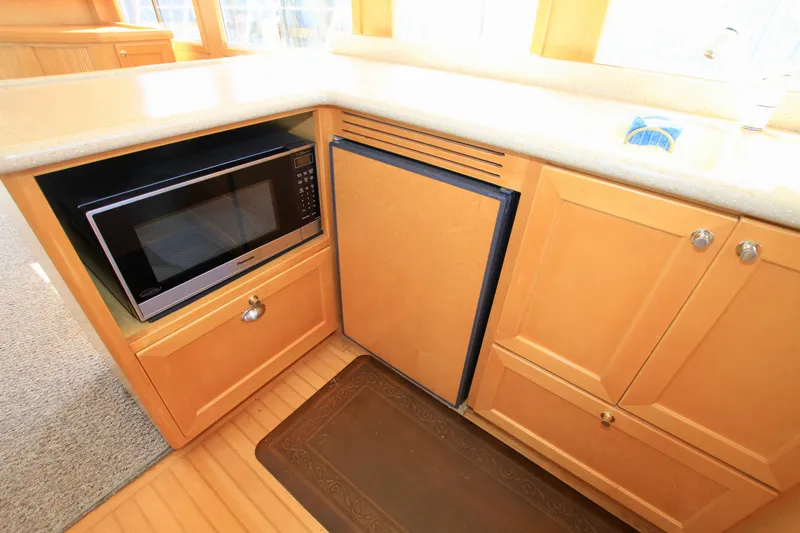

Microwave/Convection Oven, GE Model 1390GV
Fresh water carbon filter w/spigot at galley sink
Corian countertop & sink
Exhaust fan - 12v
Lazy Susan stowage
Cutting board, pull out/wood
Cockpit icemaker U-Line model BI-95 w/water filtration
Flybridge refrigerator Edgestar Model CRF150SS
Flybridge sink

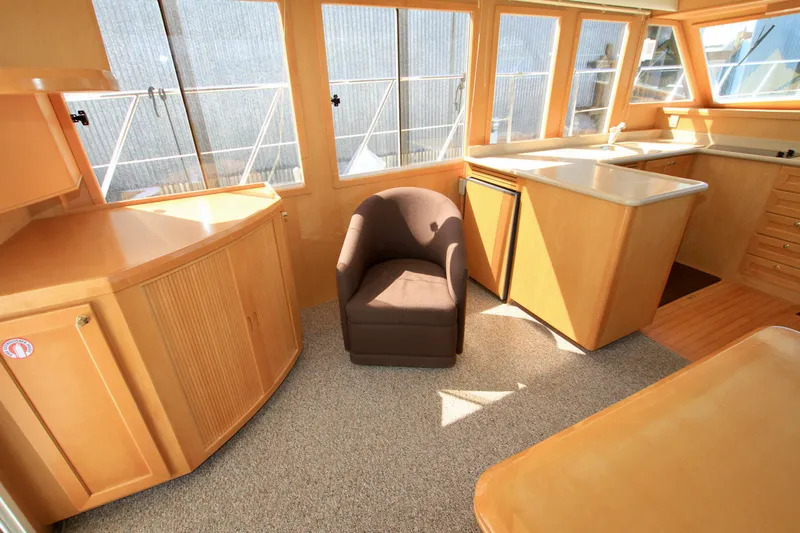

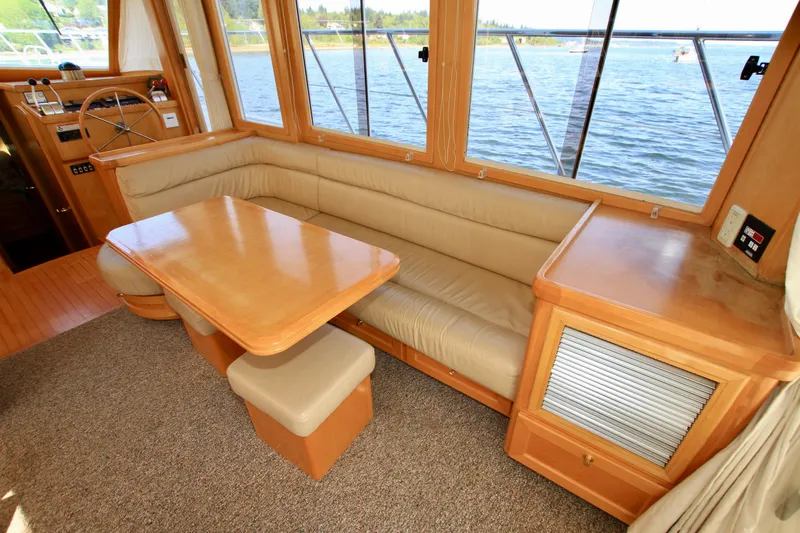

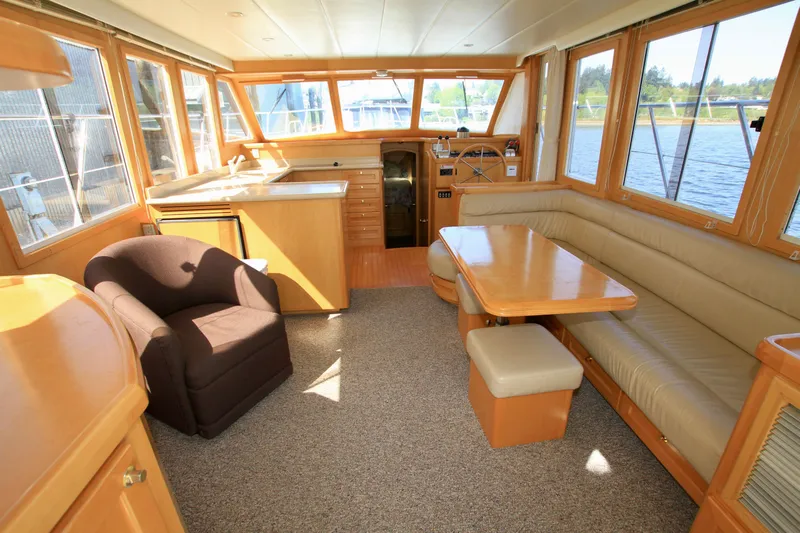

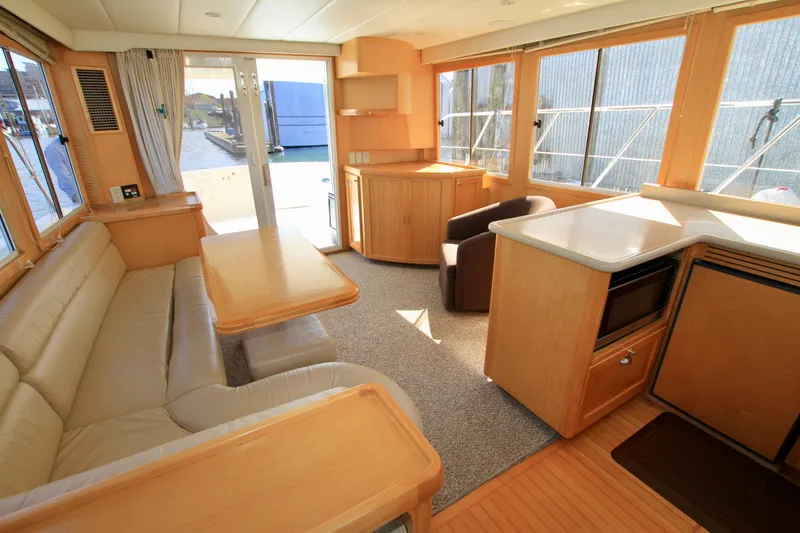

Salon

Interior finish in satin cherry
High/low table with folding leaves
Salon stools with stowage 3x
Ultraleather salon sofas
Twin bed pull out from salon stb-side sofa

Entertainment

Flatscreen televisions through out
Yamaha RX-V662 Audio Receiver
Broadcast television amplified antenna, mounted on arch
BOSE Acoustimass 6-5 channel system w/Polk subwoofer PSW111 salon speakers
Cockpit Speakers POLY-PLANAR w/separate volume control
FB Speakers POLY-PLANAR w/separate control

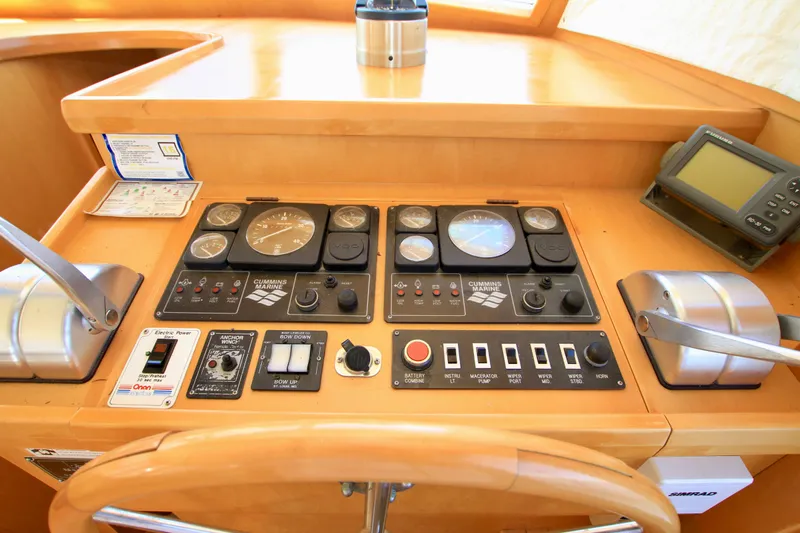

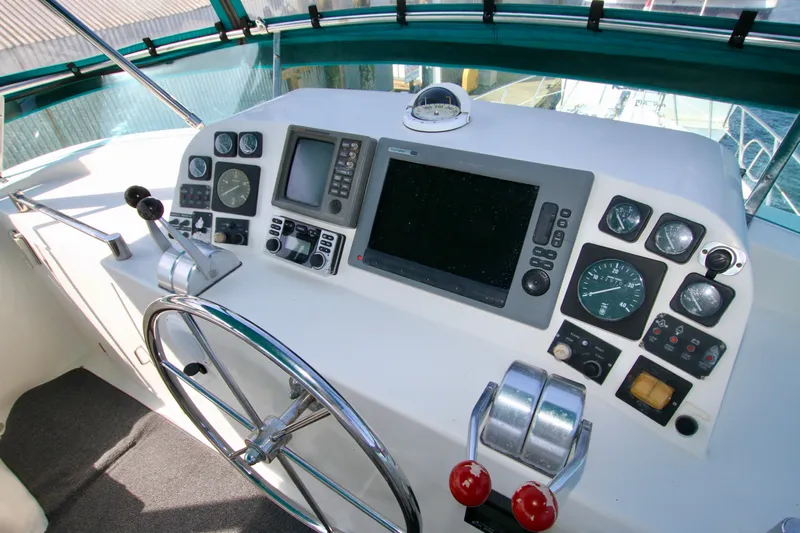

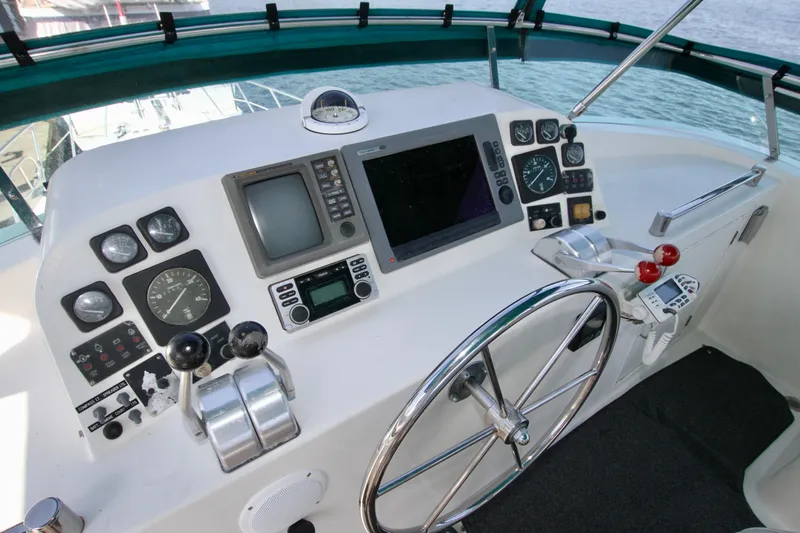

Electronics

Furuno TXTouch2, 12 inch MFD/Chartplotter MFD at both helms - new 2019
Radar Furuno Model DRS4DNXT - new 2019
Autopilot Robertson/Simrad J300X with AP22 control heads
Rate compass for autopilots Simrad Model RFC35
VHF transceiver Icom 506AIS at FB with remote at salon interfaced w/hailer speaker on arch
VHF Transceiver STANDARD HORIZON GX1260S at salon w/remote control at FB
AIS Transceiver Vesper XB 6000 w/antenna splitter Vesper SP160
VHF antennas, Digital 532-VW-S 16 ft. - 2x
NMEA Multiplexer Rose Point NEMO interfacing 0183 and 2000 and Wi-Fi
Depth/speed/temperature transducer, AIRMAR DST800V
Internet Connection via cell modem [T-Mobile 5G] combined Wi-Fi Router - connected to electronic navigation network via NEMO multiplexer
Cell Phone Range Extender Wilson 801245 with wireless connection to phones
Compasses - Ritchie Globemaster Model FB500 on FB, KVH Direct Read Azimuth 1000B at salon

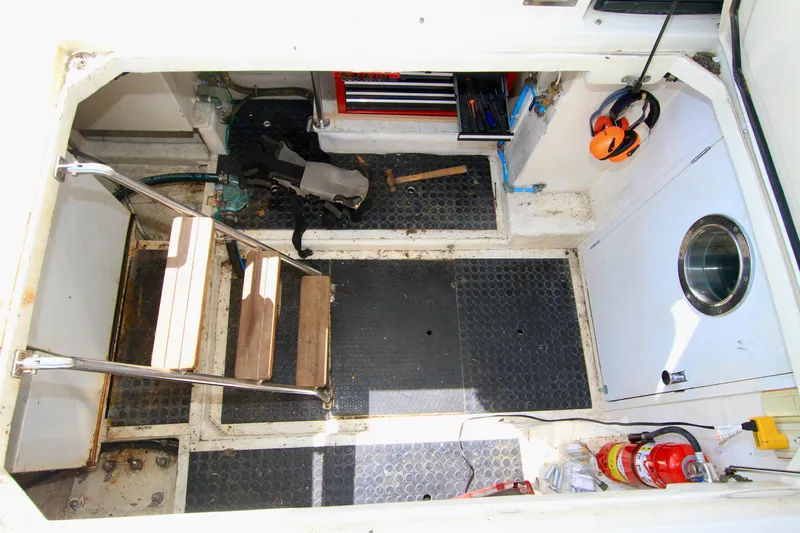

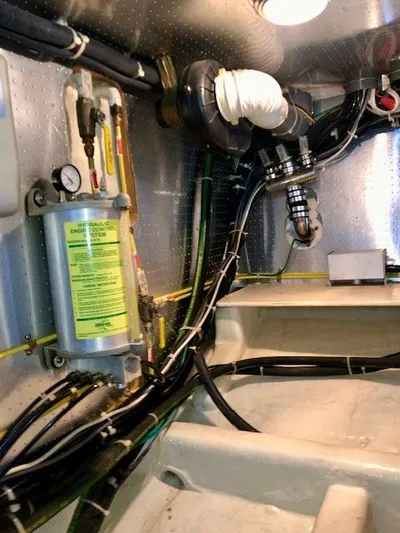

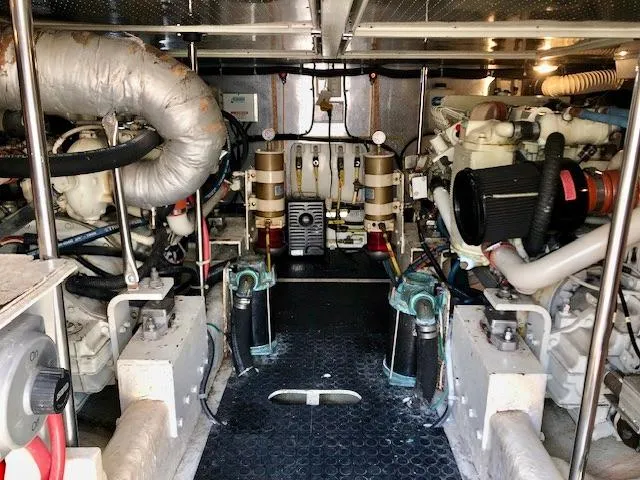

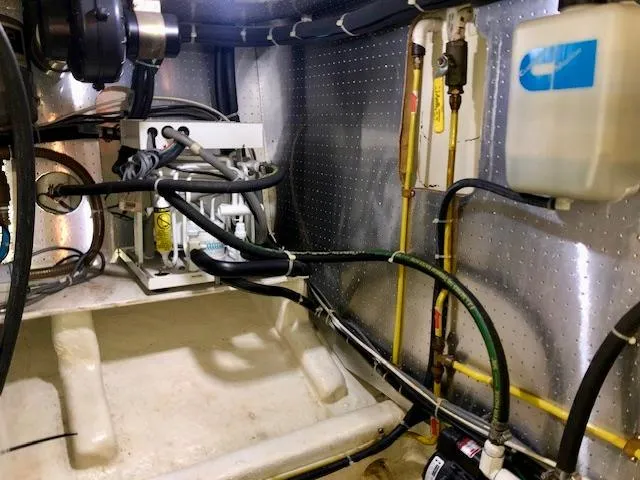

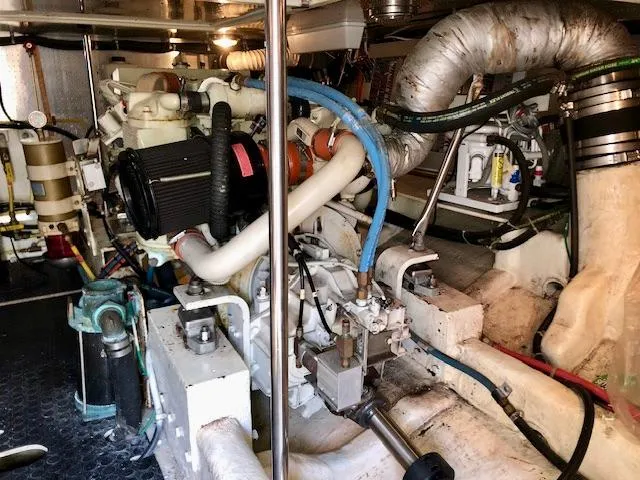

Engine Room/mechanical

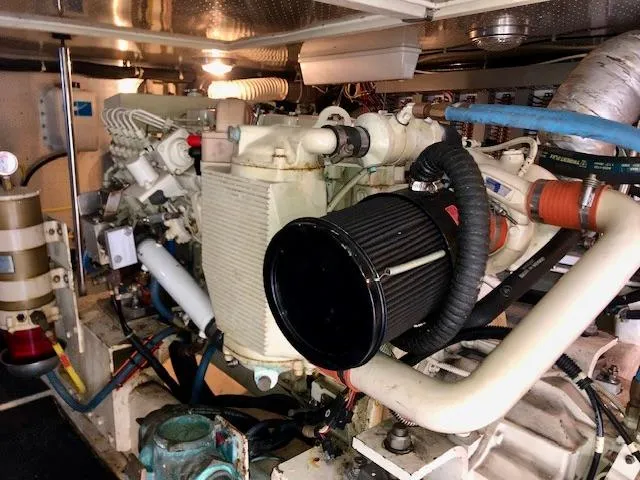

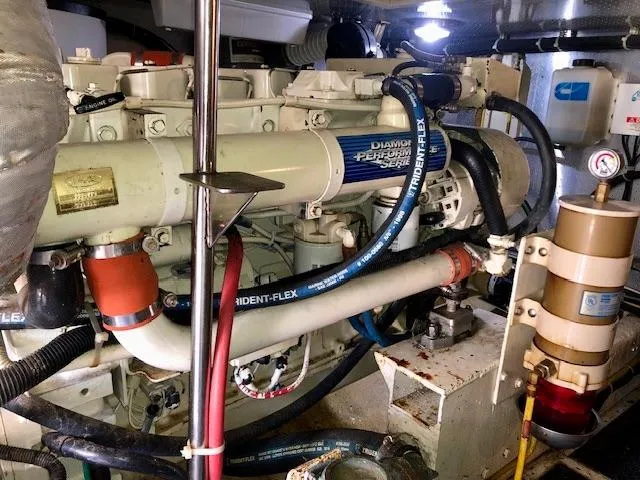

Cummins BTA5.9M3, 370hp each- remanufactured by CUMMINS factory

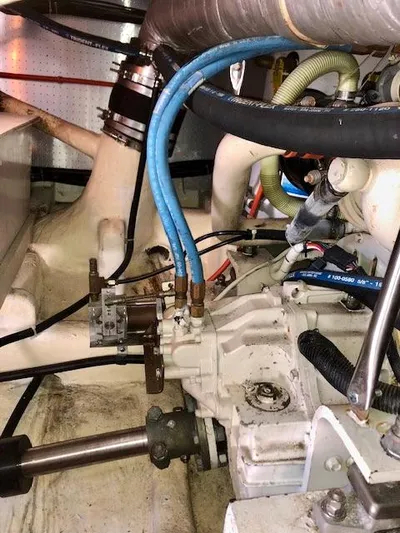

ZF Transmissions Model HSW 800 A2-2.5
Engine/trans Controls TWIN DISC ELECTRONIC EC200 with synchronizer; includes 3rd remote cabled control terminating at cockpit
Generator Phasor Model K3-7.0 PMG 120v AC w/sound shield, remote control at salon station, water separator exhaust - new Feb 2022
Fresh water injection ports on raw water inputs for both main engines and generator for flushing salt water cooling system after use
Turbo boost/exhaust gas temperature gauges ISSPRO on FB to monitor main engine performance
Main Engine Block Heaters 120v
HVAC Marineair Reverse Cycle A/C split units, 16k BTU, 120v w/PASSPORT controls
Bow Thruster, Vetus 160, 24v AGM spiral-wound batteries
Dripless shaft seals Tides Marine model SS2000
Dripless rudder shaft seals Tides Marine model URB-LP-2000-00
Shaft/propeller line cutters Spurs model D

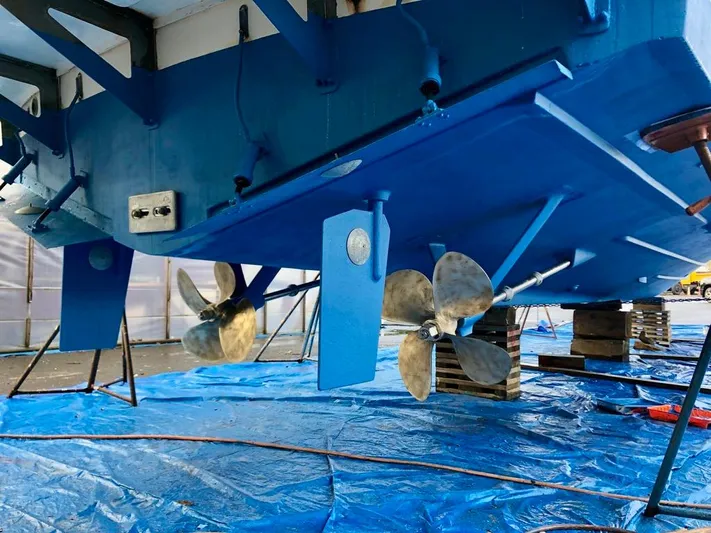

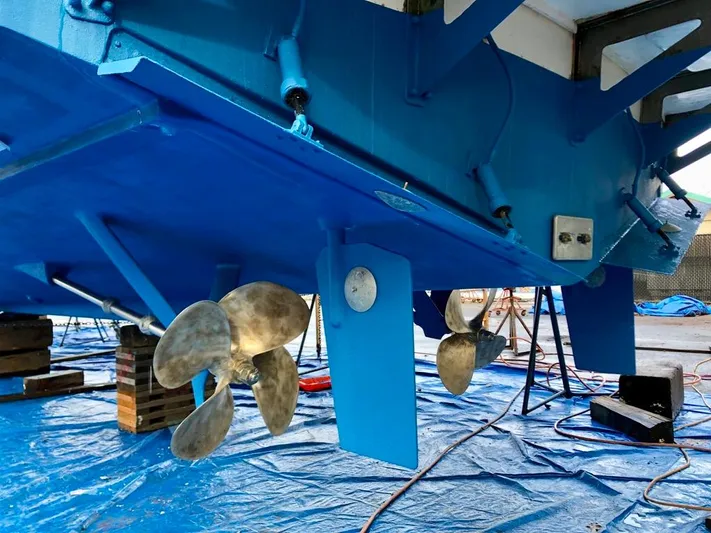

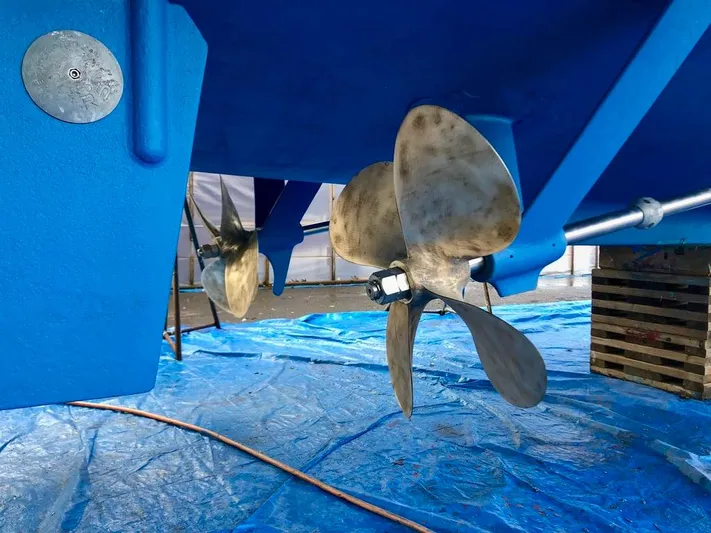

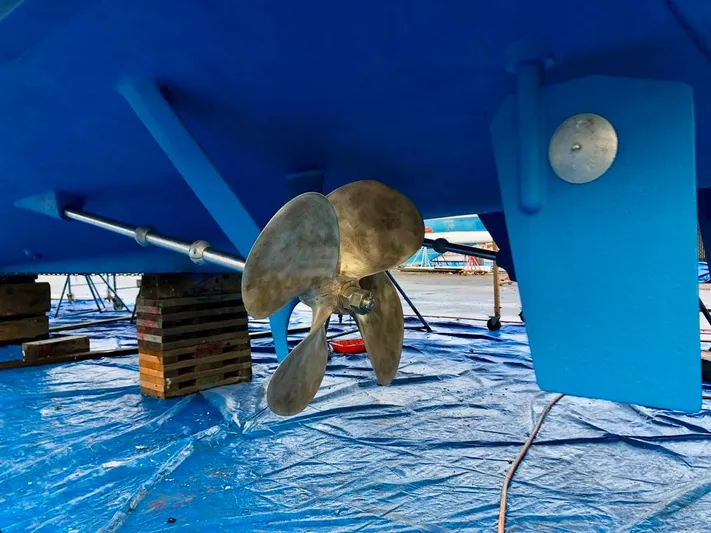

Propellers 4 blade 28 X 24.7 - MnBr on 2 in. shafts

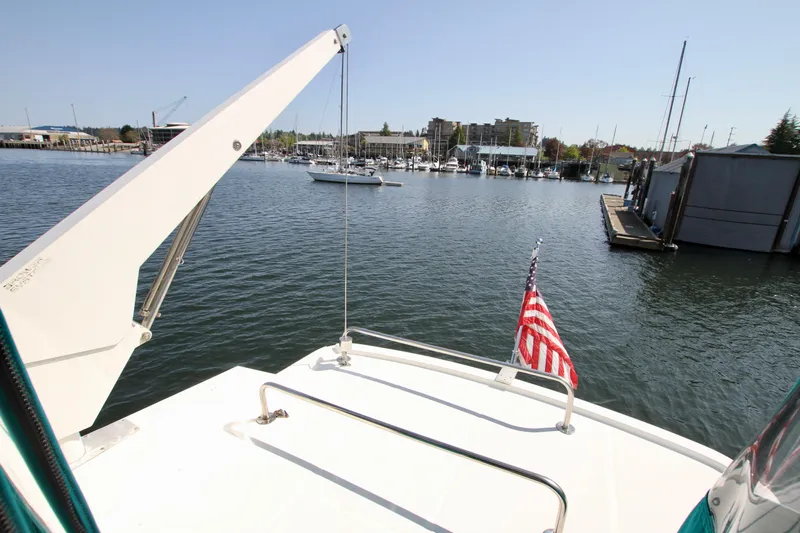

Dinghy Davit UMT 1,000lb, 12v DC winch with extending arm
Trim Tabs Boat Leveler, 10 in X 50 in, controls at both helm stations
Dockmate remote handheld wireless control for throttles/transmission/thruster/horn; Twist2/Twist433 System allowing complete control with single knob
Racor fuel filtration 75/1000P duals at mains, 500MA at generator
Anchor Windlass MAXWELL VWC2200 w/controls at FB, salon and foredeck
Oil exchange system for mains and generator - 12v
Water Heater Raritan 20 gallon 120v
Fresh Water Pump Groco ParJR, 12v
Black water tank 80gal fiberglass with Tankwatch level display
Fresh water tanks 110 gallon - 2x translucent polyethylene
Diesel Fuel Tank, 700 gal, Aluminum, single tank with separator
Fresh water usage meter Watermeter at salon
Fresh Water Pressure Regulators 2 ea at cockpit [for shore water direct-take]
Overhead lighting in engine and lazarette - 12v and 120v
Exhaust Fans - Lazarette and ER 2x - 12v

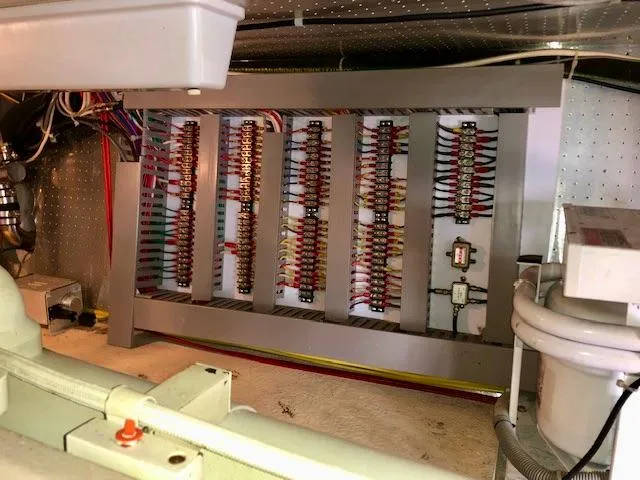

Systems, piping & cabling extensively labelled

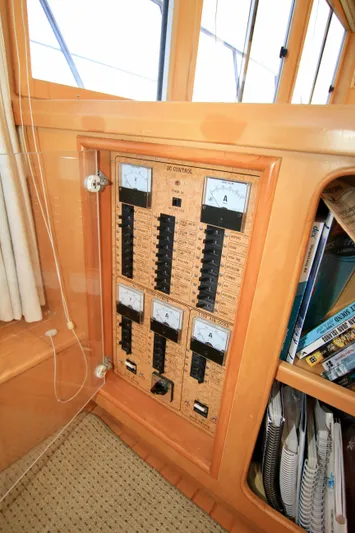

Electric

Bow thruster battery charger, Victron Centaur 24v charger w/Bluetooth remote controls
Inverter/Charger Victron 3kw 120v AC, 120 amp DC
Inverter/charger remote control Victron Digital Multi Controller at salon
Shore power inputs at transom exterior 2x 120v AC 30 amp
Shore power Smart Plug connections
Shore power cables, 4x 50, 4x 30, 2x splitter 50amp/240v to twin 30amp/120v
Galvanic Isolator Promarine Failsafe
Alternators on main engines, re-worked small frame, 140amp 12v DC, include ZAP STOP protection
Alternator Regulators Balmar Model 614 2x w/temperature correction for batteries and temperature protection for alternators
Centerfielder Balmar to balance alternator loading
Battery monitor Victron BMV-602 at salon
Battery House - Fullriver 8D AGM 12v 260AH ? 5x New Jul2021
Battery Starting - Fullriver 8D AGM 12v 260AH - new Jul2021
Battery Generator - Westmarine Group31 AGM - new Mar2022
Battery Bow Thruster - Optima D31M 12v [series 24v] 75AH 2x - new Jul2021

Safety

Bilge Pumps Rule 10 12v - 4x
Bilge Pump counter/recorder w/alarm, Celectron BW8 for each pump
Fireboy ER Halon automatic extinguisher MA2-FE24 w/manual activation at salon
Alarm system in addition to Cummins alarms - bilge pump extended operation, ER fire, high engine exhaust temp at both control stations
Emergency bilge pump at lower helm
Horn Buell dual trumpet w/12v DC compressor
CO Detector Xintex CMD-3M in master stateroom
Smoke alarm in companionway
Handheld extinguishers (professional-type)- 5x, professionally inspected (not Kiddie), located in lazarette/ER/Salon/both staterooms
Lifesling Man Overboard with block and tackle recovery system
Life ring w/light
Emergency Tiller w/thru-cockpit deck access plate
EPIRB - ACR
Personal Locator Beacon Beach - ACR
FCC radio call sign WDA6597
