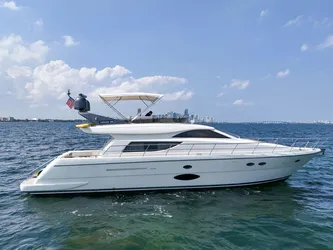

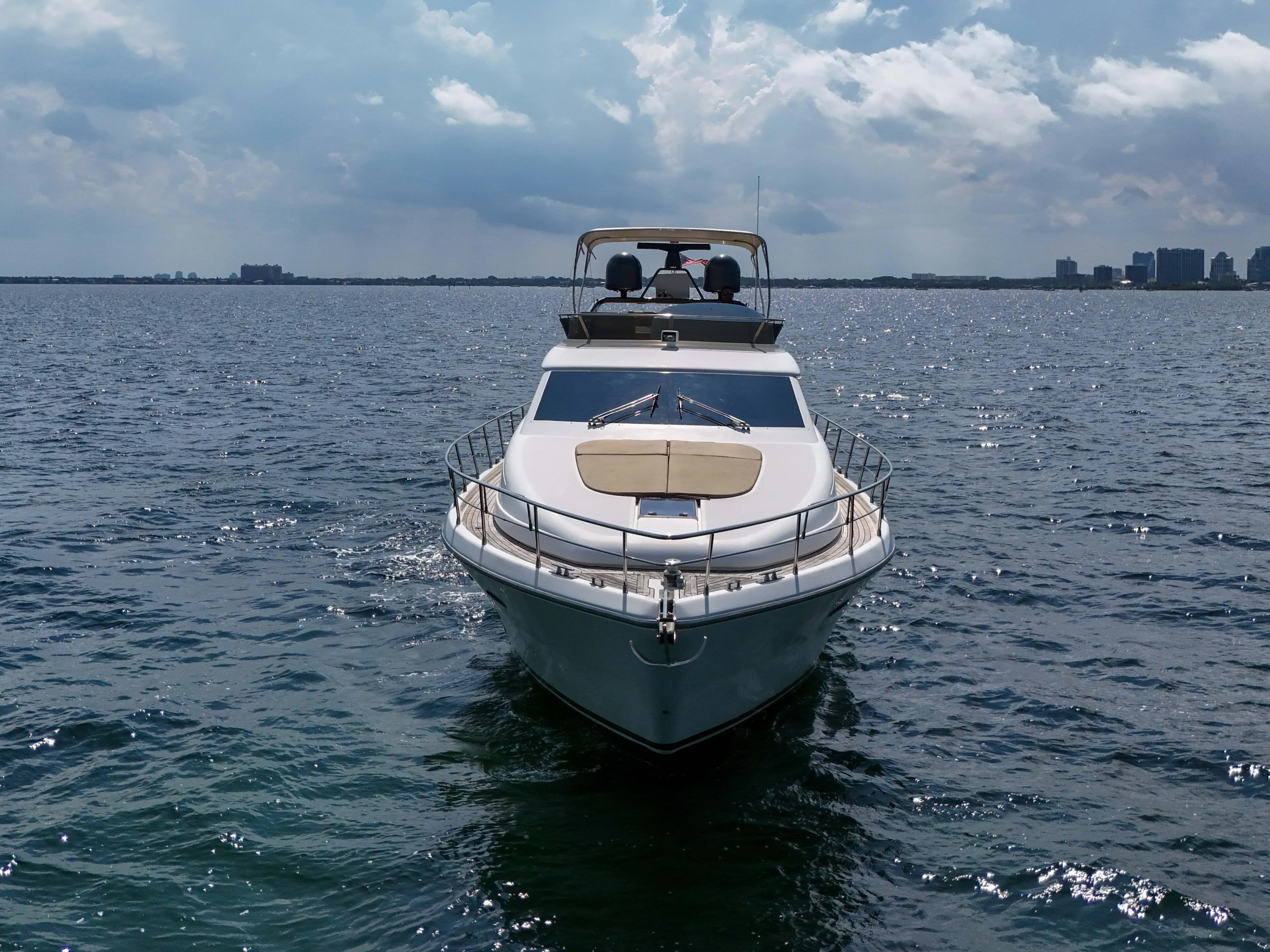

58 Uniesse 2006 Boat For Sale

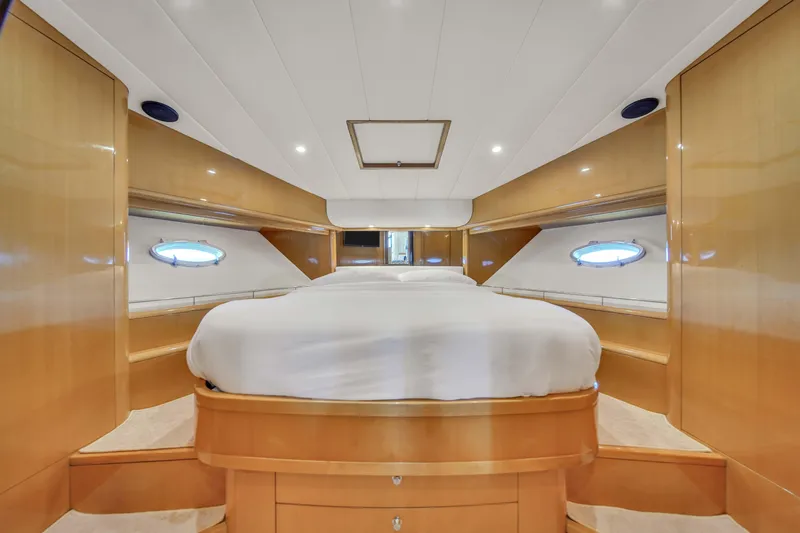

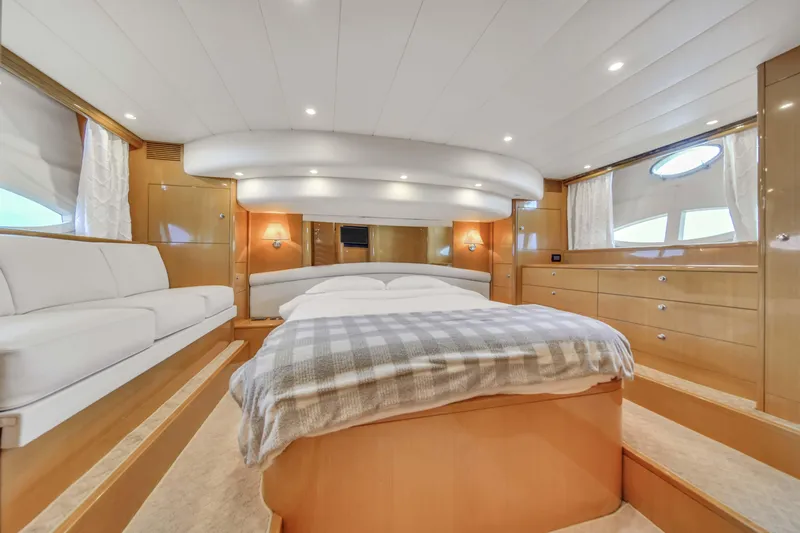

MASTER'S SUITE:  The mid-ship/Owner’s Stateroom provides sleeping for two adults on a Queen berth (w/ storage below), two (2) hanging lockers, an LCD TV, a CD/DVD player, a satellite receiver, an AM/FM radio & CD/DVD player, a compact refrigerator/freezer, a chest of drawers, a sofa (w/ storage below), a safe (in hanging locker), and a full head compartment (forward to starboard).

VIP’S STATEROOM:  The forward/VIP’s Stateroom provides sleeping for two adults on a full V-berth (w/ storage and drawers below), two (2) hanging lockers, an LCD TV, a satellite receiver, an AM/FM radio & CD/DVD player, and a full head compartment (aft to starboard).

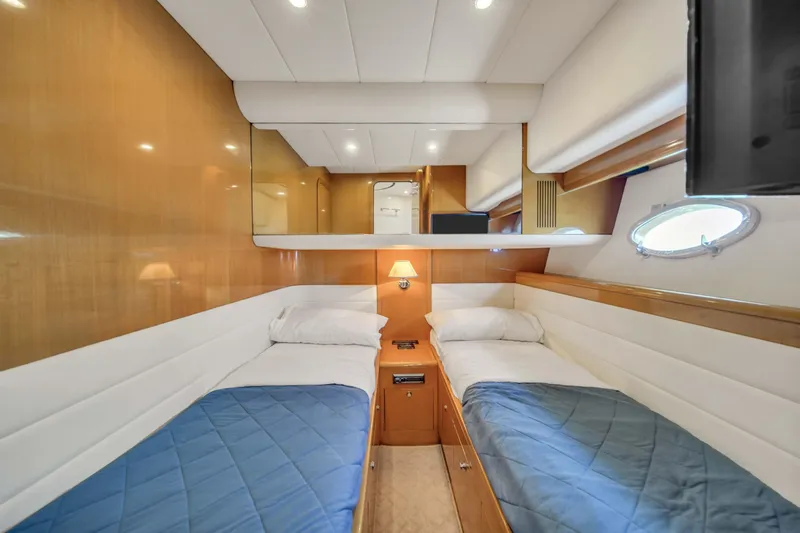

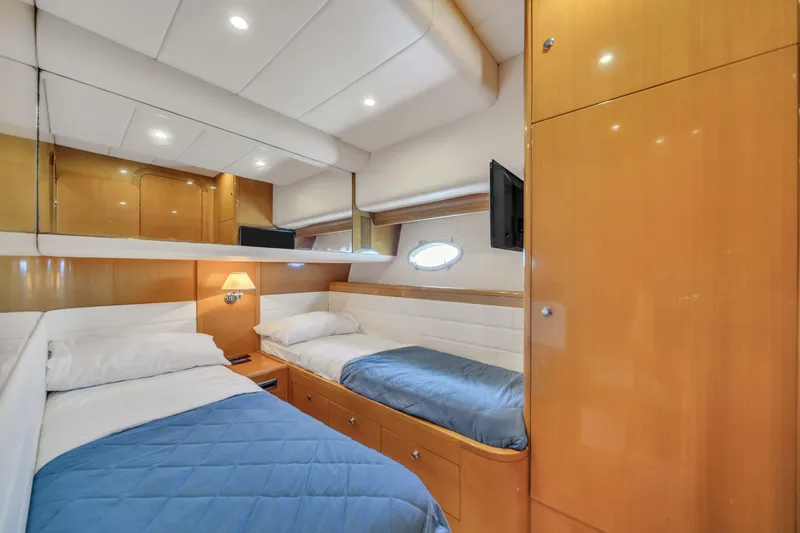

GUEST’S STATEROOM: The port/Guest’s Stateroom provides sleeping for two adults on two (2) single berths (w/ drawers below), a hanging locker, an LCD TV, an AM/FM radio & CD/DVD player, and a full head compartment (forward).

CREW QUARTERS:  Located aft-ship and accessed below the Aft Deck bench seat, provides sleeping for one adult on a single berth, a hanging locker, and a head compartment (to port).

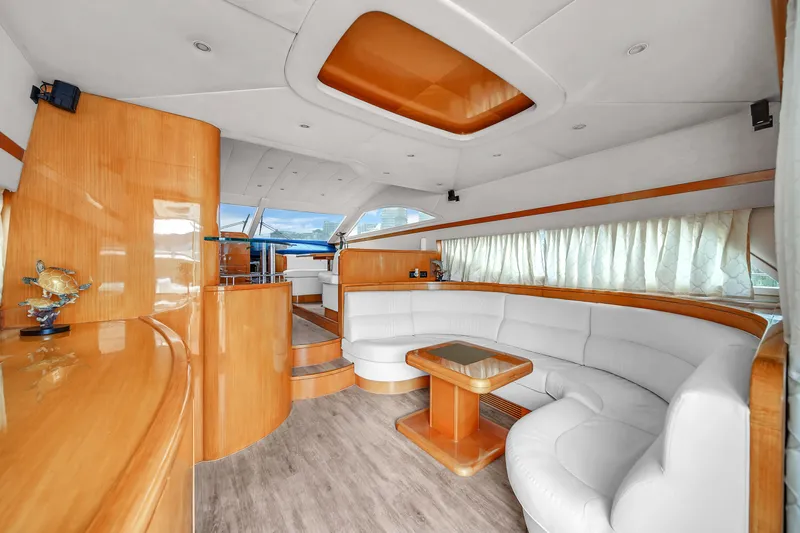

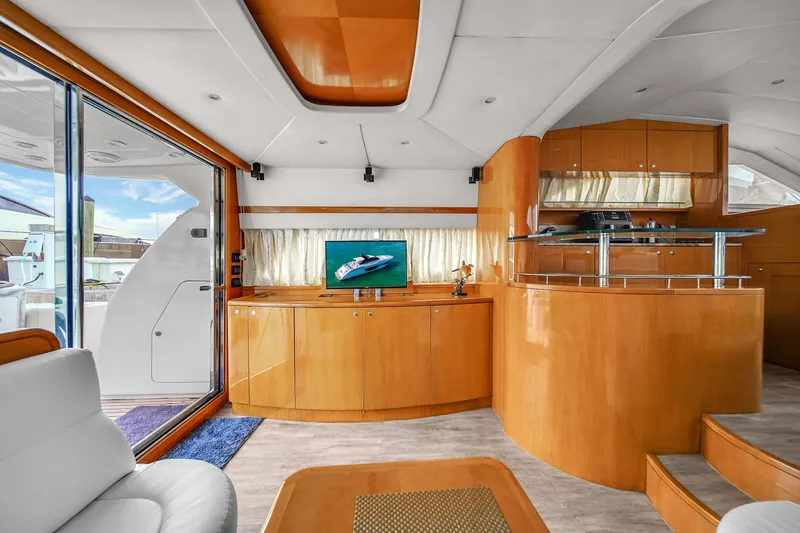

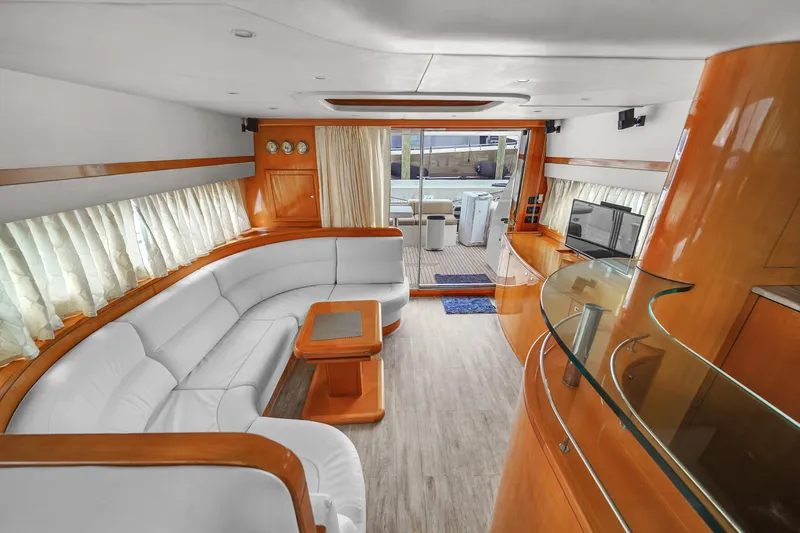

FURNITURE: The Main Salon featured a U-shaped sofa (w/ storage below), a wood coffee table, and an electric TV lift.  The elevated Dinette area featured a U-shaped bench (w/ storage below) and a wood dinette table.  Electric TV lift tested serviceable.

LCD TV:

Manufacturer: Vizio (4 units)

Locations: Main Salon, Master Suite, VIP & Guest Staterooms

CD / DVD PLAYER:

Manufacturer: Sony

Model: DVP-NS725P

Location:Master Suite

SATELLITE RECEIVER:

Manufacturer: DirecTV (2 units)

Locations: Master Suite & VIP Stateroom

TYPE: Deep-V, planning type.

MATERIAL: FRP (Fiber Reinforced Plastic)

EXTERIOR HULL: White hillsides with black anti-fouling bottom paint.

PORTLIGHTS:

BULKHEADS: Athwartships reinforcement is enhanced by bulkheads bonded to the hull with FRP.

STRINGERS: Main hull stiffness provided by FRP longitudinal stringers.

BILGES: Deep bilges provide the area for most boat systems and tankage.

TRANSOM: Reinforced FRP featured an integral FRP swim platform (w/ teak deck overlay), a stainless steel swim access ladder (to starboard), a shore power inlet (to port), an electro-hydraulic pasarelle (centerline), a manual bilge pump (to starboard), a deck shower (to starboard), fresh and raw water wash downs (to starboard), steps up to the Aft Deck (to port and starboard), and stainless steel railing transom doors (to port and starboard).

CHAIN LOCKER: Drainage is outboard.  Size adequate, access good, location forward bow.

The teak deck overlays throughout the swim platform, aft deck, side decks, and forward deck.  FRP/gel-coat with molded-in non-skid at the flybridge deck.

DECK SURFACE: The teak deck overlays throughout the swim platform, aft deck, side decks, and forward deck.  FRP/gel-coat with molded-in non-skid at the flybridge deck.

MINI-BULWARK: Molded FRP mini-bulwark.

VENTILATION: Natural ventilation is provided by hatches and vent assembly systems.  One (1) hatch is located at the forward deck.

HATCHES: One (1) Gebo hatch was located at the forward deck.

CHOCKS: Two (2) stainless steel 6” chocks were located at the bow.

HAWSE PIPES: Two (2) stainless steel hawse pipes were located to port and starboard at the transom.

CLEATS: A total of six (6) cleats were sighted:

• Two (2) stainless steel 13” cleats were located aft at the Aft Deck
• Two (2) stainless steel 12” cleats were located at mid-ship
• Two (2) stainless steel 12” cleats were located at the bow

SAFETY RAILING SYSTEM: Stainless steel tubular railing and stanchion safety system surrounds the bow, forward deck, and side decks.

AFT DECK TO FLYBRIDGE STAIRCASE: A molded FRP staircase (w/ stainless steel handrails and teak overlay at the steps) provide access from the Aft Deck up to the flybridge.

STEPS TO SIDE DECKS: Molded FRP steps (w/ teak overlay) provide access from the Aft Deck to the port and starboard side decks.

DECK SHOWER: One (1) deck shower located outboard transom to starboard.

WASH DOWN SYSTEMS: Fresh and raw water washdowns were located outboard transom to starboard.

SUN PAD AREAS:

• One (1) sun pad area was located at the forward deck.
• One (1) small sun pad area was located to port at the flybridge.

ELECTRO-HYDRAULIC PASARELLE: One (1) Opacmare electro-hydraulic pasarelle (label stated 400 kg maximum capacity) was located centerline outboard transom (centerline).

ANCHOR FAIRLEAD: Stainless steel anchor fairlead with anchor bow roller and an electric windlass.

MATERIAL:

FRP (Fiber Reinforced Plastic)

DOORS:

A dual-panel glass sliding door provides access from the Aft Deck into the Main Salon.

WINDOWS:

Fixed panel windows at the main cabin house sides.

WINDSHIELD:

The Lower Helm Station featured a dual-panel windshield with two (2) windshield wiper systems.

WINDSCREEN:

The Flybridge Helm Station featured a wrap-around tinted plex-plastic windscreen.

SUPERSTRUCTURE HOUSE TO BRIDGE DECK JOINT:

Screw fasteners and bedding adhesive sighted.

TOP & SUPPORT STRUCTURE:

FRP radar arch (aft) and a stainless steel tubular support structure for the white canvas top located at the flybridge.

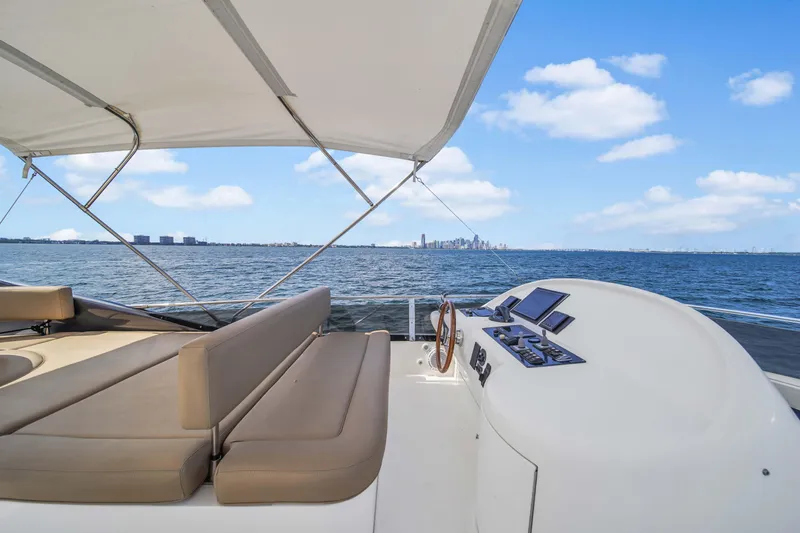

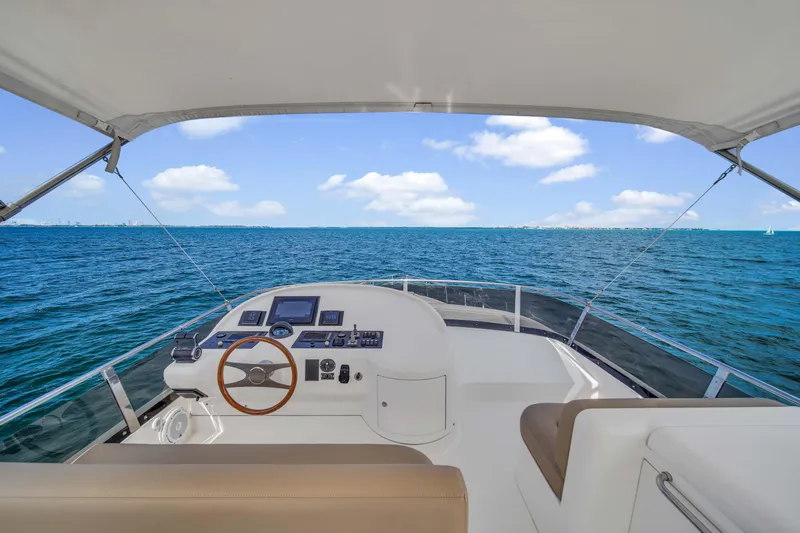

FLYBRIDGE HELM STATION:

Flybridge with FRP/gel-coat and molded-in non-skid deck throughout, featured a dual captain’s bench seat (w/ storage below), a companion bench seat (w/ storage below), a tinted plex-plastic windscreen, engines & steering controls, and full instrumentation.

FLYBRIDGE:

Flybridge with FRP/gel-coat and molded-in non-skid deck throughout, featured a U-shaped bench (w/ storage below), an FRP table, a small sun pad (w/ storage below), a compact refrigerator/freezer, an FRP counter with a stainless steel sink/faucet, and various storage compartments.

AFT DECK:

Large and in good condition with teak deck overlay, it featured a dual panel sliding door to the main cabin (forward), a staircase to the flybridge (forward to starboard), steps to the side decks (forward to port and starboard), emergency fuel shut-off valves (forward), a bench (aft, w/ access to the Crew Quarters below), a wood table, and various storage compartments.  One (1) manual deck hatch provides the access into the engine room.

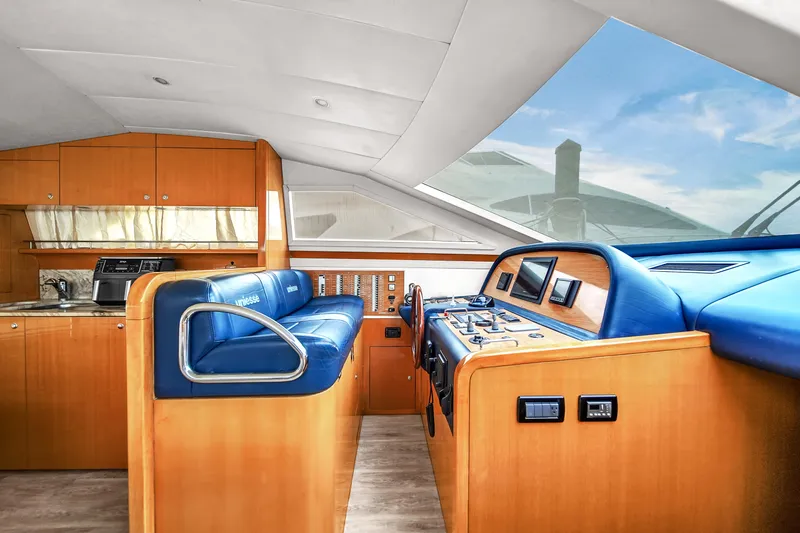

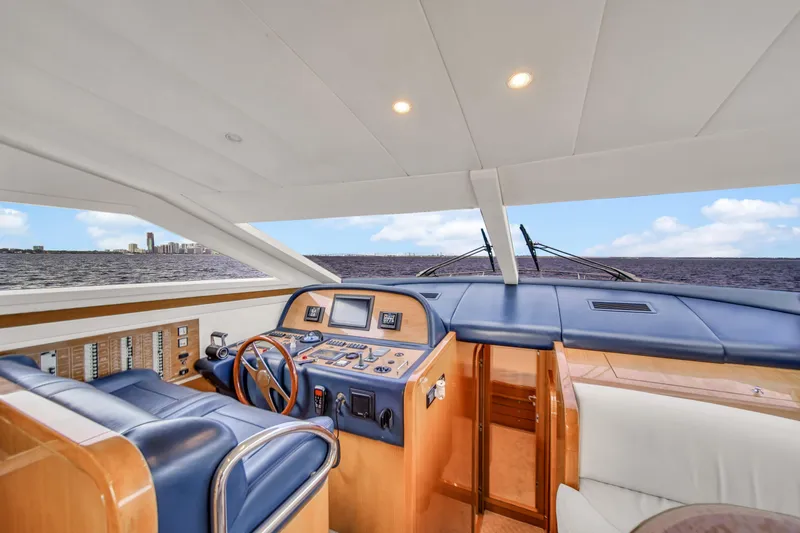

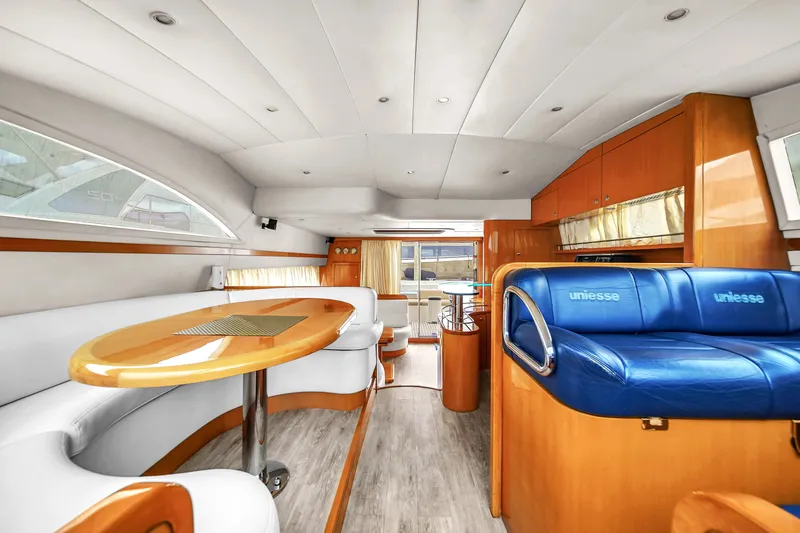

TYPE:

Located forward of the Galley, featured a dual captain’s bench seat, a dual panel windshield with two (2) windshield wipers, a staircase down to the Lower Corridor and Staterooms, engines & steering controls, and full instrumentation.

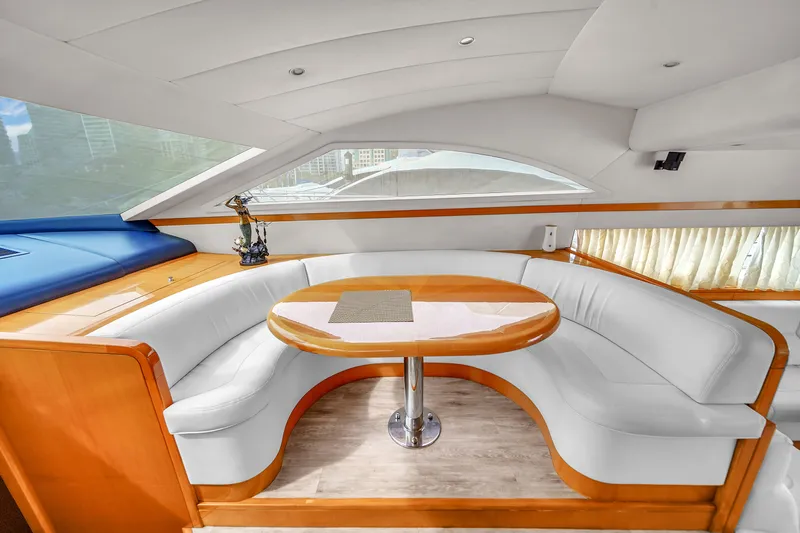

SEATING:

One (1) dual captain’s bench seat, one (1) companion bench seat, and one (1) U-shaped bench located at the Flybridge.  One (1) dual captain’s bench seat located at the Lower Helm Station.  One (1) bench located aft at the Aft Deck.  This provides plentiful seating for crew and guests.

INTERIOR BULKHEADS:

The interior bulkheads were finely fit where sighted.

STORAGE AREA:

Cabinets, drawers, and shelving were well-crafted and finely fit where sighted.

HEADLINERS:

Off-white vinyl headliners throughout the main cabin interior.

WINDOW TREATMENT:

Fabric curtains over the main cabin house windows.

CABIN SOLE:

Laminate wood panel sole at the Main Salon, Dinette, Galley, and Lower Helm Station.  Carpeting throughout the Lower Corridor and Staterooms.  Natural stone sole at the head compartments.

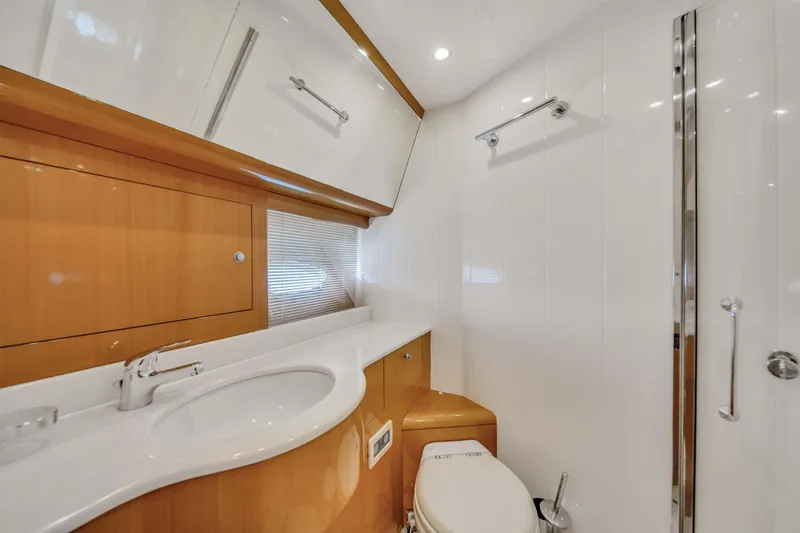

HEADS:

Four (4) full head compartments, located at the Master Suite, VIP & Guest Staterooms, and at the Crew Quarters.

SHOWERS:

The Master, VIP and Guest head compartments featured acrylic countertops and hand basins, electric heads, acrylic shower enclosures, power blowers/fans, and natural stone soles.  The Crew head compartment featured an acrylic counter and hand basin, an electric head, and a handheld showerhead.

STAIRCASE:

A stairway located forward at the Lower Helm Station provides access down to the Lower Corridor and Staterooms.

ANTENNA CONTROL UNIT:

Manufacturer: KVH

Model:GyroTrac

Location: Main Salon

AM/FM RADIO & MEDIA PLAYER:

Manufacturer:Fusion

Location:Main Salon

Remote Control: Aft Deck

AM/FM RADIO & CD/DVD PLAYER:

Manufacturer: Jensen

Model:JDVD1500

Location:VIP Stateroom

AM/FM RADIO & CD/DVD PLAYER:

Manufacturer: JVC (2 units)

Model: MDS-FET

Locations: Master Suite & Guest Stateroom

INTERIOR SPEAKERS:

Total of five (5) Bose mini-speakers and four (4) interior speakers sighted.

WASHER & DRYER:

Manufacturer: N/A

Location:  Lower Corridor

SAFE:

Manufacturer: Cisa

Location: Master Suite

COUNTERTOP & SINK:

Natural stone countertops with dual stainless steel sink compartments.  Drains overboard.

COMPACT REFRIGERATOR:

Manufacturer: Vitrifrigo

COMPACT FREEZER:

Manufacturer:  Vitrifrigo

COOKTOP:

Manufacturer:Bosch

Model:  Four (4) Burners / Electric Range

COMPACT OVEN / MICROWAVE:

Manufacturer: Miele

AUTOMATIC ICE MAKER:

Manufacturer: U-Line

Location:Main Salon

COMPACT REFRIGERATOR / FREEZER:

Manufacturer: Norcold

Location:  Master Suite

COMPACT REFRIGERATOR / FREEZER:

Manufacturer: Norcold

Location: Flybridge

TYPE:

Twin, four (4) stroke, V-8, turbocharged, intercooled, fresh water cooled, marine diesel engines.

MANUFACTURER:

M.A.N. Marine

MODEL:

Port:V8-900

Starboard:V8-900

ENGINES RATED POWER:

Labels state 662 KW @ 2,300 RPM.

ENGINES HOURS:

Port:1369 hours

Starboard: Aprox 60 hours SMOH

YEAR MANUFACTURED:

Labels stated 2005.

NUMBER OF CYLINDERS:

Eight (8) in V-configuration.

THROTTLE CONTROLS:

MAN electronic controls were located at the Lower Helm Station.  Aventics electronic controls were located at the Flybridge Helm Station.

ENGINE ROOM INSULATION:

Observed serviceable.

VENTILATION:

Two (2) power blowers located to port and starboard in the engine room.

ENGINE MOUNTS & BEDS:

The main engine beds were heavy longitudinal stringers inboard and outboard.  In conjunction, adjustable motor mounts were bolted to the stringers and are used to adjust the propeller shaft alignment as well as to secure the engines to the hull stringer structure.

EXHAUST SYSTEM:

Raw water cooled 8 inches with frame supports.  Flexible hose aft to FRP silencers, then exiting at FRP bottom thru-hulls.  Dry stainless steel exhaust elbows with black insulation.  Fiberglass exhaust muffler.

ENGINE ALARMS:

Low oil pressure alarm and coolant overheat warning were visible and audible at the Helm Station.

TYPE:

Closed reservoir-type cooling with raw water-cooled exhaust.

RAW WATER STRAINERS:

FG raw water strainers with sight glasses.

COOLANT LEVEL:

Normal

SEACOCKS:

Raw water intakes as well as all thru-hulls connected to shut on/off valves were bronze alloy seacocks.

MANUFACTURER:

Twin Disc

MODEL:

Port:             MG-5114A

Starboard:   MG-5114A

SERIAL NUMBERS:

Port:             5JM428

Starboard:   5JM429

TYPE:

Reversing clutch type with reduction gears.

DRIVE TYPE:

Straight Shaft

GEAR RATIO:

Transmission tag states 1.92 : 1

THROTTLE CONTROLS:

MAN electronic controls were located at the Lower Helm Station.  Aventics electronic controls were located at the Flybridge Helm Station.

PROP SHAFT:

Material:      Stainless Steel

COOLER:

External engine mounted raw water heat exchanger.

GEAR ALARM:

Pressure gauges sighted at the Lower Helm Station.

SHAFT SEALS:

The port and starboard main propeller shafts were equipped with a dripless-type system.  This shaft system has a tube with internal bearings and rubber-type lip seals. Each tube is externally cooled with raw water provided from the main engines. All dripless shaft systems require periodic maintenance. They should be fully inspected and serviced by a qualified technician to ascertain the internal condition of the assembly.

MANUFACTURER:

Onan

FUEL TYPE:

Diesel

MODEL NUMBER:

13.5MDKDN-8140A

KW / VOLTAGE RATING / FREQUENCY:

13.5 KW / 120 / 240V AC / 60 HZ @ 1,800 RPM

NUMBER OF CYLINDERS:

Four (4)

LOCATION:

Engine Room (aft)

SOUND SHIELD / INSULATION:

Observed serviceable.

COOLING SYSTEM:

Closed coolant and raw water exhaust type.

RAW WATER INTAKE SYSTEM:

Raw water intakes as well as all thru-hulls connected to shut on/off valves were bronze alloy seacocks.

RAW WATER STRAINER:

FG raw water strainers.

FUEL SUPPLY:

Main tank with separate filter and lines.

FUEL FILTER:

One (1) remote Separ SWK-2000 fuel filter/water separator located aft in the engine room and engine mounted spin on/off type.

EXHAUST SYSTEM:

Fiberglass exhaust muffler.  Double-clamped where sighted.

FUEL TYPE:

Diesel

NUMBER OF TANKS / MATERIAL:

Four (4) / Stainless Steel

LOCATION:

Engine Room (aft and outboard to port and starboard).

TOTAL CAPACITY:

Reportedly 833 Gallons

SECURED:

FRP framed, bolted and/or bonded to hull.

MANUFACTURER:

Not Sighted

FILL PIPE LOCATIONS:

Two (2) fill fittings sighted aft mid-ship (to port and starboard).

FILL PIPE MATERIAL:

Appeared serviceable.

HOSES CONNECTIONS, CLAMPS:

Appeared serviceable where sighted.

FUEL LINES & FITTINGS:

Flexible reinforced hose from tanks to filters, pumps, and engines.

FUEL PRIMING PUMPS:

Two (2) DC fuel priming pumps were located forward in the engine room.

FUEL SHUT-OFF VALVES:

Located aft in the engine room.

FUEL FILTERS:

Four (4) Racor 100MAX fuel filters/water separators and two (2) MAN PL420 spin ON/OFF fuel filters were located to port and starboard in the engine room.  Also engine mounted spin on/off.

NUMBER OF TANKS:

Two (2)

TOTAL CAPACITY:

Reportedly 185 Gallons

MATERIAL / LOCATION:

Stainless Steel / Engine Room (forward)

SECURED:

FRP framed, bolted and/or bonded to hull.

ACCESS:

Access to tank and valves was adequate.

FILL PIPE LOCATION:

One (1) fill fitting sighted mid-ship to starboard.

VENT PIPE LOCATION:

Mid-ship topsides.

FRESH WATER PRESSURE PUMP/TANK:

One (1) ShurFlo DC pressure pump was located in the lower corridor bilge.

MANUFACTURER:

Quick

CAPACITY:

Approximately 20 Gallons

LOCATION:

Master Suite Bilge (below berth)

PRESSURE RELIEF VALVE:

Copper pressure relief valve built inside the tank.

MANUFACTURER:

Offshore Marine Labs

LOCATION:

Crew Quarters (outboard of head compartment)

NUMBER OF HEADS:

Four (4)

LOCATION OF HEADS:

Each Stateroom and Crew Quarters

MANUAL AND OR ELECTRIC PUMPS:

Heads were electrically operated for flush.

MANUFACTURER:

Tecma Marine

U.S.C.G. SYSTEM TYPE: MARINE SANITATION DEVICE:

MSD Type

One (1) FRP holding water tank and one (1) Jabsco macerator pump were located in the forward bilge.

PUMP OUT LOCATION:

"Waste" deck fitting sighted forward-ship to starboard.

NUMBER OF HEADS:

Four (4)

LOCATION OF HEADS:

Each Stateroom and Crew Quarters

MANUAL AND OR ELECTRIC PUMPS:

Heads were electrically operated for flush.

MANUFACTURER:

Tecma Marine

U.S.C.G. SYSTEM TYPE: MARINE SANITATION DEVICE:

MSD Type

One (1) FRP holding water tank and one (1) Jabsco macerator pump were located in the forward bilge.

PUMP OUT LOCATION:

"Waste" deck fitting sighted forward-ship to starboard.

BASINS & SHOWERS:

The showers and basins on board drain to a sump and water is pumped outboard.

NUMBER OF TANKS:

Appeared adequate for basins and showers.

GREY WATER TANK/PUMP:

One (1) FRP grey water tank and one (1) Jabsco grey water pump were located in the lower corridor bilge.

SUMP TANK / PUMP:

One (1) sump tank with a Rule 800 sump pump was located in the mid bilge.

TANK MATERIAL:

Plastic, specific type not determined.

VHF:

Manufacturer:          Garmin

Model:                     GHS11

Location:                   Lower Helm Station

AUTOPILOT:

Manufacturer:          Garmin (2 units)

Locations:                Lower & Flybridge Helm Stations

Manufacturer:          Raymarine

Model:                     ST2 90

Location:                  Lower Helm Station

BOW THRUSTER:

Manufacturer:          Side-Power

Control Locations:   Lower & Flybridge Helm Stations

STERN THRUSTER:

Manufacturer:          Side-Power

Control Locations:   Lower & Flybridge Helm Stations

ENGINES DIGITAL DISPLAYS:

Manufacturer:          MAN Marine (2 units)

Model:                     MMDS-CLC 6.3

Location:                   Lower Helm Station

Manufacturer:          Boning (2 units)

Model:                     MMDS-CLC 6.3

Location:                   Flybridge Helm Station

GPS / RADAR / CHART / NAVIGATION SYSTEM

Manufacturer:          Garmin

Model:                      GPSMap 8612xsv

Location:                  Lower Helm Station

Manufacturer:          Garmin

Model:                      GPSMap 8612

Location:                  Flybridge Helm Station

MULTI-FUNCTION DISPLAY:

Manufacturer:          Garmin (2 units)

Locations:                Lower & Flybridge Helm Station

COMPASS:

Manufacturer:         Ritchie (2 units)

Model:                     Powerdamp Plus

Locations:                 Lower & Flybridge Helm Stations

SHIP'S CLOCK / BAROMETER / THERMOMETER:

Manufacturer:         Vion (3 units)

Location:                   Main Salon

EXTERIOR SPEAKERS:

Total of six (6) JL Audio exterior speakers, six (6) JL Audio tweeter speakers, and one (1) JL Audio sub-woofer sighted.

ANTENNAS:

Total of three (3) antennas mounted on the radar arch.
