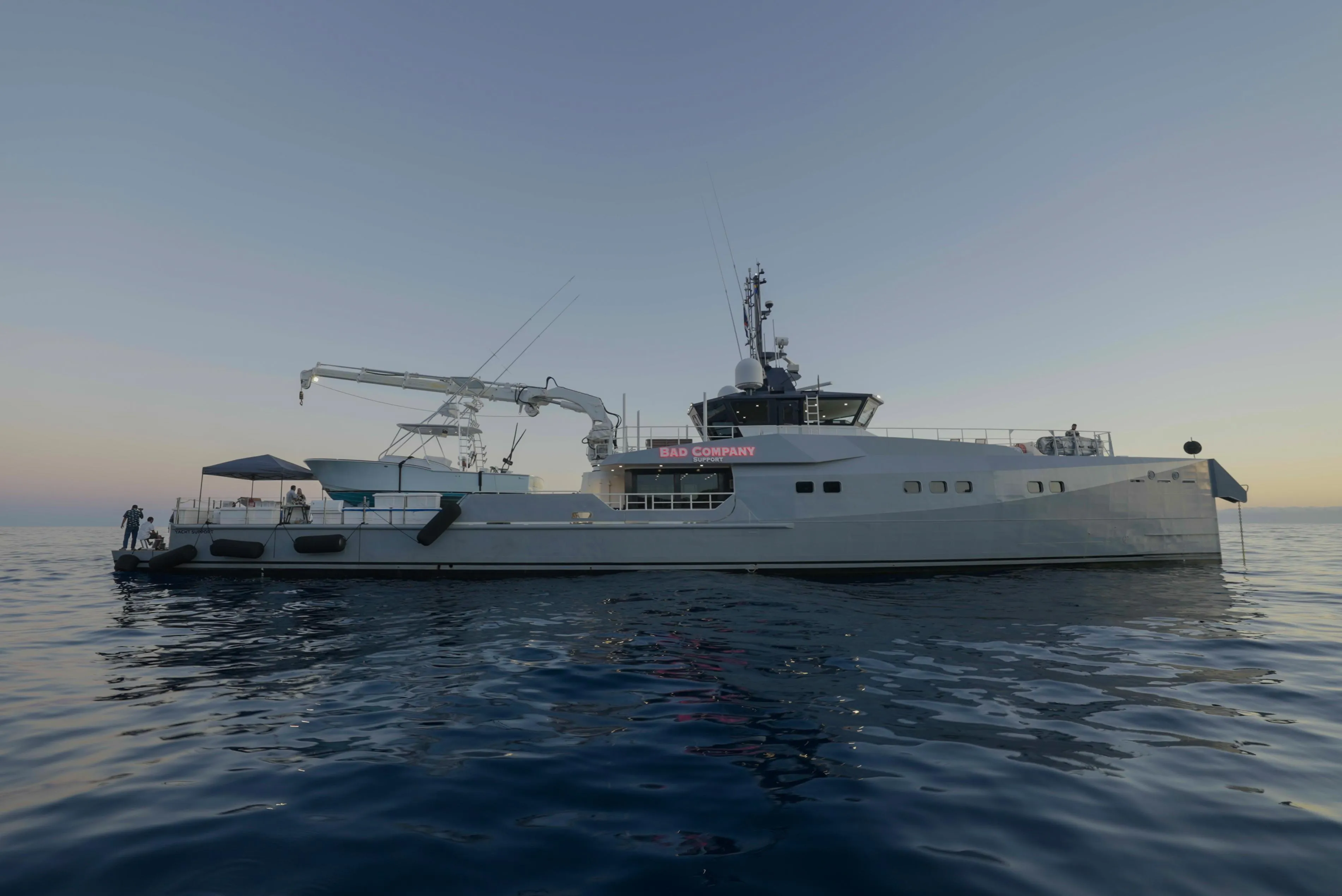

BAD COMPANY SUPPORT Yacht for Sale

MAIN SPECIFICATIONS

Length Overall: 45.6m (149' 8")

Length at Waterline: 45m (147’8”)

Beam: 8.3m (27' 3")

Draft: 2.65m (8' 9")

Year Completed: 2019

Model Year: 2019

Refit: 2022

Type: Motor Yacht & Support Vessel

HIN: 4508

Tonnage: 309

Deadweight: 130

Displacement: Semi-displacement

Guests: 6

Crew:  7

CONSTRUCTION

Builder: Damen Yachting

Naval Architect:Damen Yachting

Exterior & Interior Design/Stylist: Damen Yachting

Hull Material: Steel

Superstructure Material: Aluminum

Deck Material: Bolidt

Exterior Finish: Unfaired and Painted

Classification: Bureau Veritas

SPEED

Maximum:17 knots

Cruising: 12 knots

Range: 5000nm

Consumption @ Cruising: Fuel consumption 1450 RPM / 12 knots / 0.21m3/h.

CAPACITIES

Fuel: 92821 L (24520.71 Gal)

Water: 20948 L (5533.88 Gal)

Bilge Water: 1,000 Litres (264.17 US Gallons)

Black Water: 13,377 Litres (3533.83 US Gallons)

Lube Oil Capacity: 1,313 Litres (346.86 US Gallons)

Waste Oil Capacity:1,000 Litres (264.17 US Gallons)

Cargo/ Hold Capacity: 140 m3

MACHINERY

MAIN ENGINES

Engine Type: Caterpillar C32 TTA B 2000rpm 900kW,

Horsepower: Cat C32 B series rated at 1200 BHP each

Engine Serial Numbers: Port ZP 200440 - Starboard ZP200430

Main Engine Hours (Port): 5681 hrs 31/12/25

Main Engine Hours (Stbd): 5685 hrs 31/12/25

GENERATORS & ELECTRICITY

Output: 400V 60Hz

Generators: 3 x Caterpillar C4.4 DITA 1800rpm 99kW

Port Generator Hours:12400 hrs 31/12/25Port Generator Aft Hours:12210 hrs 31/12/25

Starboard Generator Hours: 11870 hrs 31/12/25

Generator Fuel Consumption:

Approx 20 litres/hour - each

Generator Starting: Automatic based on load – Deif controlled power management system

Emergency: Vessel has 3 main generators all of the same rating no emergency

Shore power: Eekels MarPower SPC-II Hybrid 75kVA

BATTERIES

Batteries: 24V DC AGM ST220 220Ah (100hr)

PROPULSION & STEERING

Gearboxes for Main Engines: Reintjes WVS 430/1

Steering System: Van Der Velden EBEST020-35

 Trim Tabs/Stabilizers: Quantum QC-1800 Zero Speed and Underway Stabilization

 Propulsion: AISI 431 Shafts with Flexible Couplings, Stern Tubes,   Bearings and VStruts

OTHER MACHINERY

Water Makers: 2 x Idromar MC3J 8640 Litres (2282.45 US Gallons) per Day

Bow Thruster: Leroy Sommer 3-PLS280SC-T 120kW

Fuel Separator and Filtration: GEA Westfalia OTC3-02-137

Fuel Transfer: Azcue CA50/2A 20m3/h

Sewage System: Hamann AG Super Mini Plus

Water Softeners:  2 Idromar MC3J Watermakers – 220 Litres / Hour each. Tank Capacity 20.98m3

Fresh Water System

Oil Water Separator:Peco Facet Model # CPS-2.5B Mark 3 + EBM

Air Conditioning: 2 x Heinen & Hopman H2500CC

Boilers: 2 x Daeldrop

COMMUNICATION

SAT COM: Sailor 800 VSAT, 1x Starlink, 1x iridium Certus

SS: x Sailor 6110 3027C

VHF: 2 x Cobham Sailor 6222

2 x Thrane & Thrane 3520/3540 Portable VHF

UHF: 7 x ICOM Handheld Radios

MHF: 1 x Cobham Sailor 6301

Intercom Talkback: Jotron Phontech 3101

Navtex: 2 x Cobham Sailor 6004

LRIT: 1 x Sailor 6110 GMDSS

Horn: 1 x Ibuki Horn

Internet: Internal WiFi sourced by Starlink

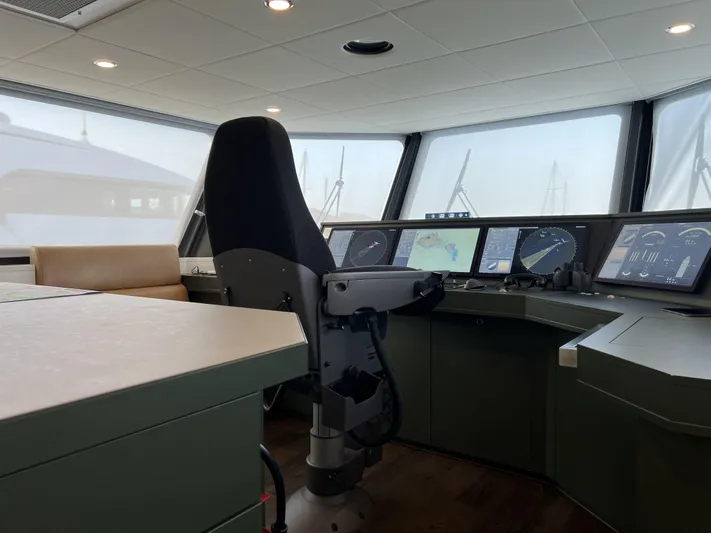

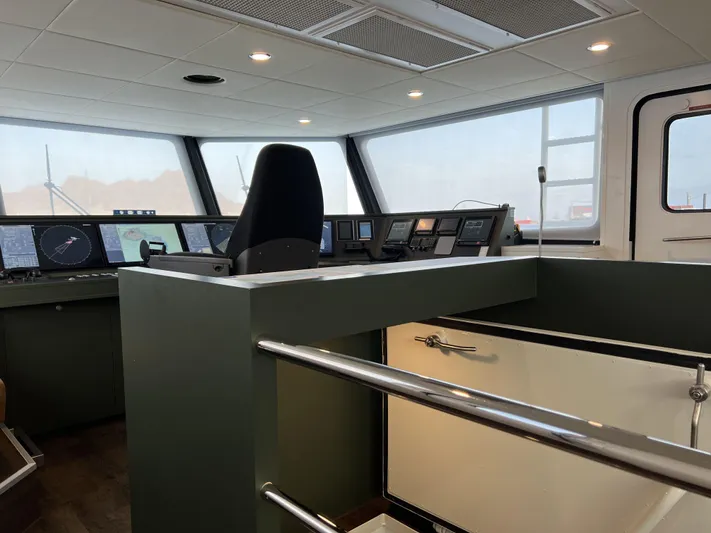

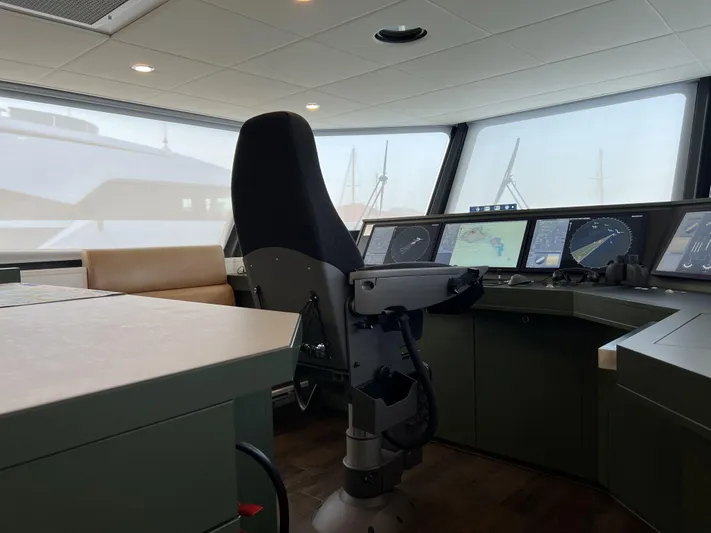

NAVIGATION SYSTEMS

Radar: 2 x Wartsila RadarPilot Platinum X-Band

Gyrocompass: 1 x Anschutz Polaris 100

Magnetic Compass: 1 x Cassens & Plath

Auto Pilot: Raytheon Anschutz Nautosteer

Depth Sounder: EMES 60

GPS: 1 x Sailor 6286 DGNSS

ECDIS: Wartsila Platinum ECDIS + Backup

Integrated System:NACOS Platinum Wartsila

AIS:  1 x Saab R5 AIS Transponder

BNWAS: BNWAS Platinum Wartsila

Speed Log: 1 x EM-Speed Log SAM 4642, 1 x Satlog SLS 4120

Wind/ Speed Log: EMES 60

Rudder Angle Indicator: Raytheon Anschutz SCB RAI 10

VDR: Wartsila VDR 4360 & 4370

ENTERTAINMENT SYSTEMS

Onboard servers: VBH IT System Sailor 800 VSAT Pepwave 4G/Wifi

Peplink Balance 580X

Master cabin:  Television | Samsung UE55NU7170 4K Ultra HD Smart TV 139,7 cm 55” UE55NU7170

Main Saloon: 55” UE55NU7170

Apple TV | Apple TV HD 5th Generation IP TV | MAG IPTV

Main platform exterior deck 2 x Speaker | Soundboks (Gen.3) 126dB

Crew mess Television | Samsung UE55NU7170 4K Ultra HD Smart TV 139,7 cm 55” UE55NU7170

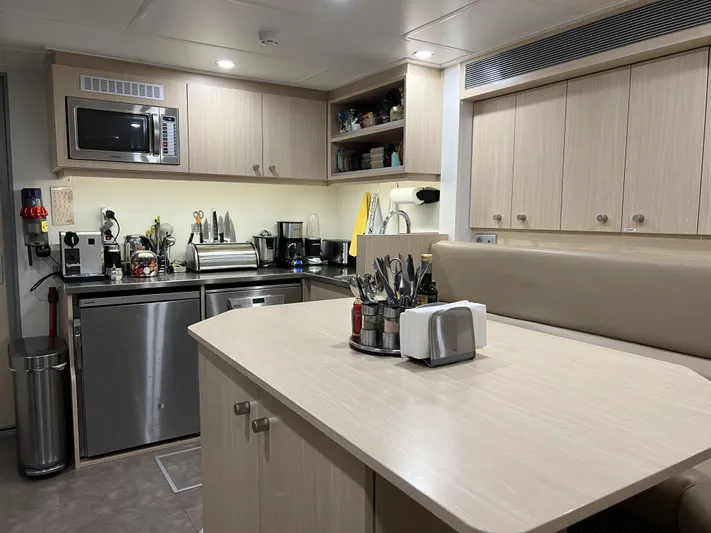

MAIN GALLEY EQUIPMENT

Convection Oven: Miele H6890BP 1 x Induction Cooktop | Kuppersbusch

Microwave: 1 x Microwave Oven | Daewoo

Refrigerator: 2 x Refrigerator | Liebherr CNPes 4358

Dishwasher: 1 x Dishwasher | Miele PG8060

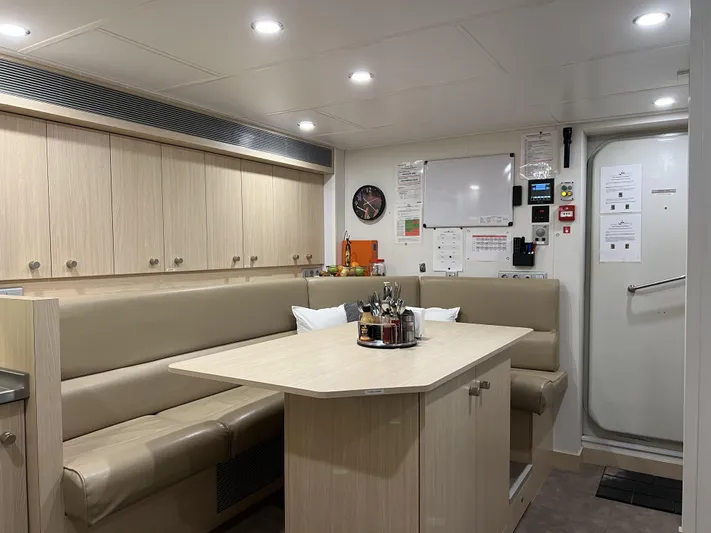

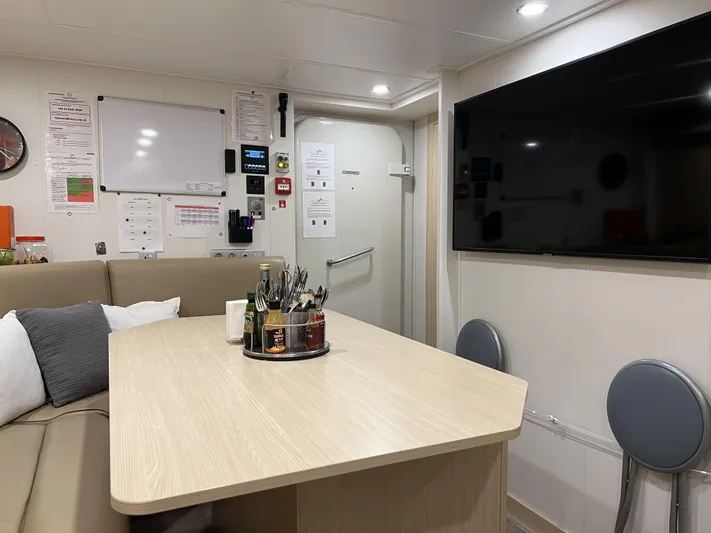

CREW GALLEY/ MESS

Dishwasher: 1 x Dishwasher | Miele PG8060

Refrigerator: 1 x Refrigerator

Microwave: 1 x Microwave Oven | Daewoo

LAUNDRY

Washing Machines: 2 x Washing Machine | Miele PW6065 Vario

Dryers: 2 x Tumble Dryer | Miele PT7135C Vario

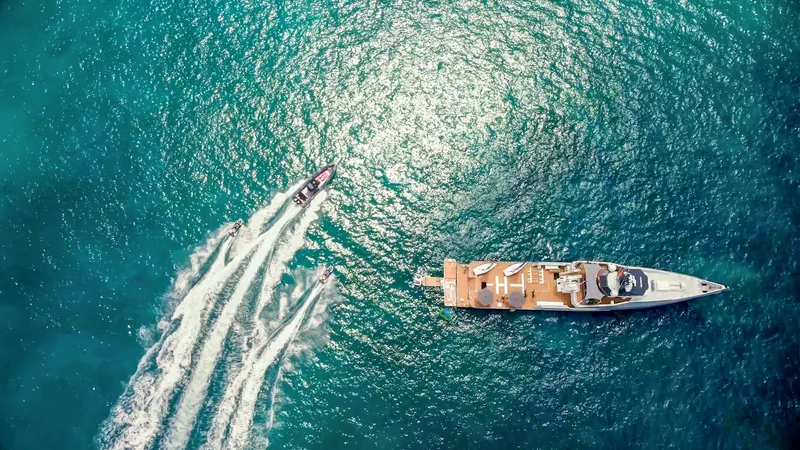

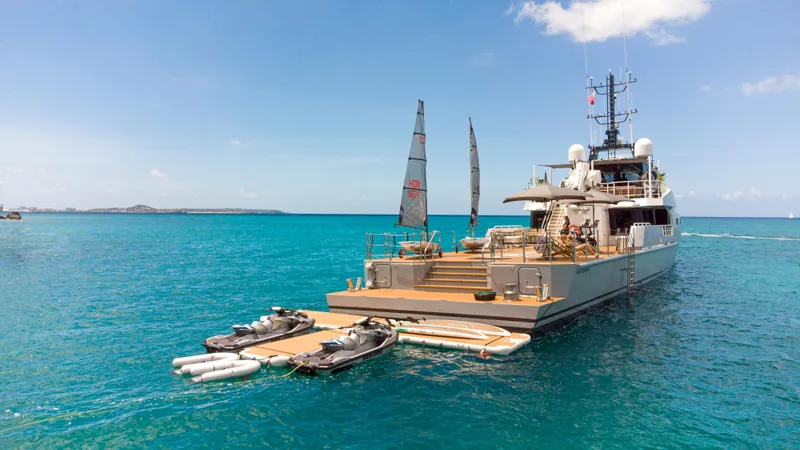

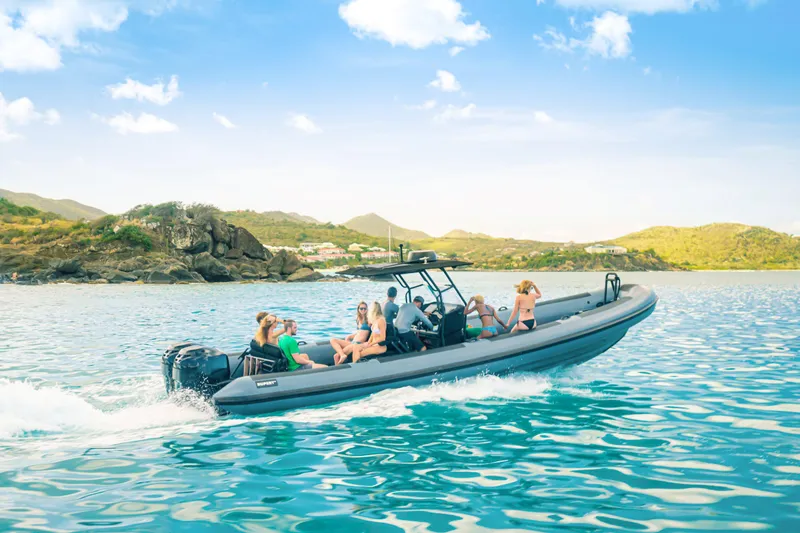

-RIB: 2020 RUPERT 32 OB CC w/ TWIN MERCURY VERADO 350HP 32' 0"

-2 JET SKIS: 2020 SEA DOO 300HP 11' 4"

-4 2020 F5 SEABOBS

-2 PELETONS

-1 TREADMILL

-4 E-BIKES

-2 RIGID SUPs

-SNORKELING EQUIPMENT

-INFLATABLE BANANA & CHAIR (JOBE)

Note: Subject to change and/or negotiation during the buying process.

Anchor Windlass: 1 x Vertical Capstan – Speed 11.7m/min, 415V, 13kN - Brake 81k

Aft Warping Capstans: 1 x Aft Capstan – Max Pull 1000kg – Speed 15.6m/min

Anchors: 1 x Bruce (320Kg)

Anchor Chain: 1 x 165m – U2 Grade, Galvanized steel, ∅ 17.5mm (Stud link)

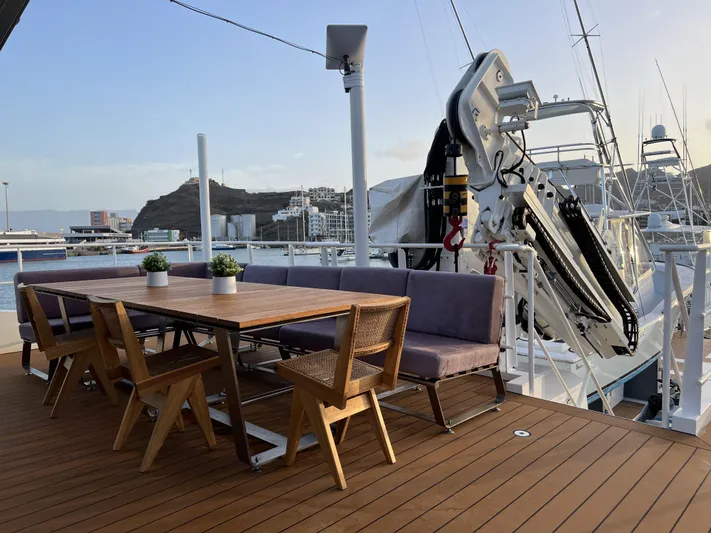

Boat Crane and Davits: 1 x HS Marine AK72 E4 Knuckle Boom Crane S.W.L 6.695kg

at 7.41m – 3.290 at 13.62m

Passarelle: 1 x Guest Passarelle, 1 x Embarkation ladder

•    Pristine condition and turnkey ready to cruise

•    Proven world cruiser

•    Fun & vibrant interior

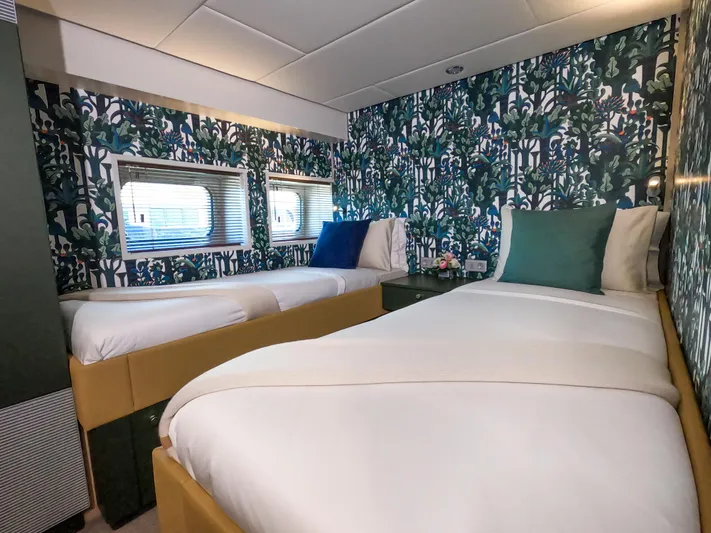

•    Accommodation for 6 guests in 3 cabins

•    Excellent seakeeping capabilities

•    Heavy-duty deck crane

•    Ample storage and versatile main deck

•    Tender & toys included in sale

•    Refit in 2022

2024 & 2025

•    Bureau Veritas Class 5-year Special Survey completed including pulling props and shafts, valves, replacing the Main Engine flexible couplings, and checking alignment

•    Maindeck crane 5-year service crane

•    Replaced X-band Radar Magnetron

•    5000-hour Service on gear boxes

•    8000-hour Service on stabilizers

•    Routine service on Main Engines and Generators

•    Water maker plant replaced and 2nd unit added for capacity and redundancy

•    Fresh water tanks painted

•    Echo sounder/speed log replaced

•    Anti-fouling coating

•    Major exterior paint refinishing

•    MarPower shore power overhauled

•    AC insulation renewed

•    ER Ducting renewed

•    Anchor winch overhauled

•    Fuel spinner overhauled

•    Safety equipment renewed

•    Carpentry work for additional storage added throughout

•    Miele equipment serviced throughout

•    Complete overhaul of the Rupert RIB tender

2023

• Salon TV
• VFD controlled tender fueling
• Extra anchor chain
• Icemaker
• Filtered water tap
• 3000 hour service mains and gens
• Quantum stabilizer service
• Bottom paint, Propspeed, anodes
• Nonskid paint foredeck
• Class/Flag surveys
• Zipwakes to RIB
• Bottom paint RIB
• Glycol flush AC/crane/stabilzers
• Service thru hull valves
• Automated watermaker flush
• Seachest breathers installed
• Crane service

ADDITIONAL DETAILS

2021 & 2022

All maintenance has been carried out according to the official intervals and makers’ suggestions for each component. All work has been recorded in the MARAD PMS system.
All major Main Engine and Generator services have been carried out by Certified Caterpillar Technicians and all service reports have been kept on board.
All shaft, propeller, bowthruster propeller cleaning and protection application was last carried out on 12 May 2021.
Air Conditioning System condenser inspections were last carried out on 25 April 2021. All air handling units are cleaned monthly.
Hamann Sewage Treatment Plant is cleaned at the end of every operation, keeping the system free from bacteria growth.
Watermakers have been cleaned and stored with suggested chemicals for the next active season. All navigational equipment, safety equipment, entertainment systems and lighting systems are tested
monthly.
Hull anodes were replaced on 28 May 2021 and Antifouling Paint was applied on 12 May 2021.
PINK SHADOW underwent Class, Flag and Radio Surveys without any remark on 23 June 2021
