SAPPHIRE Yacht for Sale

166' Trinity | 2009 | $15,950,000

West Palm Beach, FL

Contact Broker Watch Price

1/56

Last updated Apr 4, 2024

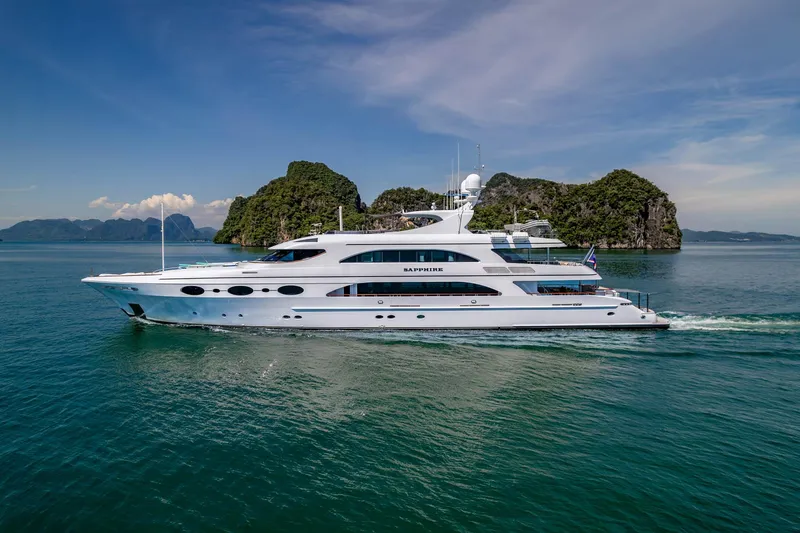

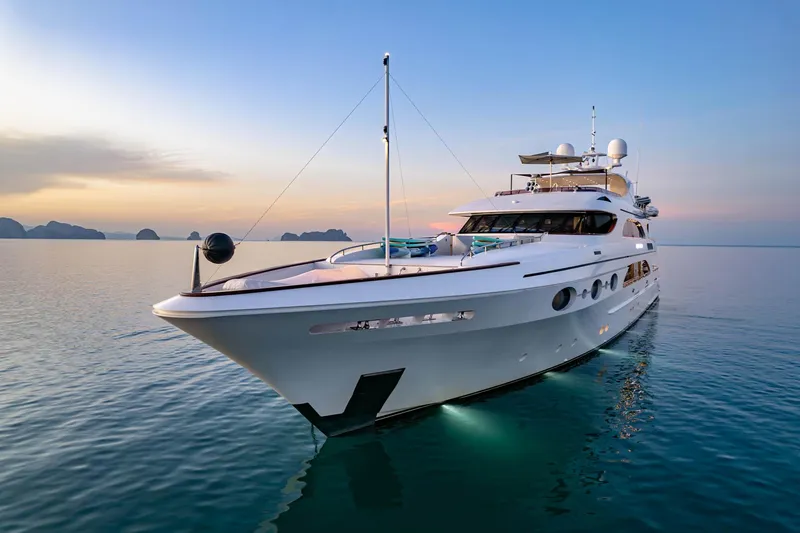

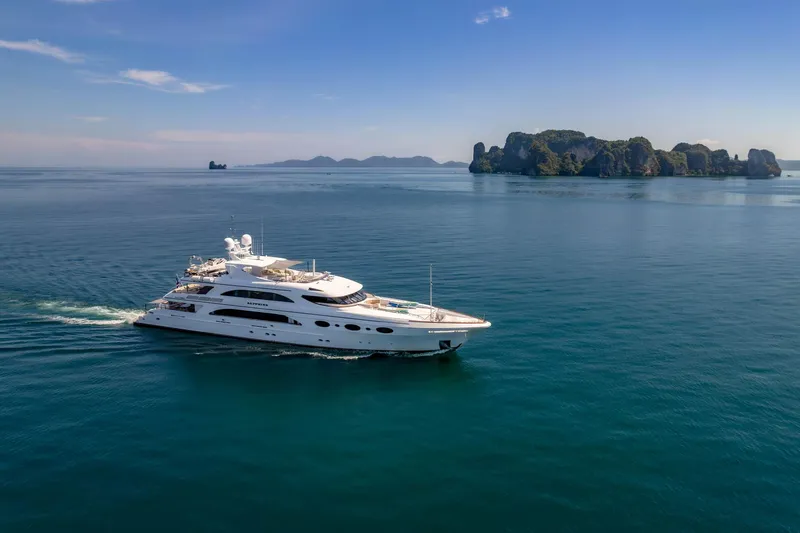

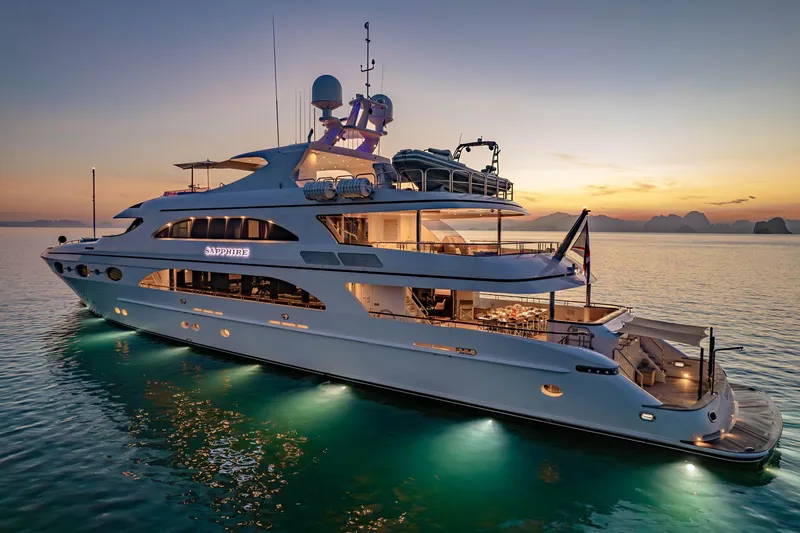

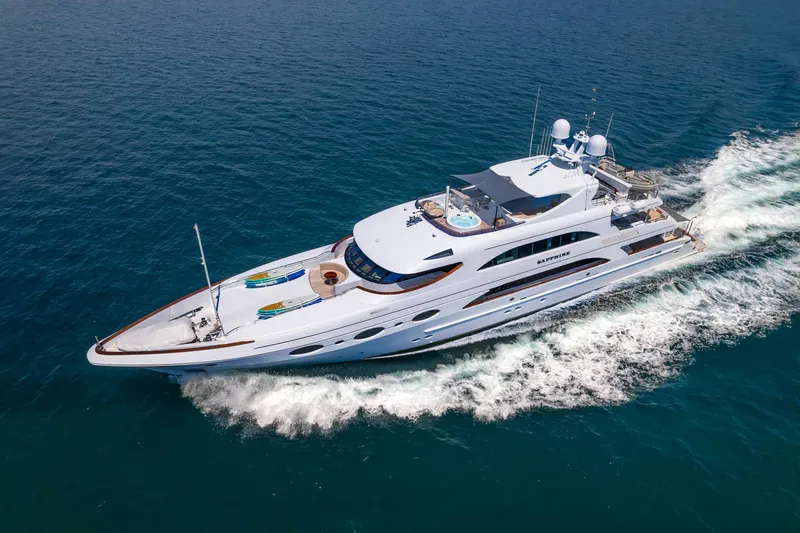

Sapphire Yacht | 166' Trinity 2009

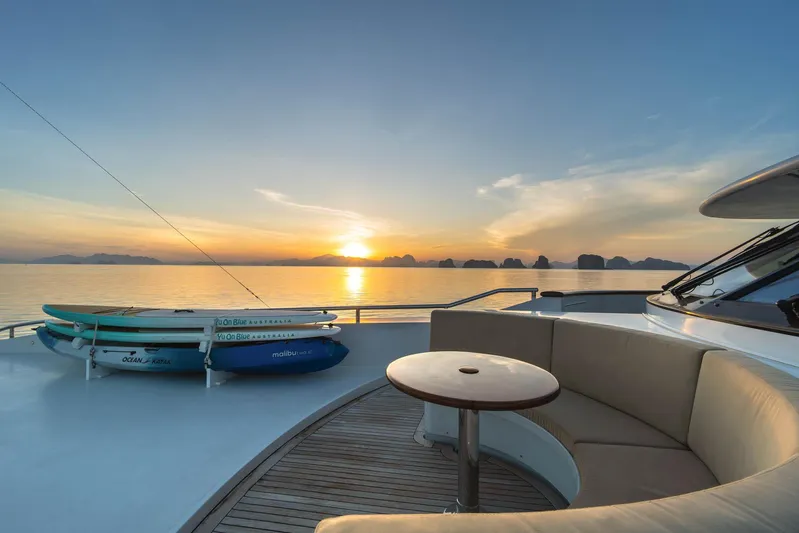

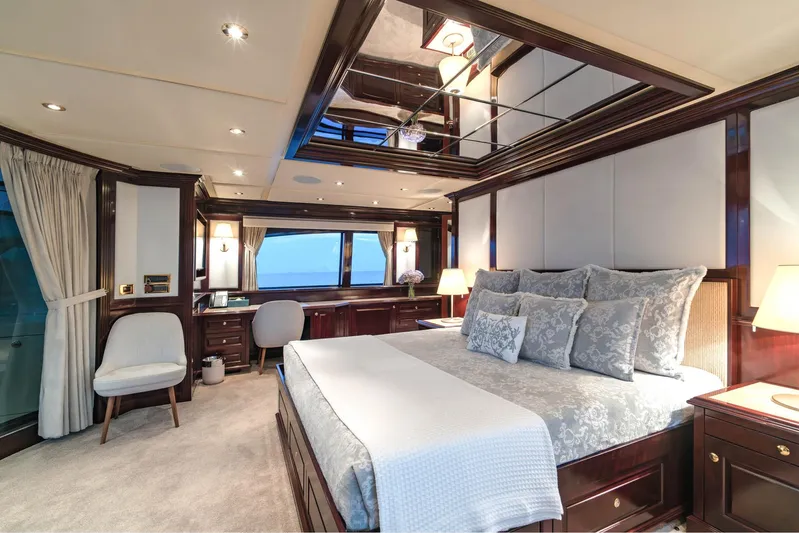

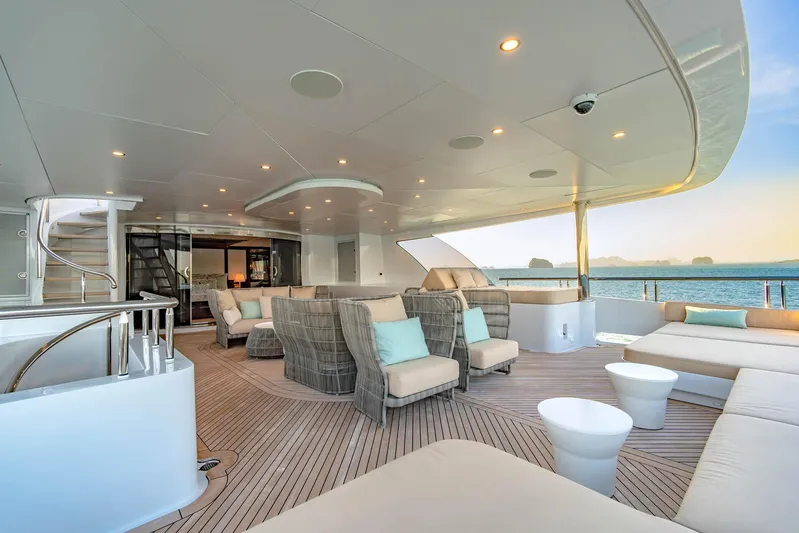

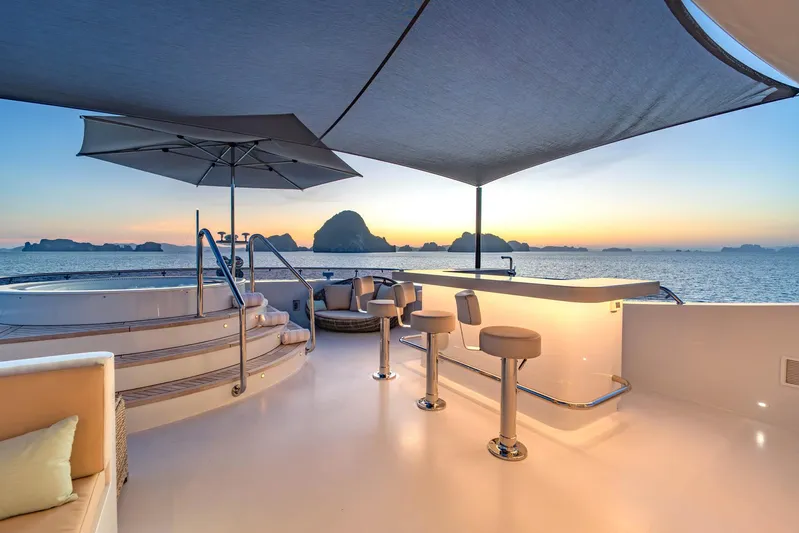

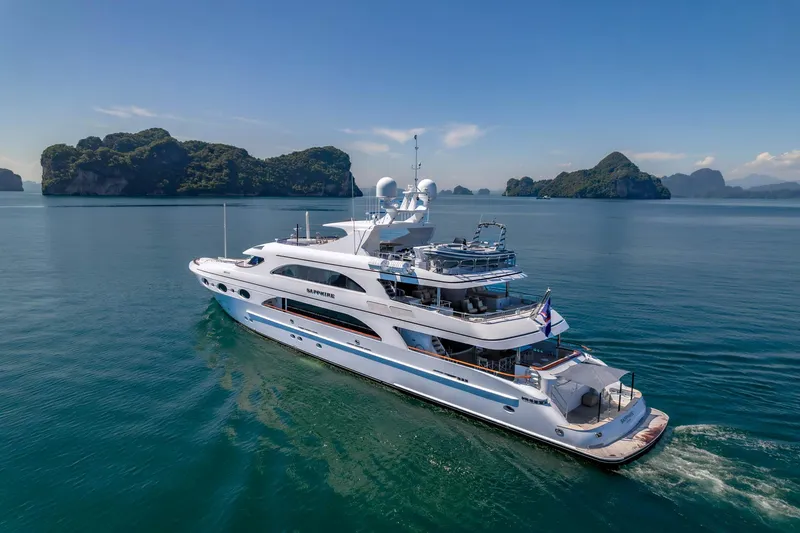

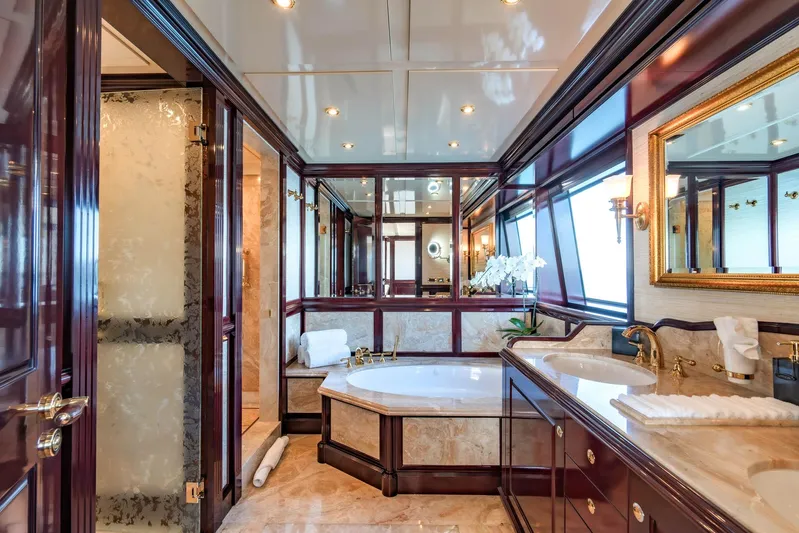

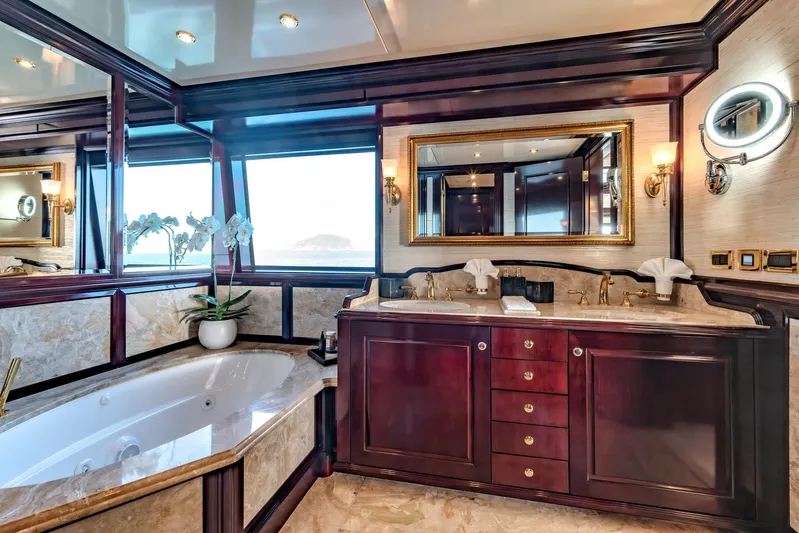

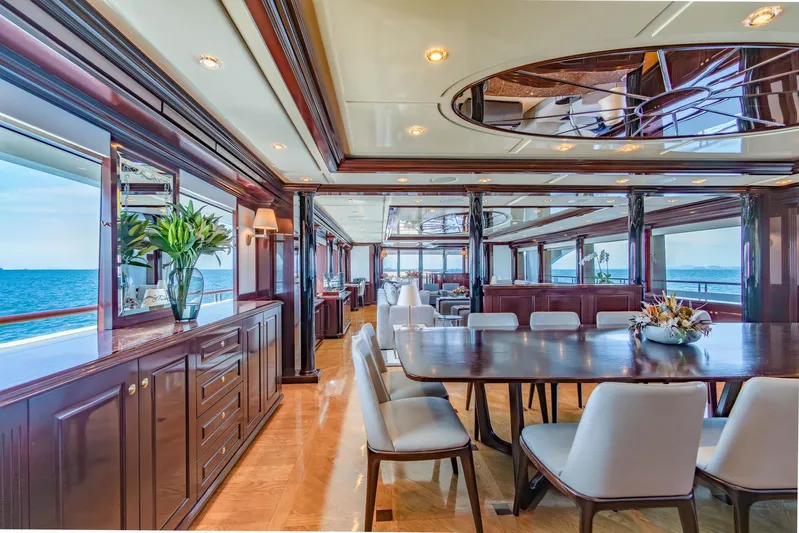

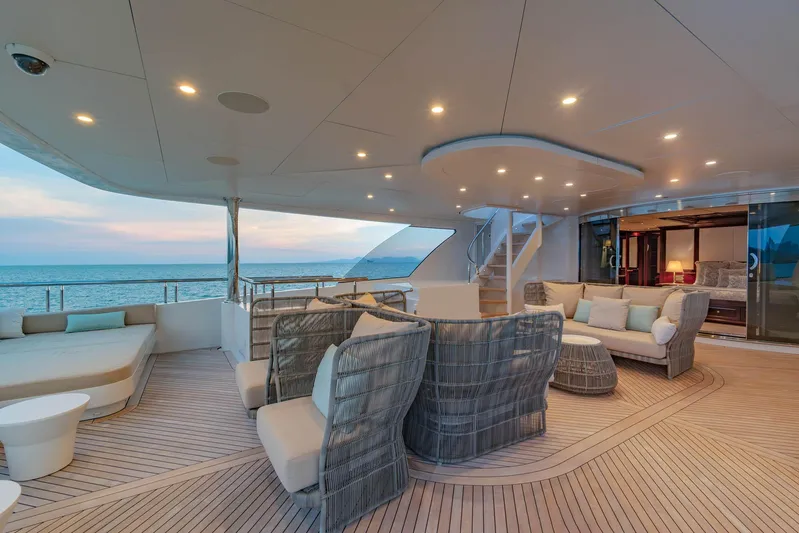

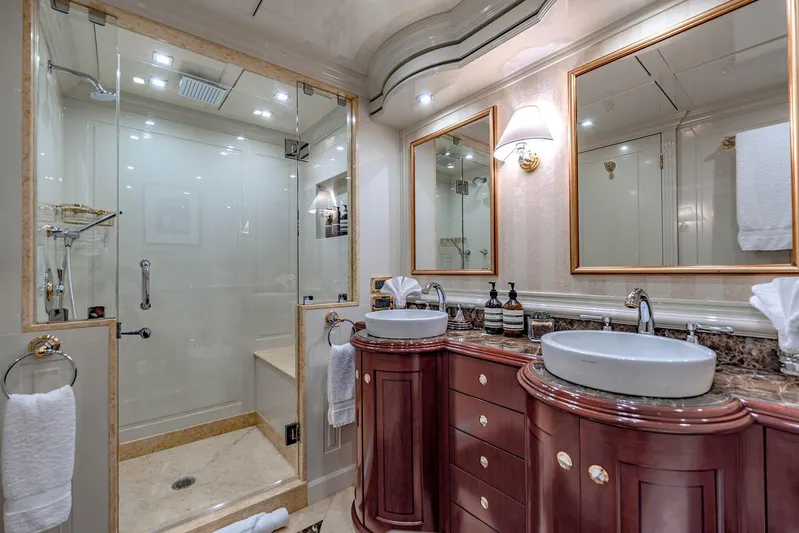

SAPPHIRE (previously RED SAPPHIRE) was built by Trinity Yachts and launched in 2009. She is a proven world class motor yacht that has spent the past several years exploring remote areas of southeast Asia. In 2019 she received a major 10-year refit and in 2020/2021 she received new engines and generators. A full list of the work is in the detailed specifications and available upon request. SAPPHIRE can sleep up to 20 guests in 7 flexible staterooms. The Owners’ suite is located on the bridge deck facing aft with sliding glass doors onto the bridge deck aft. The suite features an ensuite with a large bathtub and a walk-in closet. One double cabin can be found on the bridge deck and the second can be found on the main deck. Below deck you will find two triple cabins, each with a queen and twin bed, and both with an ensuite featuring a tub. Further forward are two twin cabins, each with their own pullman berths and an ensuite bathroom with a shower. There is ample outdoor space for entertaining, with a large dining table on the main deck, versatile seating and lounging on the bridge deck, and more seating on the Portuguese bridge--perfect for sun downers. The sun deck is expansive with a jacuzzi, bar area, lounging areas, and an al fresco dining area that is perfect for relaxing with friends and family. SAPPHIRE boasts options for both indoor and outdoor dining, with an elegant dining table in the salon that seats up to 12 guests. The main salon also features a bar, comfortable seating with a hidden TV, and beautiful oversized windows for natural light. Forward of the salon is a recreational room, which is perfect as an entertainment space for kids that can easily be converted to a VIP cabin. Exceptionally comfortable, SAPPHIRE is equipped with Quantum Zero-Speed stabilizers and features a pair of 3,650HP MTU engines that give her a top speed of 23 knots and a more economical cruising speed of 15 knots.

Denison Yachting is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Superyacht Sales and Charter.

Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.

INQUIRE ABOUT SAPPHIRE

Have questions about this yacht? Fill out the form below and our team of experts will contact you soon.

Sending your Message. Please wait . . .

Your privacy is important to us. Find out how we protect it. Privacy Policy

Sapphire HIGHLIGHTS

Yacht Details: 166' Trinity 2009
Location: West Palm Beach, FL
Engines: MTU
Last Updated: Apr 4, 2024
Asking Price: $15,950,000
Maximum Speed: 23 kn
Max Draft: 8' 6''

Sapphire additional information

Specifications

Cruising Speed: 15 kn
Maximum Speed: 23 kn
Beam: 28' 2''
Hull Material: Aluminum
Max Draft: 8' 6''
Fuel Tank: 1 x 15523|gallon
Fresh Water: 1 x 2638|gallon
Holding: 1 x 422|gallon
Max Passengers: 20
Cabins: 7
Heads: 9

Main Specifications

Length Overall: 50.5m (165'8")

Length at Waterline: 43.86m (143’11”)

Beam: 8.59m (28’2”)

Draft: 2.59m (8’6”)

Air Draft: 15.50m (50’10”)

Year Completed: 2009

Model Year: 2009

Refit: 2019 & 2020/21

Type: Custom Tri-deck Motor Yacht

HIN:TTY16554K910

Tonnage: 478

Net Tonnage: 143

Displacement: Semi-Displacement

Cabins: 7

Guests: 20

Crew: 12

CONSTRUCTION

Builder: Trinity Yachts LLC

Naval Architect: Trinity Yachts LLC

Exterior & Interior Design/Stylist: James McFarlane

Hull Material: Aluminum

Deck Material: Teak & Nonskid on Sun Deck

Classification: American Bureau of Shipping

SPEED

Maximum: 23 knots

Cruising: 15 knots

Economical: 12 knots

Range: 2,500nm @ 12 knots

Consumption @ Cruising: 300L/pHr

CAPACITIES

Fuel: 58,761L (15,523.011g)

Water: 9,986L (2,638.022g)

Grey Water:6,101L (1,612g)

Black Water: 1,597L (422g)

Lube Oil Capacity:2,294L (606g)

Waste Oil Capacity: 1000L (265g)

CLASSIFICATION & CERTIFICATIONS

Flag: Marshall Islands

ISM: N/A

Classification: American Bureau of Shipping

ISPS: N/A

Machinery

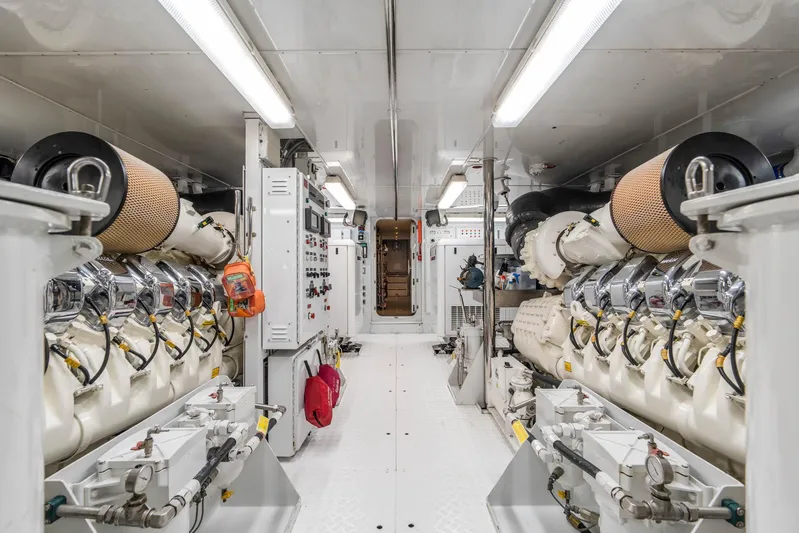

MAIN ENGINES

Engine Type: 2 x MTU 16V 4000 M90

Horsepower: 3650

Engine Serial Numbers: 527 104 598 & 527 104 599

Main Engine Hours (Port): 1429

Main Engine Hours (Stbd): 1427

*At the time of zero-hour overhaul, ME:
Port – 9003 hours
STBD – 9500 hours

*Extended warranty expires Jan 2024. MTU-Go is installed, so MTU can monitor remotely

GENERATORS & ELECTRICITY

Output: 290 KW

Generators: 2 x Northern Lights 145 kW@1800rpm Model M1066A2 120/208-3-60

Generator Fuel Consumption: 23L/pHr

Port Generator Hours: 5661

Starboard Generator Hours: 5584

Shore power: ASEA AC75LC-3

BATTERIES

Generator Starting: (2) 2 x 12-volt AGM Full River FT1450-8D 225AH

Emergency: 2 x 12-volt Lead Acid Northstar NSB 190FT BLUE+ 180AH

PROPULSION & STEERING

Gearboxes for Main Engines: ZF - 7640

Stabilizer: Quantum Marine QC-1800 Zero Speed q/ ARC -3001 MK2 Controller

Stabilizer Underway: Yes

Stabilizer at Anchor: Yes

Steering System: Engine Monitoring Inc. Model DE03 Dual x 3HP HPU FFU

OTHER MACHINERY

Water Makers: 2 x FCI - NM55263+APC

Water Softeners: 1 x HEM K50

Bow Thruster: Quantum Marine QT-150 150-hp

Fuel Separator and Filtration: Alfa Laval MAB 104 B 14/42

Sewage System: HeadHunter TW-300B

Fresh Water System:

- Pumps: 2 x Grundfos 30 SQE-130 MODEL- B/E P2 1737

- Treatment: Silver Sterilizer - Brannstrom Silster 168

UV - Atlantic Ultraviolet Corp. Model No. S2400C

Oily Water Separator: Recovered Energy Inc. - Boss 2.2T/107

Air Compressor: Jenny Products Inc. Model G

Air Conditioning: 5 x Marine Air Makeup Air Units, Panasonic Exhaust Blowers

Chillers: H&H

Communication & Navigational Equipment

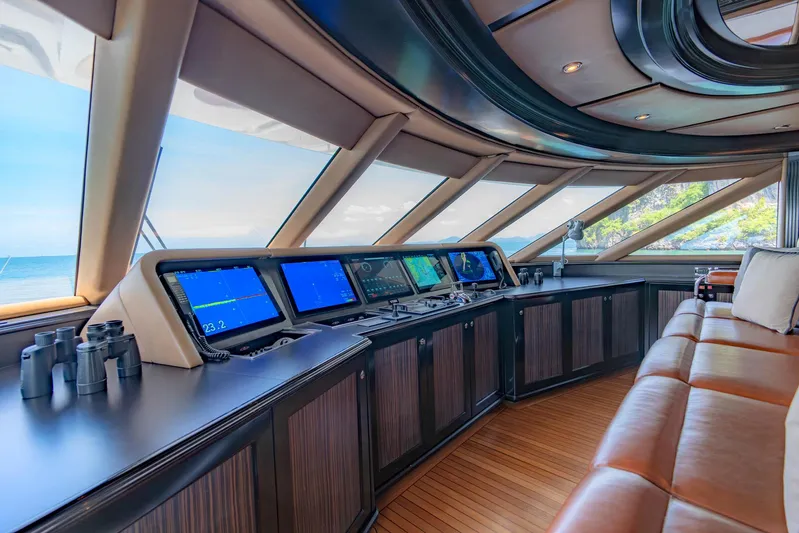

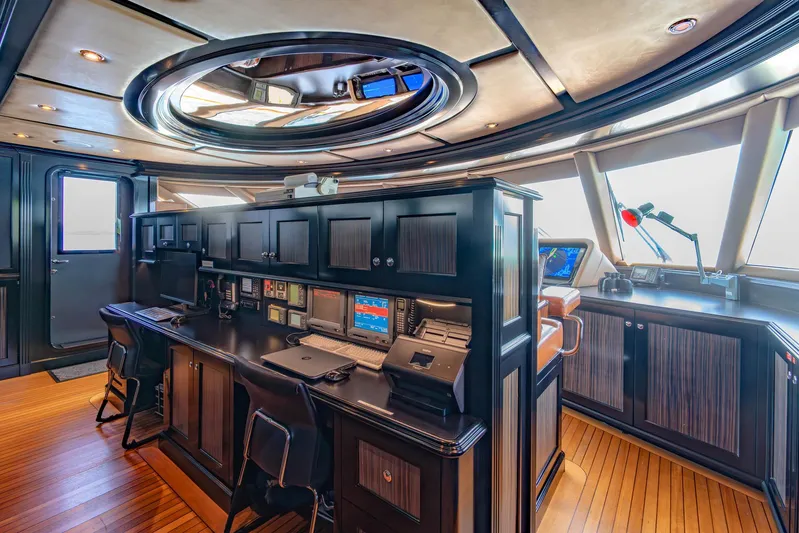

PILOTHOUSE

SAT COM: Tracphone 252 + KVH FB500 + Thuraya FDU 3500

Telephone System: Panasonic PBX KX-TDA200

SSB: Furuno FS1570 w/ Coupler

VHF: 2 x FURUNO FM -8800

MF/HF: FURUNO/ FS 1570

Iridium: Thales VesseLINK

Navtex: FURUNO / NX-700B

Enhanced Group Call: FURUNO / FELCOME-15

NAVIGATION SYSTEMS

Radar: 2 x X-Band Radars Furuno / FAR-28-7 Series

Gyrocompass:C-Plath Navigat X MK2

Magnetic Compass: Ritchie Powerdamp

Auto Pilot: C-Plath Navipilot 4000

Depth Sounder: Furuno Instrumentation w/7 RD30 Displays

GPS: FURUNO / GP-170

AIS:FURUNO / FA 150

Ships Computer: Email Server Comp. – VEI E-Server & Router

Laser Plotter: Raymarine

Wind/Speed Log: Furuno Instrumentation w/7 RD30 Displays

ENTERTAINMENT SYSTEMS

VSAT: Seatel 4004

TVRO: Seatel 4004

iPads: Crestron

Galley & Laundry Equipment

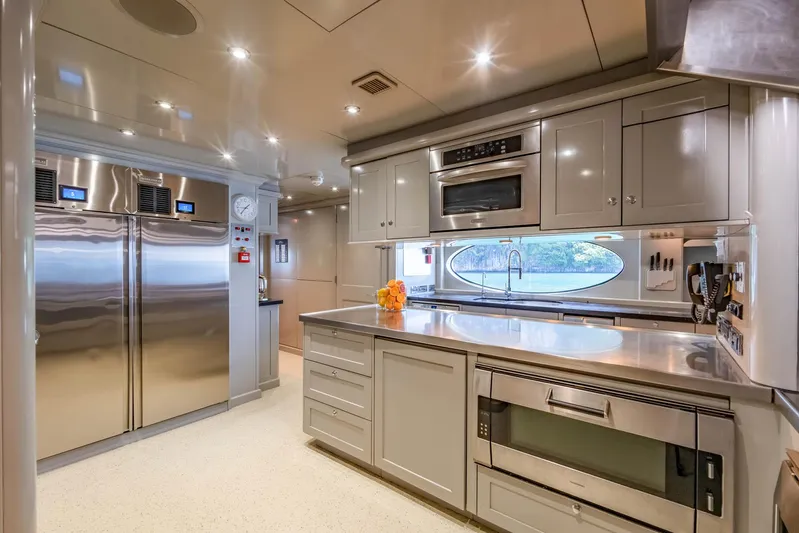

MAIN GALLEY EQUIPMENT

Cooktop: Gaggenau Vario Flex Induction 400 Series

Oven: 2 x Gaggenau HLEB38(8)

Microwave: KictchenAid KBMS1454SSS-1

Refrigerator: 1 x Cospolich Walk in Fridge

Freezer: 1 x Cospolich Walk in Freezer

Additional Refrigerator: Delfield GAR1NP-S-IV

Additional Freezer: Delfield GAF1P-S-I18

Dishwasher: Hobart LXEC

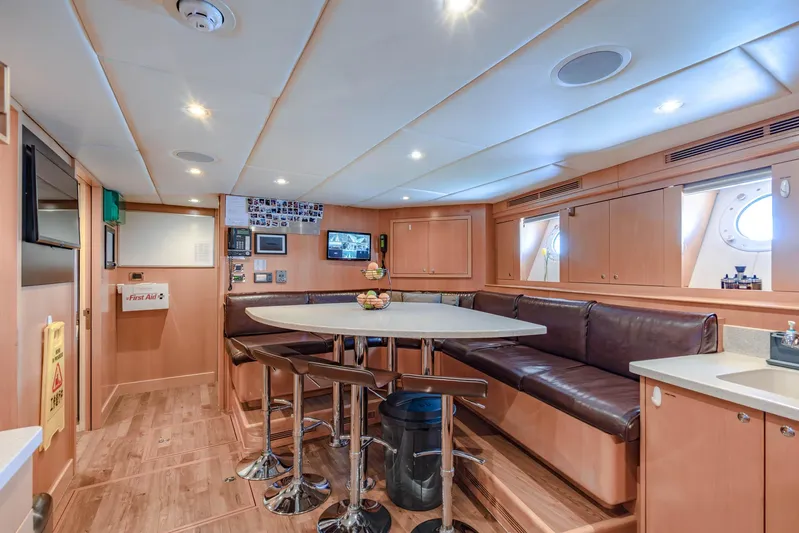

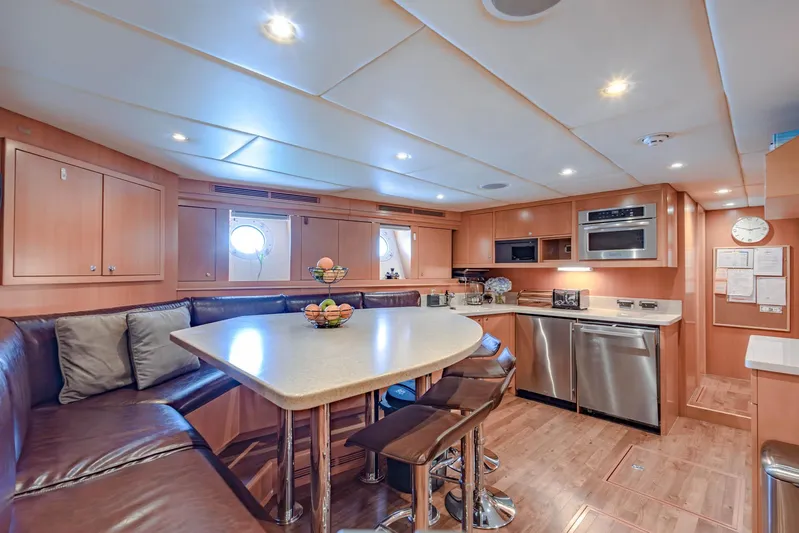

CREW GALLEY/ MESS

Fridge: Marvel ML24RAS2LS

Microwave: KictchenAid KBMS1454SSS-1

Dishwasher: Miele - GG07

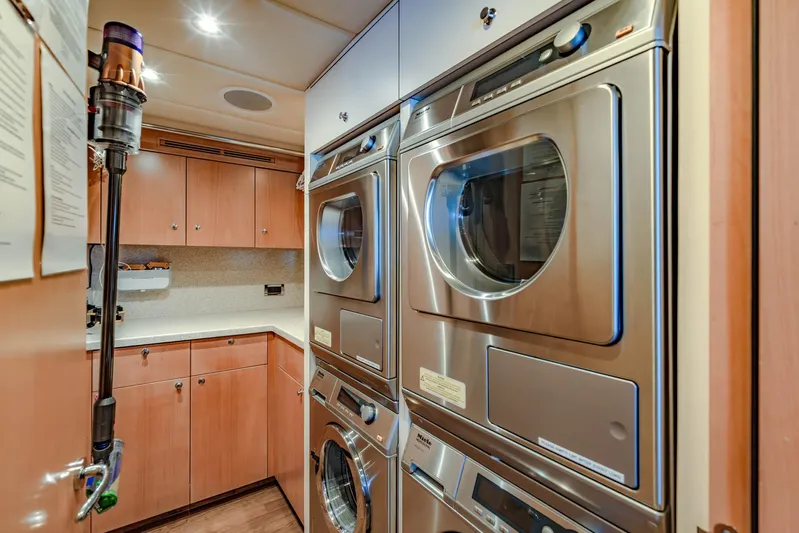

LAUNDRY

Washing Machines: 2 x Miele - PW6068

Dryers: 2 x Miele - PT7138

Deck Equipment

Anchor Windlass: 2 x Muir VRC-11000 Hydraulic w/ handheld Pendants

Aft Warping Capstans: 2x Muir VRC-4000 w/ footswitch

Anchors: 2 x HHP “Talon HP” nchors

Anchor Chain: 2 x 165m

Boat Crane and Davits:

Sundeck Crane: Nautical Structures EZ-5000-EX-204 258w/Freefall MCA

Foredeck Crane: Nautical Structures Eur1300-1700-MCA Compliant w/DC Emergency Power

Passarelle: Marquit Hydraulic 23.7ft Telescopic 8-Function Passarelle w/RF Control

Tender & Toys

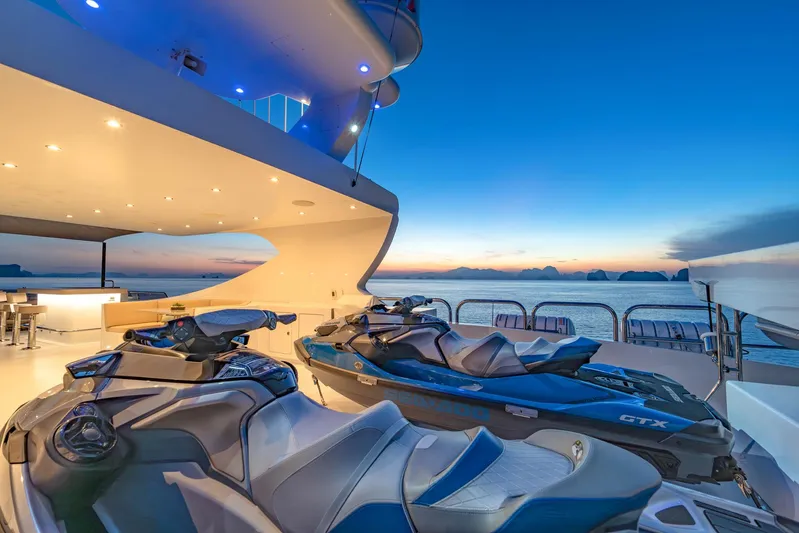

• 1 x Sea-Doo 2020 GTX LTD 230 HP
• 1 x Sea-Doo 2020 GTX 230 HP
• Novurania Launch 650 (6.5m)
• Neuvisa Rescue Boat (4.19m)
• Slide from sun deck

Note: Subject to change and/or negotiation during the buying process.

Security, Firefighting, & Safety Equipment

SECURITY

CCTV System: Seven Cameras + Bosch MR16 DVR

Monitors: Servowatch System

FIRE FIGHTING EQUIPMENT

Fire Control System: Consilium Fire Detection System

Fire Extinguishers: 26 x 4.5 kg Dry Powder, 1 x 1 kg Dry Powder, 2 x 2kg Dry Powder, 1 x 6kg Dry Powder, 6 x 9kg Dry Powder, 2 x 5kg CO2, 5 x 9Ltr Foam

Fireman Suits: 2 x setups

Alarms: Servowatch System

Fire Pumps: Main Fire Pump in Engine Room, General Service pump in Engine Room, Emergency Fire pump in Steering Gear Compartment

CO2 System: Fixed CO2 system in Engine Room

SAFETY EQUIPMENT

Life Rafts: 4 x 25 person RFD Surviva Mk IV TO inflatable Life-raft

Life Rings: 4 x lifebuoys

EPIRBS: 2 x ACR / RLB, S/N 10134 – Battery expires July 2023

Lifejackets: 43 x Adult Life Jackets, 9 x Child Lifejackets, 14 x inflatable lifejackets

Immersion Suits: 14 x Immersion Suits

Flares: 6 x Red Parachute Rocket Flares, 6 x handheld flares, 2 x smoke floating signal flares

Line Throwers: 2 x Line Throwers

Medical Equipment: Medaire – Category A Pack

SART: 2 x JOTRON / TRON SART-20, 9 Ghz, S/N 49149 & 49150 battery expiry July 2023

Accommodation & Layout

Guests:

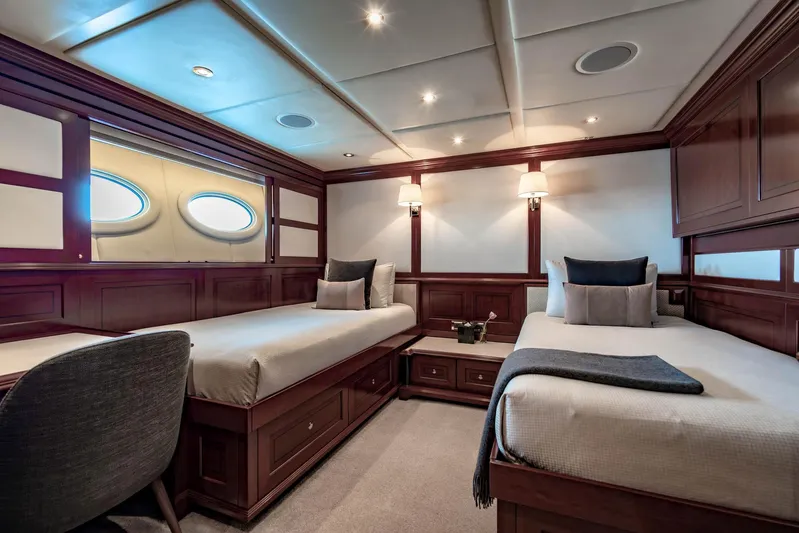

Port Fwd: 3 Pax (Twins or King (Convertible) plus pullman)

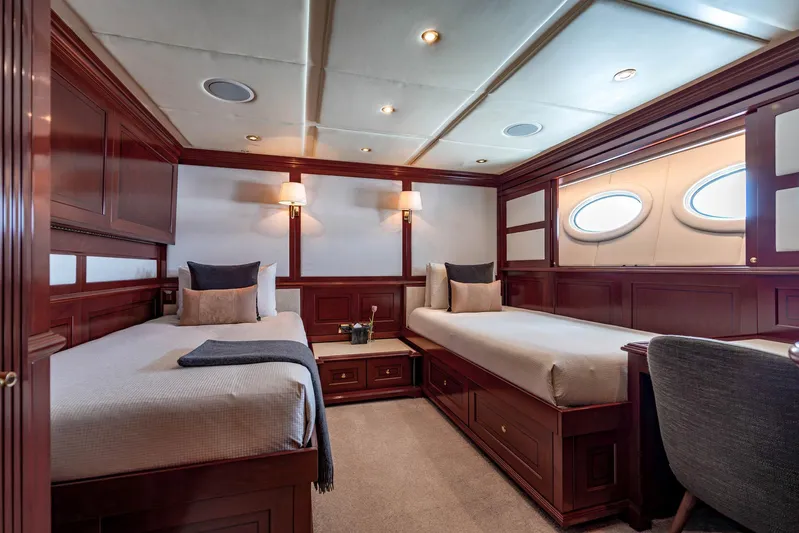

Starboard Fwd: 3 Pax (Twins or King (Convertible) plus pullman)
Port Aft: 4 Pax (King and single plus pullman)
Starboard Aft: 3 Pax (King and Single)
Bridge Deck: 2 Pax (Double)
Master: 2 Pax (King)
Main deck: 3 Pax (Queen plus pullman)
Total: 20 Guests

Crew:
Captain: 1-2 Pax (Double bed)
Main Deck STB: 2 Pax (Bunk beds)
Lower Deck Port: 2 Pax (Bunk beds)
Lower Deck Stb Aft: 2 Pax (Bunk beds)
Lower Deck Stb Fwd: 2 Pax (Bunk beds)
Engineer Cabin: 1-2 Pax (Pullman Bed)
Engineer Cabin: 1 Pax
Total: 11-13 Crew

Refits & Works Completed

2019

Deck
