FOCUS Yacht for Sale

MAIN SPECIFICATIONS

Previous Names: ARGYLL
Length Overall: 153’ (46.63m)
Length at Waterline: 134’ (40.87m)
Beam: 29’6” (8.99m)
Min Draft: 7’6” (2.29m)
Max Draft: 8’5” (2.57m)
Keel Laid: 2000
Year Completed: 2002
Refit: 2023
Type: Motor Yacht Tri-Deck
Tonnage: 499
Net Tonnage: 149
Hull Config: Semi displacement
Guests: 5 cabins 10 guests
Crew: 10

CONSTRUCTION

Builder: North American Yachts & Shipbuilding
Naval Architect: Hydro Tech or Sergio Cutolo
Exterior Design/Stylist: Sergio Cutolo or Luiz de Basto Designs
Interior Desing/Stylist: Ralph Lauren and/or Luiz de Basto Designs
Hull Material: Aluminum
Deck Material: Teak
Classification: ABS

SPEED

Maximum: 18 knots
Cruising: 13 knots
Economical: 12.5
Range: 5,000nm @ 13 knots or 4,000nm @ 14 knots
Consumption @ Cruising: 60 GPH total

CAPACITIES

Fuel: 19,000 gallons
Water: 3,000 gallons
Grey Water: 1000 gallons
Black Water: 750 gallons
Gray Water: 4210 gallons
Lube Oil Capacity: 1111 gallons
Waste Oil Capacity: 208.9 Gallons
Sludge Tank: 208.9 Gallons

CLASSIFICATION & CERTIFICATIONS

Flag: Cayman Islands
MCA: Yes
Classification: ABS

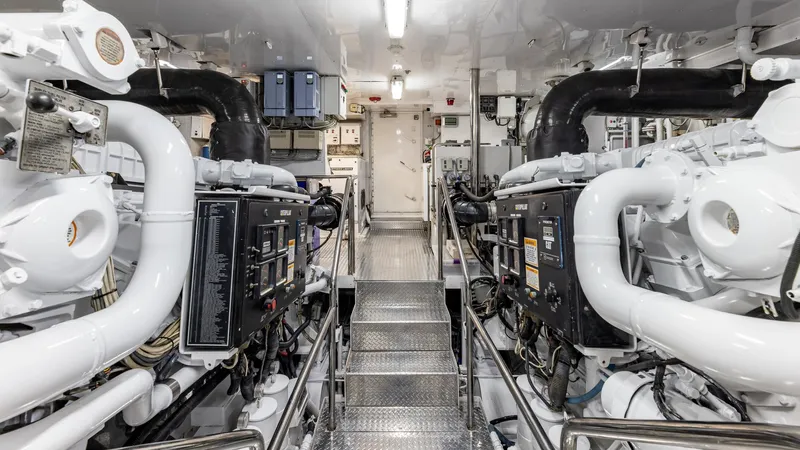

MACHINERY

MAIN ENGINES

Engine Type: 2x Caterpillar Diesel 3512B Engines
Horsepower: 4,500HP total
Engine Serial Numbers: 7HM00227, 7HM00228
Main Engine Hours (Port): 9700 (2/7/24)
Main Engine Hours (Stbd): 9700 (2/7/24)

GENERATORS & ELECTRICITY

Output: 100 KW x 2
Generators: Northern Lights
Generator Fuel Consumption: 32 kw Fischer Panda
Port Generator Hours: 6529 (2/7/24)
Starboard Generator Hours: 6700 (2/7/24)
Shore power: 100A THREE PHASE X2
Emergency: 32 kw Fischer panda

BATTERIES

Batteries: ODESSEY 1300 4D X 14 ENGINE ROOM
ODESSEY 1300 4D X 9 WHEELHOUSE
Generator Starting: ODESSY 1300 4 D EMERGENCY GENERATOR

PROPULSION & STEERING

Drive: STRAIGHT DRIVE SHAFTS
Gearboxes for Main Engines: ZF
Stabilizer: QUANTUM
Stabilizer Underway: QUANTUM
Stabilizer at Anchor: QUANTUM ZERO SPEED
Steering System: RODRIGUEZ
Stabilizers: QUANTUM ZERO SPEED

OTHER MACHINERY

Water Makers: SEA-RO
Water Softeners: SPOT ZERO
Bow Thruster: 100HP HYDRAULIC
Fuel Separator and Filtration: ALPHA LAVALL
Sewage System: HAMMAN
Fresh Water System: 2X GIANENNESCHI
Oily Water Separator: COMPASS WATER SOLUTIONS
Air Compressor: COMP AIR SERVICES ES20
Air Conditioning: FLOW 10 TON BTU X 4

ELEVATOR

Dimensions: 1X1 METER
Wheelchair Accessibility: Yes
Elevator: Yes

COMMUNICATION AND NAVIGATIONAL EQUIPMENT

PILOTHOUSE

SAT COM: SAILOR 6018
Telephone System: YEALINK VOIP
SSB: SAILOR 6018
VHF: FURUNO FM 8900S X2
Starlink: STARLINK RV AND MARINE
Navtex: SAILOR 6301

NAVIGATION SYSTEMS

Radar: FURUNO X 2
Gyrocompass: SPERRY
Magnetic Compass: CPLATH
Auto Pilot: CPLATH
Depth Sounder: FURUNO
GPS: FURUNO GP-1780 X 2
Electronic Charts: TIME ZERO AND TRANSAS
Wind/Speed Log: B&G

ENTERTAINMENT SYSTEMS

VSAT1:
VSAT2:
TVRO: DIRECTV AND STREAMING SERVICES
iPads: YES FOR MUSIC ONLY

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooktop: WOLF
Oven: WOLF
Microwave: LG
Freezer: SUB ZERO 710
Refrigerator: SUBZERO 601 R
Freezer: SUBZERO 601F
Dishwasher: MILELE PROFESSIONAL MARINE
Walk In: CUSTOM YARD BUILT

CREW GALLEY/ MESS

Fridge: Haier Drink Fridge
Dishwasher: MEILE PROFESSIONAL MARINE

LAUNDRY

Washing Machines: MIELE PROFESSIONAL
Dryers: MIELE PROFESSIONAL

DECK EQUIPMENT

Anchor Windlass: MUIR
Aft Warping Capstans: MUIR
Anchors: 500 LB Manson SS ANCHORS X2
Anchor Chain: 500 FT X 2 19 MM
Boat Crane and Davits: NAUTICAL STRUCTURES Davit on Bow 1000 LBS
Garage Crane: GANTRY CRANES 5000LB
Passarelle: CC Italy -HYDRAULIC PASSARELLE

TENDER & TOYS

14 FT’ NAUTICA

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

SECURITY

CCTV System: AXIS
Cameras: AXIS
Monitors: SEATRONX X 6

FIRE FIGHTING EQUIPMENT
Fire Control System: HI FOG
Fire Extinguishers: EVERSAFE
Alarms: AUTROPRIME

SAFETY EQUIPMENT
Life Rafts: 4 X ELLIOT 12 PERSON LIFE RAFTS
Life Rings: 4
EPIRBS: 2 MCMERDO
Flares: YES
Medical Equipment: MEDAIRE GLOBAL 10

ACCOMMODATION AND LAYOUT

Master: 1 on the Bridge Deck
Double: 2 on the lower deck
Twin: 2 on the lower deck
Crew: 10 Crew berths

FOCUS can accommodate 10 guests in five cabins consisting of a bridge deck master suite with its own deck, two VIP suites and three twins, all with entertainment centers and en-suite bathroom facilities.

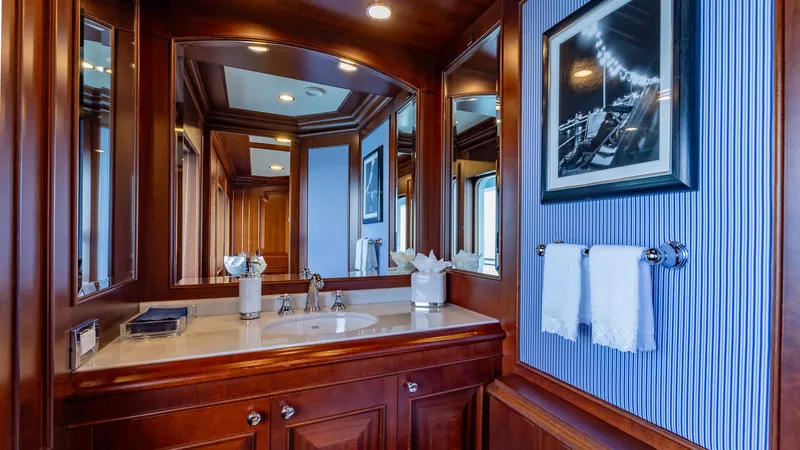

The master is located on the upper deck aft and features a large king-size bed in the center of the space. An automatic privacy screen can be raised behind the bed, blocking views from the entrance, for additional discretion. Eight large vertical windows surround the master and provide 270-degree views. It also has his-and-hers en-suite bathrooms to port and starboard forward. The port bathroom is fully customized for handicapped accessibility. The master also features a private aft deck with a seating banquette; this is an ideal space to enjoy morning coffee or an evening cocktail.

Four additional staterooms, two twins and two VIPs with queen-size beds, are located on the lower deck. All have en-suite bathrooms; the port twin and queen have luxurious bathtubs and the starboard staterooms have floor to ceiling glass showers. The starboard queen also has private access to the elevator.

EXCLUSIONS
Owner's personal effects
