36 Hinckley 2005 Boat for Sale

Lady K Boat | 36' Hinckley 2005

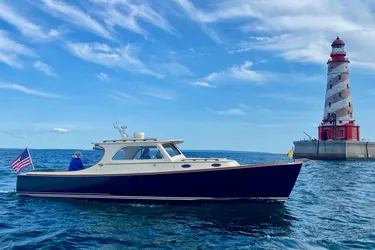

When a Picnic Boat passes by, there is always that moment when people stop and admire. Lady K is no exception, standing as one of the most elegant Hinckleys afloat. Having been exclusively enjoyed in fresh water, she has been spared the harsh effects of a salt water environment, which shows in her immaculate condition.

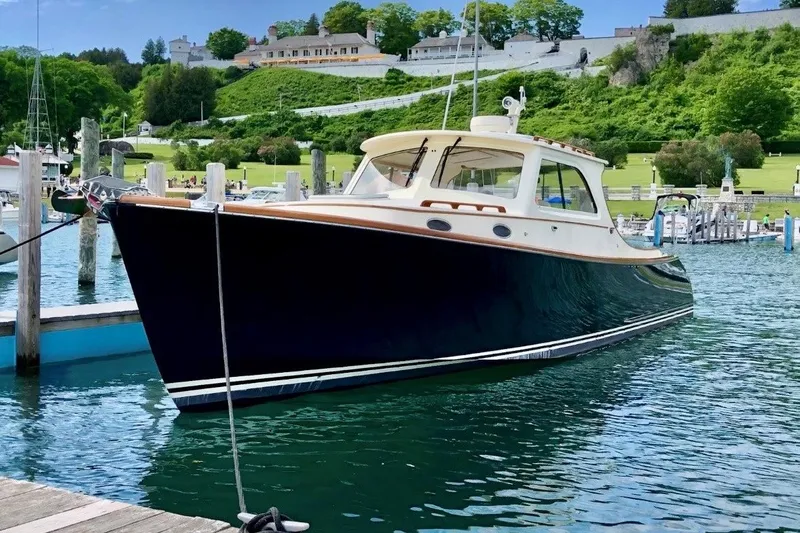

Her meticulous owners have spared no expense in her upkeep, ensuring her Dark Green Awlgrip, cream deck, and interior appointments remain in "show-room" quality. Recent upgrades include refinished bright work, new cushions and canvas. Beyond her beauty, the JetStick® and waterjet propulsion system offer unmatched maneuverability and the freedom to explore shallow waters. This is a rare opportunity to own a perfectly maintained, freshwater Picnic Boat EP.

HULL AND DECK:

• Dark Green Black Awlgrip Topsides
• Light Cream Gelcoat cabinhouse and deck
• Cream double bootstripe
• Black bottom
• Hinckley DualGuard™ Composite Construction Kevlar E-glass hybrid outer skin hull
• SCRIMP® laminated with vinylester resin
• Deck and cockpit are E-glass with balsa and closed-cell foam core, SCRIMP laminated with vinylester resin.
• Molded-in nonskid pattern
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half-round on fiberglass molded rub rail
• Heavy-duty fiberglass swim platform has teak insert treads, stainless steel bracket and half-round.
• Stainless steel telescoping 3-step folding swim ladder that stores under platform

Deck features:

• Flush foredeck anchor locker with hinged hatch
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top

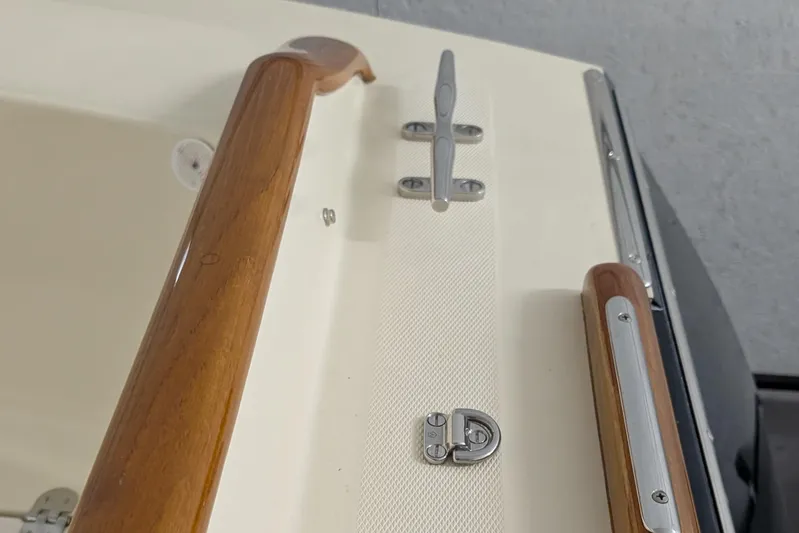

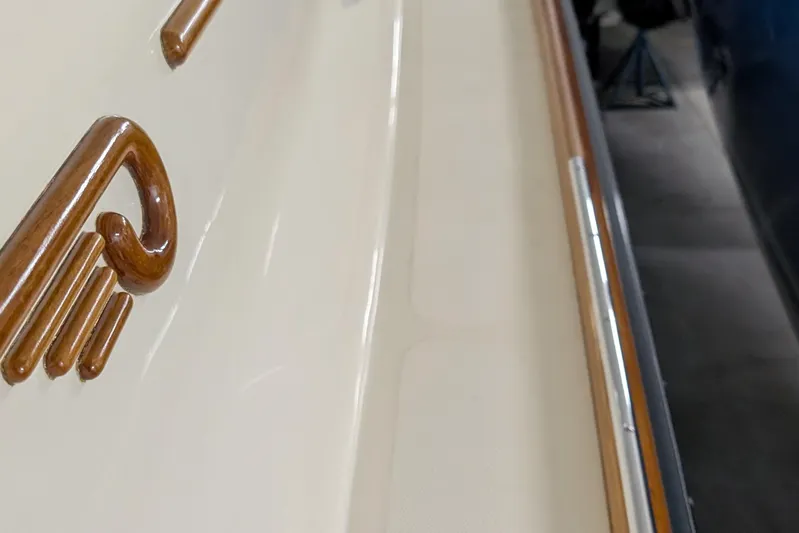

• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical ports on house sides (all opening with screens)
• Hinckley pilothouse mast with spotlight and radome painted to match deck
• (5) low profile opening aluminum hatches with OceanAir retracting screens and shades
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and springline 316L stainless steel mooring cleats
• Fender padeyes with toe rail chafe strips

COCKPIT:

• Teak cockpit coaming caps
• Cockpit sole has direct overboard drainage scuppers
• Courtesy lights under side decks port and starboard
• Cockpit lockers with varnished louvered teak doors
• Cockpit shower with mixing valve
• Raw water deck wash system with spigots in cockpit and forward anchor locker

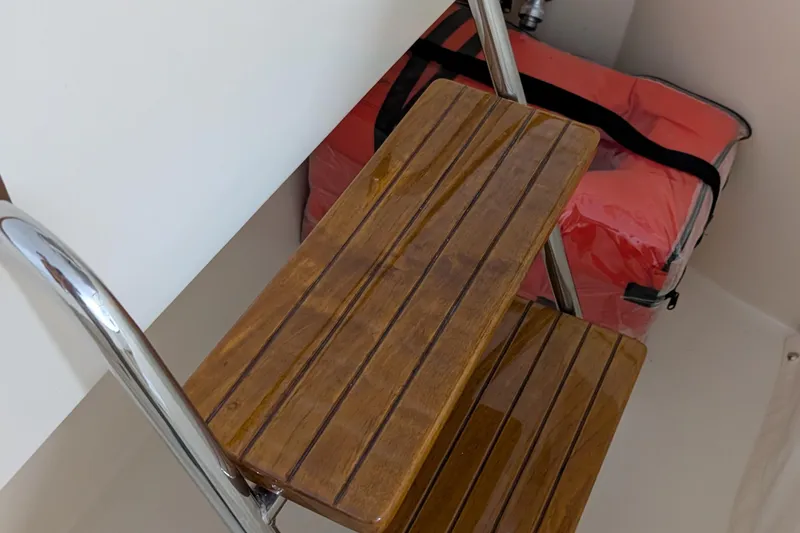

• A stainless-steel cockpit step with teak treads that mount port or starboard with stainless-steel brackets
• Teak boarding step for port or starboard side deck

Forward, the Picnic EP engine box has an integrated wet bar and stainless steel BBQ grill, The aft-facing cushioned seat finished in Perennials 100% solution dyed acrylic fabric for durability and UV protection.

• The wet bar at the aft end of the pilothouse includes a molded sink with foldaway faucet and hot and cold pressure water, Force 10 BBQ LP gas grill and a storage drawer.  The sink and BBQ grill have a varnished hinged teak covers.
• The entire engine box/wet bar and seat is hinged on the aft end and has electric lift for easy access to the engine.

Aft is a full-width settee with back and seat cushions finished in fabric that matches the forward seat. Aft settee includes two hinged lids under the cushions to allow access to removable storage tubs and to access bilge areas.  There are port and starboard cup holders just forward of cushions.

• Full Ivory Stamoid cockpit cover that attaches to pilothouse with snaps around cockpit coaming.
• Ivory Stamoid weather cover for engine box cushions.

PILOTHOUSE:

• Herreshoff style varnished teak window frames and trim.
• (4) Pilothouse windows are tinted and include:  (2) Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers.
• Insulated white overhead has four (4) acrylic opening hatches with Ocean Air Sky screen/shades.
• Additional illumination is by four (4) overhead low-voltage halogen lights.
• Storage locker under pilothouse settee.
• Varnished teak locking louvered companionway door with hatch.
• (2) Varnished teak handrails are under the aft outboard ends of the pilothouse cabin top.
• Ivory-colored interior window sun covers for all four pilothouse windows.

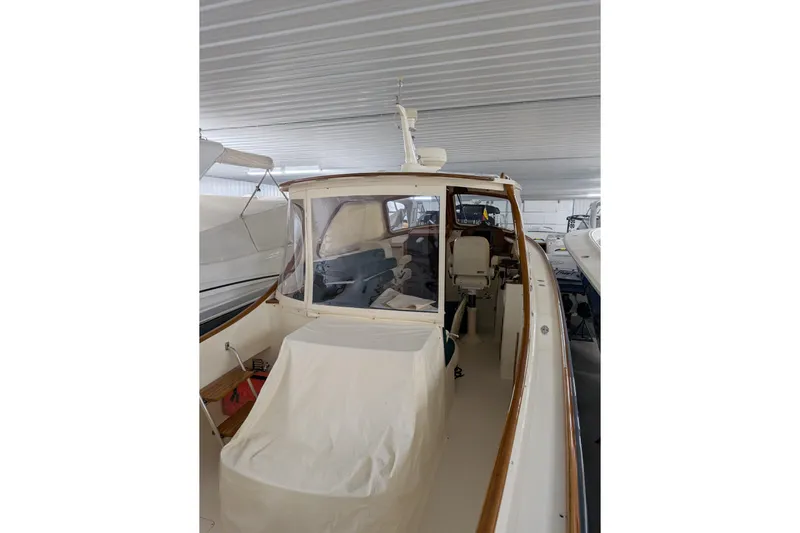

• Ivory-Stamoid drop curtains with windows provide a fully enclosed Pilothouse.
• Additional No-See-Um drop curtains
• Stidd 500N Admiral Slimline helm and companion seats are on powder-coated pedestals with adjustable seat height and fore and aft positing. Both seat can swivel to face aft. Stainless steel footrest is mounted on helm bulkhead.
• Seats are finished in Ivory Ultra-Leather.

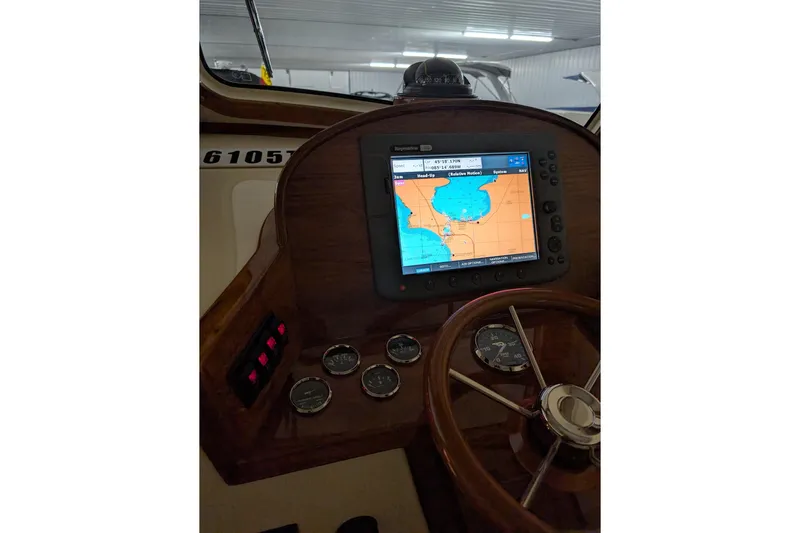

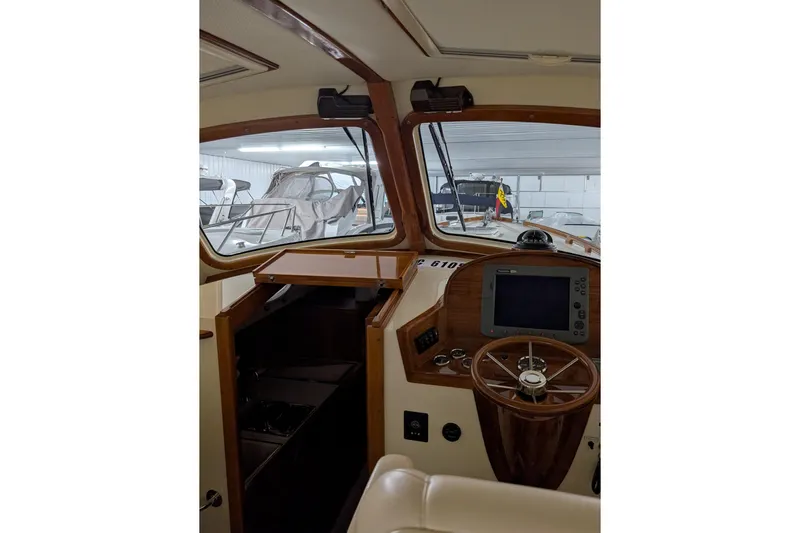

Helm Station:

• Varnished teak custom instrument pod.
• Stainless steel 14” steering wheel with varnished wood rim.

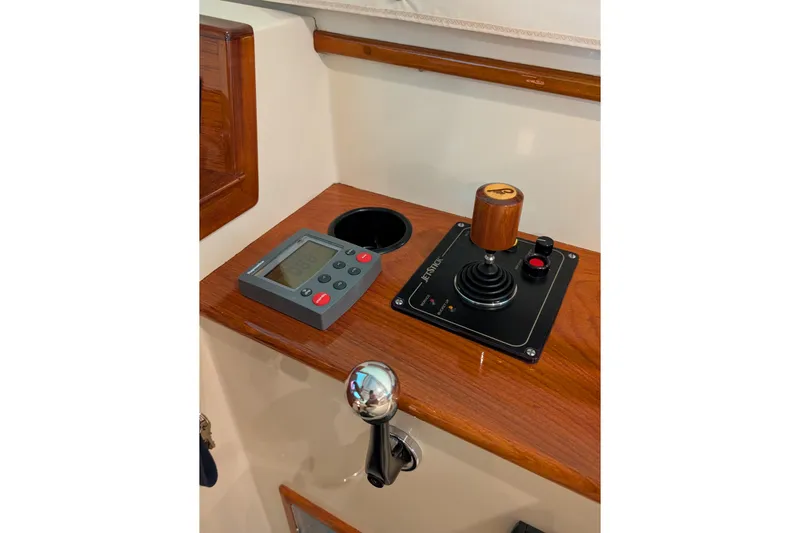

• Hinckley “Jet Stick”.
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator.
• Top-opening locker with chart storage.
• 12-volt “cigarette style” outlet in chart pocket.
• One single and one double cup holder

Helm Electronics and Navigation Equipment:

• Raytheon Raymarine ST-6001 Autopilot with GyroPlus2 sensor, interfaced to GPS
• Raytheon Raymarine C120 12" color radar/GPS chartplotter display with 2kw Radome painted to match pilothouse roof
• Raymarine Raystar 120 WAAS GPS antenna
• Icom M302 VHF radio with DSC
• Raytheon St-60 multifunction display with speed, depth and water temperature
• Ritchie compass

INTERIOR BELOW:

The interior is finished in satin-varnished cherry, including sheathing. The cabin sole is varnished teak and tulipwood and has a custom cabin sole cover.

• There is an opening overhead hatch and there are four opening ports below.
• All opening ports have removable screens.
• The overhead hatch has an Oceanair Sky Screen/Shade

GALLEY:

• Antique White Corian countertop
• Stainless steel sink with Grohe fixtures and spray nozzle.
• Hot and cold pressure water.
• Adler Barbour refrigeration – 12-volt cold plate refrigerator in a self-draining ice box.
• Force 10 two-burner stainless steel stove with remote propane shut-off and wood cover/cutting board.
• Delonghi Convection toaster oven
• 110-volt outlet
• Under counter pull-out garbage receptacle.
• (3) Cherry pullout drawers
• Red step-light in galley

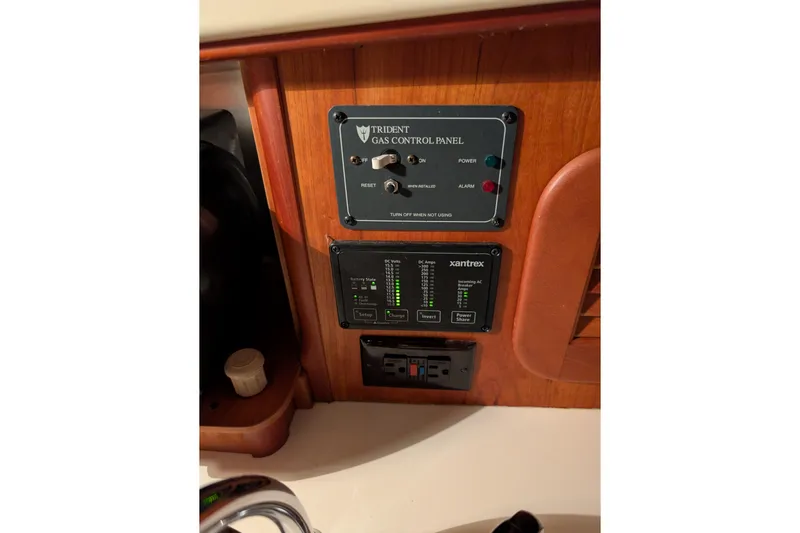

• LP gas sniffer and control panel.
• Propane shut-off valve
• Opening port with screen
• Additional storage is provided outboard and under the galley sink.
• "Pantry" locker with louvered door and several shelves separates the galley from the forward V-berth area

HEAD:

• Solid cherry paneled door.
• Molded fiberglass sole for easy cleaning.
• Varnished cherry countertop with an undermounted porcelain sink.
• Grohe faucet/hand held shower provides hot & cold pressure water – bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric 12-volt marine head - plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity.
• 110-volt outlet
• Hella fan
• Opening port with screen, as well as forced ventilation.

V-BERTH:

• A double berth is formed with a stowable insert and matching cushion.
• Cushions are upholstered in Perennials Sail Cloth Navy.
• Storage locker under a V-berth has a shelf and easy-access cherry drop-front doors.
• Hanging locker is just aft of the V-berths to starboard.
• (2) Stereo speakers are mounted port and starboard on the forward bulkhead.
• (2) Hella fans – port and starboard bulkhead facing aft
• Overhead opening hatch with Ocean Air Skyscreen/shade

ELECTRICAL SYSTEM:

• Low resistance, copper wire and sacrificial zinc anode electrical bonding system with zinc saver

12-Volt DC System:

• (3) 12-volt batteries, start and house, 420 amps
• 80-amp battery alternator on engine
• Heavy-duty battery parallel switch - allows emergency starting
• Electrical 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter

110-Volt 30-amp AC System:

• 110-volt shore power inlet, relay and a shore power cord with power indicator light
• Inverter/Battery charger with remote monitor panel

MECHANICAL EQUIPMENT:

• Yanmar 6LY2A-STP 6 cylinder 440-hp diesel engine
• Hamilton 292 Jet Drive
• ZF IRM220PL reduction transmission
• Vetus 7" 12-volt reversible bow thruster
• Hinckley custom "Jet Stick" control system is integrated with the bow thruster
• Lenco trim tabs
• Yanmar fuel filter/water separator
• Tachometer - with engine hours gauge
• Fuel, oil pressure, and water temperature gauges
• Alarms for high-low oil pressure, and high-water temperature
• Waterjet nozzle direction indicator
• Custom wet-exhaust muffler system
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• (2) electric 1500-GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump
• In-line 12-volt automatic shower sump pump
• (2) 80-gallon heavy-gauge aluminum fuel tanks, 160 gallons total
• 35-gallon stainless steel water tank
• 27-gallon aluminum holding tank with overboard discharge
• 6-gallon stainless steel hot water heater - shore power and engine heated
• Raw water wash-down pump with spigots in cockpit and anchor locker
• Mylar faced acoustical foam lined engine box insulation
• Engine box cover has double gaskets and an electric riser
• Engine box forced air exhaust fan
• Automatic engine compartment fire suppression system, with automatic engine shut-down

EQUIPMENT:

• Bow varnished burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole and flush socket
• Boat hook - mounted under side deck
• Brass 6" bell
• Dock lines
• Fenders with cover - and wichard snap hooks for each fender line
• Life jackets
• Hand-held flare kit
• (3) 2.5# Dry chemical fire extinguishers
• 12-volt trumpet air horn with switch on dash
• Masthead and running lights
• ACR spotlight - Masthead mounted with helm mounted electric remote control

Ground Tackle:

• Muir electric windlass package: flush foredeck anchor locker houses a Muir electric windlass with polished stainless steel Delta 22# anchor + 15" stainless steel chain and 150' anchor rode and polished stainless steel steel folding bow roller. The windlass can be operated from the helm station or handheld wired remote at anchor locker.
