40 Hinckley 2003 Boat for Sale

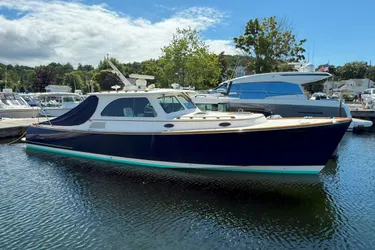

Madeline Kathleen Boat | 40' Hinckley 2003

DO NOT MISS THIS OPPORTUNITY: MADELINE KATHLEEN, arguably one of the most beautiful Hinckley models, the Talaria 40, now available from the one ORIGINAL OWNER! She has been in FRESHWATER since new, inside heated storage in winter, and has Twin Yanmar 440 HP main engines, 12 kw Panda Generator with sound shield and a 28,000 BTU air conditioner makes for a spectacular and comfortable cruising yacht wherever your travels take you.

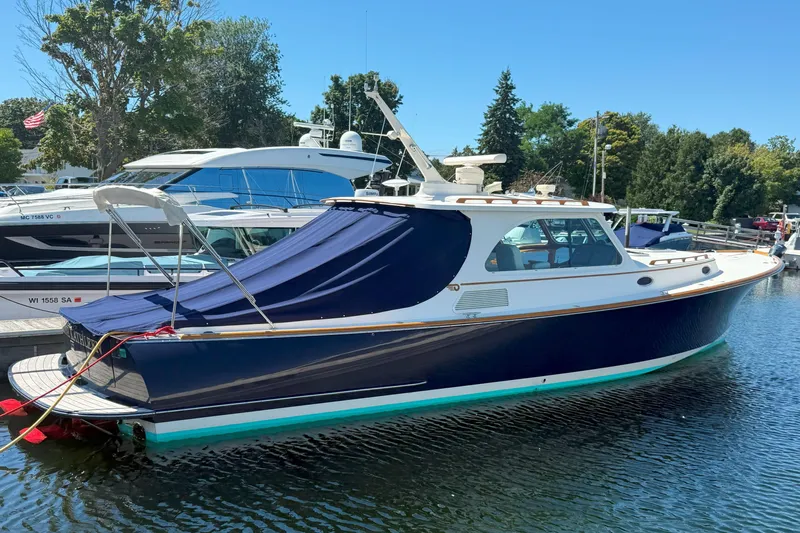

HULL AND DECK:

• Flag Blue Awlgrip Topsides
• Light Cream gelcoat for decks
• Single Cream boot stripe
• Green Bottom Paint

Construction:

Hinckley DualGuard composite construction of the hull is Kevlar E-glass hybrid and balsa core, SCRIMP® process of vacuum vinyl-ester resin infusion.  Deck and cockpit is E-glass and balsa core, molded with polyester resin.  The deck has a molded-in nonskid pattern and the pilothouse/cockpit sole is teak.

• Molded-in nonskid on deck
• Stainless-steel half-round on fiberglass molded rub rail

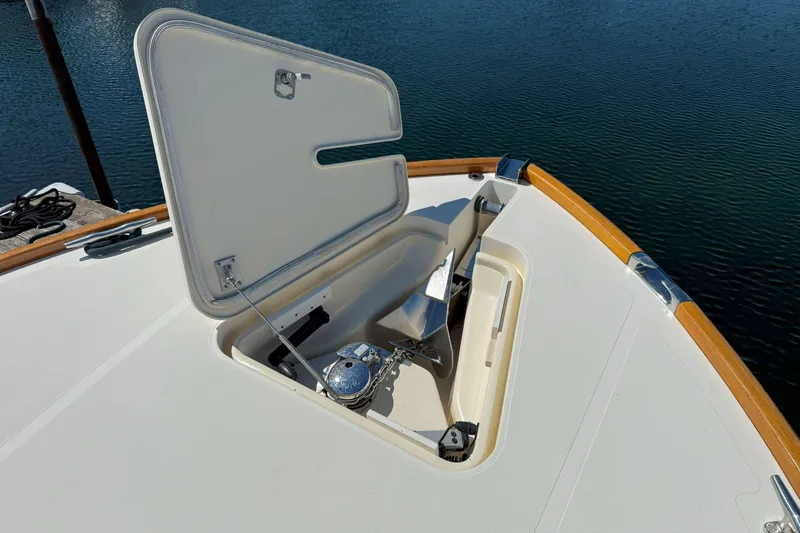

• Foredeck Anchor Locker - flush anchor locker has a pneumatic strut that holds open the anchor locker and a Hinckley-designed stowaway stainless steel anchor roller
• Mid-deck molded-in locker to STBD for additional storage
• Insulated and drained cooler/fish box in transom
• Opening transom door with heavy duty securing latch
• Swim Platform - heavy duty fiberglass swim platform has teak insert treads, stainless-steel bracket and half-round, and a stainless-steel telescoping 3-step folding swim ladder

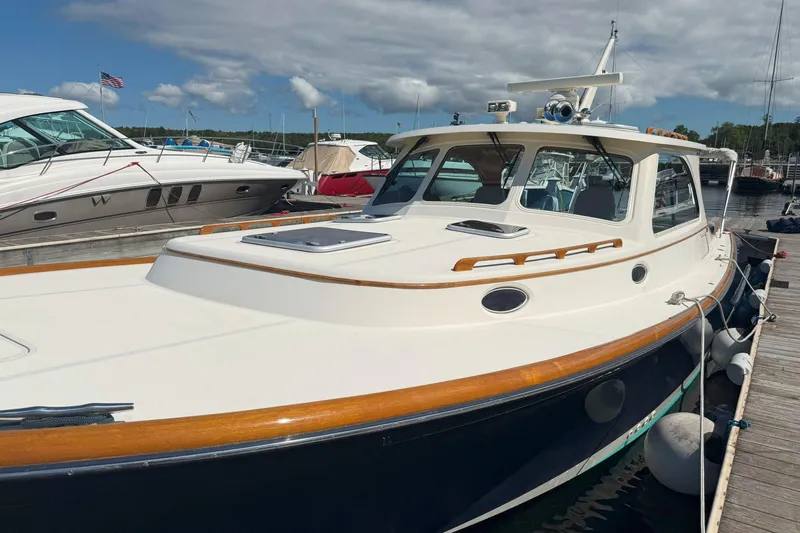

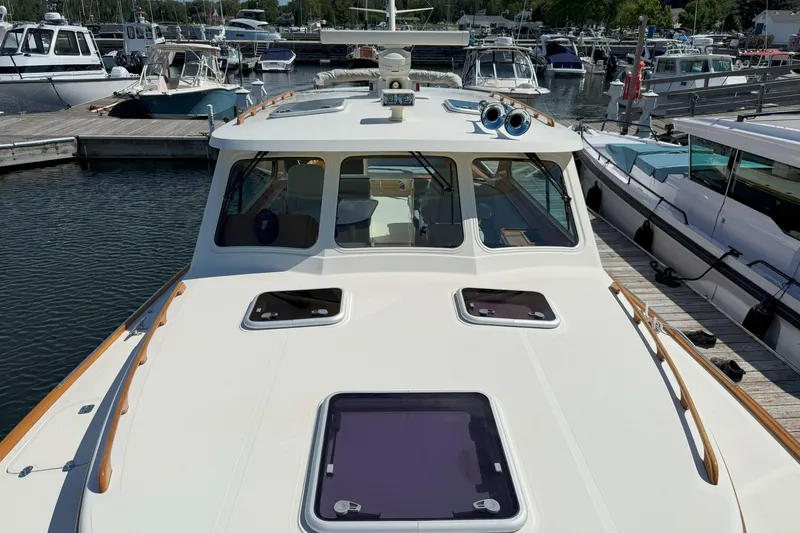

Deck Features:

• Rounded, tapered, varnished teak toe rail with Hinckley profile.
• Varnished teak eyebrow molding around cabin top.
• Stainless steel handrails on cabin house, pilothouse top, and across aft end of pilothouse for reduced maintenance.
• Hinckley-styled mast on pilothouse top-painted to match deck.
• Cockpit floodlight is mounted on the pilothouse top mast- painted to match deck.
• (5) Low profile Lewmar opening aluminum hatches.
• All Lewmar opening hatches have Ocean Air Skyscreen screen/blind systems
• Four (4) opening elliptical ports with screens.
• Stainless steel bow rail with integral burgee socket
• Custom Hinckley 316L stainless steel bow chocks.
• Bow and stern 316L stainless steel mooring cleats.
• Two spring-line cleats on port and two on stb side
• Wichard padeyes with chafe strips to hang fenders and fender lines have Wichard clips.
• St. Croix Davit system (removable davit arms with permanent brackets on aft deck
• Hinckley designed 3-bow Bimini in Diklon Natural. Bug screen side and aft panels.

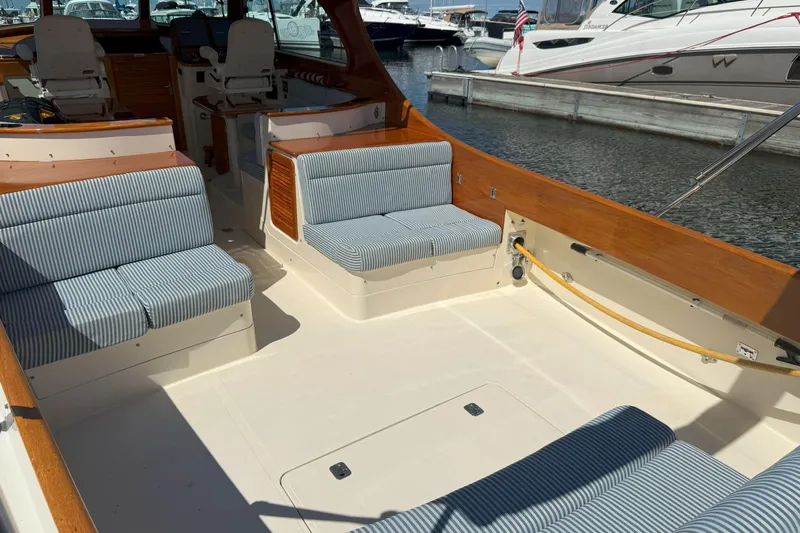

COCKPIT:

• Varnished Teak cockpit coaming cap with Gelcoat - finished vertical surface to reduce maintenance
• Deck shower with hot and cold mixing valve inside transom door
• Center deck hatch with two line racks (forward and aft)- provide storage space and access to service mechanical.
• Rod holders - installed port and starboard on side decks. – can serve several functions as shore power cord holder, grill holder and rod holders.

Ample seating in cockpit consists of:

• Aft-facing seating is built into the port and starboard engine boxes
• Forward facing seating is provided at the aft end of the cockpit. All exterior cushions (cockpit and pilothouse) are covered in Fisher Denim.

Items under the side decks:

• Dimmable lighting
• Boat hook
• Glendinning 50-amp shore cord outlet with switch
• ACR 406 Cat 1 RapidFix EPIRB

Covers:

• Ivory Stamoid cockpit cover attached to aft end of pilothouse and covers to transom

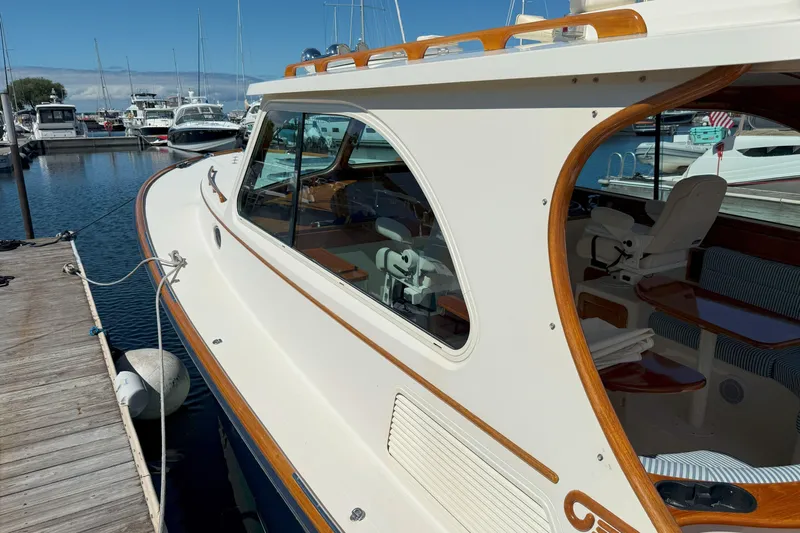

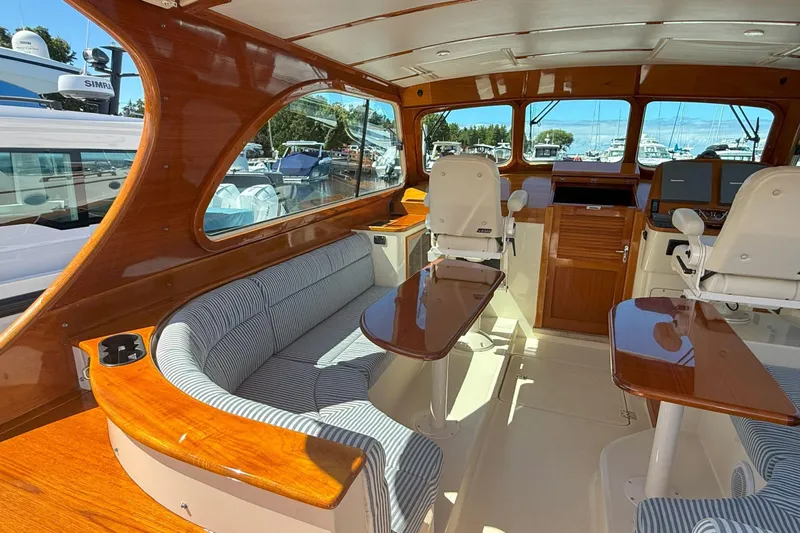

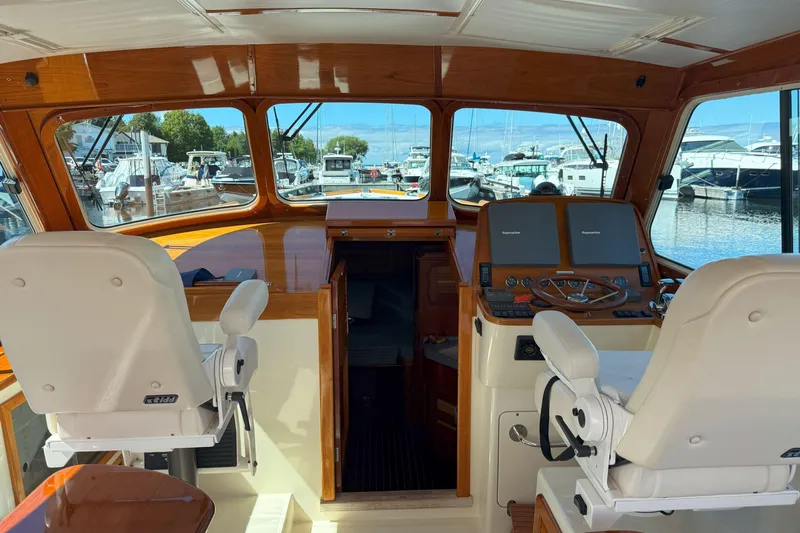

PILOTHOUSE:

Hinckley “wood package” consisting of varnished teak pilothouse liner, instrument pods and dash.

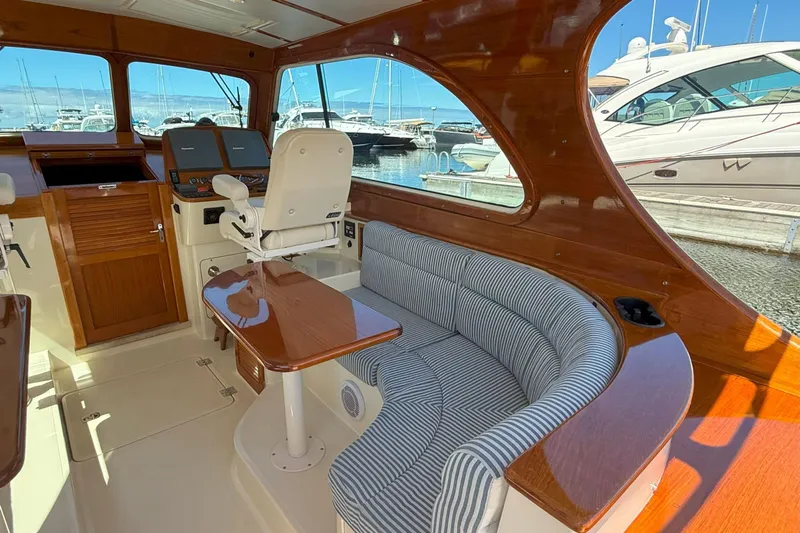

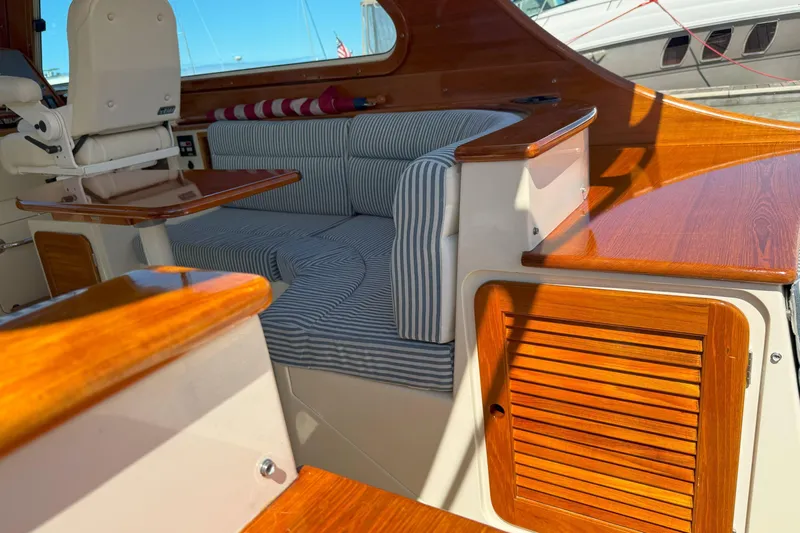

Settees port and starboard for seating:

• Cushions are covered in Fisher Denim
• Ivory Stamoid Weather covers for exterior cushions
• Storage is provided in bases of settees

Windows:

• (5) Five pilothouse windows have light green tint
• Three fixed front windows
• Two side windows slide open for improved ventilation
• Forward pilothouse windows have heavy-duty, self-parking, intermittent windshield wipers with fresh water washers.
• Ivory Stamoid Interior window sun covers – snap to window frames.

Overhead in pilothouse:

• Two (2) overhead opening hatches with Ocean Air Skyscreens blinds/bug screens
• Insulated white overhead for sound attenuation with varnished teak battens for appearance
• (2) Varnish teak handrails in pilothouse overhead
• Overhead illumination is low-voltage halogen lights with a dimmer switch
• Separate circuit is provided with dimmer switch for the light over helm

More:

• Two (2) stereo speakers in pilothouse. .
• Two (2) Hella fans - mounted in pilothouse forward overhead outboard, port and starboard.
• Teak locking companionway door with tri-fold removable hatch
• Additional pilothouse stowage is accessed through the centerline hatch.
• Ivory Stamoid drop curtains with eisenglass windows provide a fully enclosed pilothouse.
• Inboard-facing teak louvered doors provide access to storage
• The engine boxes are hinged and have electric lifts to provide easy access to the engine room.
• Teak pilothouse table starboard side with removable powder coated pedestal. Filler cushion to convert to a berth with High Low removable pedestals and varnish teak filler. Padded cover for table.

Helm Seats:

• Stidd helm and passenger seats finished in Light Oyster Ultraleather. Powder-coated pedestal bases.
• Helm seat and passenger are electrically adjustable forward and aft. Power up and down on port seat
• U-Line icemaker mounted under helm seat

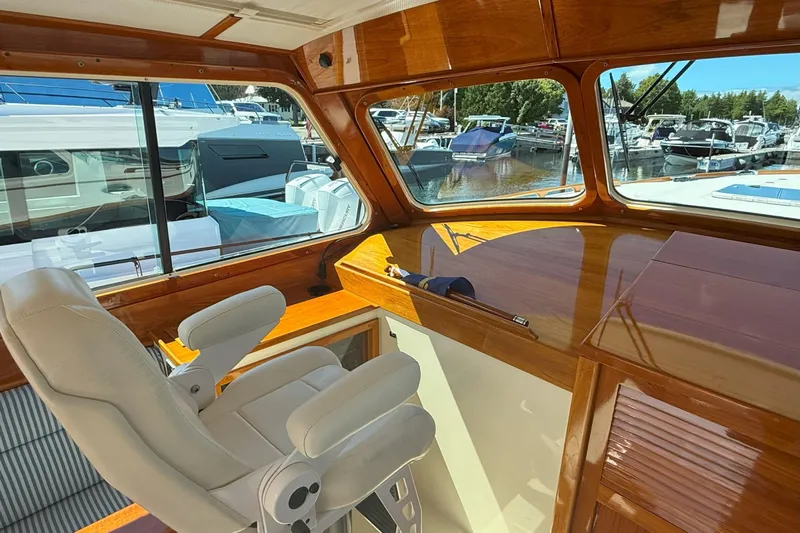

Forward-Companion side (port):

• Varnished teak shelf with fiddle rail outboard
• Varnished teak dash with fiddle forward
• AC/DC electrical panel is below
• Goose-neck chart light
• Air conditioning vent
• (2) cup-holders

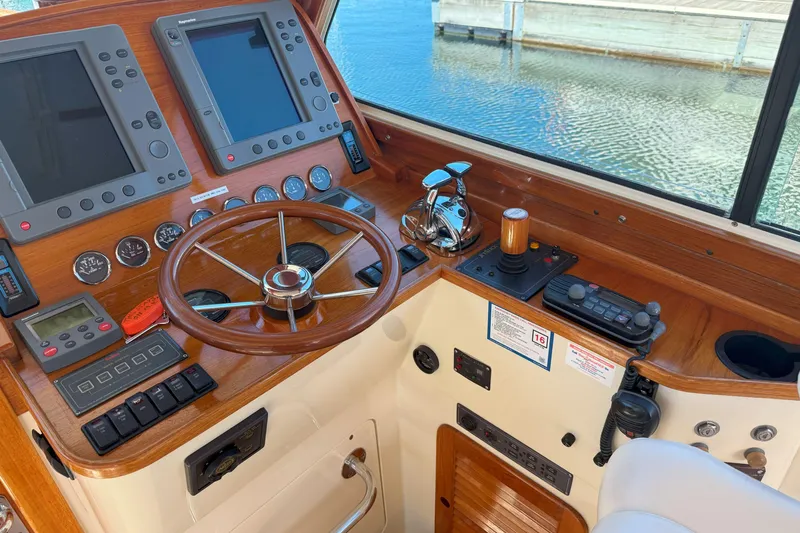

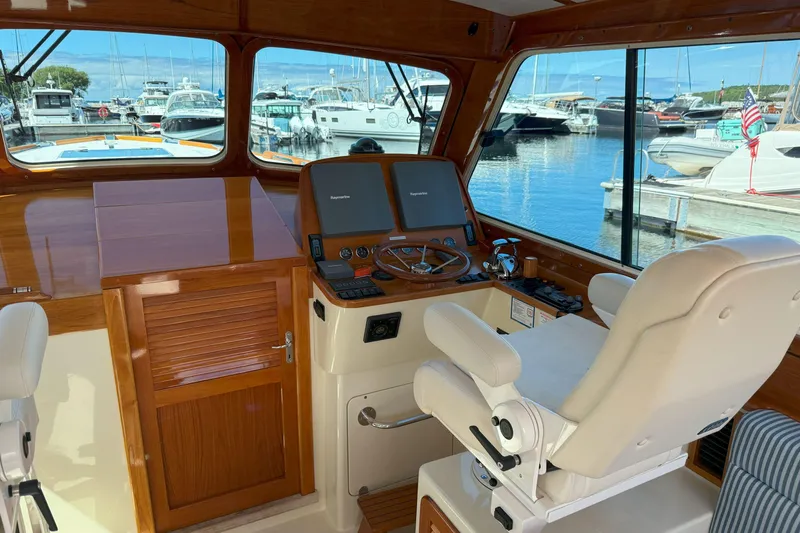

Helm Station (Starboard):

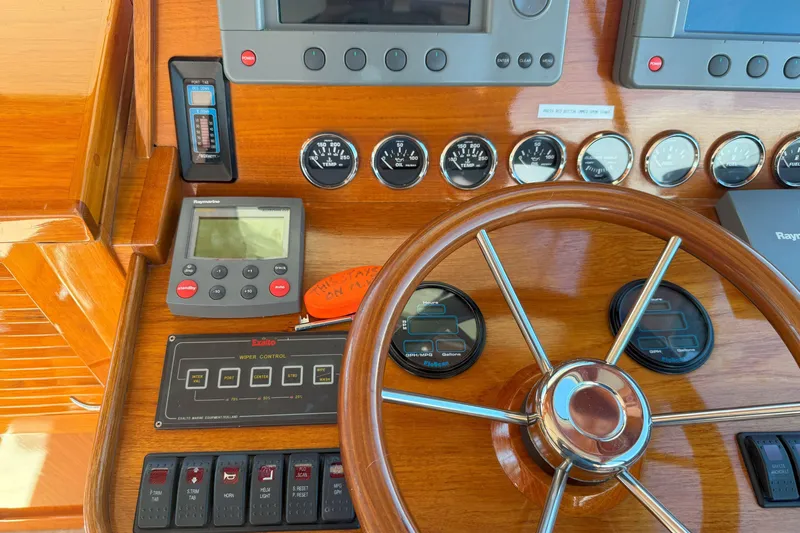

• The Helm Station has a varnished teak instrument pod with continuing shelf outboard and aft
• Stainless steel 14” steering wheel with varnished wood rim,
• Hinckley “Jet Stick®” which integrates forward and aft control, steering, and bow thruster into single joystick.
• Engine displays RPM, Oil, Temp, Fuel level
• ACR Spotlight control remote pad.
• Exalto windshield wiper control pad on dash.
• Trim tab position indicators.
• Raymarine St 6001 Autopilot control unit.
• Separate fuel gauges for each fuel tank.
• Ignition key switches and stop switches to starboard of helm seat.
• CO detector

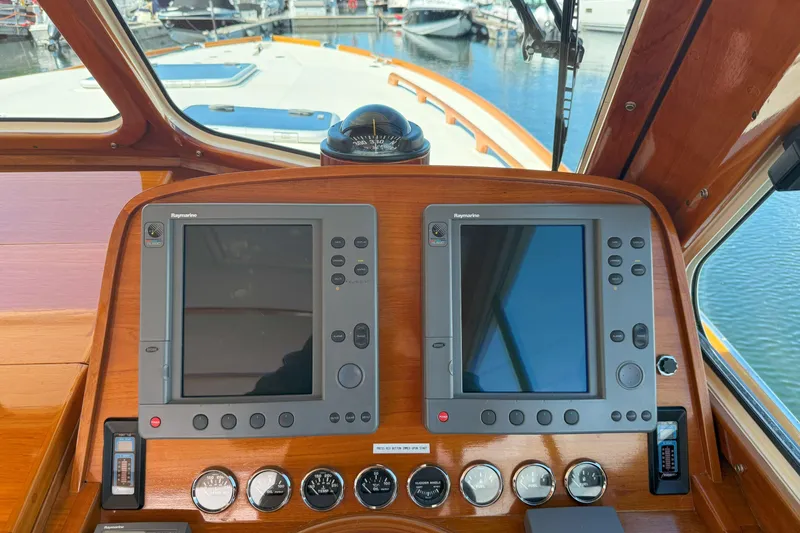

Helm Electronics and Navigation Equipment:

• Raytheon ST-60 Tridata display with transducer; depth/speed combo
• Two (2) Raymarine Radar/Chartplotters RL80CRC plus 10" color LCD Radar and Chartplotter interfaced with GPS
• 4-kw open array radar is painted to match deck color
• Standard Horizon Spectrum VHF radio GX2350 with loud hailer
• High-speed Compass in laminated teak binnacle

ACCOMMODATIONS & LAYOUT:

Companion Entry:

From the pilothouse, on center are the teak companionway steps to the accomodations below.

• The top-opening step houses the master disconnect switches for batteries
• The lower step is top-opening for stowage
• The varnished teak companionway door has a louvered upper-half

INTERIOR (BELOW):

• The Interior is finished in a satin-varnished cherry wood
• All cabin locker doors are louvered with radius corners on the frames.
• Insulated white overhead with cherry battens.
• The cabin sole is varnished teak and tulipwood

Amenities include:

• (3) Opening overhead hatches with Ocean Air Skyscreen-blinds/bug screens.
• (4) Opening ports below (including head and galley) with removable screens.
• Interior overhead lights and step lights.
• Marine Air reverse-cycle heat/air conditioning.

Entertainment system includes:

• Alpine DVA-7996 DVD/CD/MP3 tuner
• Two Alpine Amplifiers
• Three (3) pairs of Alpine speakers – 1 pair in V-berth, 2 pairs for cockpit and pilothouse
• One (1) Samsung 171MP 17” LCD monitor with TV tuner, forward bulkhead
• Shore TV and phone hookup

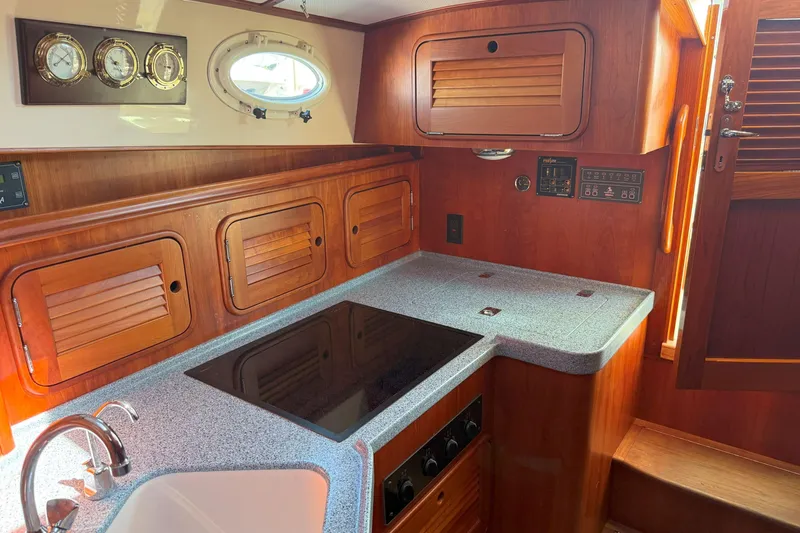

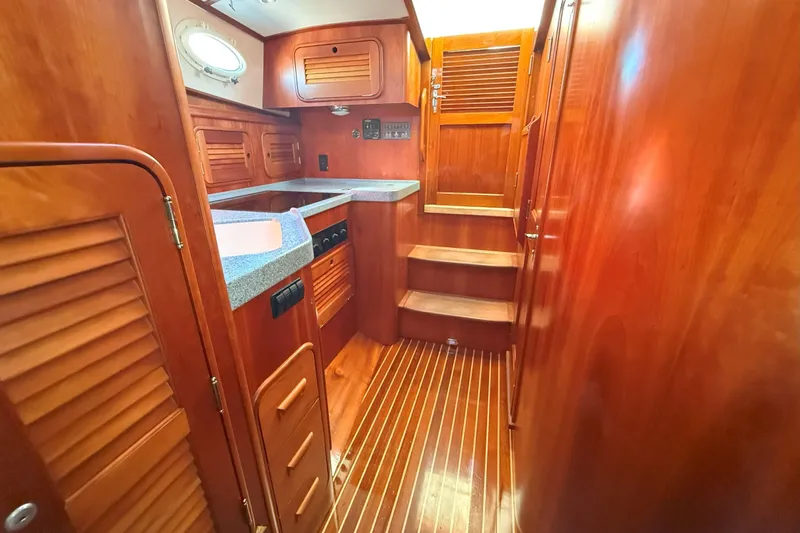

GALLEY:

The Galley is immediately starboard, with satin-varnished stained cherry woodwork and Blue Ridge Corian countertop.

• Bisque Corian sink with single lever faucet with hot and cold pressure water
• Seaward electric four (4) burner cooktop with microwave/convection over under countertop
• 12-volt DC refrigeration/freezer with a shelf is top-accessed through the countertop.
• Countertop accessed waste bin
• Large trash can on backside of lower galley door under sink
• Storage outboard and above the galley countertop.
• Three drawers forward of the sink as well as a cherry-faced locker below sink provide additional storage.

More Galley features:

• Generator control panel
• Inverter control panel
• Fresh water tank gauge
• 110-volt GFI dual outlet, mounted on aft bulkhead
• 12-volt light is mounted under the locker over the refrigeration
• Two halogen lights in overhead above galley on dimming switch
• Step light in galley
• Opening port with screen
• Opening overhead hatch screen with SkyScreen-blind/bug screen
• Hella fan

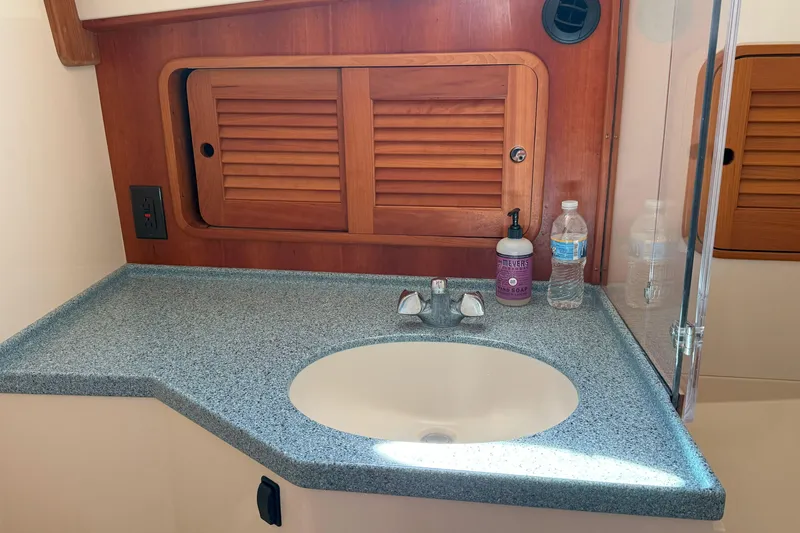

HEAD (Port):

To port is a private Head with a solid cherry door. The head is finished in molded white gelcoat with varnished cherry vertical louvered lockers and doors. The molded head sole has molded-in non-skid with drain.

Features include:

• Blue Ridge Corian countertop has a Bisque Corian sink with single-lever faucet
• Hot and cold pressure water
• Shower area with has a showerhead.  There is a teak seat and a storage locker outboard in the shower area with a varnished teak louvered door.  There is a separate switched light in this area
• Full length mirror on back of head door, laminated frame.
• (2) Recessed 12-volt halogen lights.
• Opening port with screen.
• Opening hatch overhead in shower with OceanAir Skyscreen blind/bug screen system.
• Sealand Vacu-flush marine head is plumbed to the holding tank.
• Stainless steel towel bar and robe hooks.
• 110-volt GFI dual outlet.
• Reverse-cycle AC/heat vent.
• Toilet paper holder is mounted inside the vanity louvered door.
• Storage is provided in a lined-locker above and outboard the countertop with sliding, louvered cherry doors.
• Louvered varnished cherry door locker under the vanity.
• Countertop trash receptacle with cover in the aft end of the vanity.
• Tankwatch holding tank monitor panel

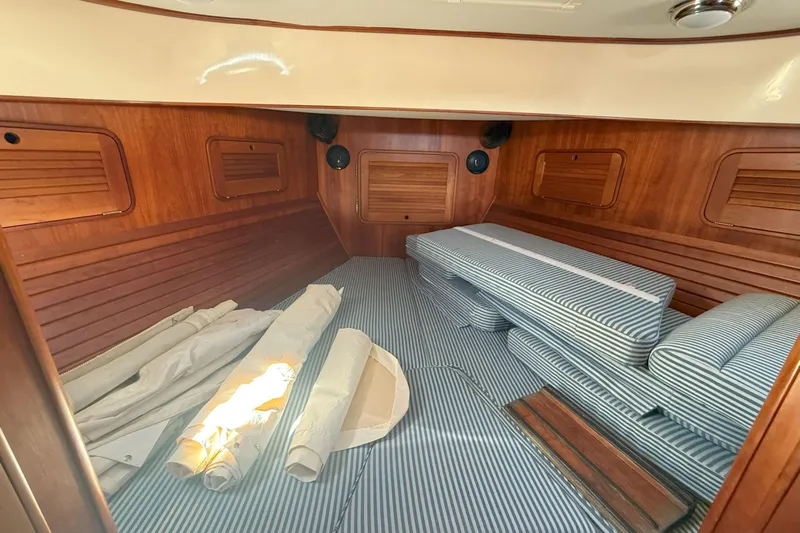

SLEEPING ACCOMMODATIONS:

Sleeps two forward in V-Berth area:

• Double berth is formed with the V-berth insert with cushion.

Sleeps two on converted portside settee area.

Features:

• Two Hella fans mounted on forward bulkhead.
• Two stereo speakers – flush mounted port and starboard on forward bulkhead.
• Two recessed halogen lights in overhead on dimmer control.
• Flush lockers outboard and above V-berth
• Bookshelf on top of forward cabin hanging locker, port side only
• CO detector

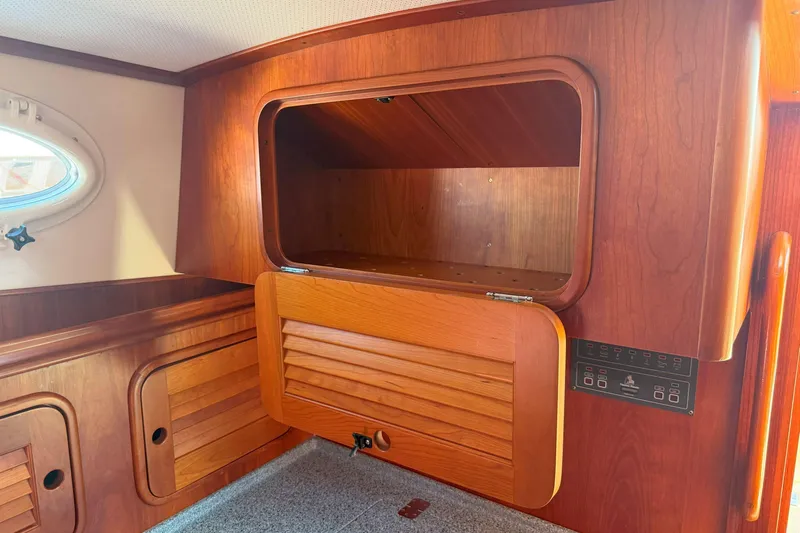

Aft of the V-berth to port is a large cedar-lined hanging locker with fiddled shelf storage over.   There is a small cushioned seat in front of the hanging locker.

To starboard and aft of the V-berth is another locker/pantry with a fiddled top with two storage shelves and a light.  This locker separates the forward sleeping area from the galley. There is a cabin MarineAir heat/AC control on forward side of locker.

ELECTRICAL SYSTEM:

12/24-volt DC electrical system:

• Ship's service batteries: two Lifeline GPL-4D 12-volt DC batteries rated at 210 amp hours at the 20‑hour rate.  Total capacity for 12-volt DC is approximately 420 amp hours at the 20-hour rate.
• Two Lifeline GPL-31 12-volt DC batteries with approximately 600 CCA at 0° F.  For starting the propulsion engines and the optional generator engine.
• Battery equalizer- to supply both 12-VDC and 24-VDC house loads.
• 80-amp alternators on engines charge the start and house batteries.
• Heavy-duty battery parallel switches allow emergency starting.

110/240-volt 50-amp AC electrical system:

• 50-A 125/250-volt AC shore power inlet, relay and 50-amp shore power cord
• Glendenning shore cord reel system.
• 50-amp 24-volt power 2.5 inverter/battery charger for house batteries
• 30-amp charger for start batteries.
• 110-volt outlets in engine room, galley and head

Panda 12-Kw generator with sound shield.

•  35-amp alternator on generator.
• Generator control panel in galley includes:  Start/stop controls, pre-heat switch, and lighted warning panel.

Low-resistance, heavy copper and sacrificial zinc anode electrical bonding system throughout boat.

MECHANICAL EQUIPMENT & ENGINE DETAILS:

• Twin (2) Yanmar 6LY2-STP six-cylinder 440-hp diesel engines
• Aquadrive drive shafts connect engines to water jets
• Hamilton 322 Jet Drives
• ZF transmission.
• Side Power 24-volt 7” reversible bow thruster.
• Yanmar electronic throttle/transmission control with synchronizer.
• Hinckley “Jet Stick®” control system is integrated with the bow thruster.
• Dual cylinder trim tab is below each jet with controls and displays at helm.
• Racor fuel/water filters with water sensor and drain petcocks.
• Custom wet exhaust muffler system.
• Oil transfer pump for engines, generator, and transmissions.
• Manual hydraulic steering pump.
• (3) Electric 3700-gph 12-volt bilge pumps with float switches.
• Whale emergency bilge pump mounted below cabin sole.
• Freshwater deckwash with spigot in anchor locker.
• In-line 12-volt automatic shower sump pump.
• Fireboy - Xintex automatic fire system for engines and generator with automatic engine shutdown.
•  (3) Aluminum fuel tanks with transfer pump – (1) 190-gallons and (2) 80-gallons saddle tanks.
• Stainless steel 10-gallon hot water heater – engine or electrically heated.
• Aluminum 38-gallon holding tank with Y-valve and macerator pump to overboard discharge.
• Marine Air 28,000 BTU reverse-cycle marine air conditioners with outlets in main cabin, head and pilothouse.
• Spectra model Newport 400 water maker with UV sterilizer

ADDITIONAL EQUIPMENT:

• Stern mounted 4 ft. varnished teak ensign pole & socket.
• Boat hook mounted under side deck.
• Bell
• Dock lines
• Fenders
• Life jackets
• Handheld flare kit.
• ACR remote spotlight mounted on pilothouse top -painted to match deck.
• Air horn on pilothouse top with switch on dash.
• Masthead and running lights.
• Electric Windlass pkg:  Flush foredeck anchor locker houses a Muir VR1250 24-volt DC electric windlass with polished stainless steel 22# anchor + custom amount of 125’ stainless steel chain + 200’ x 5/8” anchor rode and stainless steel bow roller. The windlass can be operated from the helm station or a handheld remote at anchor locker.

Denison Yachting - San Francisco is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Hinckley Yacht Brokerage.

Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.
