42 Hinckley 1994 Boat for Sale

Statia Boat | 42' Hinckley 1994

STATIA is a late model Sou’wester 42 and has been well maintained and updated. A special offering, STATIA is set up for shorthanded performance sailing with a Hall carbon fibre rig, Leisurefurl boom and four power winches.

DECK AND HULL:

• Flag Blue Awlgrip - Topsides

• Off-White Oyster House and Deck with molded in Camel Brown gelcoat deck pattern

• White Red White - Boottop

• Gold Cove Stripe

• Red Bottom

Construction:

• Hull:  Hand laid laminate of blister resistant vinylester resin reinforced with a knit hybrid fabric of Kevlar/E-glass. A foam core is vacuum bagged into the laminate to provide the greatest degree of stiffness and thermal/acoustic insulation possible. This core is removed and additional layers of fiberglass are added in stress areas such as hull/deck connecting flange, centerline and keel, chainplates, rudder post, and all thru-hull fittings. A fiberglass hull stringer system is bonded to the hull and integrated with the mast step and engine mounts to form a single unit that is strong and light.

• Deck:  One piece fiberglass molding which incorporates a hybrid knit fabric of Kevlar/E-glass to reduce weight and a core of cross-linked close celled PVC foam. The core is deleted and replaced with solid layers of reinforcing fiberglass in the way of major penetrations and stress areas. The hull 5 1/2" deck flange is laid up to receive the deck and are bonded together to assure a strong, permanent, water tight hull/deck joint.

• Marelon ball-valve type seacocks are installed flush with hull.

• Molded external lead keel (provides protection in the event of grounding) is secured to the hull with 1" stainless steel bolts.

• Keel/centerboard underbody.

• Custom spade rudder.

Deck Features:

• Hinckley custom cast 316 stainless steel stem iron with forward integral chocks,

• Hinckley stainless steel  bow roller chock

• Hinckley stainless steel custom bow pulpit (2003) and stern pulpit & stanchions.

• (2017) NEW Double lifelines with port and starboard boarding gates

• Springline mooring cleats

• Stainless steel deck hand rails

• Custom storage of companionway boards on top of hatch

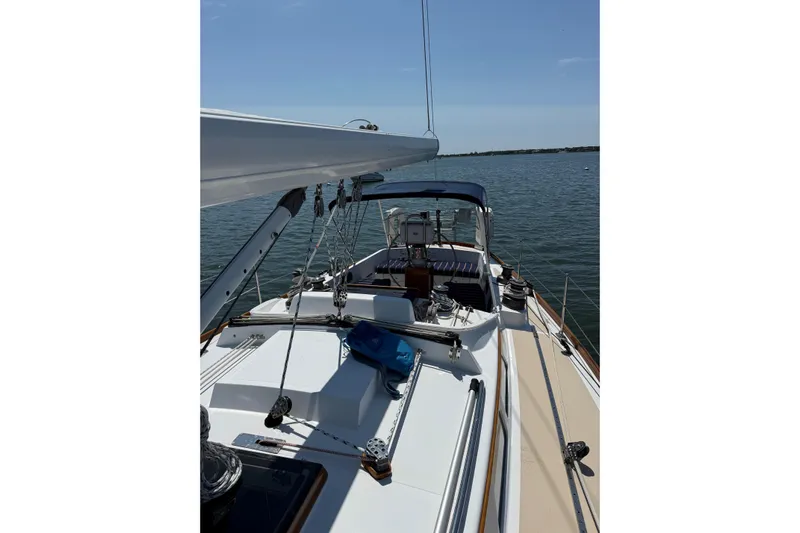

COCKPIT:

The Hinckley SW-42 has a large “T” shaped cockpit.

• Locking sail and equipment locker to port

• Two stainless steel trimmed winch handle pockets located in each coaming.

• There is a line rack in the sail locker.

• Lazarette hatch is flush.

• Complete range of engine instruments in the fiberglass instrument pod, handy to the helmsman.

Features include:

• Pedestal mounted "destroyer wheel" steering

• Elkhide covered 40" stainless steel "destroyer type" wheel.

• Hinckley folding helm step

• Bimini

• Cockpit cushions - Sunbrella covered and custom cushion seatbacks

• Cockpit table - Hinckley pedestal-mounted folding table

• Ritchie 6" compass - in stainless steel binnacle.

INTERIOR ACCOMMODATIONS:

STATIS features a Dinette Layout that sleeps seven and has a separate Nav Station.

• (2018) NEW cushions in Sunbrella for interior

• She is finished with a varnished cherry interior and a teak and holly cabin sole

• The overheads are built with a soft fabric and are easily removable.

• A custom lighting plan has been used throughout with halogen spots in the overhead and strip lighting running fore and aft outboard.

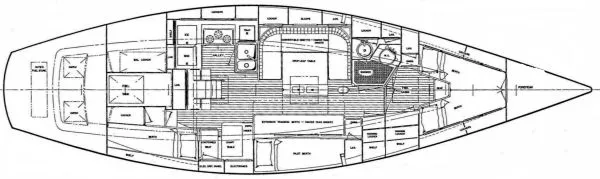

From the Cockpit companionway, the interior layout has:

• Galley – Aft to port

• Quarterberth – Aft Starboard

• Nav Station – Starboard

• Main Salon – Full width, Mid-forward

• Head – Forward port

• Owner Cabin – Forward

NAVIGATION STATION, Aft Starboard:
Immediately to starboard of the companionway is the Nav Station separated by a partial bulkhead from the salon next forward.

Features include:

• Nav desk - with storage for charts within

• Nav seat has large bin storage

• Three drawers are under the desk.

• Halogen fixture lights the nav desk.

• Soderberg chart light

• Nav instruments

• Master electrical panel

• 12-volt cigarette-type outlet.

Navigation Electronics:

• (2011) Raymarine Radar

• (2011) RaymarineE90w Chartplotter, Radar, GPS

• (2019) Raymarine VHF

• (2011) Raymarine smart autopilot

QUARTERBERTH AREA:

Starboard, aft of the Nav area, another partial bulkhead separates a walk-in quarterberth.

• Closed shelving above

• Hooks for foul weather gear.

GALLEY, Aft Port:

The U-shaped Galley is opposite the Nav Area to port:

Galley Features:

• Corian Cameo White countertop with back splash

• There are storage lockers aft, outboard and trap storage.

• Scandvik stainless steel sink with hot & cold pressure water

• Gimbaled Force 10 stainless steel 3-burner stove with oven & broiler and a safety bar.

• Grunert cold-box refrigeration

• Hinckley custom glass rack, paper towel rack

• Hinckley custom cutting board fits sink.

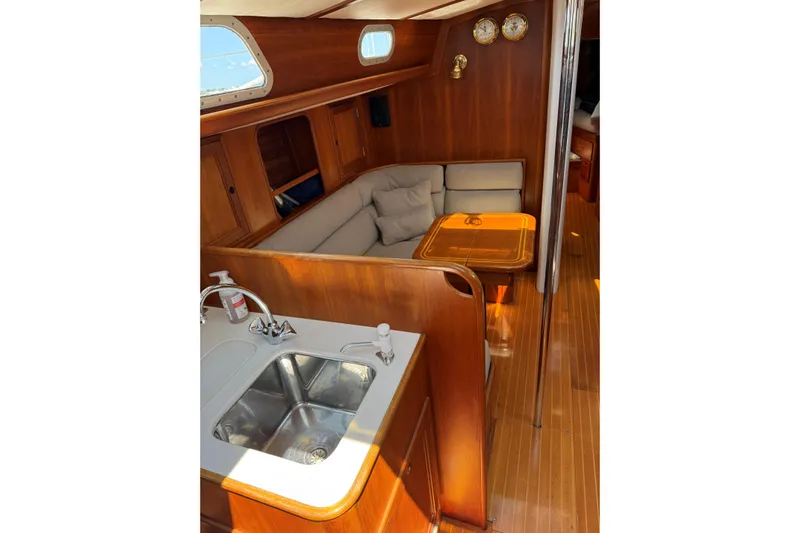

MAIN SALON, Amidship:

• Large double-opening hatch with smoked plexiglass and screen located over the center of the cabin

• Swivel halogen lights installed in soft overhead.

• Overhead hand rail

• Two teak handrails at the companionway port and starboard.

U-shaped Dinette arrangement is to port with comfortable seating for 6.

• Custom hi/lo cherry and holly dining table - can be used as a small coffee table or, with addition of a leaf, a full dining table.

• Dinette converts into a full double berth

• Dinette has storage areas in the dinette seats.

• Outboard are lockers and bookshelf.

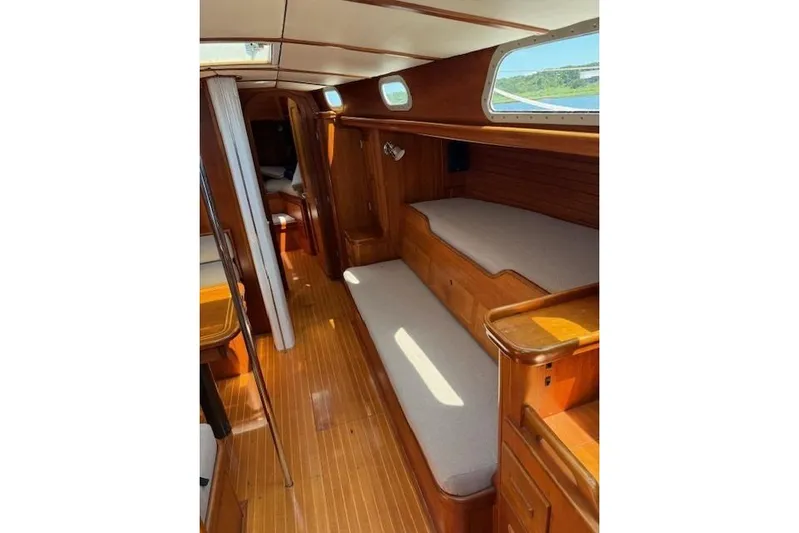

Starboard Salon:

• Transom and pilot berths

• Three drawer bureau just forward of the transom berth

• Additional storage below the pilot berth.

• TV/12-volt outlet

HEAD, Forward Port:

• Cherry counter top with White Triton-Belco sink.

• Mirror over the sink.

• Grohe faucet, hot and cold pressure water, and hand held shower.

• Vacuflush toilet

• Hinckley stainless steel hand rail/towel rack

• Outboard lockers with shelves built-in

• Opening portlight with screen.

OWNER STATEROOM, Forward:

• V-berth with seat between.

• V-berths have storage drawers below

• Full-length lockers above port and starboard.

• Starboard hanging locker - cedar-lined full-length hanging locker.

• To port is a 3-drawer bureau – includes a custom installed white Triton-Belco sink with chrome Scandvik faucet and flush cover provides extra privacy.

• Forepeak access.

• Large fore-aft opening smoked plexiglass hatch with screen

• Custom swivel overhead halogen lights

• Private access to the head.

ELECTRICAL SYSTEM:

• All circuits, major mechanical components and rigging are grounded with heavy copper strapping to the keel.

Heavy-duty, large capacity 12-Volt/110-Volt Electrical System:

• Gel cell Prevailer (450 amp hour equivalent) batteries provides lighting (225 amp hour) and (110 amp hour) starting power.

• Alternator - dual output 120-amp alternator on engine – includes provisions for emergency starting.

• Master control panel - circuit breakers, separate lighting and starting circuits, voltmeter and ammeter.

ENGINE ROOM/MECHANICAL EQUIPMENT:

Engine compartment is lead foam sound insulated and equipped with a blower.

Yanmar 4JH2E fresh water-cooled diesel engine

• 2:1 reduction gear.

• Aquamet stainless steel shaft

• 3 blade max propeller

• Raycor fuel filter

• Oil transfer pump

• Engine alarm for oil and overheat

• Engine instrument panel shows RPM tachometer

• Oil pressure, engine temperature and amp meter

• Electric sump pump.

• Wheel steering with emergency tiller steering system.

• Two 20# aluminum propane tanks - with manual and electric solenoid shut-offs.

• 12-gallon hot water tank – water is engine-heated.

• Espar D3L diesel heater.

SAILS & RIGGING:

• Hall carbon fiber spar

• (2010) Leisurefurl boom system with (2017) boom cover

• (2021) NEW Rod standing rigging

• (2022) NEW running rigging

• (2022) NEW headstay furler

• Hall quick vang

• Harken backstay adjuster

• International nav lights

• Foredeck light

• Locking winch handles.

• Whisker pole

WINCHES:

STATIS is easily sailed shorthanded with 4 power winches installed in 2011

• (2) Electric #58 CC ST Primary winches

• (2) Electric #44 CC ST halyard and main trim winches

• #44 CC ST Jib Halyard winch - Lewmar

• #30 CC ST Reefing winch - Lewmar

• #50 CC ST Secondary winches - Lewmar

• Spinnaker winch

SAILS:

• (2017) NEW 150%Genoa

• (2024) NEW Main sail

ADDITIONAL EQUIPMENT:

Ground Tackle Equipment:

• (2010) Electric windlass

• 45# Plow anchor in bow roller chock

• 25# Yachtsman anchor

Equipment:

• Mounted teak outboard motor bracket

Denison Yachting is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Hinckley Yacht Brokerage.

Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.
