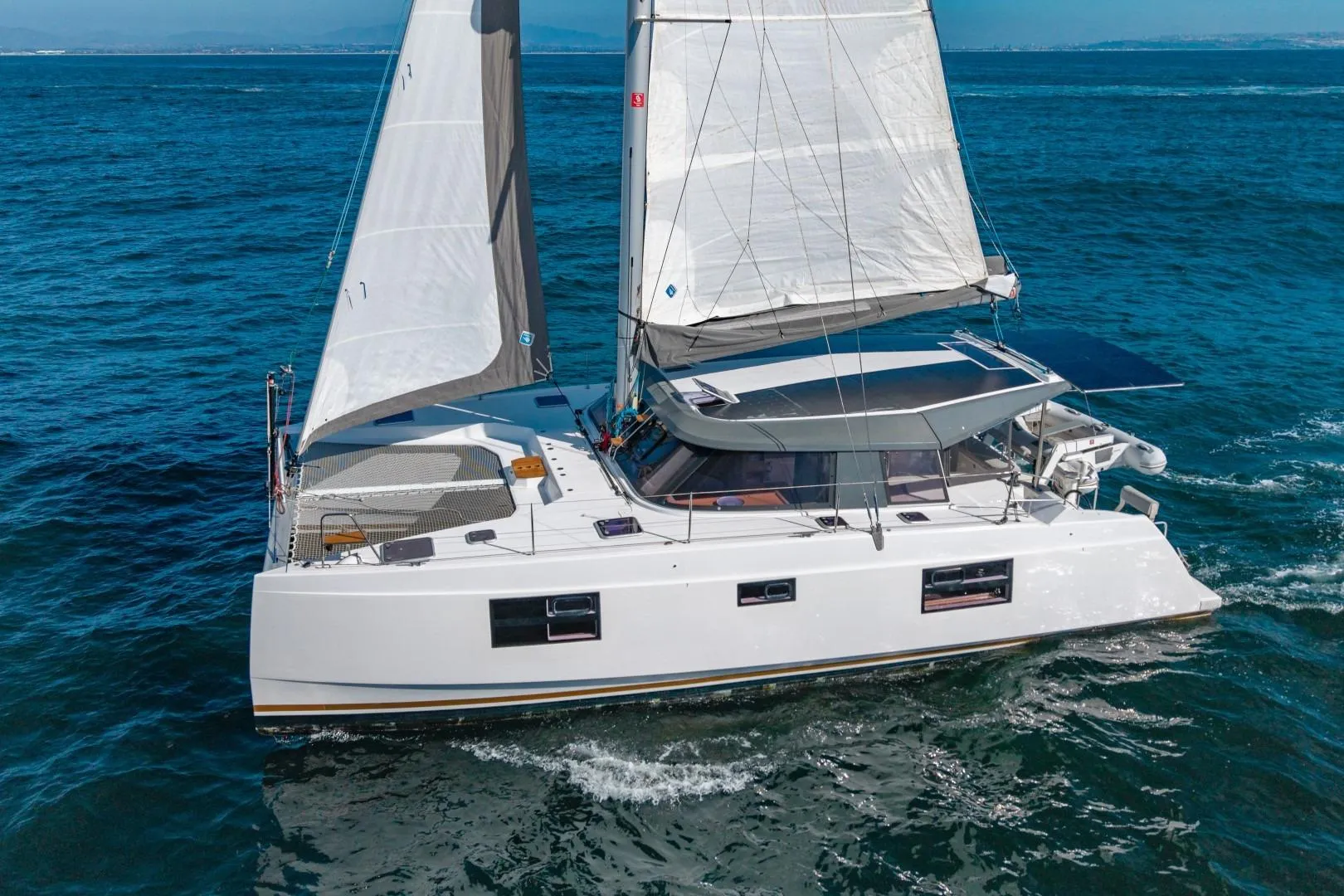

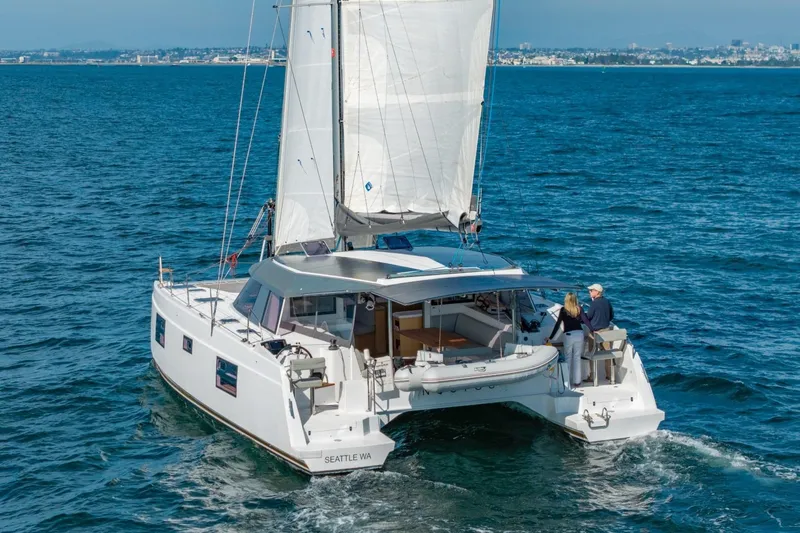

40 Nautitech 2020 Boat for Sale

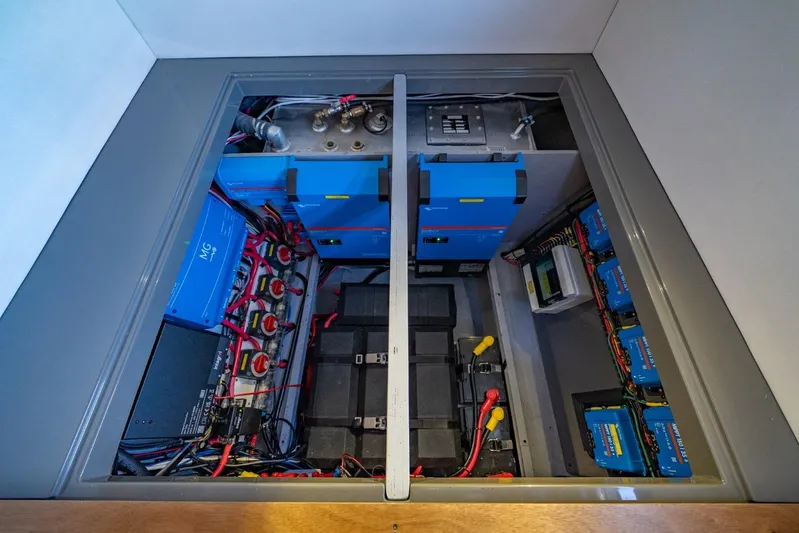

High-Capacity Lithium Energy Storage – 34kWh

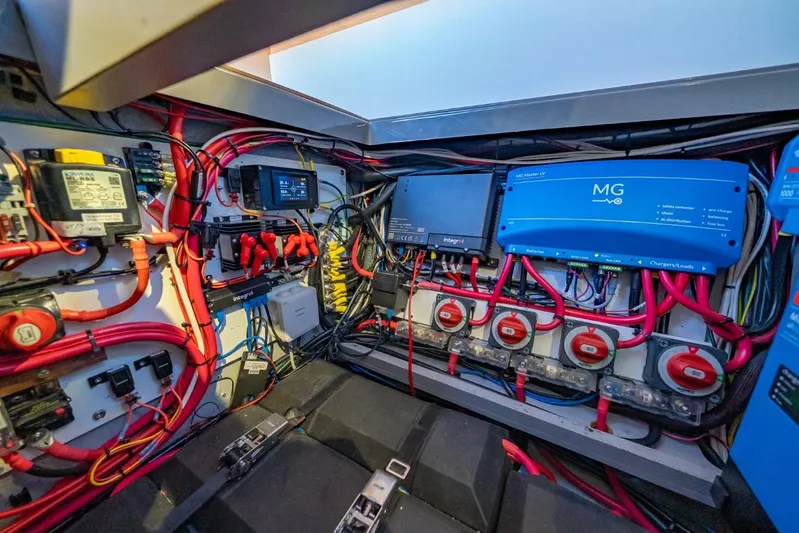

48V House Bank (22kWh)

• 4 × MG LiFePO₄ 24V 230Ah batteries
• MG Master LV 24V 600A
• MG Energy Monitor with external power supply
• MG USB CAN diagnostic tool

12V Auxiliary Bank (12kWh)

• 3 × Victron Energy 12V 340Ah batteries

Total Capacity: 34kWh
Equivalent to approximately 5,000Ah of traditional 12V lead-acid batteries — without the weight, inefficiency, or maintenance.

Solar Array – 2,758 Watts

Designed for serious autonomy at anchor.

Lightleaf Solar Carbon Solar Array

• 960W output
• Custom 316 stainless 1.25" support and framing aft of cabin top
• 8 × Open Water custom cabin-top solar panels
• 1,798W output

Total Solar Output: 2,758W

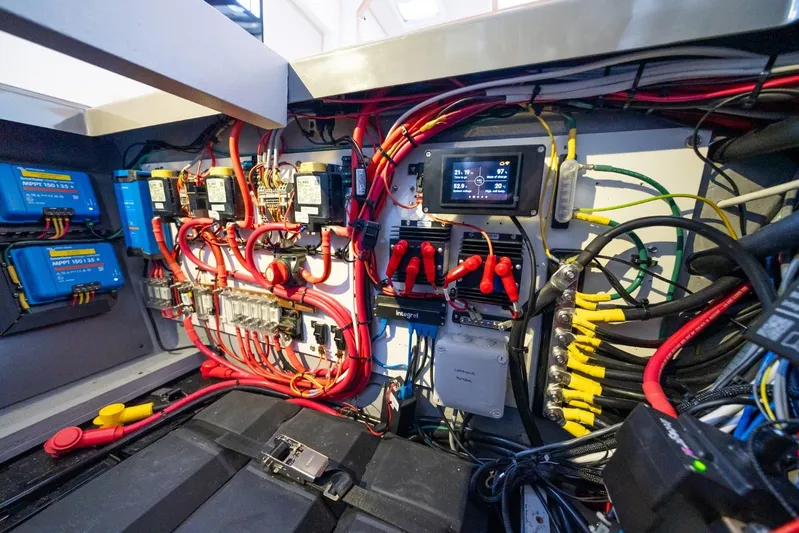

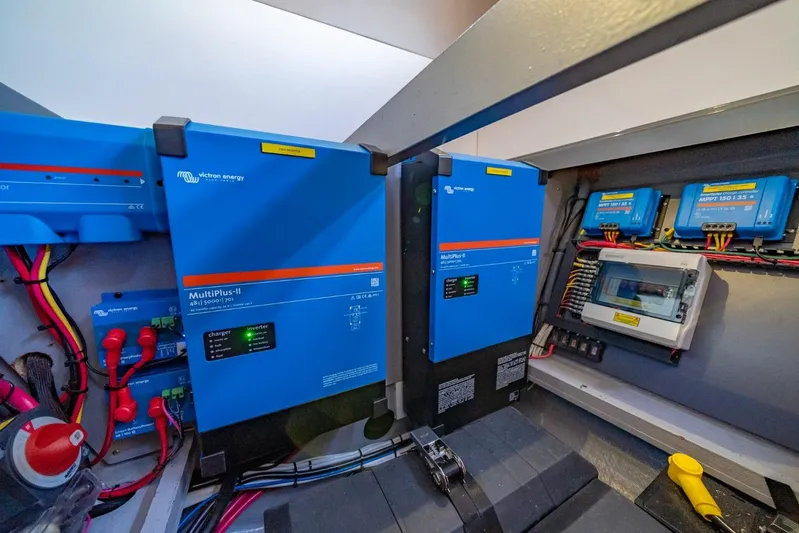

Inverters, Charging & System Control

• Victron MultiPlus-II 48/5000 (230V)
• Victron MultiPlus 48/5000 (120V)
• 2000W 230V inverter (dedicated to washing machine)
• 5 × Victron SmartSolar MPPT 100/50
• Victron Cerbo GX
• Victron GX Touch 50
• Victron Orion DC-DC converters (12/12 and 48/12)
• Victron Lynx Distributor
• Victron Smart BatteryProtect 48V 100A
• Victron IP22 12V 30A charger

Complete system monitoring and control via an integrated Victron ecosystem.

AC & DC Infrastructure Upgrade

• Original 230V system removed
• Entirely new 110V / 240V AC wiring installed
• New 48V DC backbone
• Custom 360° 120/240V 4×2 AC distribution panel
• Smart plug with new 30A shore power cable
• Four new BEP battery switches
• DynaPlate grounding plate
• 12V windlass battery with isolator
• GFI 110V outlets (port & starboard)
• All dimmers replaced to eliminate LED flicker
• Custom composite flooring installed in both hulls to accommodate new systems

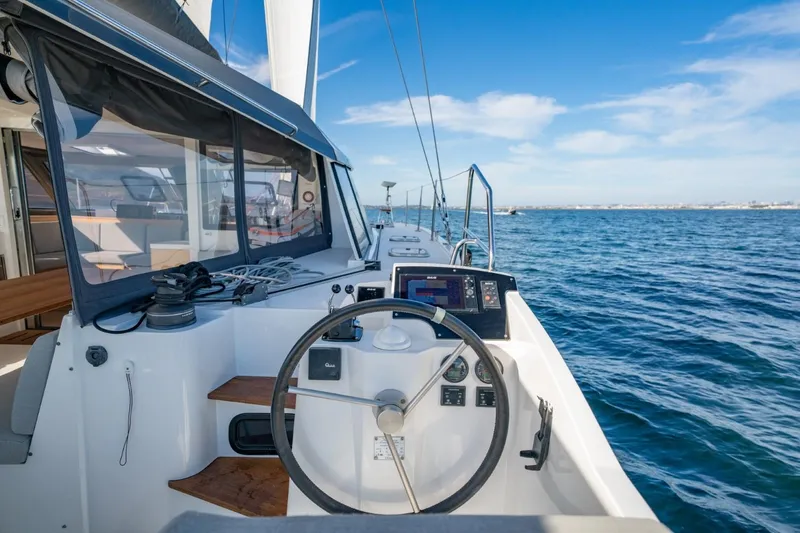

Starboard Helm

• B&G Color Chartplotter
• B&G Wind Direction, SPeed (true and apparent) and Depth
• B&G Autopilot Display and Controller
• B&G Wireless Handset with MMSI (2024)
• Plastimo Olympic 95 Compass

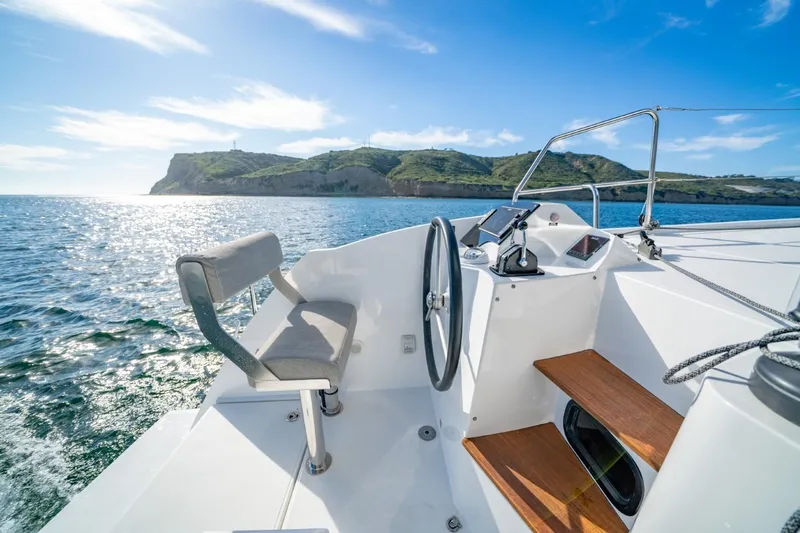

Port Helm

• B&G Color Chartplotter w/ Radar Overlay
• B&G Autopilot Remote
• B&G Repeater for Wind Depth and Speed
• Plastimo Olympic 95 Compass

Navigation Station in Salon

• Naviop Boat Management System installed on B&G 12” Display
• B&G Radome (on Mast)
• B&G AIS400 Transmitter and Receiver
• B&G V100 system with MMSI
• B&G Electrohydraulic Autopilot Drive
• B&G NAC-3 Autopilot Computer
• Airmar Transducers
• McMurdo Smartfind 8 AIS EBIRP Wall Mounted by Door
• Navilink installed to connect via WiFi AIS using Navionics to see AIS Targets on the Screen of Phones & iPads using Navionics.
• Autopilot Serviced 2025 (kit to remain on the boat)
• New VHF Antenna and Cable (Jun 2025)
• New Mast Lights (Jun 2025)

• Large Transoms w/ Swim Ladder on Starboard
• Hot & Cold Shower at Starboard Swim Platform
• Engine Access Hatches
• Stainless  Steel Hand Rails for Safe Boarding

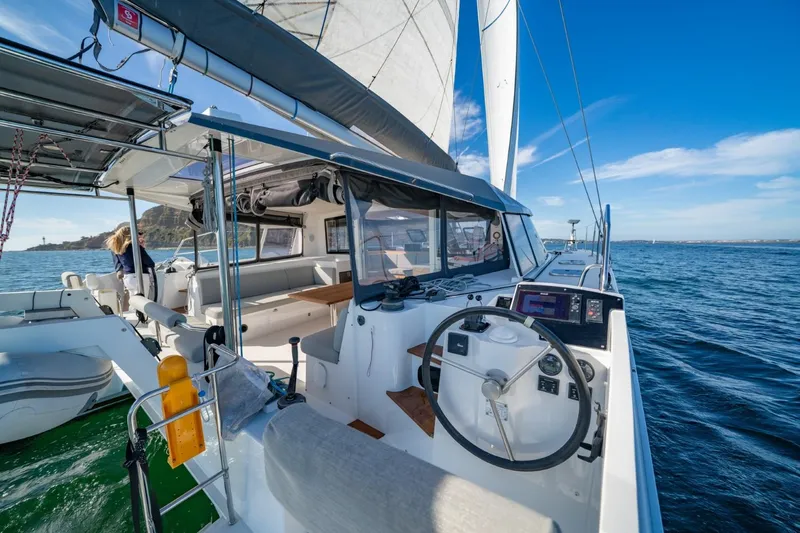

• 2 x Aft Helm Stations w/ Instruments
• Large Helm Seats Port & Starboard
• Electrical Controls on Port & Starboard (New 2025)
• Large Cockpit with Maralon Enclosures w/ Sliding Panels and Roll Up Black Out Shades
• Quick Release Pins for holding the Bottoms of the Sliding Enclosure Bottoms

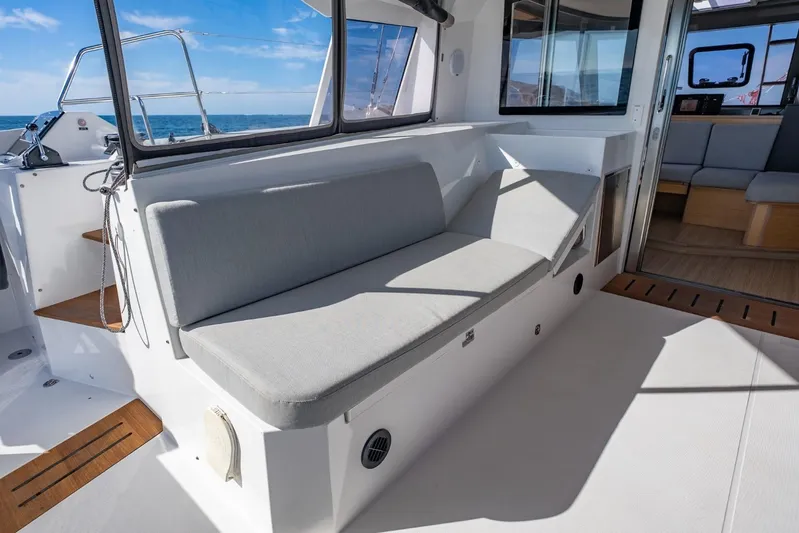

• Large L-Shaped Settee on Starboard w/ Storage Underneath
• Large Teak Dining Table
• Large Bench Settee on Port Converts to Chaise w/ Fold-Up Headrest, Storage Underneath
• Cockpit Cushions
• Isotherm 12V Cockpit Pull-Out Fridge
• Adjustable Dimming Tubular LED Lighting in Roof of Cockpit
• Night Lighting near Floor
• Scuppers on Cabin Top w/ Hand Rails
• Teak Steps to Side Decks from Helm Stations
• Sliding Glass Doors open Cockpit to the Salon & Galley (Multiple positions including fully open)
• High Quality Trampolines
• Stainless Steel Bow Pulpits

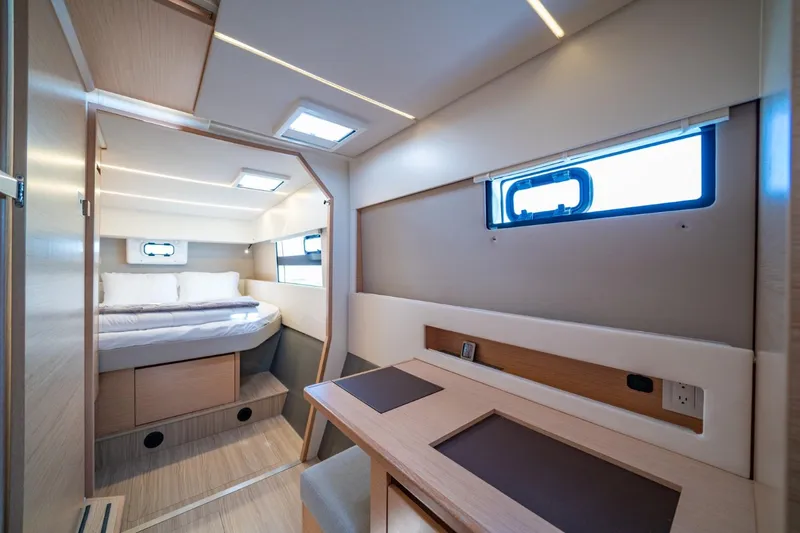

Port Hull - Owner's Cabin

• Queen Size Island Berth Aft
• Storage Drawer Below Berth
• Shelving Above Berth
• Large Hanging Locker w/ Shelves on Port and Starboard
• Reading Lights
• Overhead Opening Hatch
• Aft Window with Blinds
• Large Outboard Window w/ Opening Port Hole

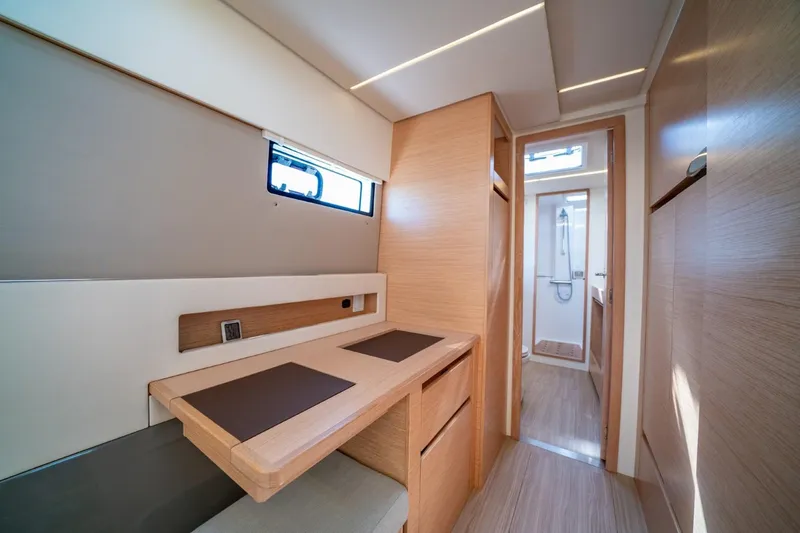

• Sit-Down Desk Outboard w/ Cabinets Inboard located Midships
• Large Cabinets
• Sliding Door for Privacy

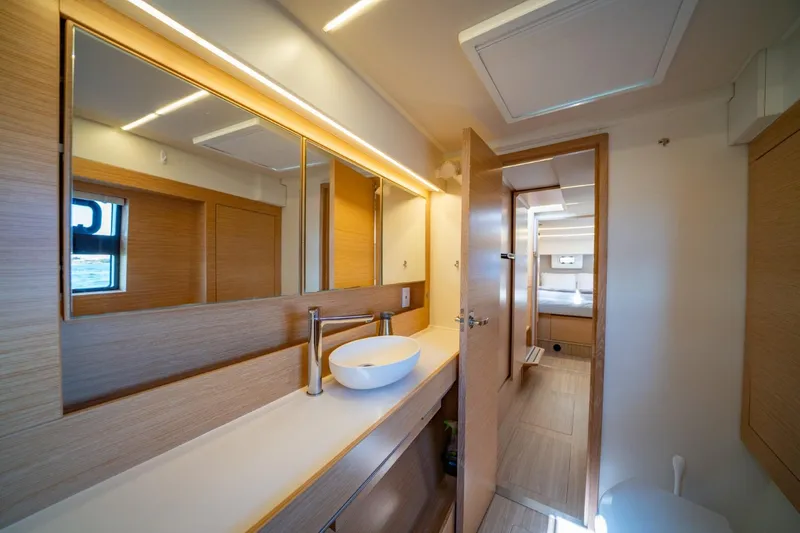

• Ensuite Head w/ Large Separate Shower located Forward
• Hot & Cold Water
• Large Vanity w/ Mirrors, Storage Above & Below
• Jabasco Electric Fresh Water Head

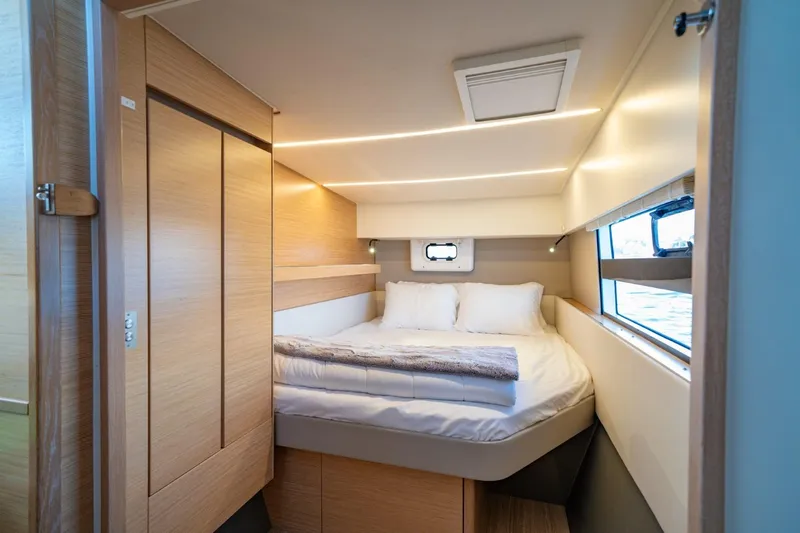

Starboard Aft Cabin

• Comfortable Double Berth
• Hanging Locker
• Reading Lights
• Large Window w/ Blinds and Opening Port Hole

Starboard Forward Cabin

• Comfortable Double Berth (Tapered Forward)
• Shelving Inboard
• Opening Port Hole Aft
• Overhead Opening Hatch
• Hanging Locker
• Large Window w/ Blinds and Opening Port Hole
• Reading Lights

Starboard Midships

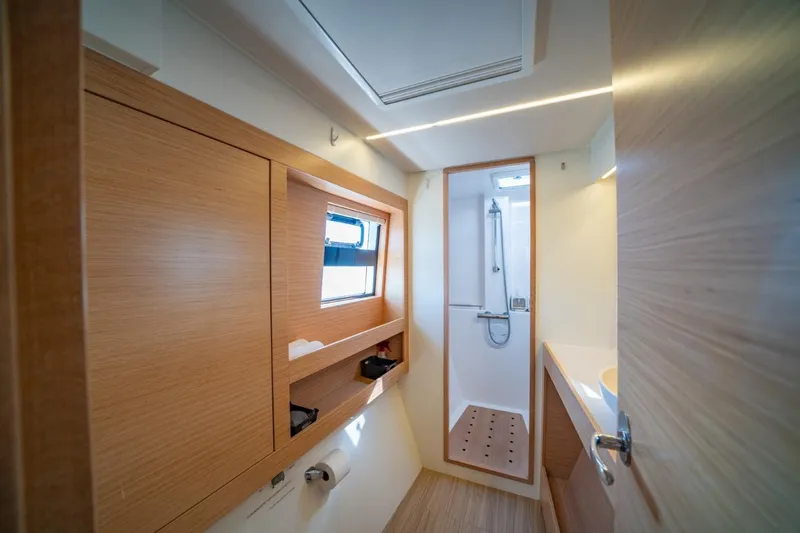

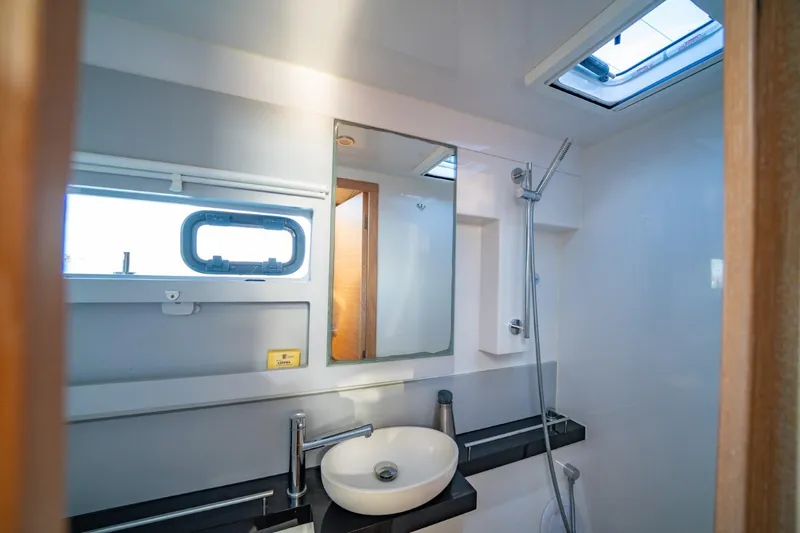

• Guest Head
• Vanity w/ Sink & Mirror
• Hot & Cold Water
• Shower
• Electric Fresh Water Head
• Opening Port Hole
• Opening Overhead Hatch
• Forward of Head is Large Outboard Locker w/ 12 V Freezer

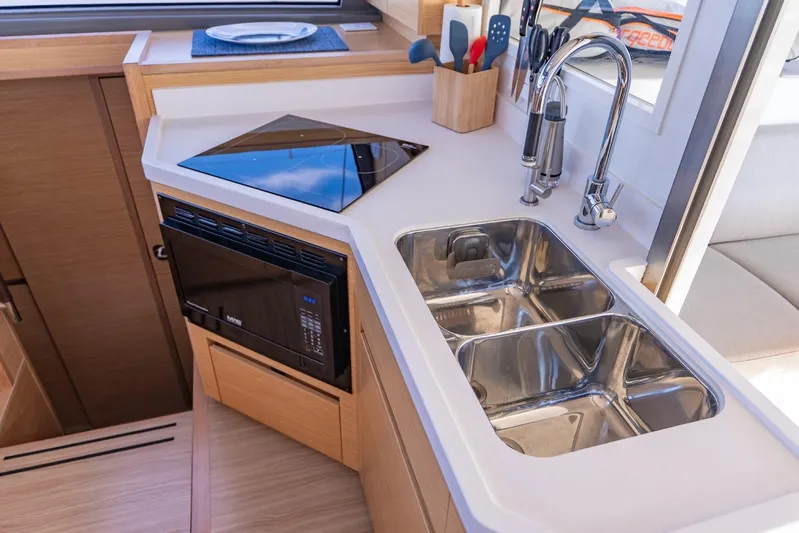

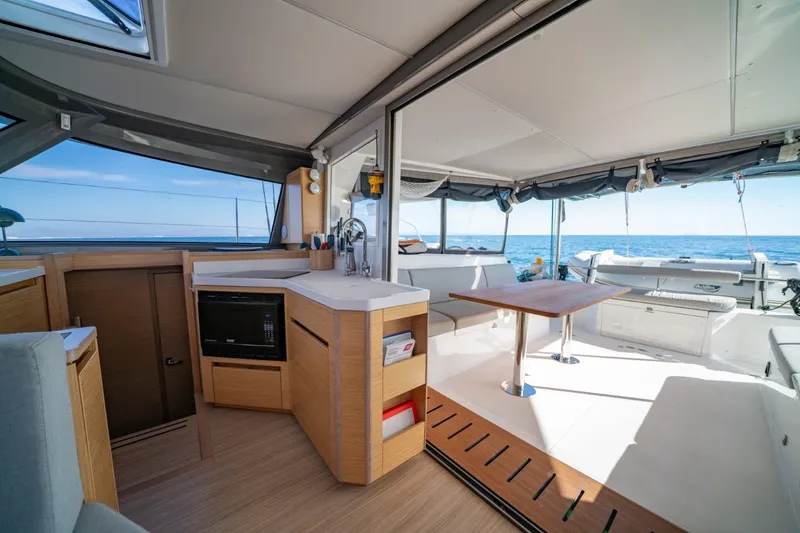

GALLEY

• Galley located on Starboard
• Double Stainless Steel Sink w/ High Arc Faucet w/ Built-In Sprayer
• Hot & Cold Water
• Carbon Filter for Water System
• Storage Cabinet Below Counter

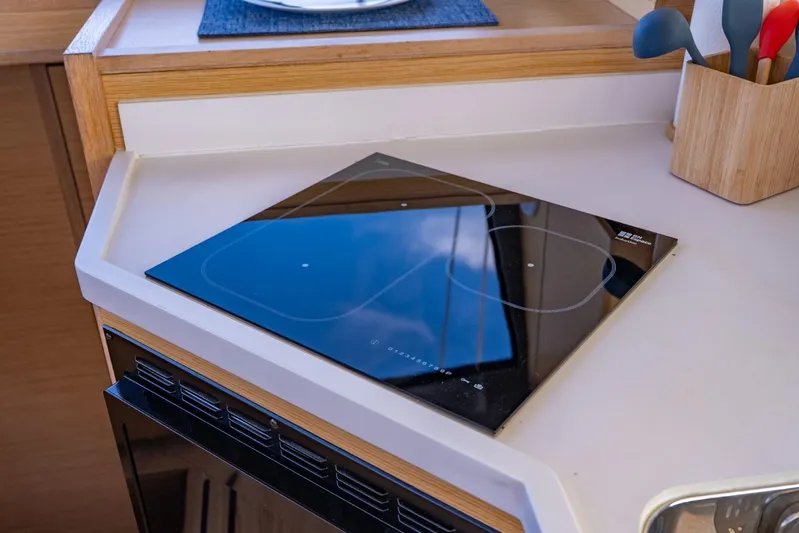

• 3 Burner HE102 Induction Stove (2024)

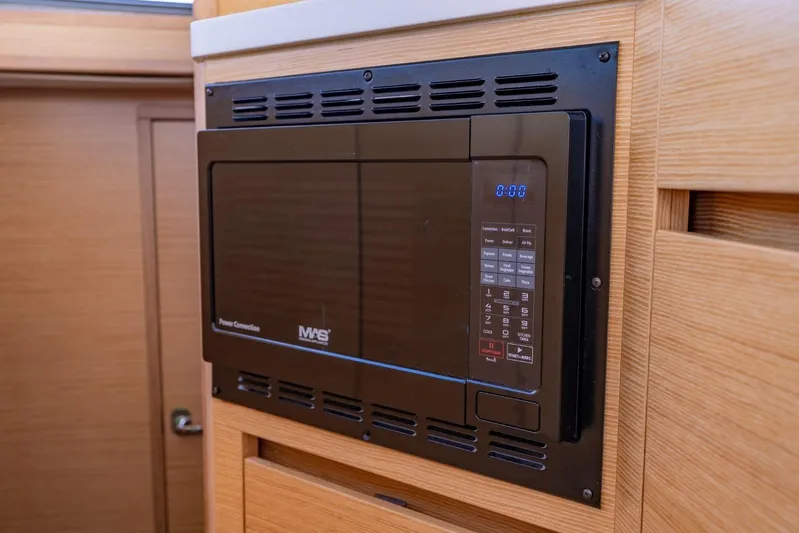

• Built-In Convection Oven under counter (2024) w/ Pot & Pan Storage Below
• Front Loading Isotherm CL130D Fridge
• Storage Cabinets w/ Slide-Out Tray Racks for Can Storage
• Large Counter Top w/ Shelving Behind

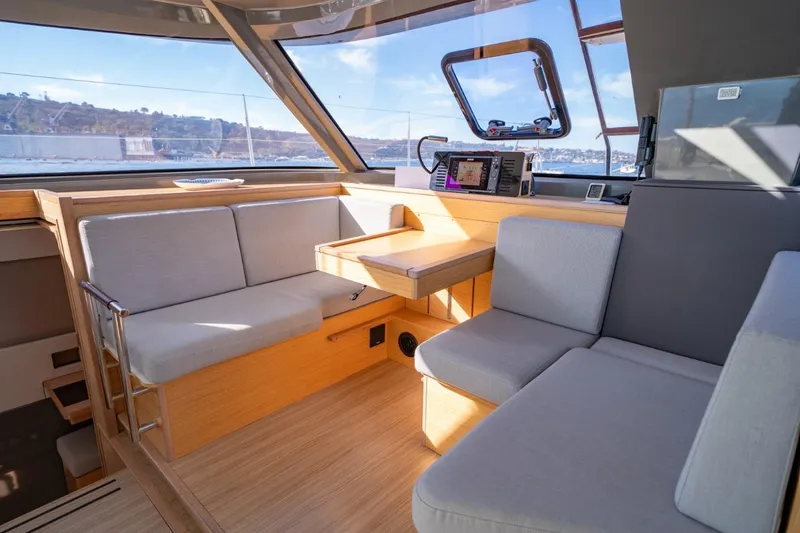

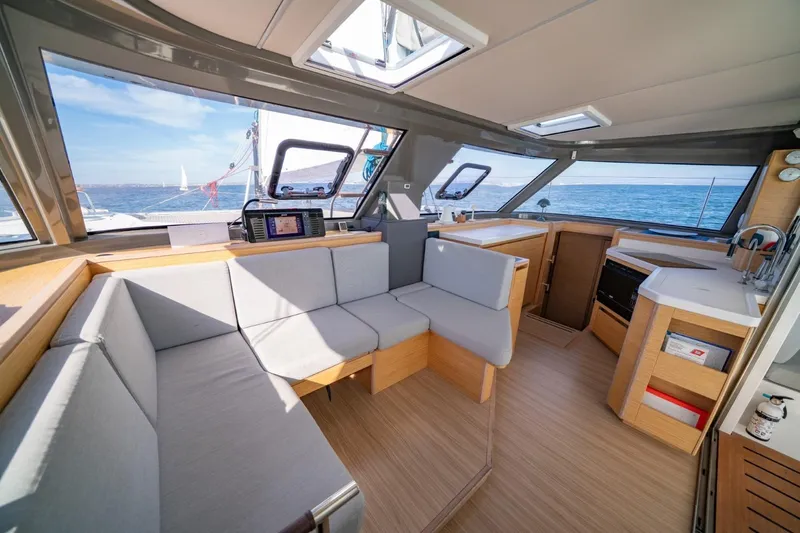

SALON

• U-Shaped Settees w/ Shelving Above
• Convertible Navigation Desk w/ Opening Lid
• 2 x Large Opening Port Holes forward for Ventilation
• 2 x Overhead Hatches
• 2 x Fans
• Under Counter Tubular Dimmable LED Strip Lighting

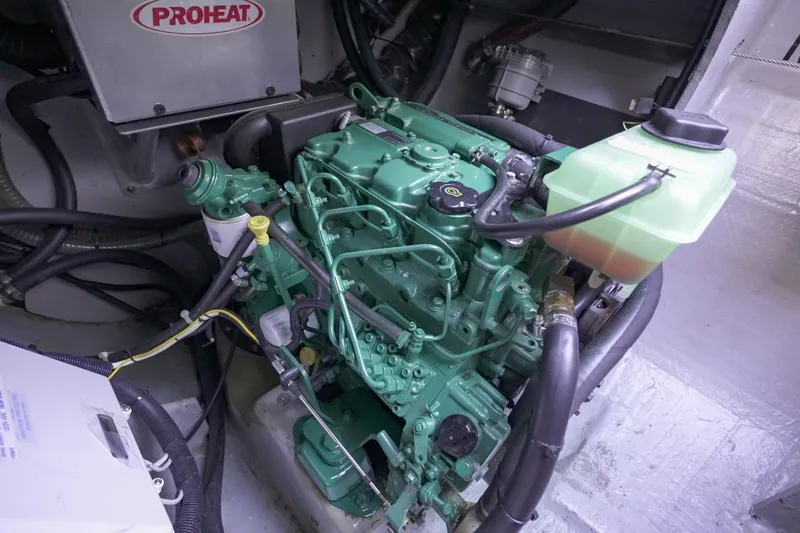

• 2 Volvo MD2040 40HP Fresh Water Cooled 1051 Hours on each (Stb ECM Box failed and hrs reset to 0 which are currently showing 257 hrs but the starboard has the same hrs at the port engine)
• 2 x 3 Blade Folding Volvo Propellers
• 2 X Volvo Penta 130SR-C Sail Drives
• Aluminum Fuel Tanks
• Sail Drives Coated w/ Silicone Bottom Paint (November 2024)
• Oil Service for Legs and Engines (May 2025)
• Sail Drive Seals Replaced (May 2025)
• Heat Exchangers Removed and Serviced (2024)
• Exhaust Elbows Removed and Replaced with New Stainless Steel Ones (2024)
• Coolant in Both Engines Replaced (2024)
• Header Tanks Replaced
• Raw Water Intake Hoses Replaced
• Raw Seawater Pump Replaced (May 2025)
• 2 x Spare Raw Seawater Pumps
• Volvo Fuel Water Separator and Filter (2024)
• Reinforce Alternator Brackets on Both Engines (2025)
• New Belts (Jan 2026)
• Oil Changed at 1019 hours
• New Racor Fuel Filters (May 2025)
• Props Coated with Propspeed Antifouling (Jun 2025)

• Incidences Box Top Full Battened Mainsail
• 1st and 2nd Reefs
• Stack Pack Sail Cover (2025)
• Lazy Jacks
• Incidences Self-Tacking Jib w/ UV Cover
• Incidences Butterfly Sail
• Incidences Tri-Radial Cruising Spinnaker on Profurl NEX 2.5 Furler
• Double Topping Lift Halyard

• New Standing Rigging (2025)
• Most of the Running Rigging was Replaced (2025)
• Installed a new Retractable Bow Sprit (2025) for Code 0 or Spinnaker
• Double Spreader Aluminum Mast
• VHF Antenna
• Windex
• Headsail Furler
• Self-Tacking Jib Track Led Back to Helm
• Long Traveler System on Aft Cabin Top
• Antel Halyard Slider System for Jib Haylard
• 3 x Reefing Lines
• Double Topping Lift Halyard (May 2025)
• 1 x Lewmar Electric Self-Tailing Winch on Starboard Mainsail & Jib Sheet
• 1 x Lewmar Self-Tailing Winch Aft for Traveler & Mainsheet
• 1 x Lewmar Self-Tailing Winch on Port for the Roller Furling Line for the Self-Tacking Jib
• 1 x Lewmar Self-Tailing Winch at the Mast for 3 Reefs, Outhaul, and Gennaker Halyard.4 x Spinlock
• XAS Rope Clutches
• 5 x Spinlock XTS Rope Clutches
• Lewmar Mainsheet System
• Chafe Points Addressed on the Traveler and Roller Furling Line (2025)
• Winch Service (2025)
• 3 x Mooring Cleats

Fresh Water & Pressure System

• Dessalator 237 Watermaker (currently pickled)
• New Watermaker Membrane (Oct 2024)
• New Sea Strainer (Nov 2024)
• Marco UP6E Variable Speed Fresh Water Pump (Instant and Constant Pressure)
• Whale Quick-Connect Plumbing
• Water Tank Manifold
• 2 x Forward Fresh Water Tanks
• Hot & Cold Water Shower at Starboard Swim Platform
• Salt Water Wash Down in Anchor Locker

Hot Water System

• 11 Gallon Quick Spa Nautic Boiler 40
  Heated via Engine, Heater, or Shore Power

Heads & Bilge Systems

• 2 Aluminium Holding Tanks w/ Gravity Discharge
• 2 × Jabsco Electric Marine Toilets
• 2 × Whale Water Systems SmartBail Manual Bilge Pumps (Bilge & Engine Bilge)
• 2 × Johnson Pump Ultima Combo 1250 GPH Automatic Bilge Pumps (2024)
  • Inline Scuppers
  • New Hosing
• Upgraded Bilge Pump Sensors
• Additional Manual Bilge Pump

• LED Interior Lighting Throughout
• Cabin Fans Installed in All Staterooms
• Fans in Salon/Galley

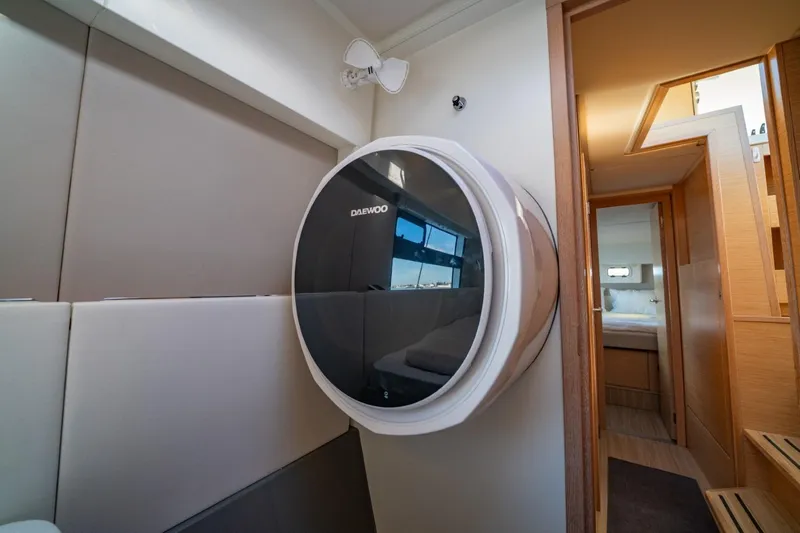

• Daewood Compact Clothes Washer located in Starboard Forward Cabin (2024)
• 12V Freezer (located Forward of the Head on Starboard Midships)
• New Hella LED Port and Starboard Running Lights
• Starlink Mount on Starboard Bow Railing
• Additional High Performance Starlink (not mounted)
• Dometic X30 Hot Water Heating System Including Vent in Cockpit Installed November 2023
• X30 System Has Engine Cross-Over Switch (Allows engine coolant to heat boat while motoring)

• 25Kg Plow Anchor 10mm Chain and ¾” Rode
• Spare 15Kg Anchor
• 12V Quick Hector Windlass w/ Chain Gypsy
• Bow Roller w/ Bridle under Foredeck

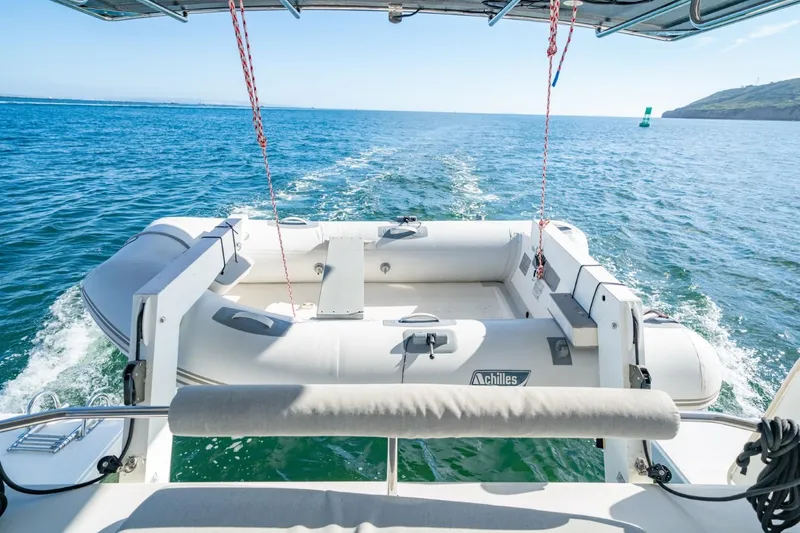

• 2017 Achilles HB-270X Hard Bottom Dinghy (8'10")
• 2024 Torqueedo Model 1160-00 Travel Equivalent to (3HP) w/ 2 Batteries & Charger
• Dinghy Davits (Solar Panels Above)

• Life Raft 8 Person
• Dock Lines and Fenders
• Manuals
• Bottom Paint (2024)

Integrel E-Power is a high-efficiency, high-output, large-frame alternator. It is fitted to the front of an existing inboard diesel engine and collects the spare power generated to deliver up to 9kW (or 18kW in a dual system) of energy. Spare energy is stored in a 48V battery bank for later use. Controlled by an advanced power management system, Integrel E-Power leverages the substantial power differential between an engine’s optimal efficiency load and the boat propeller’s load. The system meticulously regulates the variable load (over 100 times per second) and complements the propeller load to ensure the engine consistently runs at or near peak performance and efficiency. Consequently, the engine operates with peak efficiency at all times, delivering high energy output, while optimising fuel efficiency to its fullest potential. Rest assured that Integrel E-Power allows your boat to run at full speed at any time. The system automatically monitors throttle input and will instantly power down if full engine power is needed. Once stable RPM is restored, Integrel E-Power resumes full power generation. The system’s added weight does not affect boat speed, as it remains tied to propeller speed with a modern, well-governed engine.
