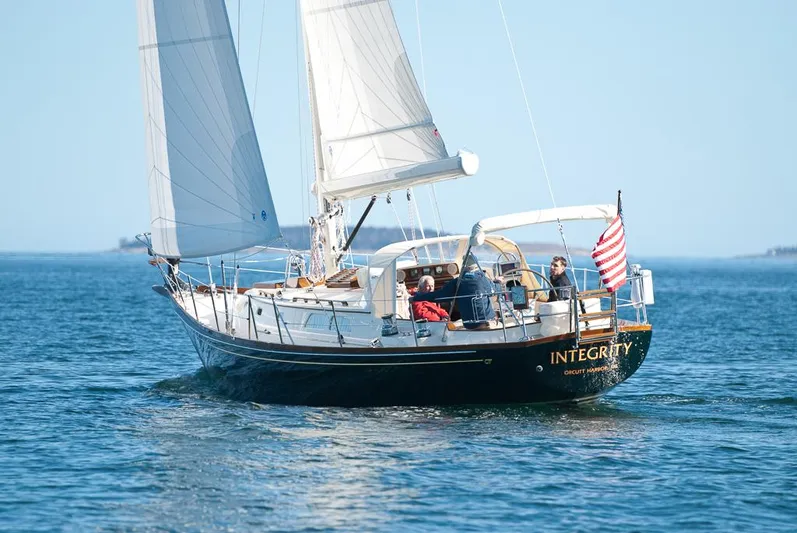

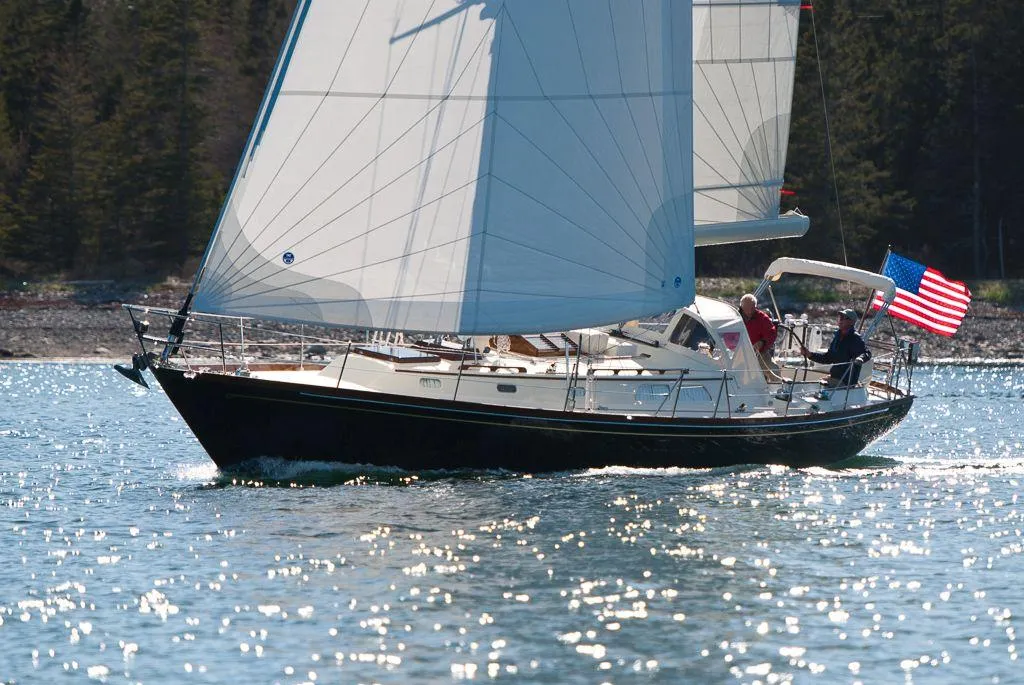

43 Hinckley 2013 Boat For Sale

• Dark Green Awlgrip topsides
• Double Cream bootstripe
• Gold leaf cove stripe
• Micron Extra Red bottom paint
• House & Deck: Light Cream W520 gelcoat w/Off-White IA037 gelcoat molded in nonskid

CONSTRUCTION:
DualGuard® hull construction, a SCRIMPed composite of Eglass/Kevlar and carbon fiber to yield a vacuum infused hull of incredible strength, stiffness, and impact resistance.

• Hull: Infusion molded, balsa core sandwich construction with vinylester resin and Kevlar/E-glass outer skin and carbon inner skin.
• Deck: Infusion molded, Gelcoat finished balsa core sandwich construction with vinylester resin and Kevlar/E- glass.

The hull is laid up with a 4" recessed flange to receive the deck which is bonded to this surface with a reinforced polyester adhesive and thru-bolted on 8' centers with additional fastenings in the area of toe rail tracks, thus assuring a strong, permanent and watertight hull/deck joint.

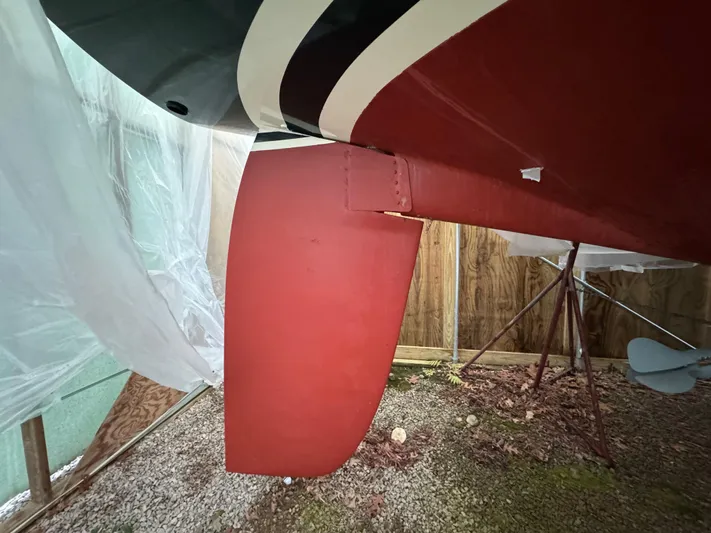

• Rudder: Carbon fiber spade rudder with a carbon fiber post.
• Keel: 9,000 lb. molded external lead keel is secured to the hull with stainless steel bolts.
• Centerboard: Molded solid fiberglass
• Marelon ball-valve type seacocks are flush with the hull.
• Rubrail: Varnished teak at sheer and with solid stainless steel half oval
• Stem head fitting: Custom stainless steel casting with port and starboard chocks with SS bow roller
• 316L stainless steel deck hardware, includes port and starboard springline cleats
• Stainless steel bow and stern pulpits - with integrated stern folding teak tread boarding ladder and varnished teak bow pulpit seat
• Stainless steel stanchions with double lifelines and port and stbd boarding gates
• Recessed stainless steel genoa tracks
• Custom foredeck windlass chain deck protector – painted to match deck
• Double-side opening hatch with smoke grey translucent cover
• Custom butterfly hatch with clear glass – and weather cover
• Varnished teak, double dorade box has two dorade ventilators with closures and a small covered storage area between
• Forward partitioned forepeak anchor locker has direct drainage to the bilge; 2nd anchor rode deck pipe fitting
• Saltwater Jabsco 6900 deck wash - foredeck
• Freshwater deck shower with hose and mixing valve in lazarette – spigot on deck.
• Custom teak chocks at lazarette - to hold down to hold 45 quart cooler on lazarette hatch.

The aft T-shaped cockpit features a teak-capped coaming, which widens near the wheel to provide comfortable outboard seating for the helmsman. The water-sealed cockpit seats include molded nonskid surfaces for safety. The cockpit is equipped with a teak sole and drain scuppers for effective water drainage. To port, a sail and equipment locker includes a stainless steel line rack. A dedicated propane locker with a vent is also integrated. Additionally, the coaming houses four stainless steel-trimmed winch pockets for convenient operation.

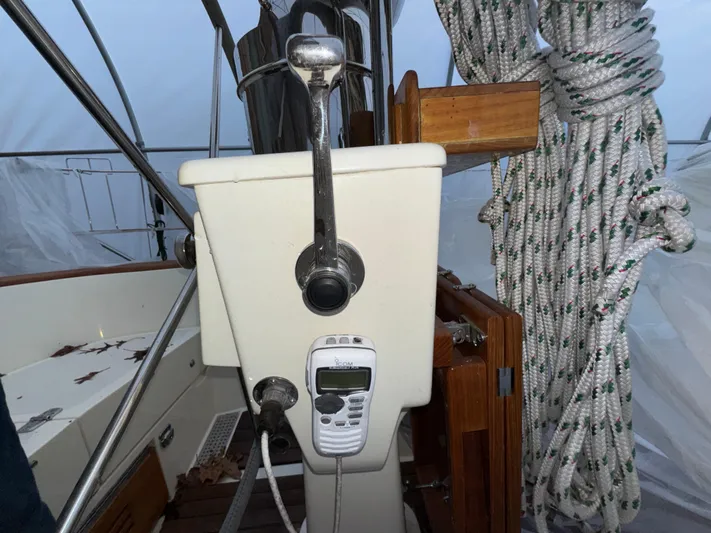

Helm Area:

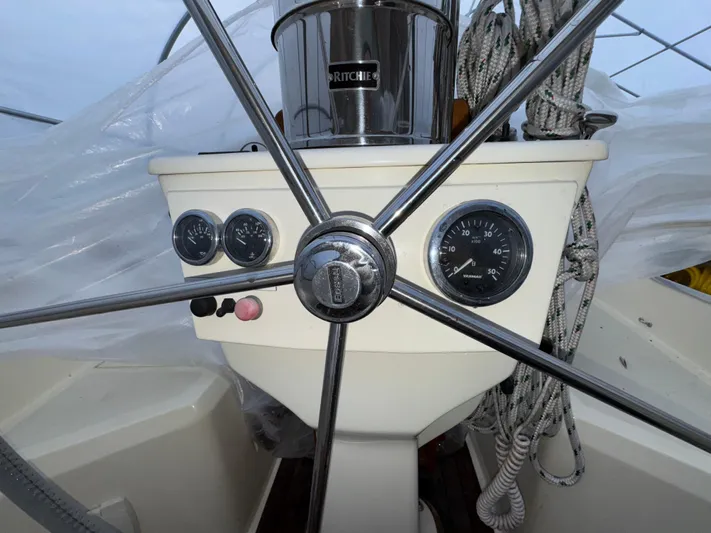

The pedestal wheel steering system features a 40-inch stainless steel destroyer-style wheel with an elk-hide-covered rim, a stainless steel guardrail, and engine controls. It includes a watertight 12-volt outlet, a stainless steel-housed 6-inch binnacle compass, and a binnacle guard. A custom teak helm step is recessed when not in use for added convenience. Engine instruments and switches are recessed in easily accessible positions for the helmsman, along with a single-lever throttle and transmission control. Sailing instruments are mounted above the companionway and custom-fitted on the pedestal. A custom bow thruster joystick is conveniently located at the helm.

• Cockpit Dodger – Sunbrella with zipper forward window and stainless steel grab rail covered in elk hide.
• Cockpit bimini – Stamoid with window in top – can connect to dodger
• Cockpit Cushions – Naugahyde bottom and (2) back cushions
• Cockpit table - pedestal mounted, varnished teak fold-down cockpit table
• Drink holder - pedestal mounted, varnished teak
• (2) Boom lights– over cockpit

Electronics/Navigation:

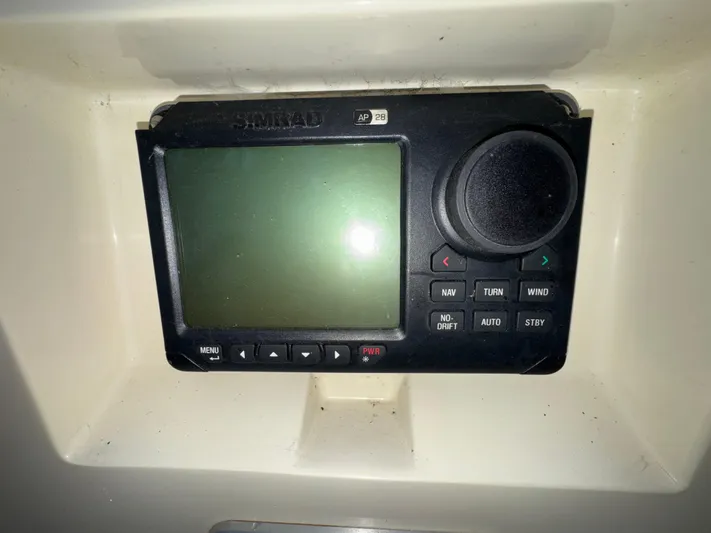

• Autopilot: Simrad HLD 2000L with a recessed AP28 control head in cockpit coaming

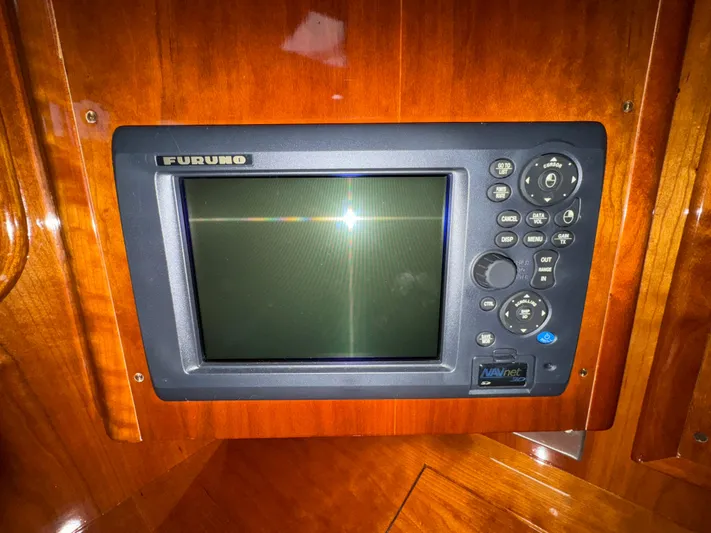

• Furuno MFD8 Navnet 3D Radar/Chartplotter at Nav Station and in a Helm mounted polished SS enclosure.
• DRS4D Radar with mast mounted 24” UHD digital radar dome. Chartplotter includes satellite weather module.

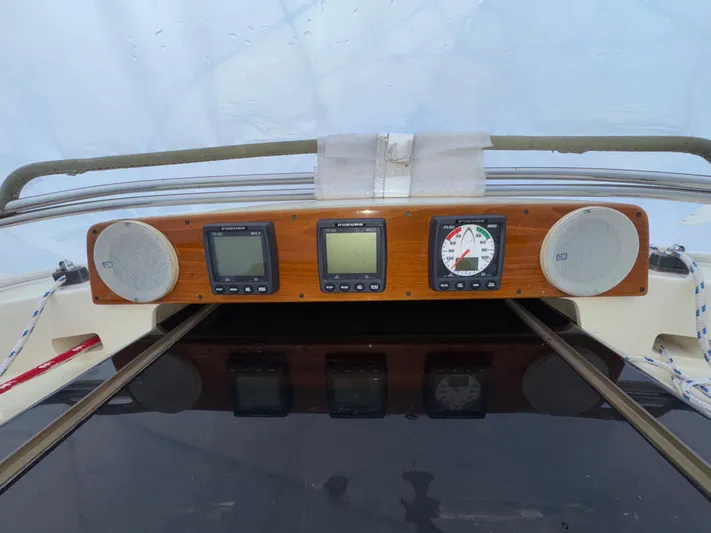

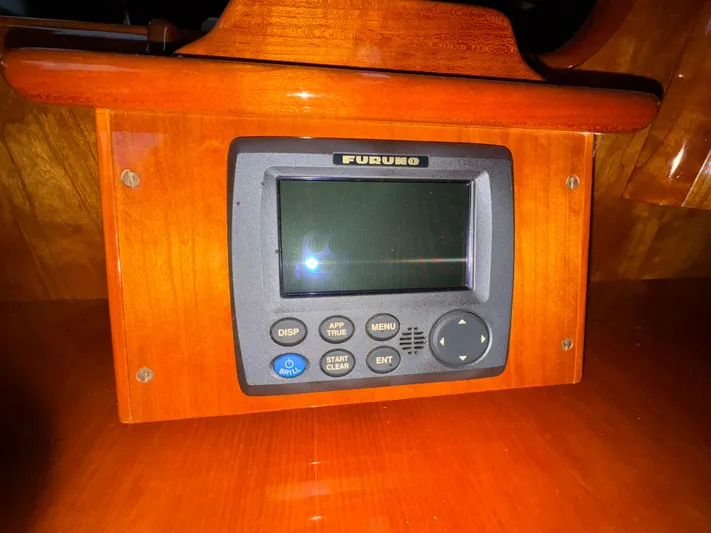

• Furuno F150 DSW Depth, Speed and Wind data with repeater on RD33 display at Nav Station.
• VHF – ICOM M504 radio – nav station – with hailer/fog horn
• SSB – ICOM M710 radio – MF/HF - with insulated backstay and AT-130\E coupler

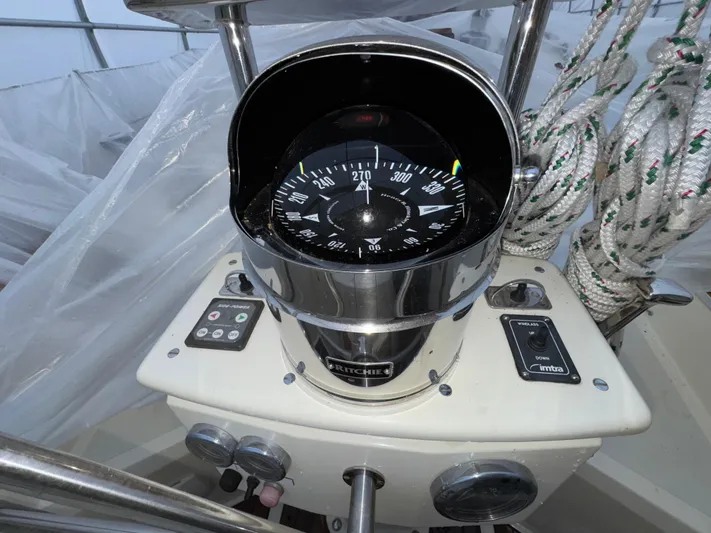

• Ritchie 6” compass – binnacle

Entertainment Electronics:

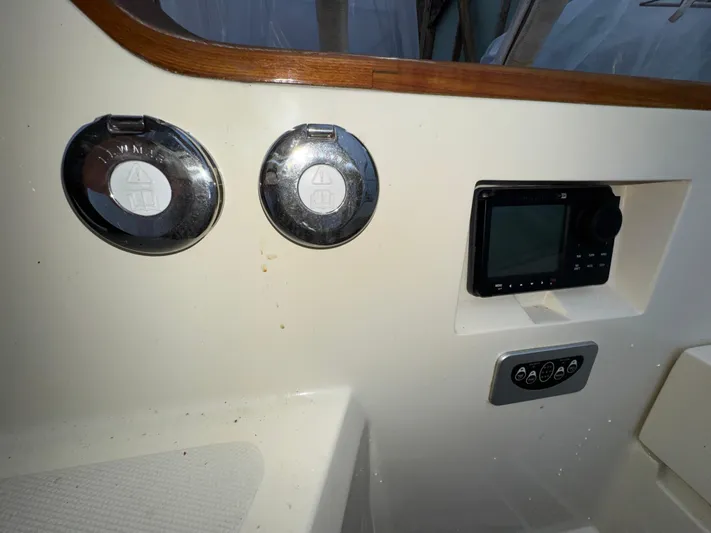

• Clarion AM/FM stereo, satellite radio capable – in nav station with remote control
• Samsung 26” flat screen TV on main salon bulkhead – connected to CD/DVD player.
• Iphone and Ipod dock – connected to stereo with A/V outlet at nav station
• 3 speaker pairs with black faces – (1) main salon, (1) forward cabin and (1) cockpit

INTEGRITY features a SW-42 MKII Dinette layout, accommodating up to seven people across two cabins and three distinct sleeping areas. The interior is elegantly finished in satin-varnished cherry with gloss accents, complemented by louvered cherry locker fronts. The overhead is custom-designed in V-Groove Oyster White with dome lighting, while the flooring throughout consists of a gloss-varnished teak and tulipwood sole. All hanging lockers are cedar-lined and equipped with automatic lighting upon opening. Full-length varnished cherry handrails are seamlessly integrated below the ports for added style and functionality.

• Hunter Green #30787.330 UltraSuede interior cushions
• Pleated curtains
• Espar diesel heater – with exhaust on deck, (4) outlets in galley, main salon, head and forward cabin.
• Two screened dorade vents with closures and cherry rings
• (1) Custom classic butterfly overhead hatch with clear windows and screen – on varnished teak base
• (1) Double-opening overhead hatch with gray translucent cover and screen – forward cabin
• (2) Opening ports with screens provide extra light and ventilation + translucent top companionway board –
• (Head and quarterberth ports)
• Fixed ports have stainless steel trim rings
• (2) Two custom hull ports are gray tinted and have varnished cherry trim rings
• (6) Hella removable fans
• 12-volt lighting includes Frigast Ocean lights – reading lights and most dome lights on dimmers
• (4) Red step/night lights
• Lee cloths - for pilot and quarterberth
• Stainless steel hand pole in salon and overhead centerline varnished cherry handrail aft.

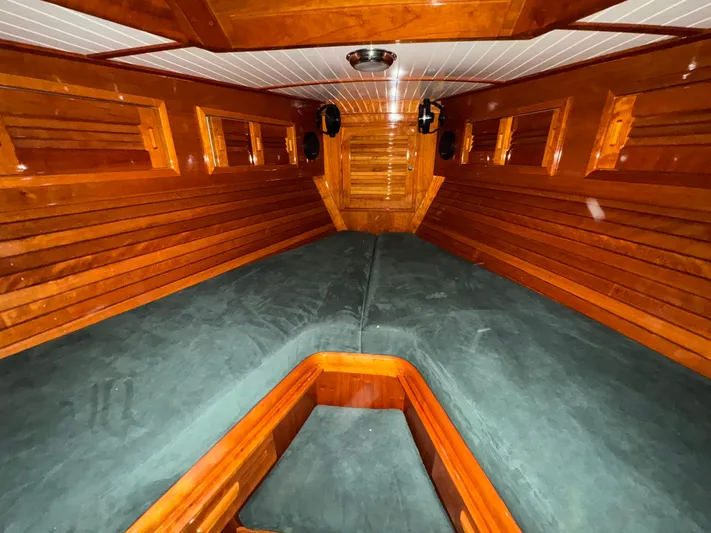

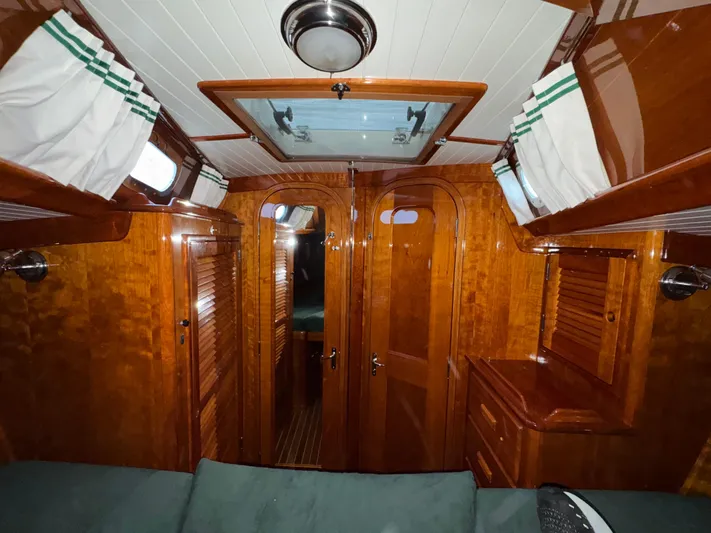

FORWARD STATEROOM:

• This Stateroom has forward access to the partitioned rope/chain forepeak storage area through a louvered cherry door. There is a separate private entrance to the head.
• Forward is a large V-berth with adapter to form a double berth
• Cushioned seat is between the berths
• (2) Storage drawers under
• Sliding vented door lockers over berths outboard port and starboard
• There is a 3-drawer bureau to port and additional locker storage over
• Full-length cedar-lined hanging locker is to starboard with dome light.
• Two ports and a double opening hatch with screen and translucent cover
• Full-length mirror on inside of cabin door
• Two stereo speakers
• Two Hella fans
• Frigast 12-volt lights and one dome halogen overhead

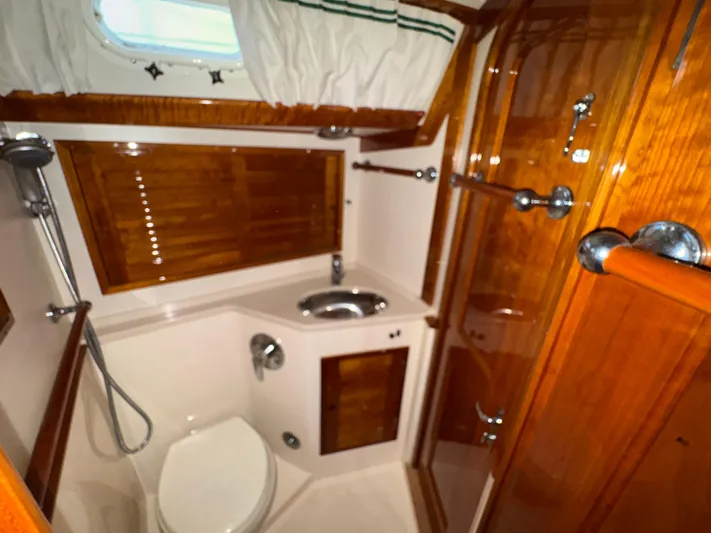

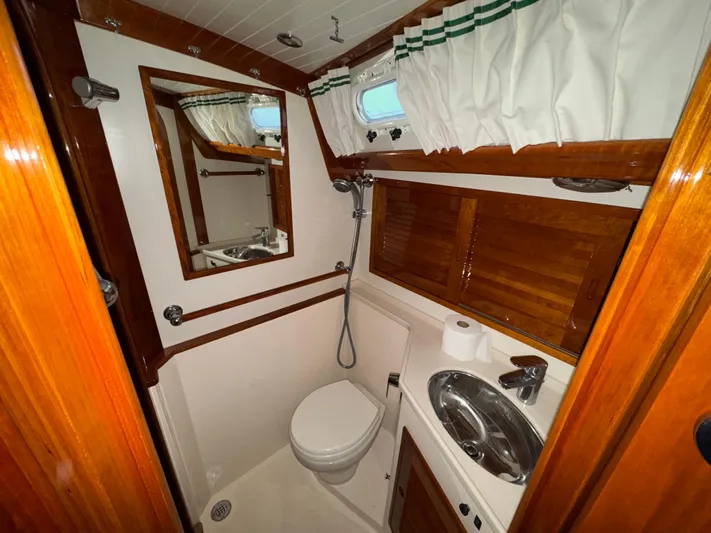

HEAD:

• Next aft to port, the head is fiberglass molded in white formica with cherry trim and locker doors and easily cleaned.
• There is a screened opening port, a screened dorade vent opening with shut-off and an exhaust fan.
• Corian Abalone countertop with stainless steel undermounted sink
• Faucet with pull-out shower mixer, hot & cold pressure water
• Large two-shelf locker outboard with louvered cherry varnished sliding doors.
• Sealand vacu-flush marine toilet is plumbed to a holding tank for y-valve direct overboard discharge of dockside facility pumpout.
• Custom cherry with stainless steel handrail/towel bars and clothes hooks
• Dome light over sink
• Mirror
• Two separate doors from the head lead to the forward cabin and the main salon.

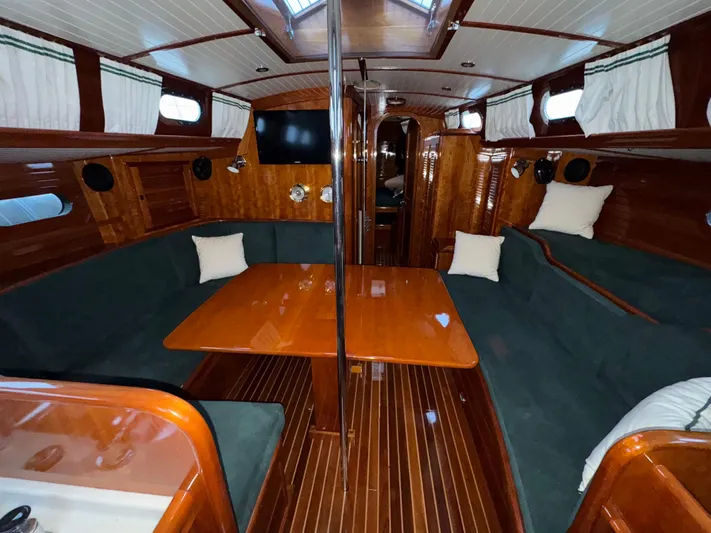

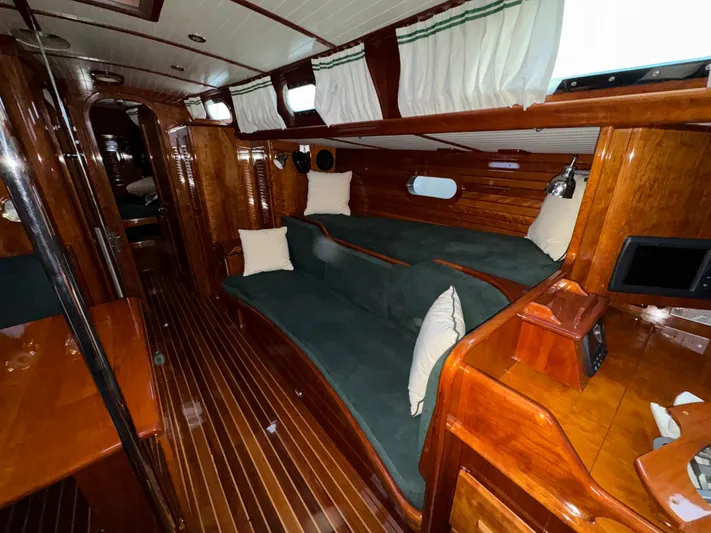

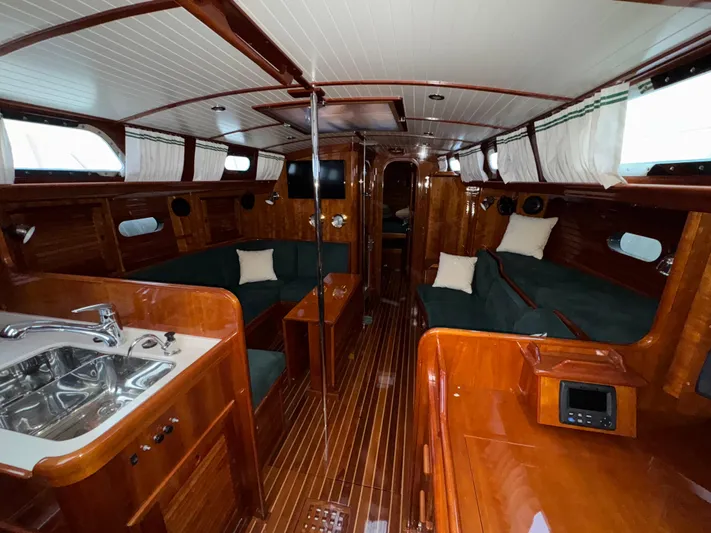

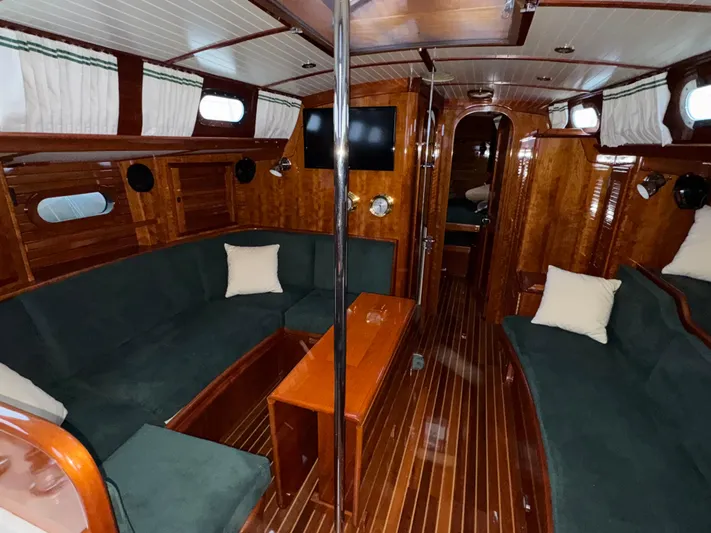

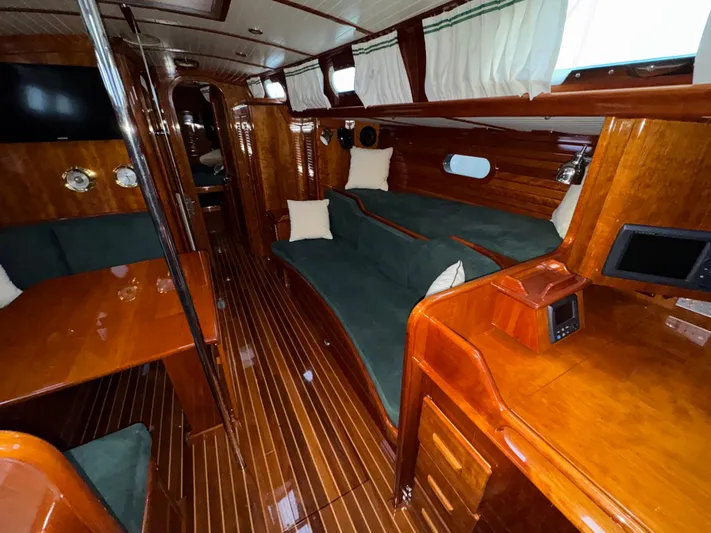

MAIN SALON:

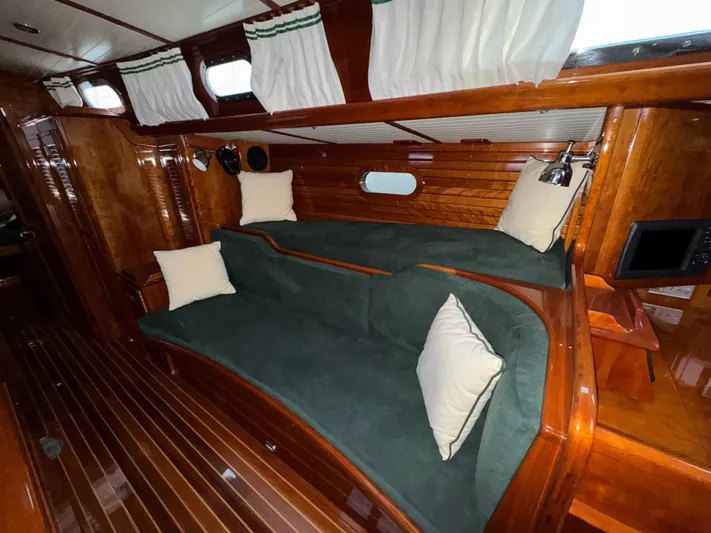

• Amidships, this full-width cabin has a U-shaped dinette to port and entertainment seating to starboard.
• Custom outboard hull ports port and starboard
• Opening butterfly hatch with screen
• Multiple recessed halogen dome lights – many with dimmers
• (4) Stainless steel Ocean Frigast lights
• (2) Hella 12V removable fans
• (2) Stereo speakers
• Sleeping berths for four can be created.

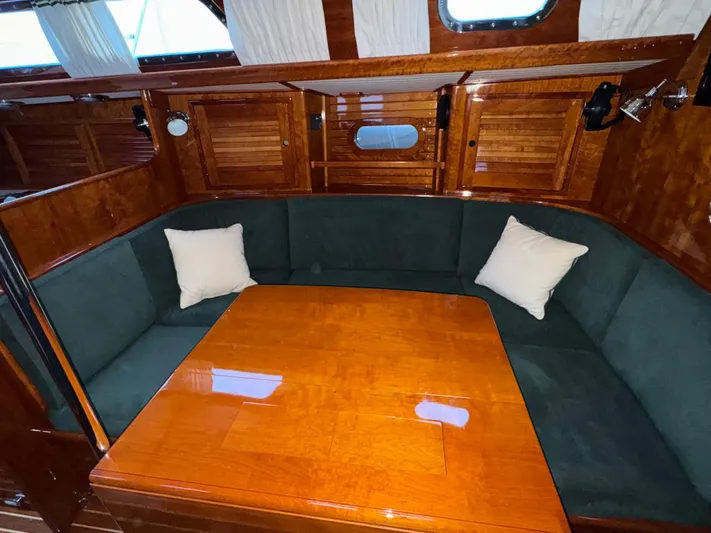

Dinette to port:

• The fold-down, varnished cherry table has custom storage.
• Custom outboard dinette seat pulls inboard and has an insert to form a double berth. There is storage behind this berth.
• Two custom halogen lights are over the dining table with a dimmer control.
• Over outboard are two lockers and a bookshelf.
• Samsung 26” flat screen TV connected to CD/DVD player

To Starboard: At the forward end is a full-length, cedar-lined hanging locker equipped with a dome light. Aft of the hanging locker is a two-drawer cabinet topped by an additional locker. Moving further aft, there is a curved settee that doubles as a transom berth, which can be pulled inboard, along with a pilot berth positioned above and outboard, offering storage space beneath it.

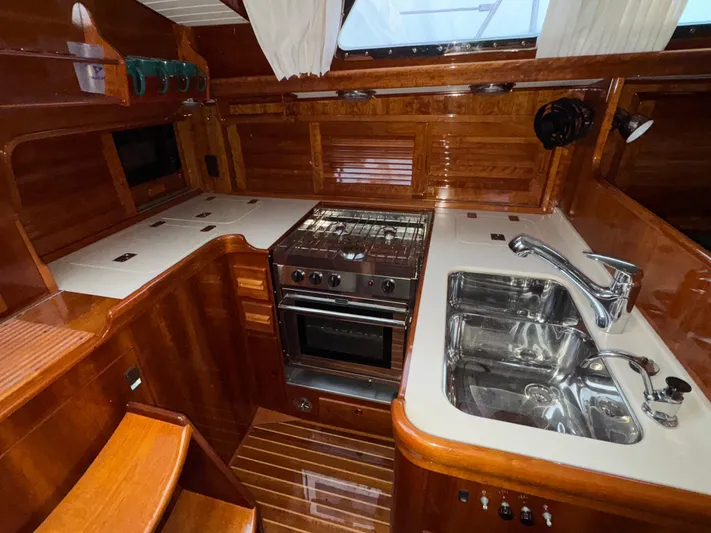

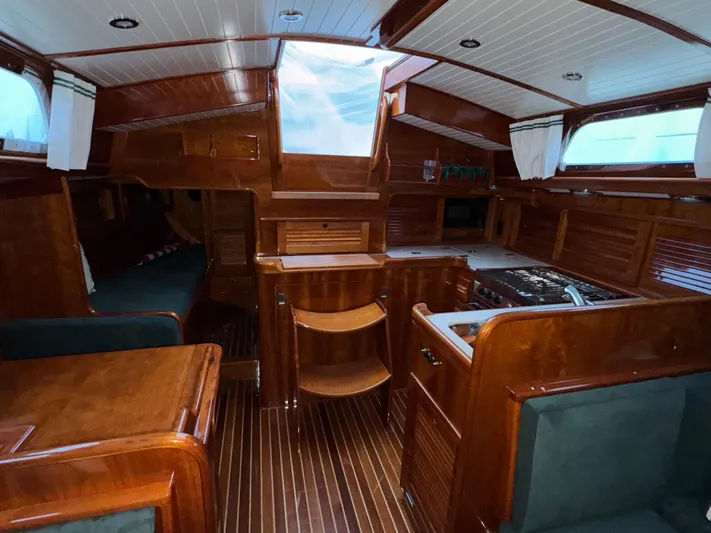

GALLEY:

Aft of the Dinette, the U-shaped Galley is separated from the main salon by a varnished cherry 5/8’s bulkhead.

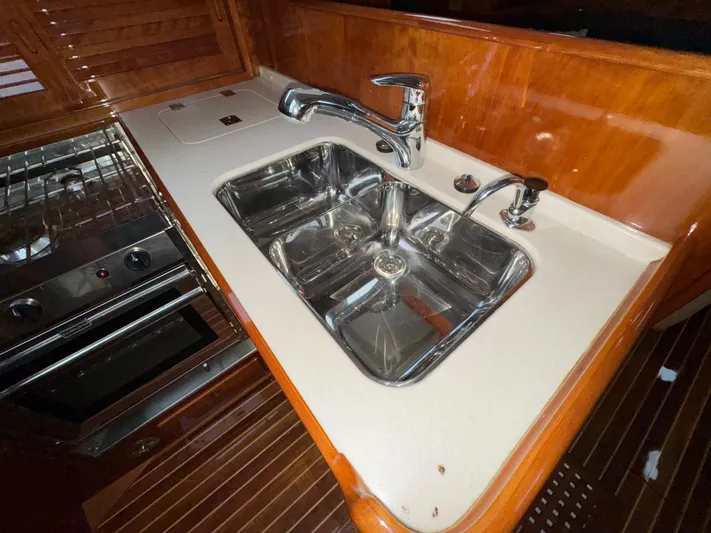

• Forward: Corian Abalone countertop with molded backsplash, undermounted stainless steel double sink with polypropelene cutting board cover, faucet with hot & cold pressure water, manual freshwater hand pump.

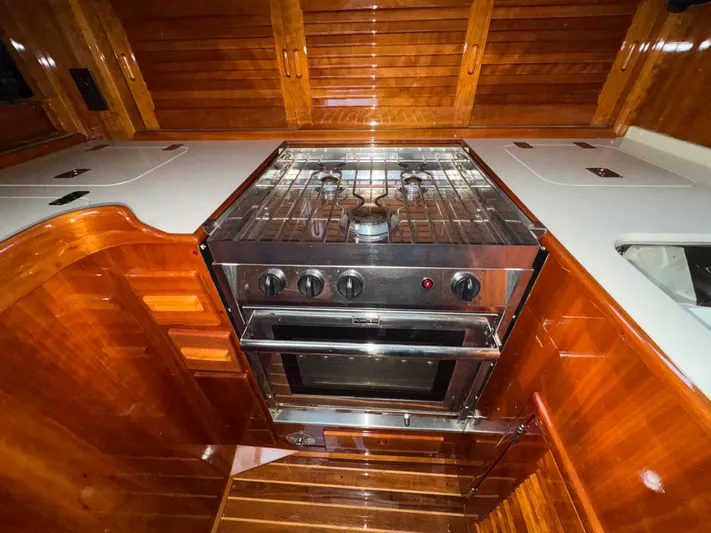

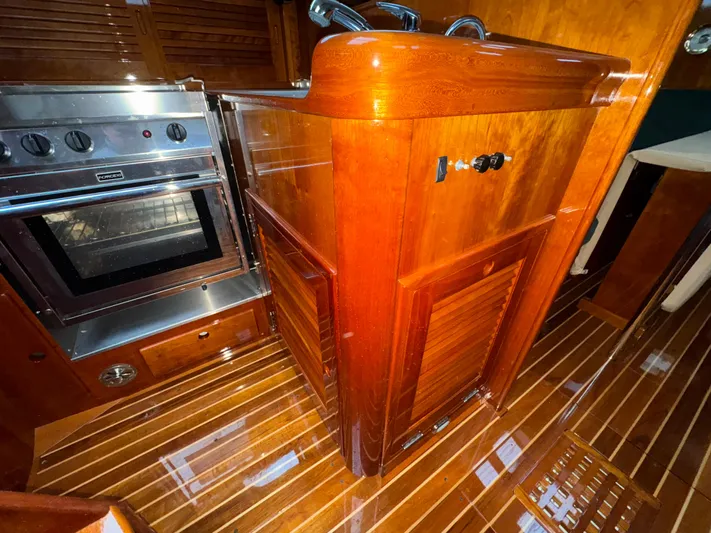

• Outboard: Gimbaled 3-burner stainless steel Force 10 propane stove with oven & broiler and two- piece Corian stove cover in a stainless steel enclosure with solenoid shut-off and propane sniffer, and trap storage under.

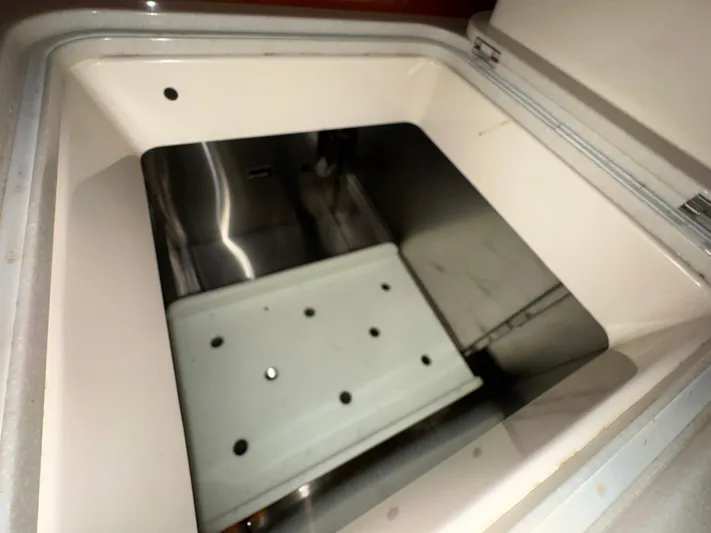

• Aft: Seafrost BDXPAW 12-volt DC refrigeration system (engine drive compressor and 110V AC compressor) with separate refrigeration and freezer box system with custom evaporator plates entered through traps in the countertop allowing for plenty of counter workspace. A GE microwave oven stores in aft galley locker.

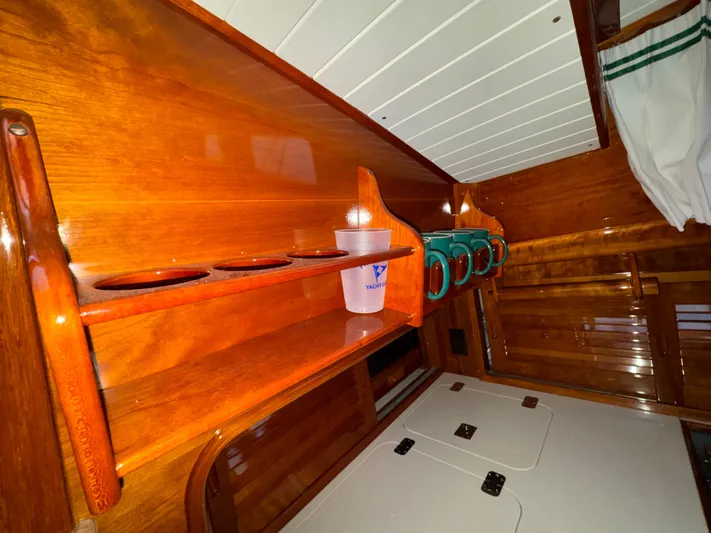

• A custom varnished cherry mug and glass rack is mounted over aft.
• Lockers, bin, shelves and drawer storage areas are available for food stores and galley ware. There is a Hella fan, cherry paper towel rack, pull-out trash bin and there is a built-in dustpan in the cabin sole.

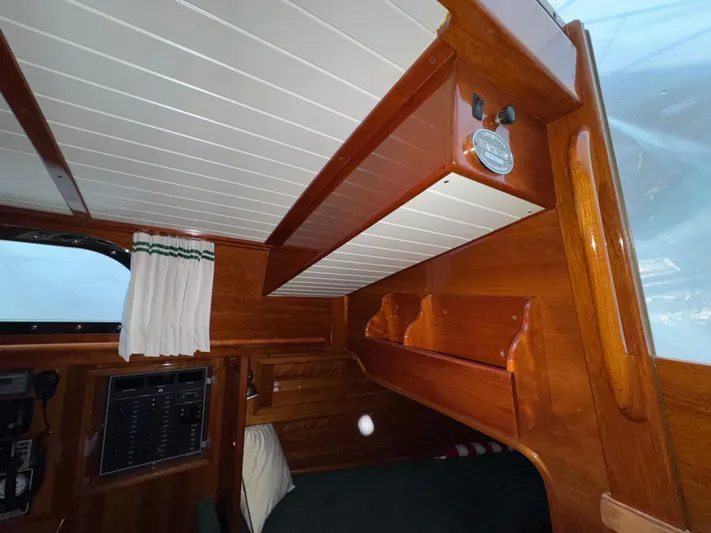

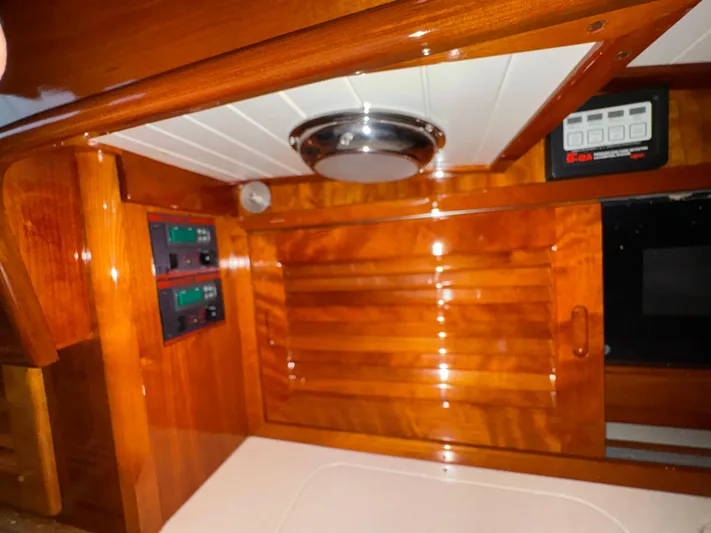

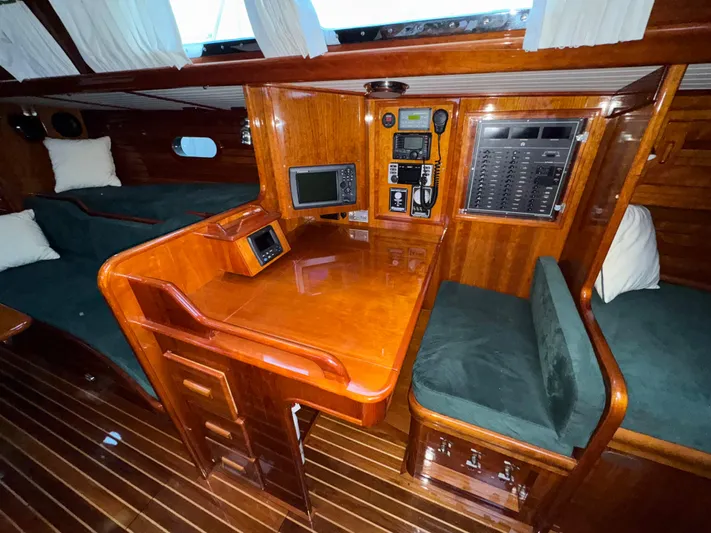

NAVIGATION STATION:

To port, opposite the galley and aft of the main salon starboard settee is the forward-facing navigation area separated by a partial bulkhead from the main salon.

• Opening navigation table for storage of charts, as well as storage drawers and in a cushioned navigation seat.
• Custom cherry cabinets forward houses navigation electronics
• Electrical panel and gauges
• Red/white dome light
• 12-volt cigarette-style outlet
• 110-volt outlet
• NMEA outlet for computer
• Navigation instruments and electronics

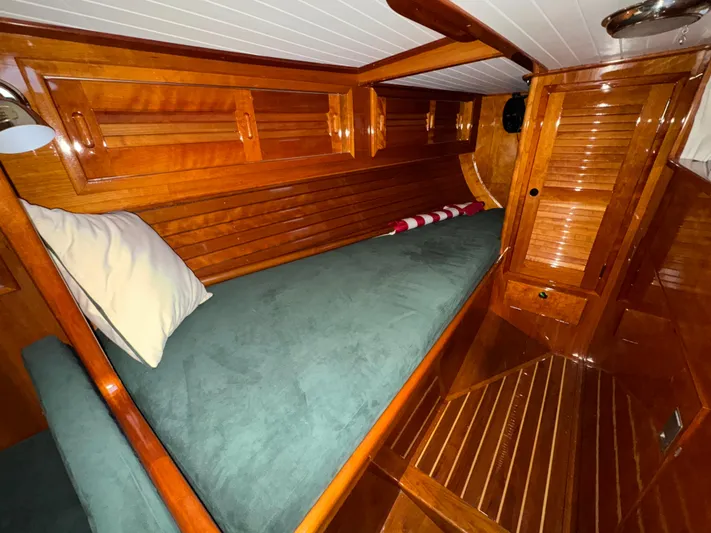

AFT QUARTERBERTH:

• A walk-in sleeping area is to starboard, aft of the Navigation9 Station with cherry sheathing lining this area outboard.
• A single quarterberth has storage lockers over outboard and inboard. The hot water tank is located in a locker at the aft end of the berth. Area includes a 12-volt Hella fan, an overhead dome light and a custom portlight with screen that opens to the cockpit.

COMPANIONWAY TO COCKPIT:

At the aft center is the companionway leading to the cockpit, featuring port and starboard handrails and curved step treads. A single gray translucent sliding companionway board and red step lights provide additional illumination for this area. To starboard, a convenient binocular and VHF holder box is positioned nearby. Below the companionway threshold, a custom cherry flip-down louvered locker door conceals a spacious equipment alcove. Engine room access is located behind the step treads and is equipped with acoustic insulation for noise reduction.

12 volt DC electrical system:

• Heavy duty, large capacity
• Engine start: 600 cold-crank amp capacity batteries – (1) Lifeline GLP-31 12-volt battery
• House: 440 amp/hr capacity batteries – (4) Lifeline GPL-6C AGM batteries
• A dual output 100 amp alternator is mounted on the main engine.
• Emergency starting – parallel switch

110 volt AC System:

• Mastervolt 12/2500 inverter/charger with Masterlink option
• (3) 110-volt outlets (galley, nav, head)
• 50-ft 30-amp cord with, 30-50 adapter and inlet.

All circuits are protected by circuit breakers at the nav station panel, which includes both a voltmeter and an ammeter. Master switches are available for the starting and lighting circuits. All major circuits, mechanical components, and rigging are grounded with heavy copper straps to the keel, and the mast is also equipped with lightning protection.

• Carbon fiber mast with double spreaders and electric aluminum furling boom - painted to match deck – Boom includes two boom lights
• Navtec stainless steel rod rigging with stainless steel turnbuckle covers on upper and lower shroud turnbuckles.
• Harken 2E II 12-volt electric roller-furling headstay
• Main halyard and furling line lead to cockpit
• Insulated backstay with Navtec hydraulic system for backstay and vang - with Navtec series 50 remote panel in cockpit –includes failsafe turnbuckle
• Removable inner forestay – with halyard
• Masthead includes a 5-function tri-color 360° masthead light, windex and TV/FM antenna.
• Flag halyards – spreader and masthead

WINCHES:

• (8) Lewmar winches
• (2) #55 CCST electric primaries
• (2) #50 CCST electric secondaries
• (1) #45 CCST electric main sheet
• (1) #45 CCST main halyard winch
• (1) #45 CCST jib halyard winch
• (1) #6 Furling control winch

SAILS: All North sails

• Mainsail - Norlam SR full-batten main, set up for in-boom furling, with Sail-Kote Plus treatment.
• 135% #2 genoa - Norlam SR (North)
• Staysail - Dacron

INTEGRITY was built with custom extra noise abatement insulating application.

Yanmar 4JH5E FWC 53-hp diesel engine with a ZF transmission 2.15:1 reduction gear.

• Aquamet 22 stainless steel shaft with spurs and 3-blade Gori folding prop

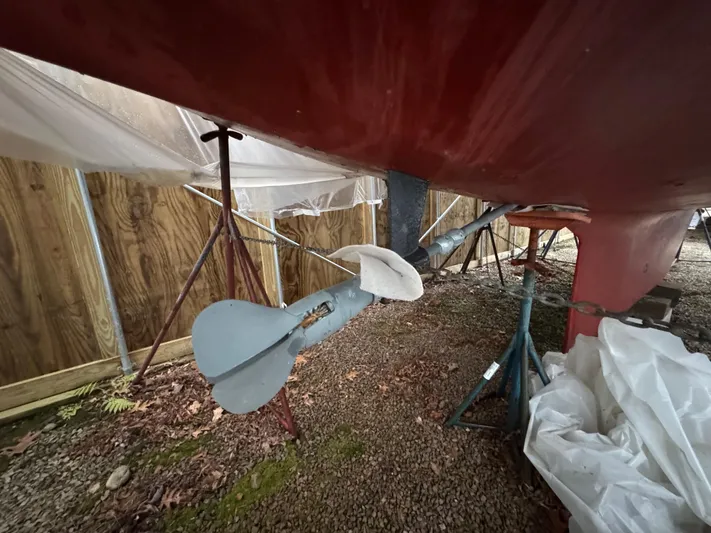

• Side Power 12-volt SR80/185T bow thruster – w/joystick control at helm
• Racor 500 fuel filter/water separator
• Wet exhaust system with muffler and lift at transom discharge.
• Engine alarm oil/overheat, tachometer, temperature and oil pressure
• Oil transfer pump – from main engine
• Espar D5L heater – outlets in galley, dinette, head and forward cabin
• (1) 12-volt DC automatic electric bilge pumps and (1) cockpit manual bilge pump.
• Bilge alarm system
• Bow deckwash – Saltwater pressure system with spigot deck mounted – Jabsco 6900 pump
• Hot and cold pressure water system

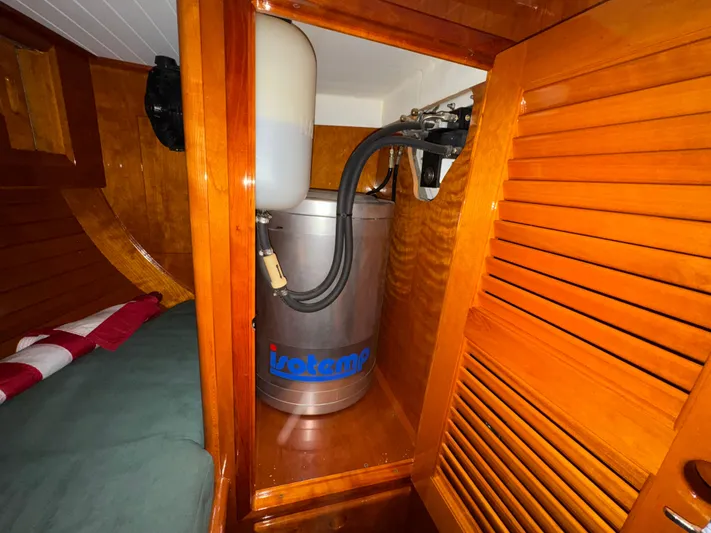

• 11-gallon Isotemp hot water heater - stainless steel, engine heated, 120V-AC element
• Marine electric flush head with holding tank and discharge pump – deck and overboard pumpout
• Sealand Tank Watch II level monitor system
• Fiberglass sump tank with 12VDC pump discharge
• Tank Tender
• Propane sniffer – with sensor in galley and below storage tank locker
• Engine room blower and acoustical insulation
• Automatic fire extinguisher – engine compartment

• MuirStormVRC1250windlass with up/down and with remote switch at helm
• 45# CQR anchor in SS bow roller
• 50’ x 3/8” HT chain +200’x 5/8”rode
• 15’chain x 200’ nylon rode
• 25# Danforth anchor– sail locker
• Emergency tiller steering
• Trilens radar reflector
• Flares
• Horn–dual 12VDC trumpet
• Brass bell
• Fire extinguishers
• ACRLat1 Gpirb -mounted on stern pulpit
• 12-volt spotlight
• Bosuns chair
• (2) Horseshoe liferings with SS mounting brackets on stern pulpit
• MOM 8
• Jacklines and five safety harness padeyes
• 6-man Winslow life raft– in valise and custom deck cradle, weather cover with boat name.
• Magma Newport gas BBQ- with rail mount and cover
• Varnished teak ensign staff
• Fenders with covers
• Docklines
• Sunbrella covers for cabin sole, wheel & pedestal, butterfly hatch, and life raft – some with boat name
• Some fitted sheets and blanket for berths, towels, etc.
• Sunbrella padded dinette table cover.

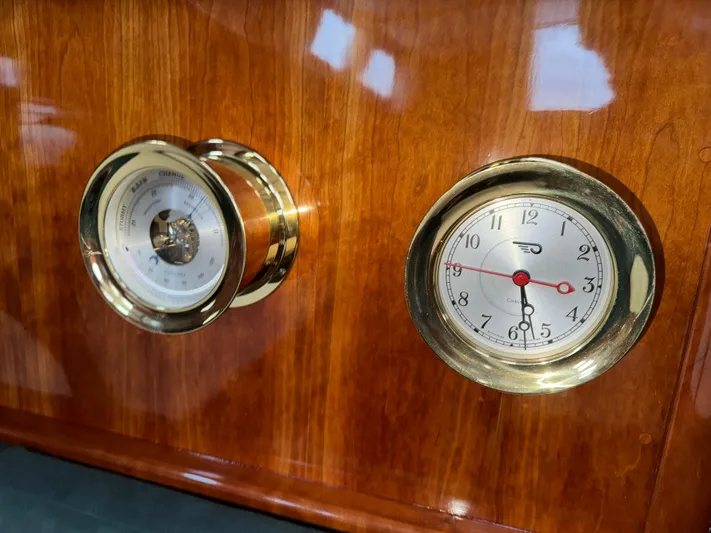

• Chelsea 4” Ships Strike clock and barometer
• Mechanical and spare parts
• Varnished teak outboard motor bracket – mounts on stern pulpit
• Zodiac Cadet 360 ACTI-V INT-L 11’10” inflatable dinghy with 15hp Yamaha 4 stroke outboard with electric start.
• Polished SS outboard hoist with harness for Outboard engine
