- Beam: 27' 6''
- Hull Material: Composite
- Max Draft: 10' 4''
- Fuel Tank: 2 x 132|gallon
- Fresh Water: 2 x 103|gallon

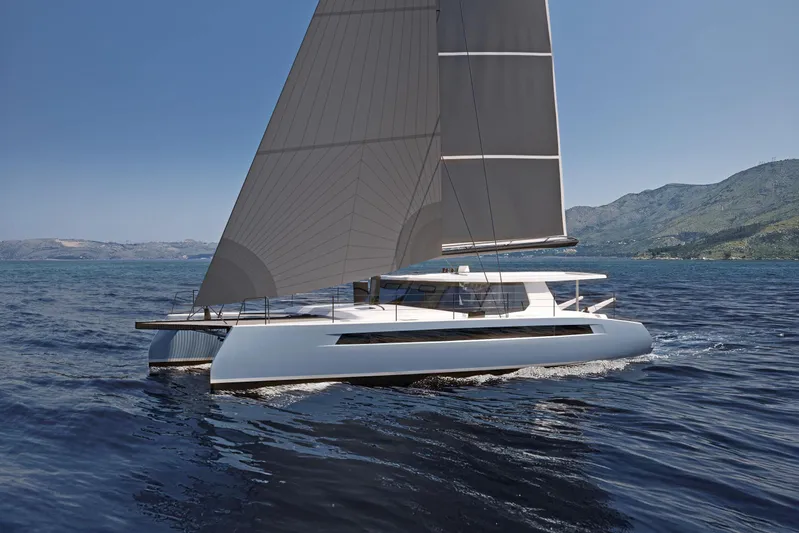

The Balance 540 represents the next evolution of high-performance bluewater voyaging, building on the legendary Balance 526 with greater speed, volume, payload capacity, and refinement—without sacrificing ease of operation. Designed for experienced couples who refuse to choose between performance and comfort, the 540 is longer on the waterline, carries more sail area, and delivers exceptional light-air and top-end performance while remaining remarkably easy to sail shorthanded.
Built using Balance’s full Carbon Core epoxy construction, the 540 features carbon bulkheads, cabin soles, structural panels, daggerboards, rudders, forebeam, and longeron for superior stiffness, reduced weight, and a quieter, more refined ride. For owners seeking even more carbon, the Carbon Core+ version extends carbon construction to the coach roof, cockpit, foredeck, and transoms. Increased hull volume and beam aft allow for higher cruising payloads, larger systems, and true king-size aft cabins without compromising sailing performance.

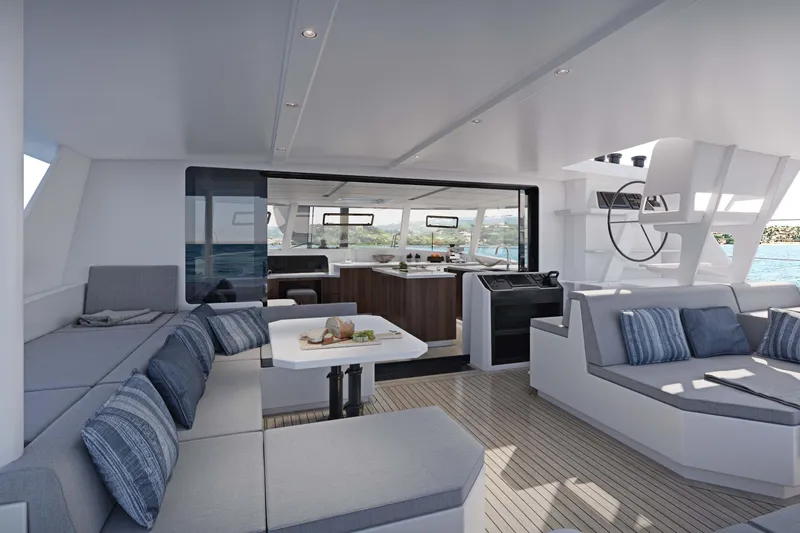

A permanent cutter rig with three furling headsails allows rapid power control in changing conditions, while all sail handling is managed from the award-winning VersaHelm®, delivering exceptional sightlines and all-weather control. The new sliding VersaStern™ door allows the aft cockpit to be securely closed at sea or fully opened at anchor, seamlessly connecting the cockpit and swim platform.

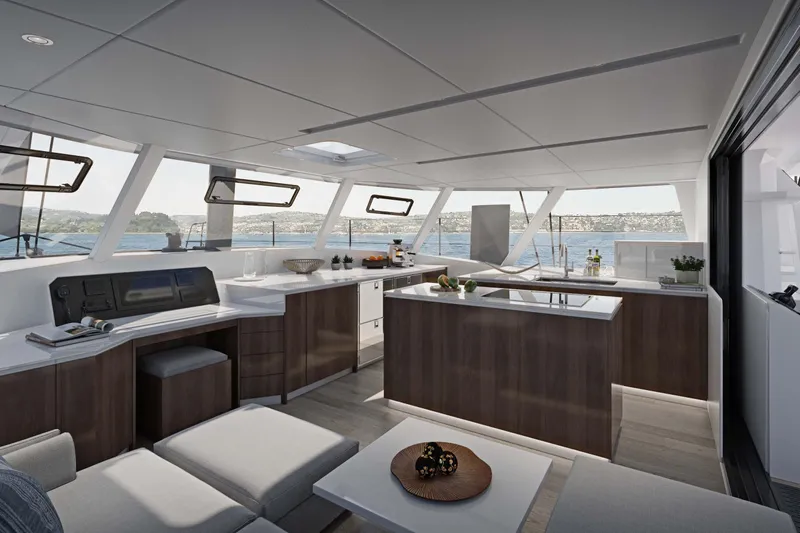

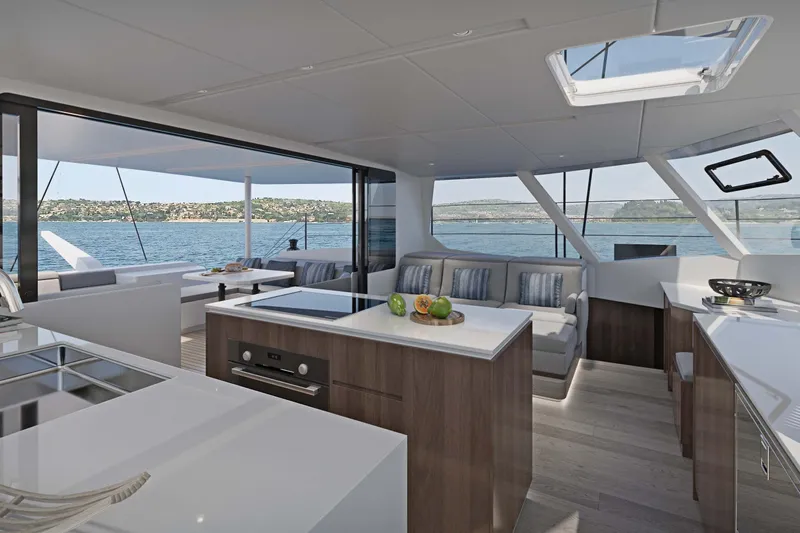

Inside, the 540’s salon is over 2.6 feet longer than her predecessor, with a wide, flush-sill sliding door creating effortless indoor-outdoor flow. The Italian-inspired interior features frameless cabinetry, real wood finishes, an island galley, and a convertible lounge-style settee. Multiple interior layouts are available, including three- and four-cabin owner configurations, making the 540 equally suited for private ownership or luxury crewed charter.
Energy efficiency is central to the design, with optional diesel-electric hybrid propulsion, high-output 48-volt charging, and up to 3,000 watts of flush-mounted solar integrated into the coach roof. Exceptional natural ventilation, expansive visibility, and thoughtful storage throughout complete a catamaran that delivers true long-range performance voyaging—fast, gracious, and effortlessly balanced.
Specifications – Balance 540
Overall Length: 16.61 m / 54.50 ft
Waterline Length: 16.60 m / 54.46 ft
Beam Overall: 8.38 m / 27.49 ft
Main Sail: 115.91 m² / 1,247.65 ft²
Working Genoa: 64.54 m² / 694.70 ft²
Sail Area (100% Foretriangle): 179.10 m² / 1,927 ft²
Asymmetric Spinnaker: 250.15 m² / 2,692.59 ft²
Screacher 160%: 142.74 m² / 1,536.55 ft²
Draft (Boards Down): 3.16 m / 10.37 ft
Draft (Boards Up): 1.24 m / 4.07 ft
Air Draft / Mast Clearance: 24.82 m / 81.43 ft
Displacement (Dependent on Fit-Out): 14,500–15,500 kg / 31,973–34,178 lbs
Underwing Clearance (est.): 0.88 m / 2.89 ft
Engines: Yanmar 4JH57 x SD60 – 2 x 43 kW / 2 x 57 HP
Fuel Capacity: 2 x 500 ltrs / 2 x 132 gals
Fresh Water Capacity: 2 x 390 ltrs / 2 x 103 gals
Black Water Capacity: 2 x 61 ltrs / 2 x 16 gals
Co-Designers: Phillip Berman, Jonathan Paarman & Du Toit Yacht Design
Denison Yachting - Annapolis is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Balance Catamarans.
Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.
STANDARD SAIL-AWAY equipment as per Schedule "A" specifications
Owners Three / Four Cabin GA ( with either convertible office / bunk beds / captains quarters for the Four Cabin option)
Carbon Core Construction - Corecell SAN foam core with epoxy resin and carbon reinforcements in high load areas
Carbon Daggerboards & Trunks
Carbon Rudders, Stock & Quadrants
Aluminium Mast with spreaders and wire rigging - Sparcraft Masts
Aluminium Hayrack Boom - Sparcraft Masts
Carbon Crossbeam and Longeron - Fused Composite Designs
Deck, hull and cockpit including non-skid standard colour Cloud white
2 x Harken 50 Electric Radial Winches (Jib Sheet, Reefs) at helm
2 x Harken 60 Electric Radial Winches (Main Halyard & Genoa) at helm
2 x Harken 50 Electric Radial Winches (lifting dinghy, dagger boards and/or spinnaker and Code 0) aft end coaming
1 x Harken 60 Electric Radial Winch 3 speed at Mast Base
Curved Jib Track on Foredeck
Main Sail (Square Top) - Ullman Sails Crosscut Dacron with stack pack.
Staysail - Ullman Sails Crosscut Dacron on manual Single Line Furler on torsion cable with lock
Genoa - Ullman Sails Crosscut Dacron on Structural Forestay manual Furler with single line
Screecher (Code 0) - Ullman Sails Radial Nylon on manual continuous line Furler with lock
2 x Yanmar (4JH57hp) SD60 sail drive diesel engines and standard fixed props
Yanmar VC20 Dual electronic throttle (upper helm & lower helm)
Each engine has a 12V 130a/h AGM start batteries trickle charged from the main house bank
E - Power Single Integrel 9KW – 48V charging system - port engine
Dual Racor fuel filters per engine
Service Voltages: 48 VDC & 220V 50Hz & Optional - 110V 60Hz per ISO/CE standards
Victron Lithium-ion Batteries 4 x 24V 200A/h, 400A/h capacity at 48 volts
Victron Lithium-ion Batteries 1 x 24V 200A/h, charged from the 48V bank
Victron Quattro Inverter Charger 2 x 48V 5KW, 230V Charger/Inverter for the house batteries
Digital Battery & Monitoring System via Victron display
C-Zone digital switching system
Shore power cable; 20m 230V Marinco with easy lock system starboard transom step
AC outlets/USB: 2 x AC outlets/USB per cabin, 4 x AC outlets/USB in the galley, 2 x AC outlets/USB at the nav, 2 x AC outlets/USB at fridge area, 1 x AC outlet/USB at the DB board, 1 x AC outlet /USB in hull passage
LED Downlights for cockpit, saloon, galley, companion ways, heads and cabins - warm white/red.
Self switching LED service light in engine rooms, DB board, sail lockers, water maker cupboard, comms cupboard & foredeck lockers
Courtesy lights (warm white) one on each transom step
LED strip lights for port and starboard companion ways, galley, nav area, saloon plinth & furniture detail in cabins
Reading lights - Chrome, warm white self-switching x 2 in each cabin
Each cabin has 2 x Caframo Sirocco white fans
Electric Tecma silent plus 2G 24v (Tall) white toilets x 3, salt & freshwater plumbing
Indel Double Drawer 160L Light Fridge
Indel Double Drawer 160L Light Freezer
Bosch Electric oven, 4 plate induction hob with stainless-steel pot holder
Portlights in saloon windows - 1 x 900 in the front window and 2 x 600 in the side windows
B&G ZEUS S 12 Multi-function Display (Includes chart for South Africa)
B&G HALO20+ 36NM Radar on the mast
B&G TRITON2 digital display
B&G Autopilot - NAC-3 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, 1 x TRITON2 Autopilot control head
B&G Hydraulic 24V T3 Ram
B&G V60 DSC- AIS - RX VHF marine radio fitted at nav table
B&G V3100 SOTDMA Class B AIS with GPS-500
Transom Outdoor Shower Pressurized hot and cold water - starboard side
Aluminium flip up Sparcraft swim ladder - starboard side
Electric Anchor windlass (non-capstan) with wired remote
Primary Anchor - Rocna 40 MKII with 50m of 10mm (3/8”) galvanized chain
Secondary Anchor: Fortress FX-55 with 3m chain & 90m warp
8 x Inflatable fenders with 2.5m of polyester rope
2 x custom fenders for aft transom step
10 x 15m by 18mm black dock lines with spliced eye
8 x Black alloy mooring cleats - Sides and transom
2 x Pop up cleats on the transom
2 x Fairleads for mooring at the bow of the boat
Carbon Steering wheel
Carbon Stanchions with Dyneema triple line guard rail
Carbon Dock line chafe plates
Dyneema Trampoline, black colour
Line bag & Daggerboard covers package
Black Aluminium pulpits with white composite seat
Versa-Helm swing pedestal (upper/lower position)
Folding stainless-steel Bimini with canvas sunshade at upper helm
Composite grab handles around coach roof, transom coaming & between lower & upper helm
Build in Aft Cockpit track for canvas enclosure
Versa-Doors with custom sliding on transom port & starboard
Salt water deck wash located on the fwd face of anchor locker & port transom
Cockpit composite table on telescopic pedestals to lower into daybed
Wooden Saloon table (matching carpentry) with double fold out leaf on telescopic pedestals to lower into daybed
Cockpit quick-dry foam cushions covered in outdoor rated fabric
Foam mattresses 150mm (6") thick for all cabins with memory foam topper.
All Cabins have Dometic Oceanair pleated shades
All heads and showers have Dometic Oceanair white roller shades
Heads counter tops, Solid surface with matching basin all white with towel rails in all heads
Bottom Paint - Pettit Odyssey Triton Black
Interior Fabric and Timber Veneered Cabinetry options as per the Balance Configurator
Launching and Commissioning
