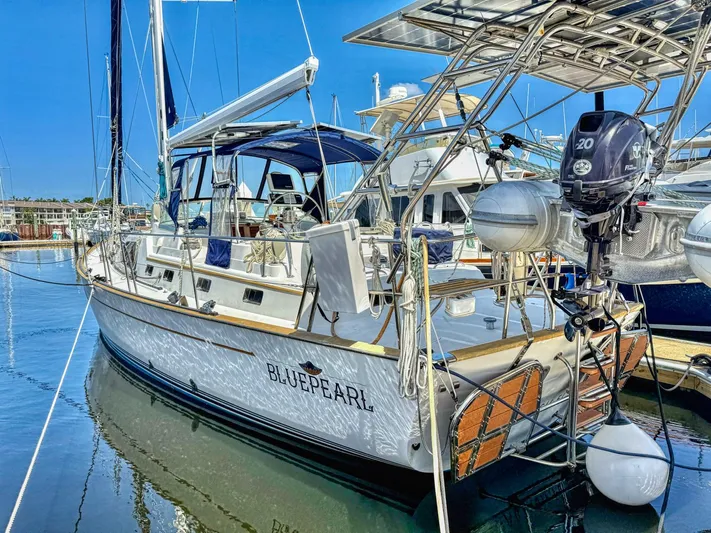

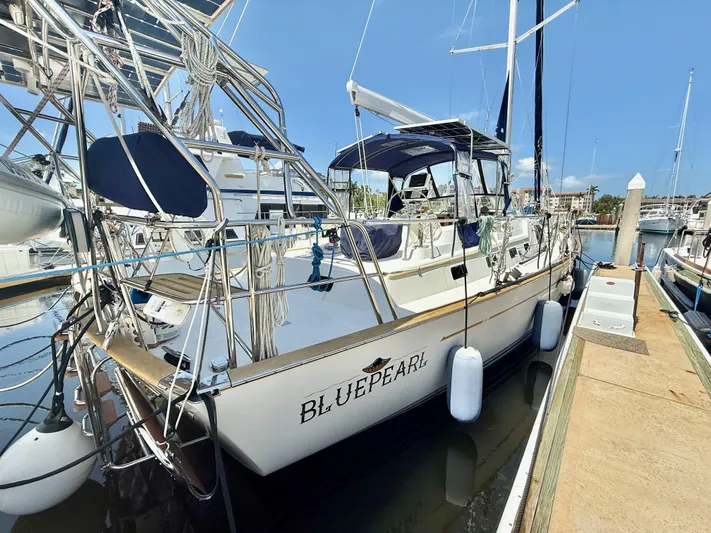

51 Passport 2006 Boat for Sale

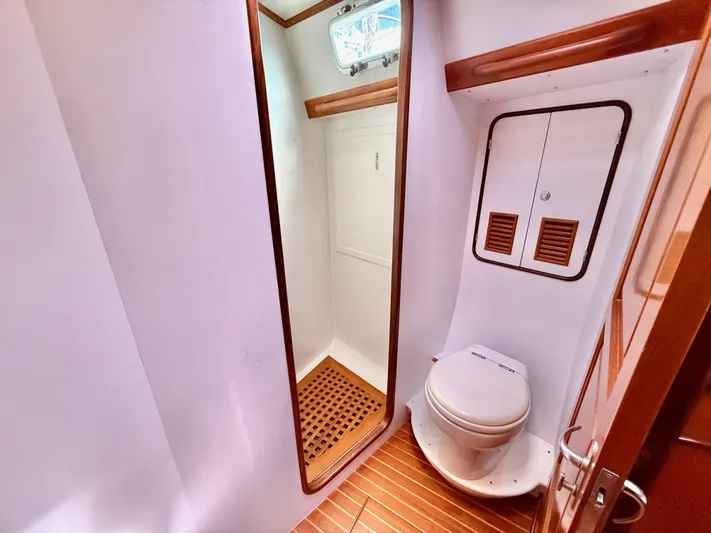

2 cabin 2 head layout each with separate stall showers

The interior layout is very spacious with impressive headroom and plenty of light making her an easy boat to live aboard for long periods at sea.  The interior is hand built by skilled shipwrights.  There are great flow and sight lines from forward to aft.  The joinery all fits perfectly and wood grains match where possible.  The boat is solid with no creaking floorboards when you walk around nor with bulkheads in a seaway.

The layout from forward to aft begins with a guest stateroom forward with a centerline berth with an ensuite head next aft to port.  There are lockers outboard of berth and drawers under and a large hanging locker starboard.  A pocket door provides access to enter the head with sink in the stateroom.  The stall shower has a teak seat and automatic shower sump pump. There is separate access to the head from the passageway.

Outboard to starboard is a front opening Frigoboat refrigerator with a locker under.  There is a liquor locker and additional lockers in this location. An ice maker is located next to the refrigerator.  Inboard is the mast hidden behind a door.

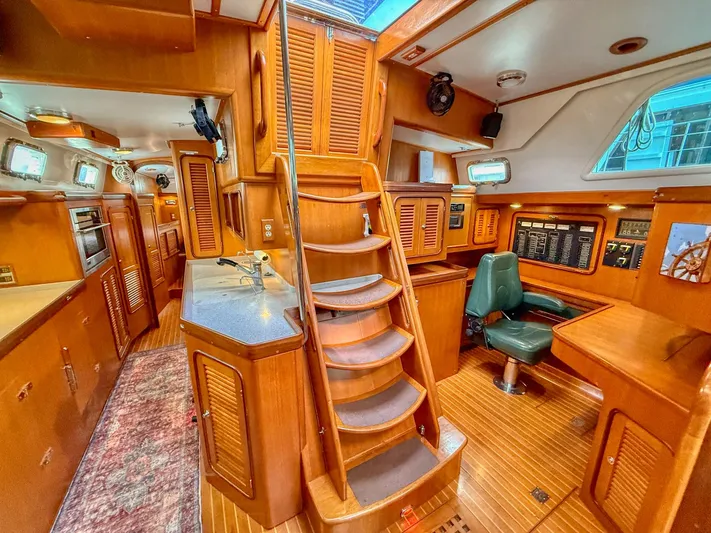

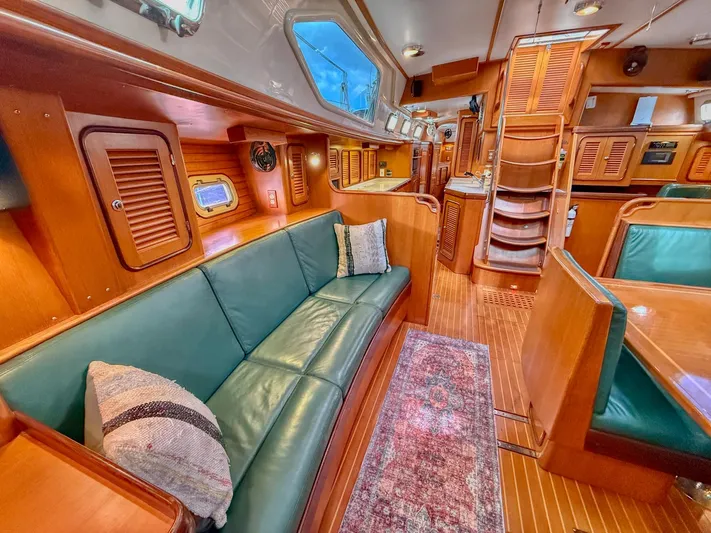

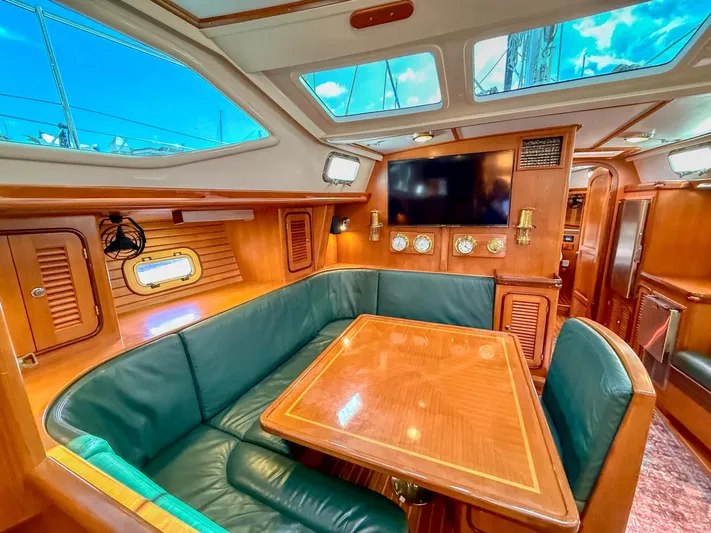

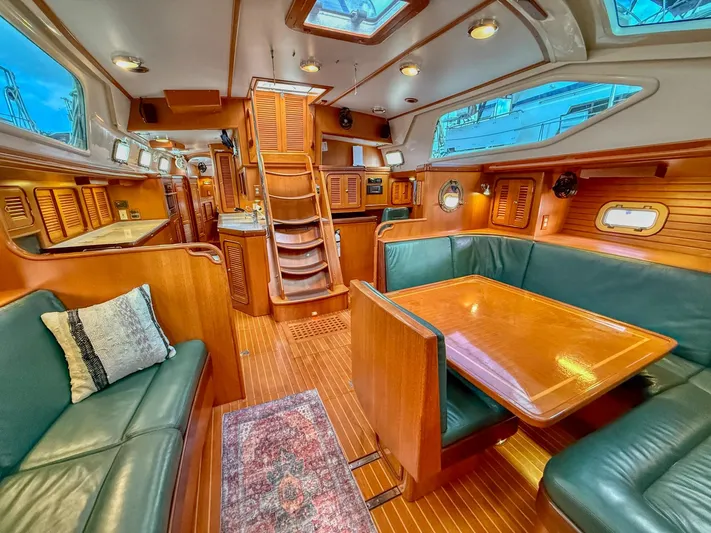

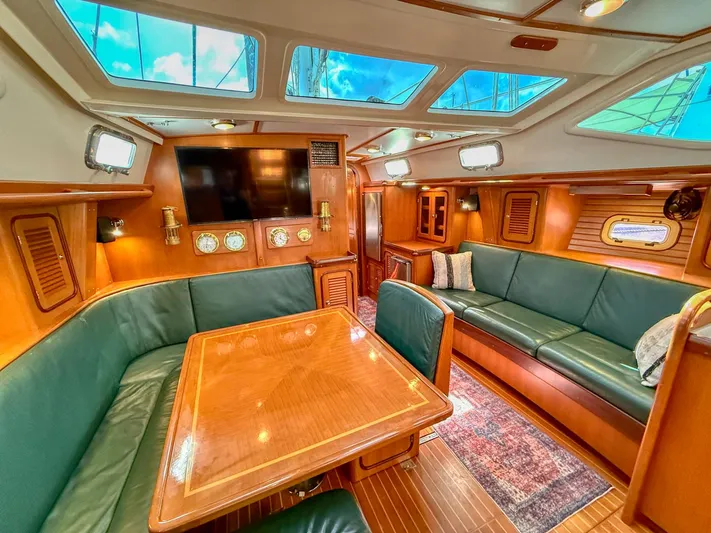

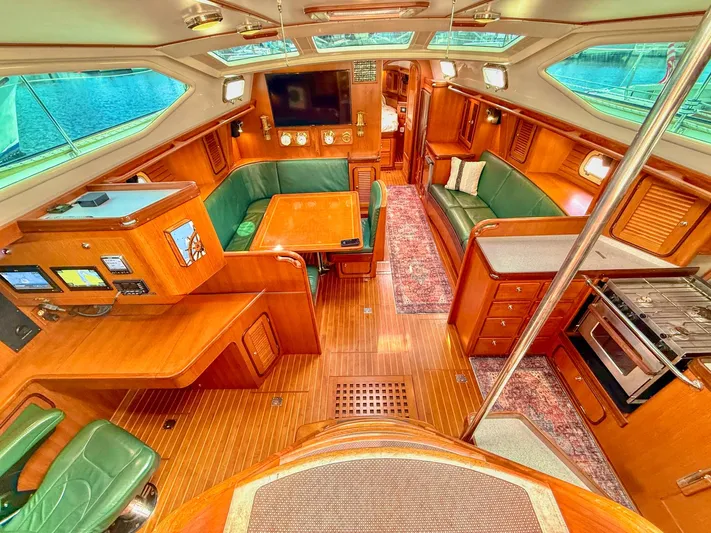

The salon has a straight settee on the starboard side and a U-shaped settee to port with a teak dining table.  A bench seat inboard provides additional seating on tracks to slide in and out.  The dining table can be lowered and converted to a double berth.  Custom cushions are covered in rich green leather.  Next aft to port is the full-size navigation station which is adjacent to the cockpit companionway.  It features a large desk, plenty of storage, and a very comfortable adjustable navigation chair covered in matching leather upholstery.

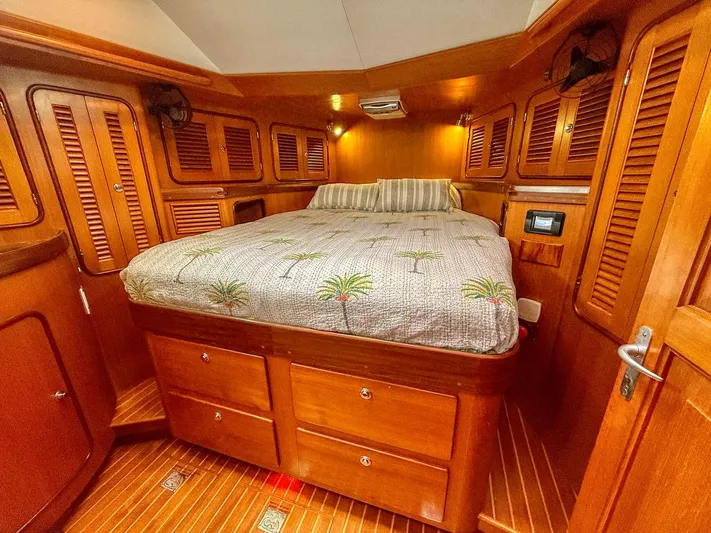

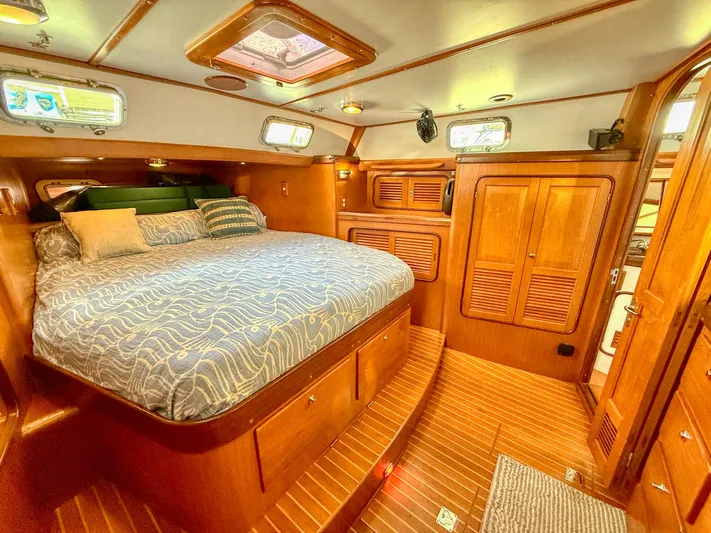

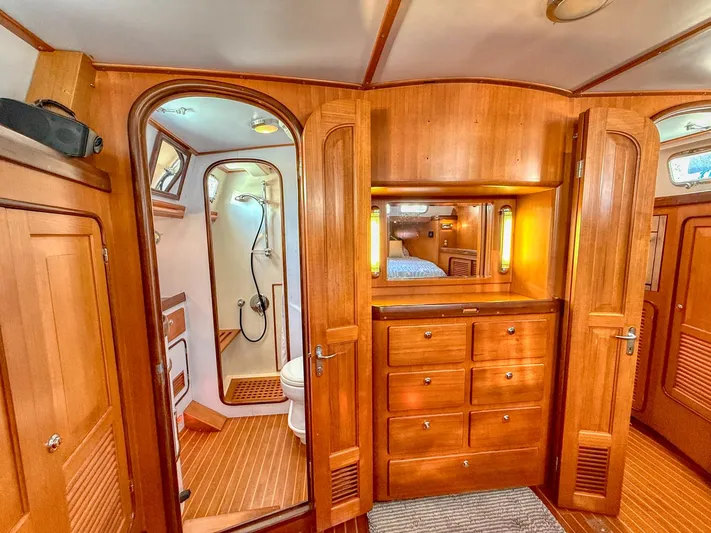

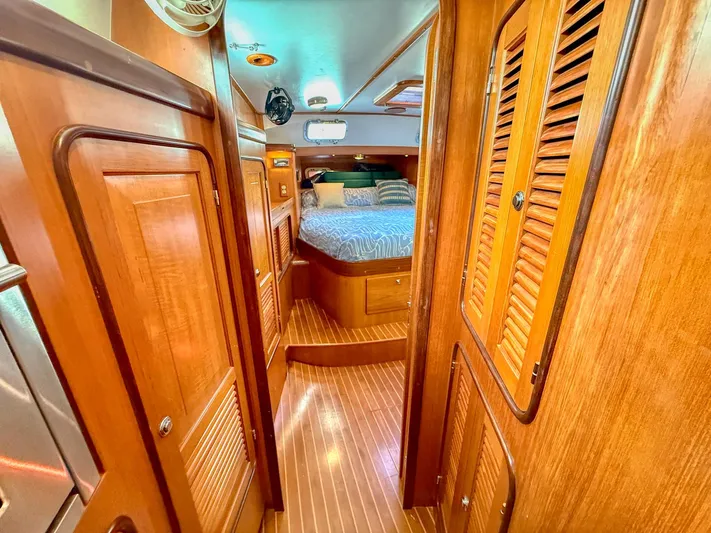

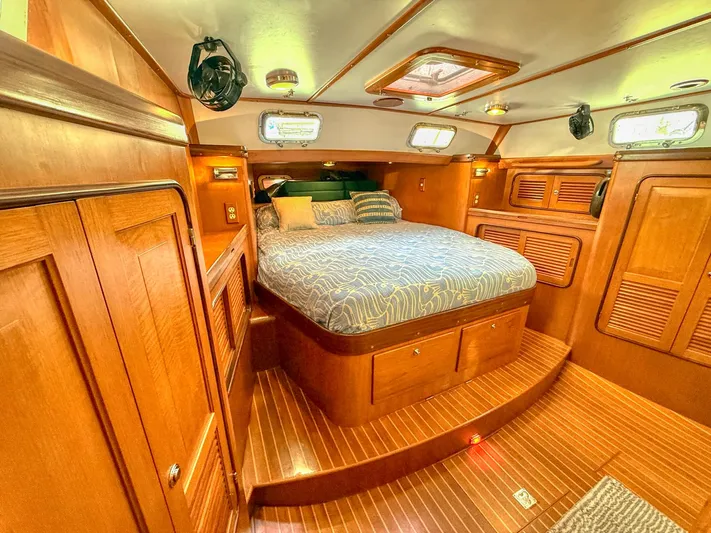

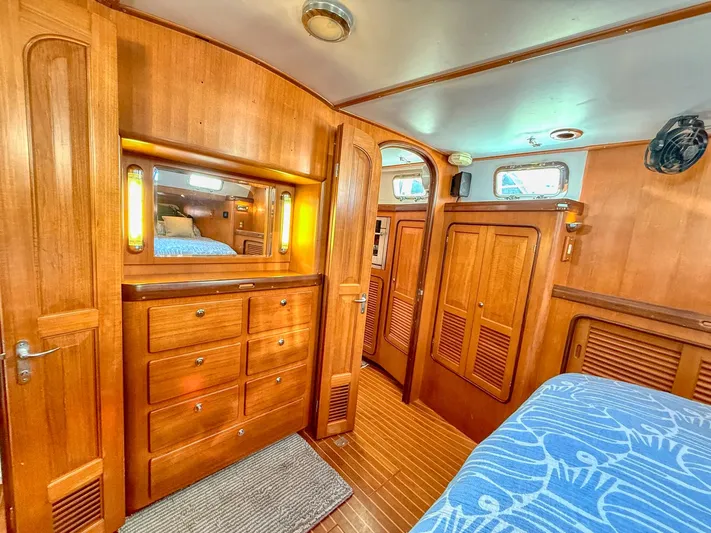

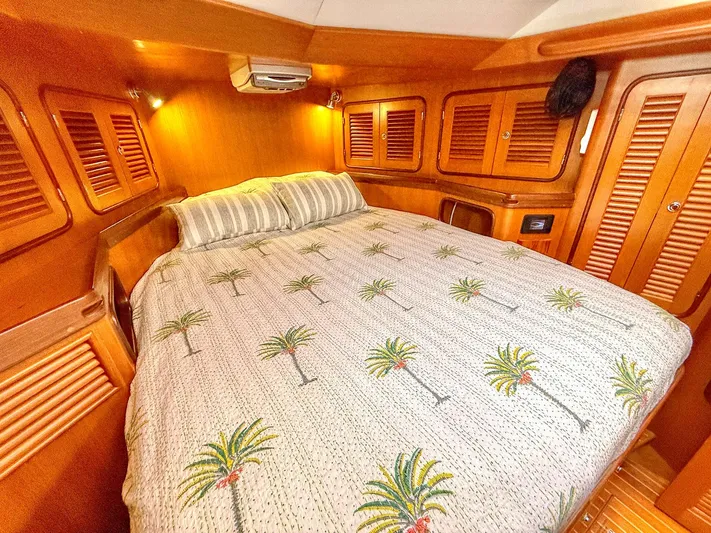

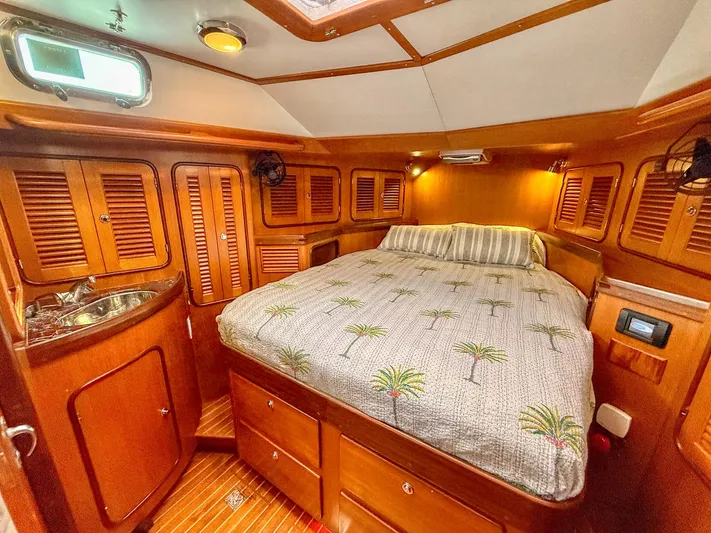

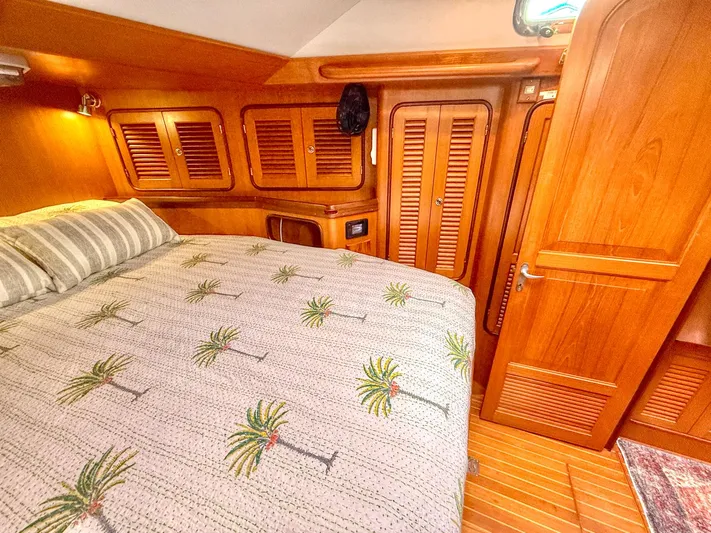

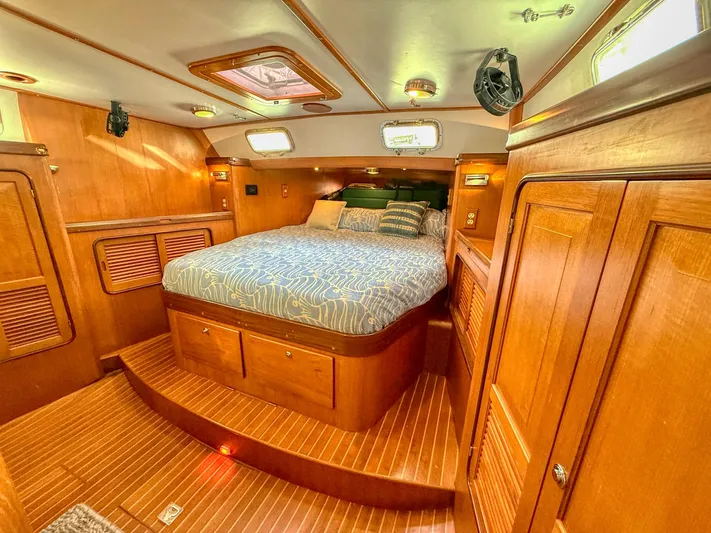

Continuing aft is the luxurious master stateroom with centerline berth, hanging lockers port and starboard, bureau forward on the centerline, and ensuite head with separate stall shower with teak seat.  In the shower is the access to the washer/dryer and walk-in engine room.

ADDITIONAL FEATURES:

Solid teak trim on interior bulkheads and cabinets

Solid teak doors

Teak cabin doors with louvers

Solid teak and holly cabin sole

Locking floorboards with stainless steel hardware

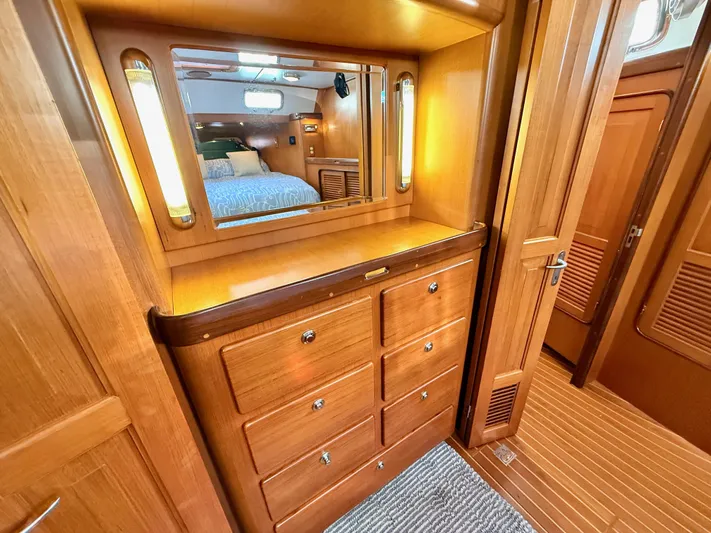

Removable dresser to access the generator (twist locks inside drawers)

Removable Formica overhead panels with teak battens

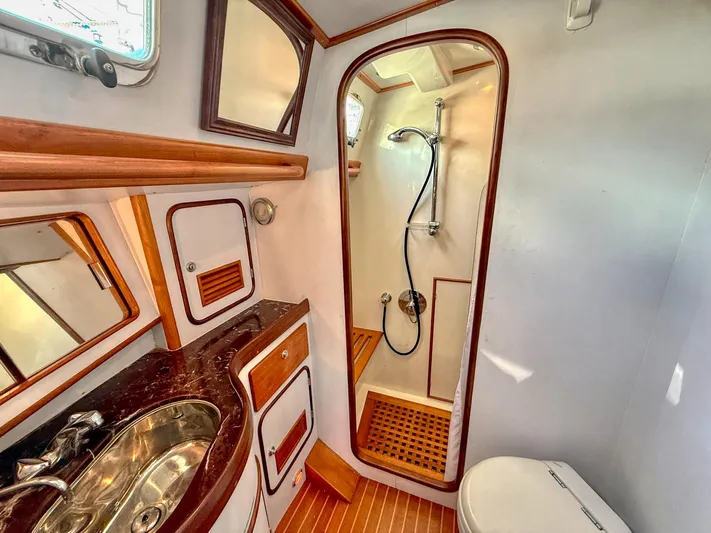

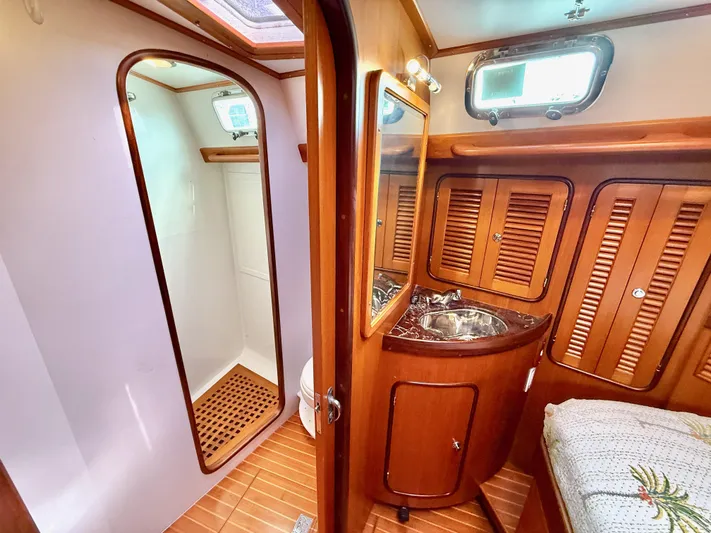

Grohe faucets in heads

Automatic shower sump pump in each head

Tecma heads with macerators, salt or freshwater electric toilets for each

Holding tanks with deck pump-out and overboard discharge (gravity feed) for each head

Bidet attachment for aft head

Carbon Monoxide detectors

Marble counter tops in heads

7” thick custom latex foam mattress in both staterooms

Light and Ventilation:

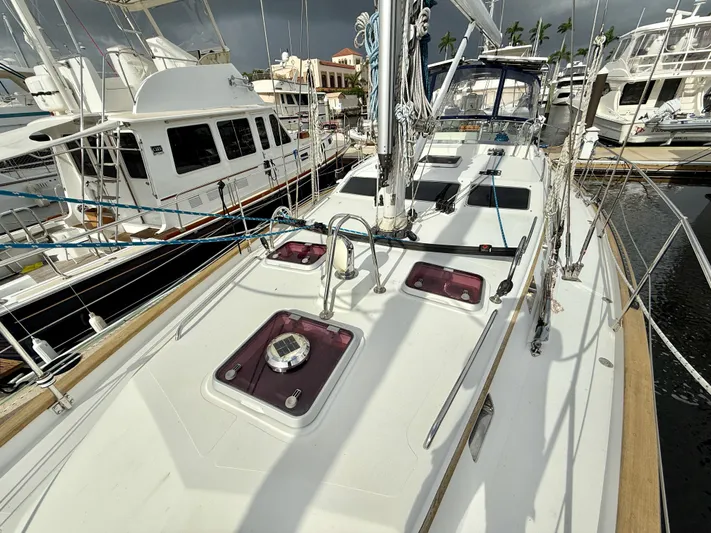

Five Lewmar Offshore overhead hatchs, (with two Nicro solar vents)

Hood stainless steel opening ports with safety glass and screens

Four Lewmar offshore ports in the hull (port and starboard in salon

And two on the stern in aft cabin

Custom fixed windows with laminated glass upgraded from 10mm to 13mm thickness

Five dorades with stainless steel controls, plates and guards

Twelve 1 halogen/2-volt 6” cabin fans

Cantalupi halogen and LED lights throughout

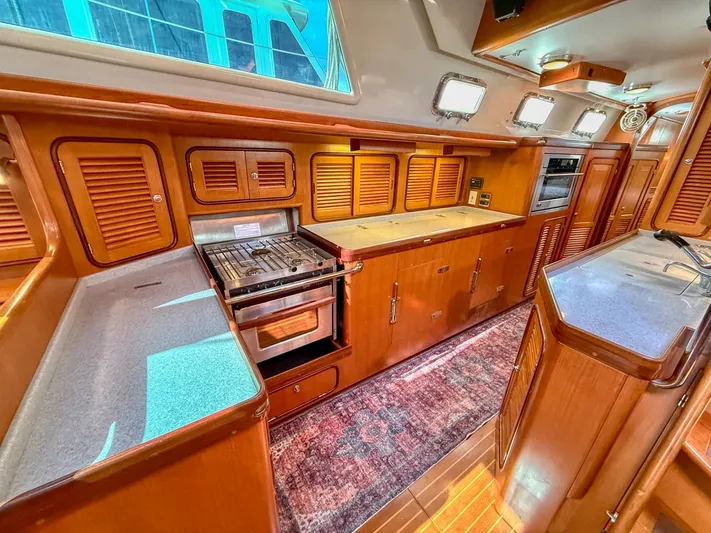

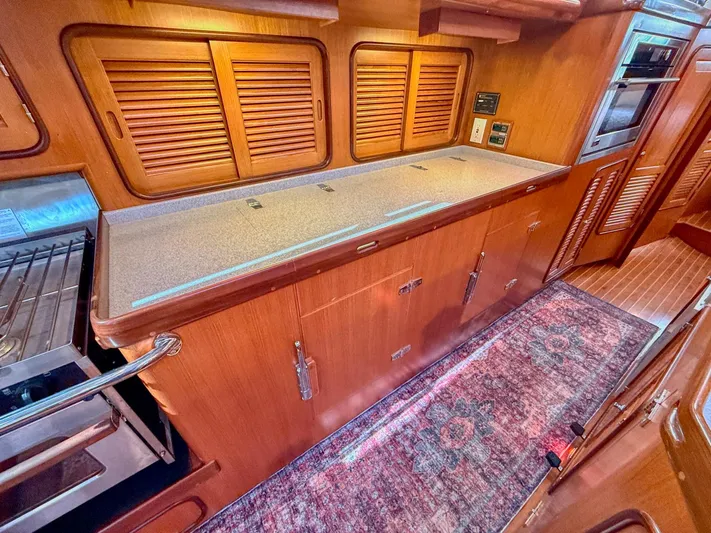

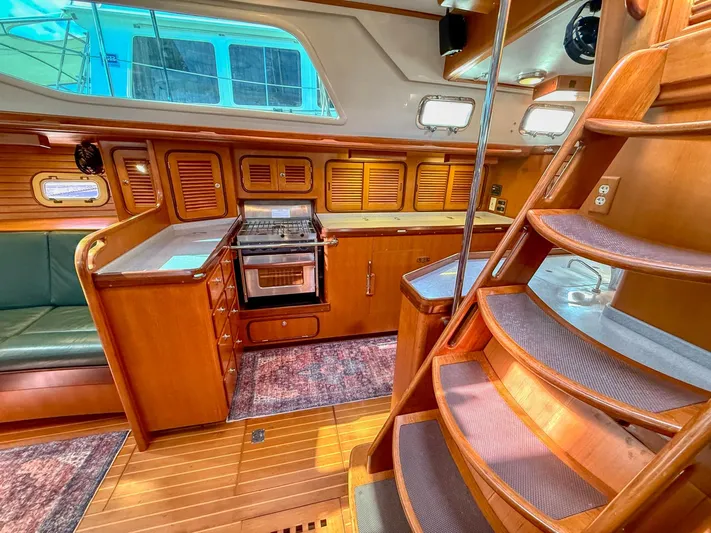

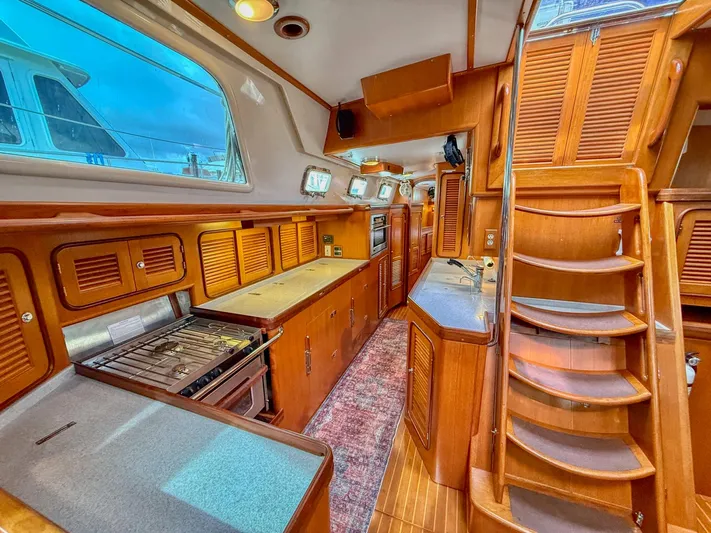

Force 10 three burner stainless steel propane gimbaled stove with oven and broiler in stainless steel lined stove and safety bar

Two fiberglass propane 20lb tanks in vented storge compartment topside just aft of cockpit

Safety propane control with solenoid

Spectre Newport 400 compact water maker with Zion

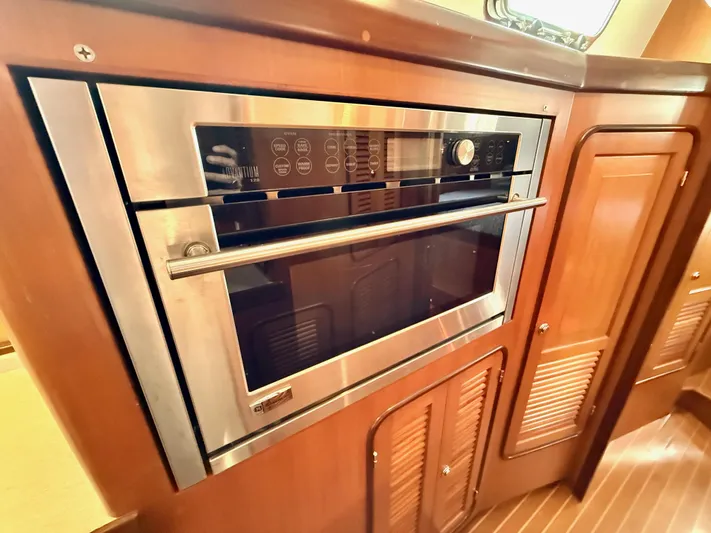

GE Advantium 120 Microwave/Halogen/Convection Oven

12 volt Frigoboat refrigeration with digital controls and smart speed controls, top and front opening

12 volt Frigoboat freezer with digital controls and smart speed controls, top and front opening

Both refrigerator and freezer have top and front opening access with poured foam installation

Corian countertops

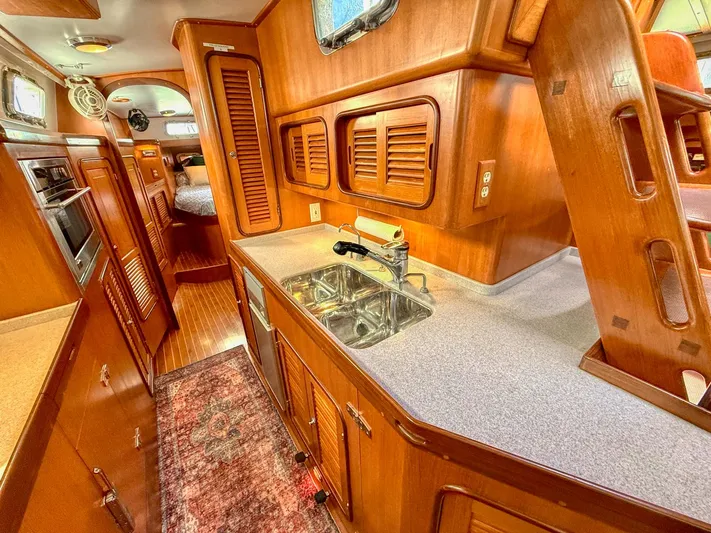

Custom deep double stainless steel sink with Corian covers

Grohe faucet at galley sink

Seagull drinking water purifier with a faucet at galley sink

Salt and freshwater foot pumps at galley sink

Broan trash compactor

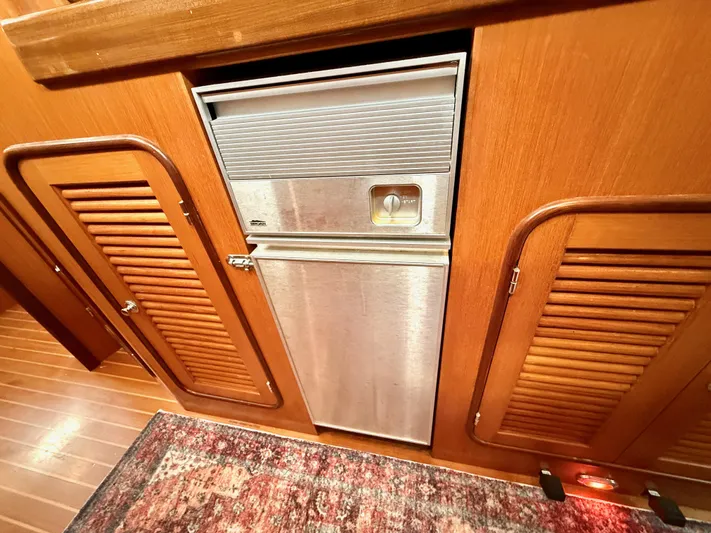

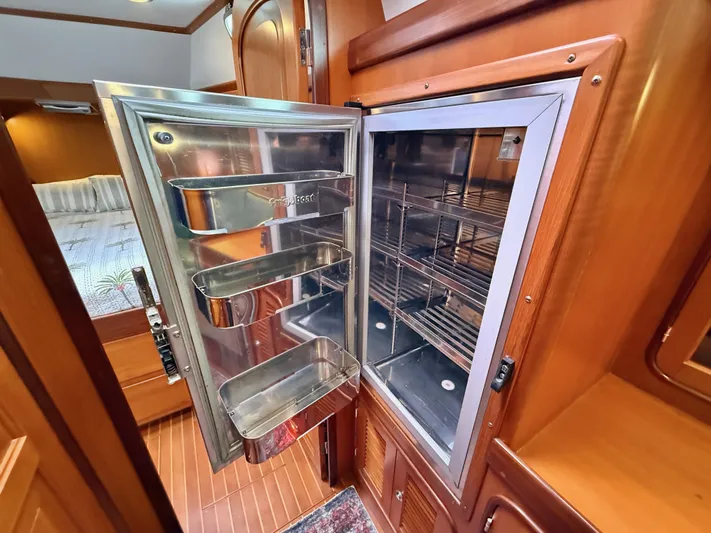

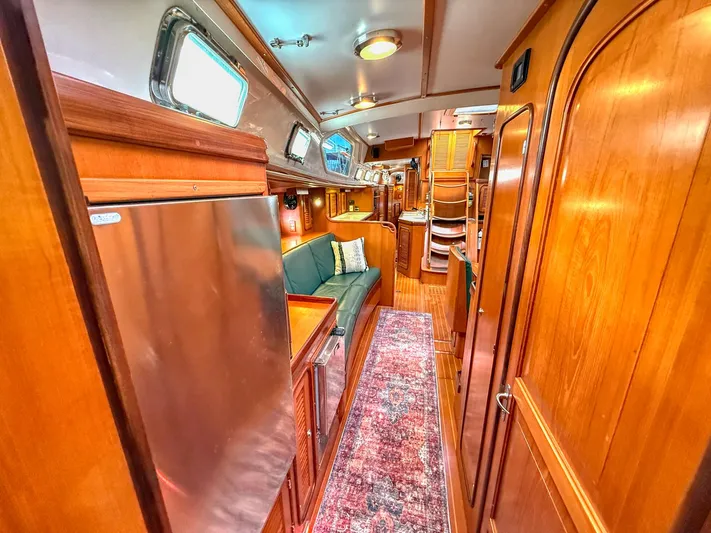

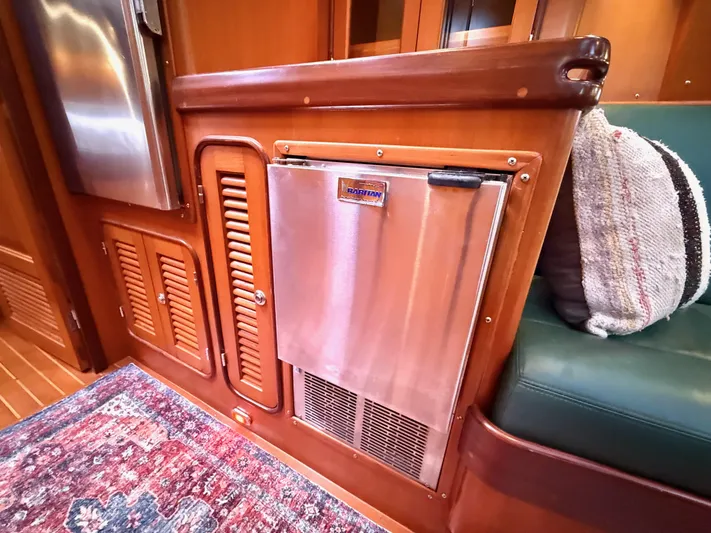

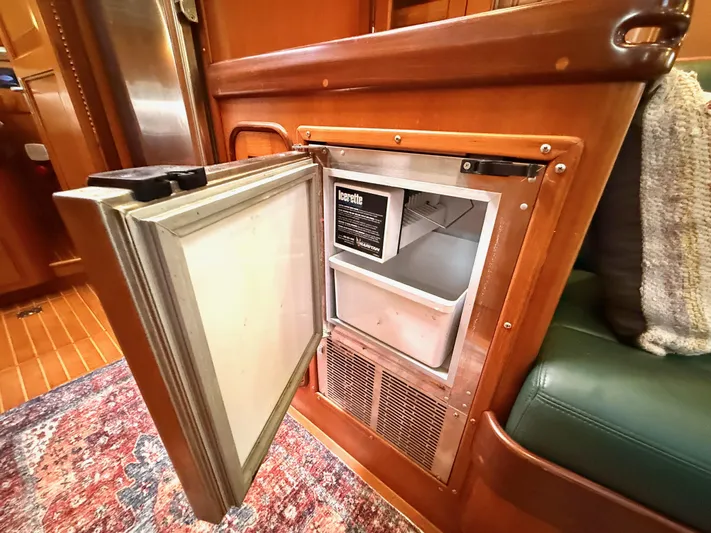

Traditional front opening upright Frigoboat refrigerator forward of salon

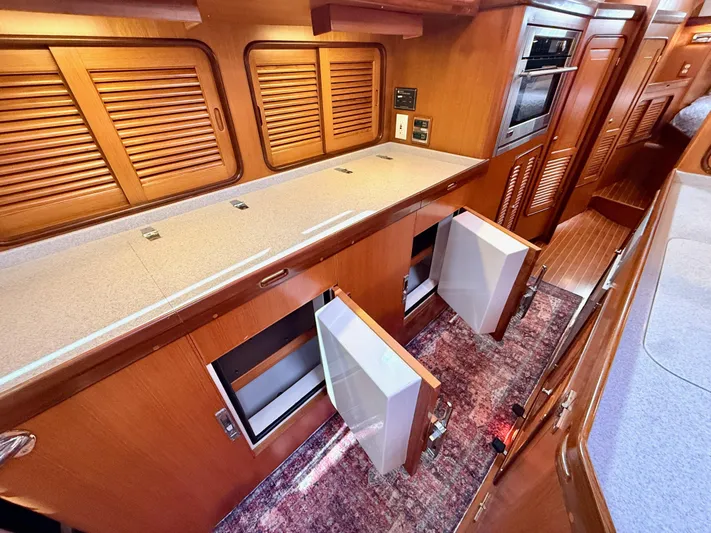

Large pantry and generous storage numerous drawers, lockers, and dry

bins

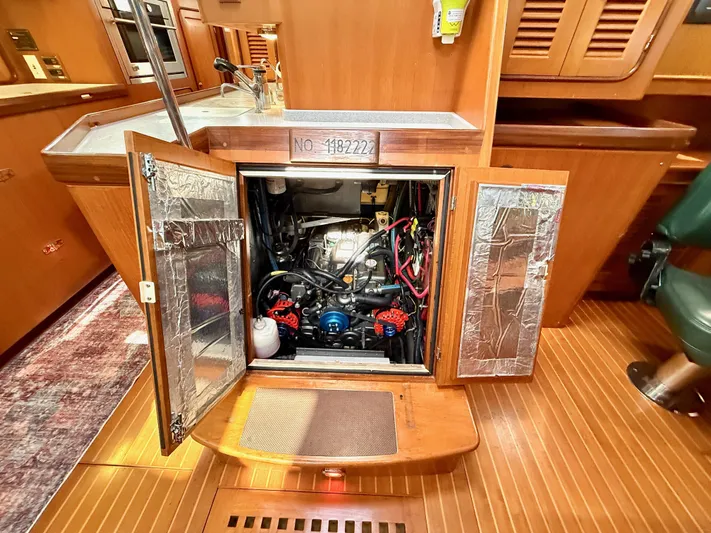

Ingenious hinged cabinet to access side of engine

In 2023/2024 all electronics replaced and upgraded:

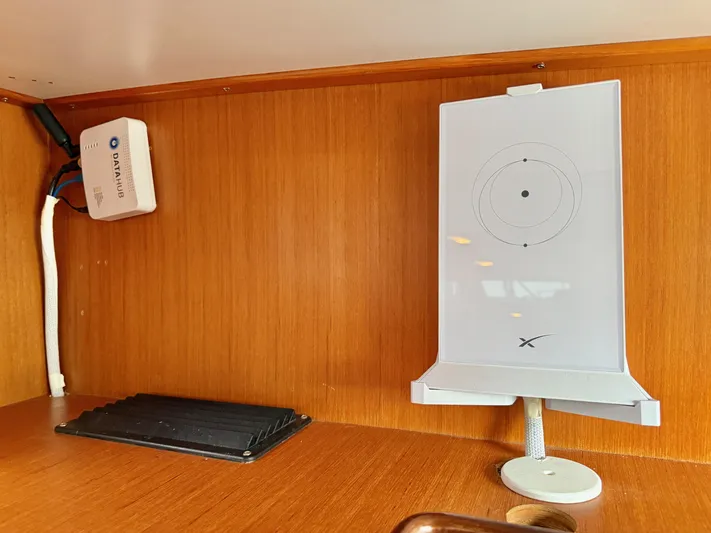

Starlink and Predict Wind data hub

Apple TV

LED masthead and anchor light new 2022

Running lights new 2022

Masthead mounted Windex

LED Deck lights on spreaders new 2022

Raymarine ST60 depth, wind, and  speed instruments over the companionway

Raymarine EV 400 Sail Evolution auto pilot, with type 3 hydraulic linear 12 volt ram

Raymarine Quantum 2 Q24D radar doppler w /15m power and data cables, weems and plath mounting bracket

Shakespeare 40w Loud Hailer Horn Speaker

Add new Raymarine RS-150 external GPS antenna to interface with existing Raymarine and Victron systems to newly added Garmin network

Installed new Garmin forward Scan transducer and Airmar DSt transducer

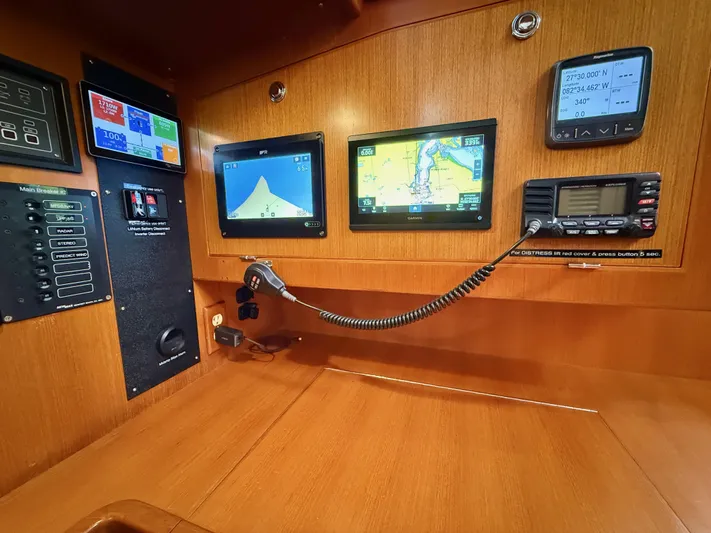

Installed New Garmin 743 GPSMAP MFD (7”display_ along with existing instruments onlower Navpod at Helm Station 2022 S/N6UB006862

Garmin Forward scan transducer S/N 50648737

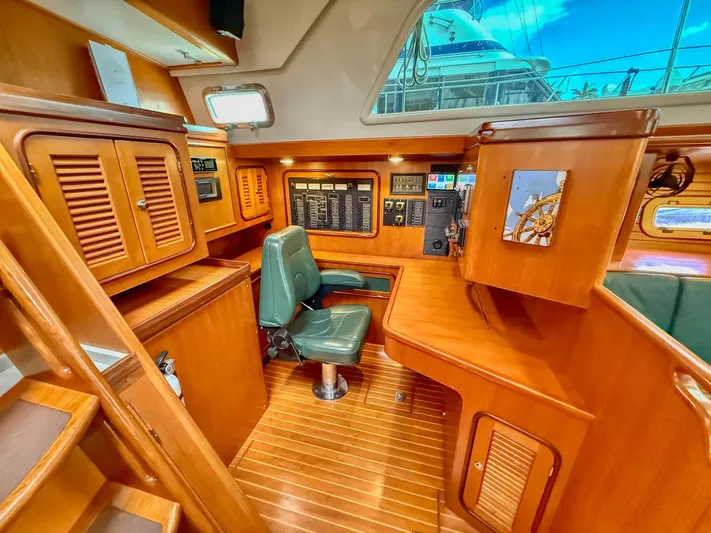

Garmin 9” GPSMAP 943 MFD display at nav station 2022 S/N6UG014491

Raymarine 12” MFD display on upper pod of helm station 2022

Raymarine 9” MFD display at navigation station 2022

Raymarine RS-150 Eternal GPS Antenna S/N 09101711

Lighthouse Vector charts 2022

Raymarine AIS Class B transceiver 2016

Uniden ES UM 525 VHF radio

SSb ready with insulated backstay antenna and copper grounding plate in hull

Cordless RAM Standard Horizon Intrepid Plus VHF radio

ACR Rapidfix 406 RLB-33 EPIRB

Computank fuel, water and holding tank gauges monitored on Victron panel

Samsung 4G 32” flat screen TV in main saloon with Apple TV

Sony 12v DC DVD player  in forward stateroom

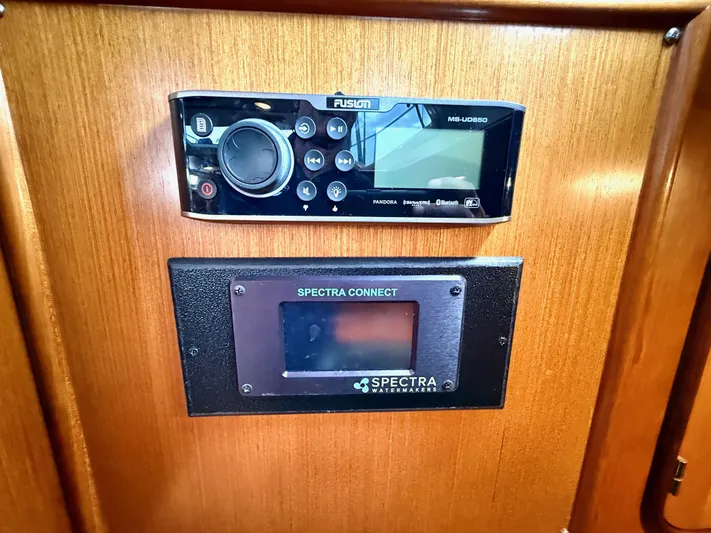

Fusion MD-UD650 Uni-dock marine stereo with 3 zones (sloon, topside,and aft cabin)

Under water camera 2022

Underwater lights 2022

Spectra Newport 400 ultra efficient compact water maker with Zion tech (17 gph) 2023

Ritchie Globemaster 515 pedestal mounted compass with cover

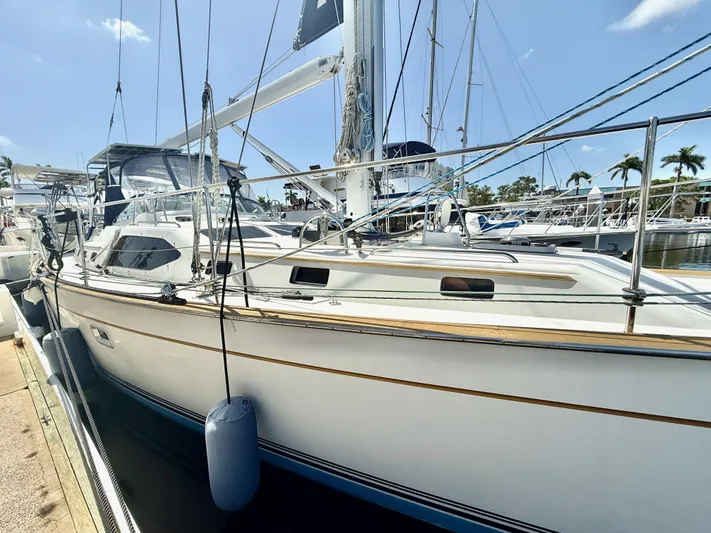

Hull and Deck

Bottom paint 2023

Hull:  Solid fiberglass hull, hand laminated, using Kyntex knitted and stitched biaxial fiberglass fabric in conjunction with mat and woven roving, vinylester resin and with Kevlar reinforcement in high impact areas in the hull layup

Matrix of longitudinal and transverse foam cored stringers in the lower hull and hull sides to provide maximum hull stiffness

Isophthalic gel coat is on all exterior fiberglass surfaces.

Watertight bulk head located forward

Internal lead ballast (14,00 lbs) glassed into a fixed modified fin keel (no keel bolts)

Partial skeg mounted semi- balanced rudder with internal stainless steel rudder post and integral stainless reinforcements with bronze rudder shoe

Deck:

The deck is a composite construction using closed cell foam coring

All deck hardware areas are reinforced using solid fiberglass ( no coring)

All deck hardware is through-bolted using stainless steel backing plates and bolts

No wood coring is used anywhere

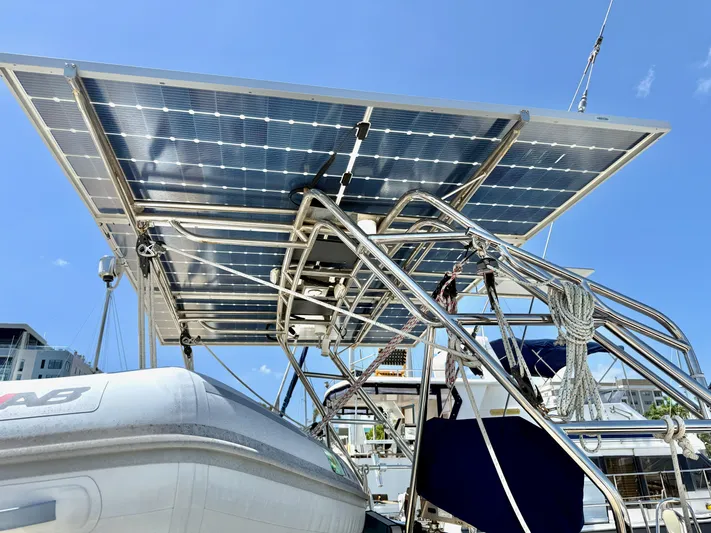

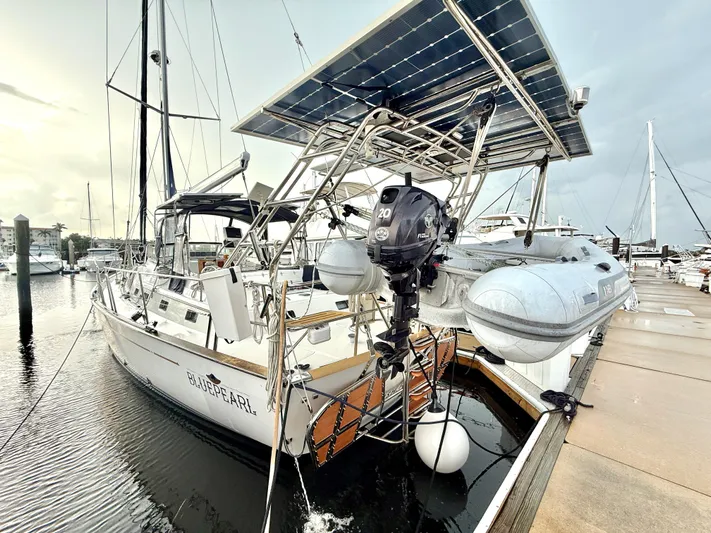

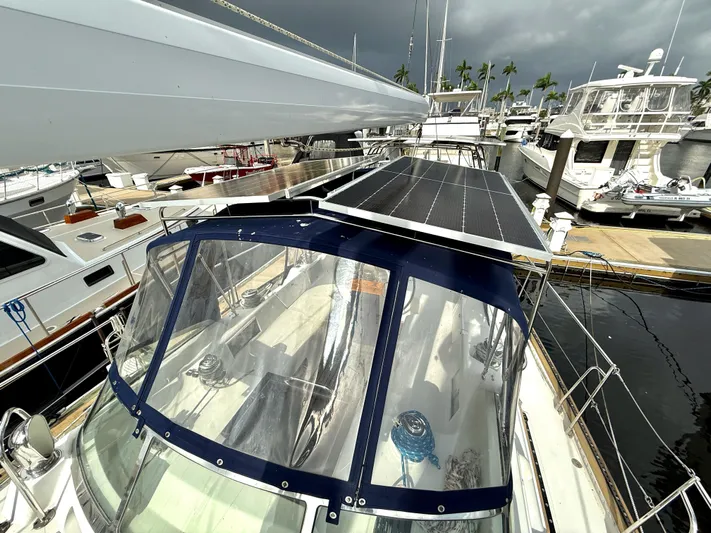

2200 watts of solar on custom Stainless Steel frames  (one mounted to Davit for three 435w bifacial solar panels and one above bimini for two 435 w solar panel)

Five Lithium ion iron phosphate 300 amp hr batteries 2022

Group 31 AGM marine starting battery for engine and generator

Two Group 31 AGM marine batteries for bow thruster and windlass

Two Balmar highoutput alternators

Two Arco Zeus alternator regulators

Converted v-belts to Serpentine Belts

DC two Bridgeport 60amp isolation transformers

Water, fuel holding tank monitors

DC to DC chargers

Victron BMV-712 smart battery monitor

2- Victon Multiplus 2 inverter/charger 3000 watt

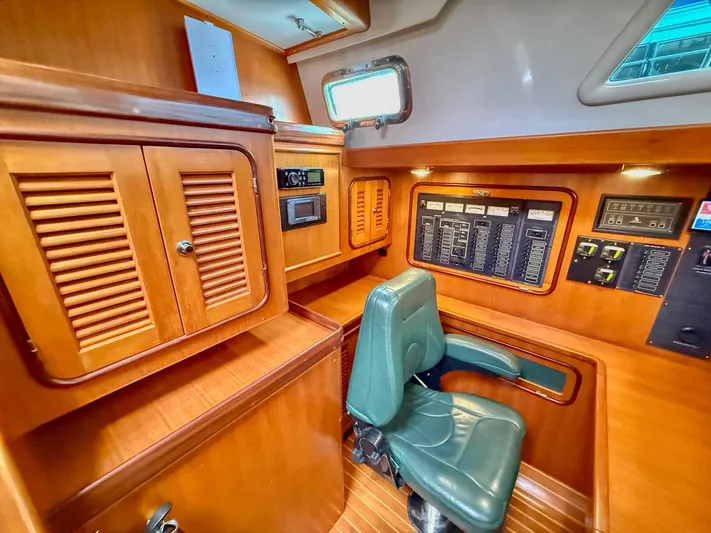

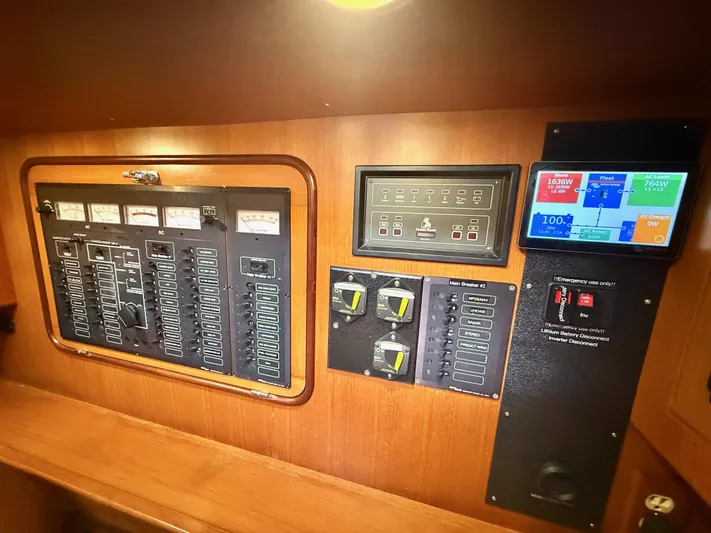

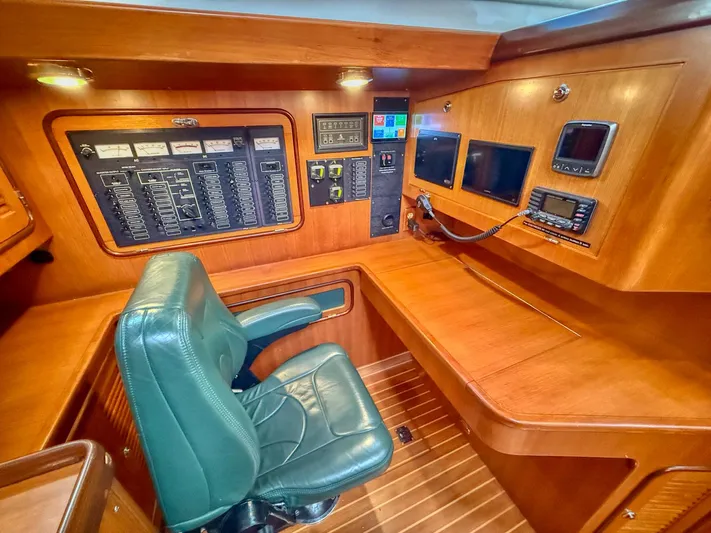

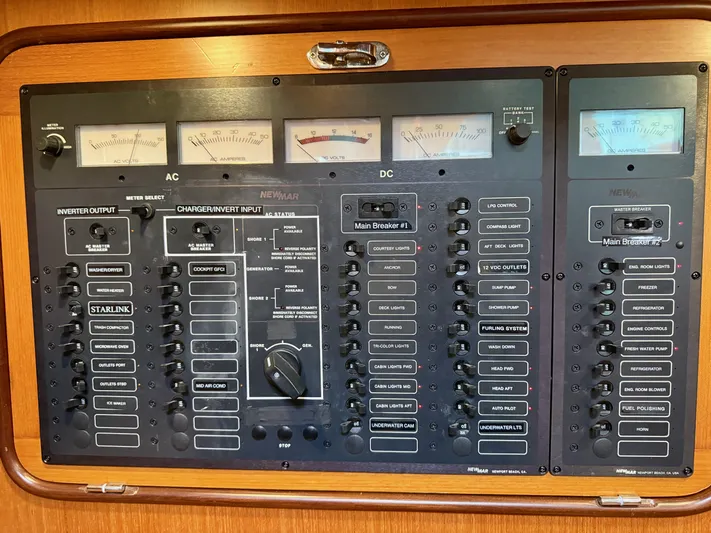

Custom Newmar ES-5 and ES-6 electrical panel(CE and ABYC compliant) at navigation station

110-volt 50amp/250-volt shore power inlet and shore power cables

Selector switch for shore power or generator

AC electrical panel section includes two load groups

DC electrical section includes two master breakers for two load groups

Five gauges for A/C and D/C panels

110 volt outlets throughout with GFI outlets in both heads, galley and the cockpit

AC and DC electical wiring conduits

Two Guest heavy duty battery selectors

Two cut off switches for emergency use on Lithium Batteries

On and Off switch at helm station to shut off alternators

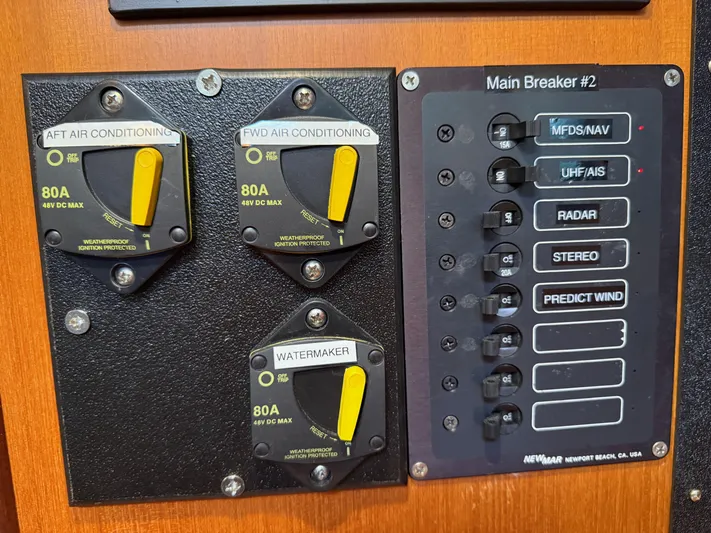

Three heavy duty breakers for two mabru air conditioners and the Spectra water maker

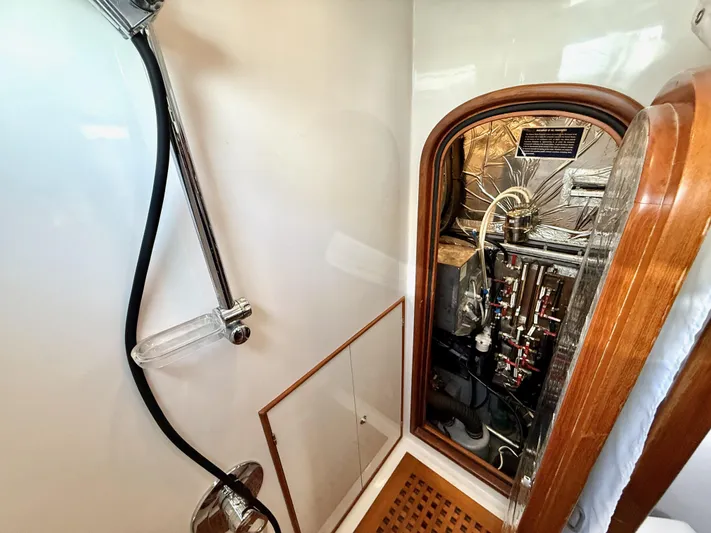

Internal bonding system to all chainplates, thu-hulls,engine, and rudder system

Four 12 volt outlets (one in cockpit and three at nav station)

LED nav lights 2023

Underwater lights and underwater camera

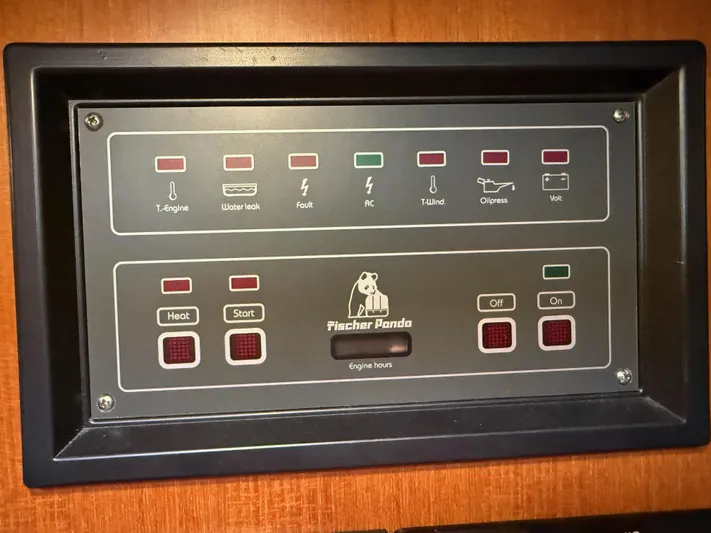

Fisher Panda Mini 12-12kw generator with sound shield 200 hours, with access thru engine compartment and aft cabin behind removable dresser

All new standing rigging 2022

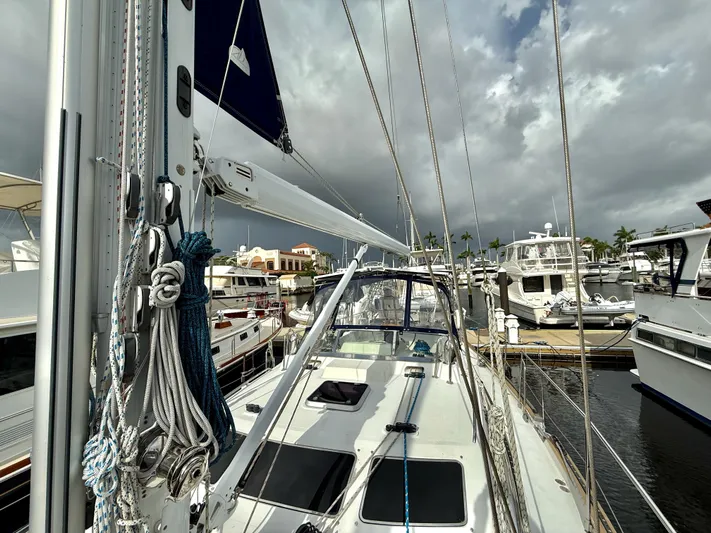

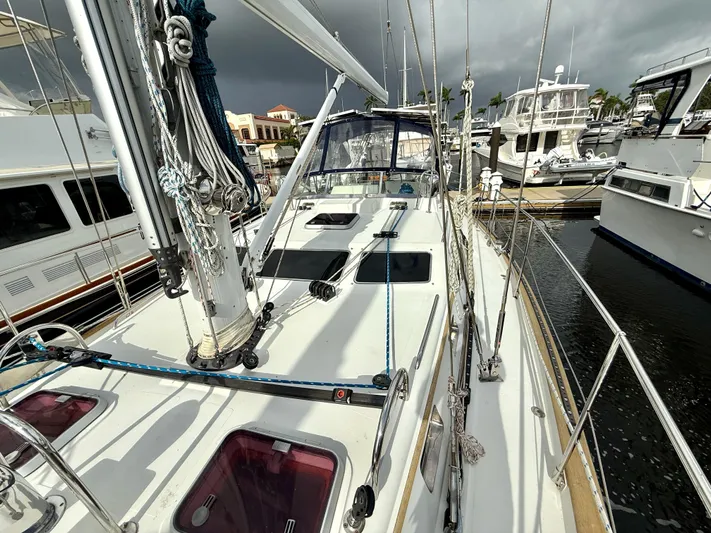

Selden triple spreader mast and boom removed and repainted 2022

Selden internal furling mainsail

Six internal Halyards all internally led

Spinnaker pole topping lift

Selden hard boom vang

Removable inner forestay with Hy-Field lever and storage system

Flag halyard port and starboard

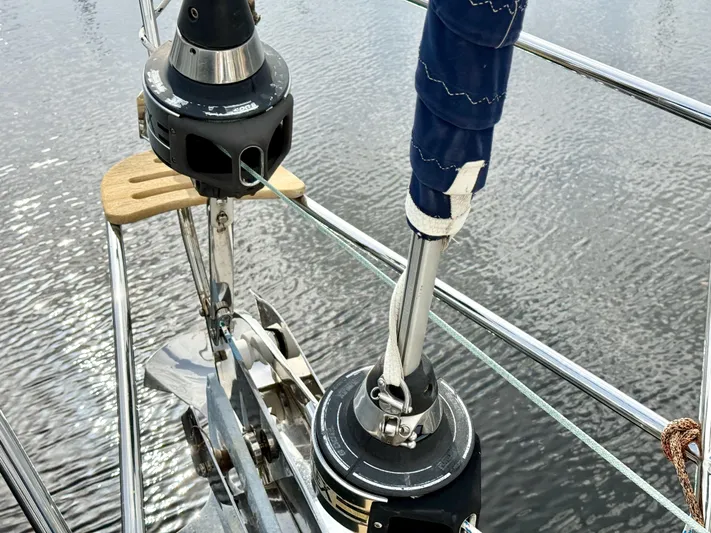

Furlex 400S furling system for reaching

Furlex 300S furling system for working jib

Harken Aluminum Genoa and jib tracks with cars (inboard and outboard tracks)

Harken ball bearing mainsheet traveler system

Harken ball bearing curved arthwartship traveler for working jib forward of the mast

Running backstays

Custom boom preventer at aft end of boom

Harken deck organizers port and starboard

Spinlock sheet stoppers (rope clutch) five port and five starboard and two along starboard toe rail for furled genoa and jib

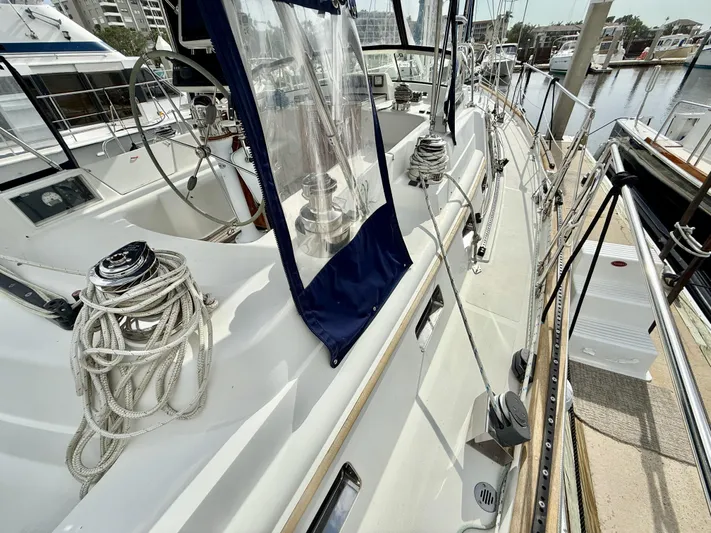

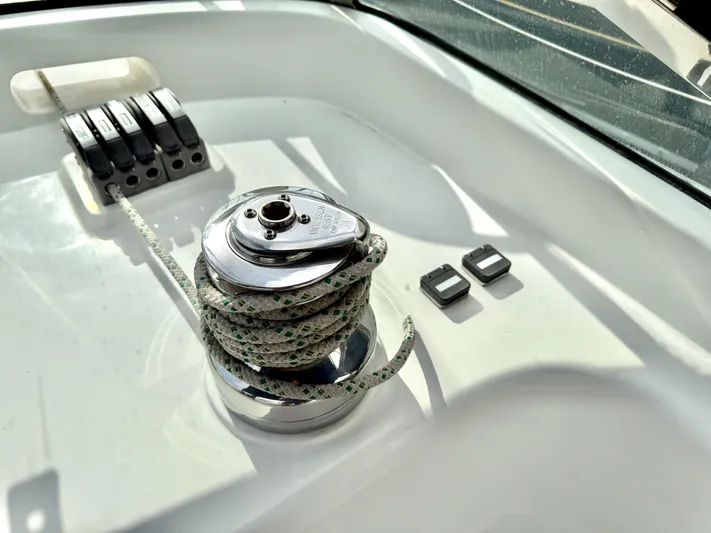

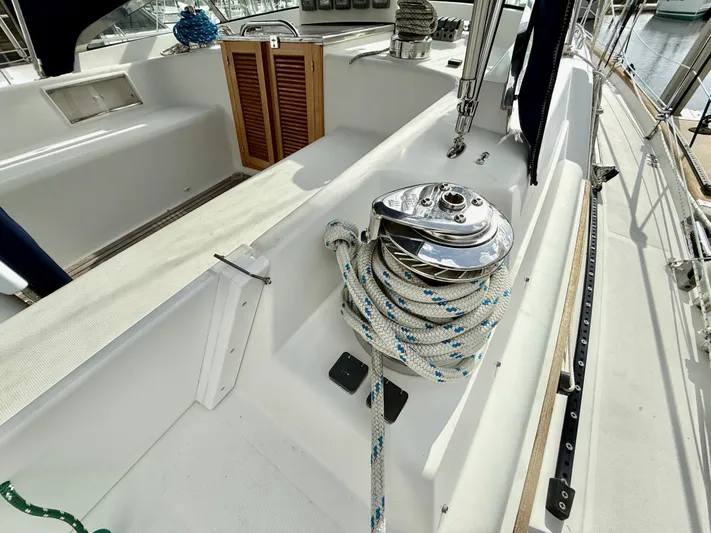

9 Anderson stainless steel winches

Two Anderson 58 ST two speed primary winches

Anderson 46 ST two speed electric winch in cock pit forward port side

Anderson 46 ST two speed electric winch in cock pit forward starboard

Anderson ST electric halyard winch

Anderson ST two-speed winch on mast

Two Anderson 46 ST two-speed mainsheet winches

Anderson 40 ST compact electric winch for code zero, spinnaker in starboard coaming

Solent rigging

Doyle tri-radial in-mast furling mainsail 2016

Doyle 98% working jib 2017

Doyle tri-radial 120% furling Genoa 2016

SAIL AREA:

Main: 529 sq. ft.

Genoa: 704 sq. ft.

Working jib: 445 sq. ft.

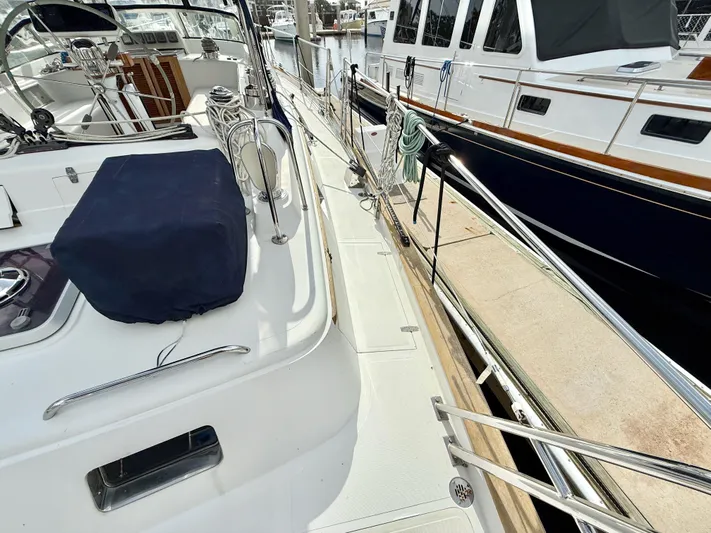

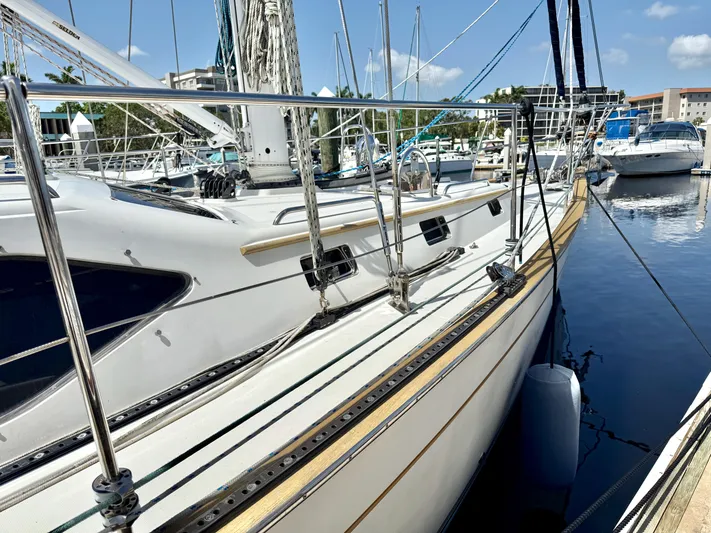

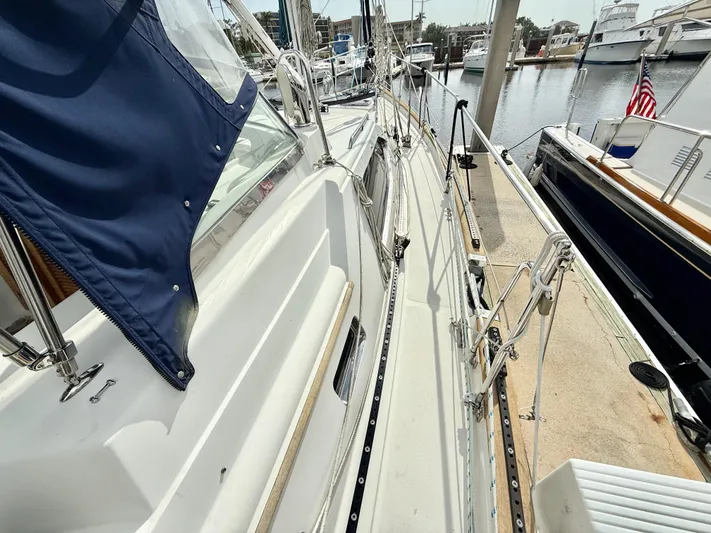

Non-skid side decks and cabin top

Solid teak cap rail with stainless steel strikers

Six custom Yachtsman type 316 stainless steel mooring cleats and fairleads with over sized backing plates

Custom stainless steel bow and stern pulpits

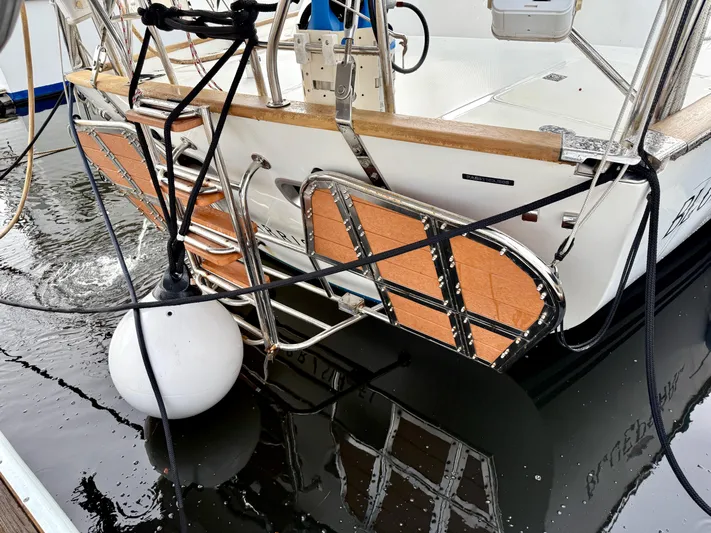

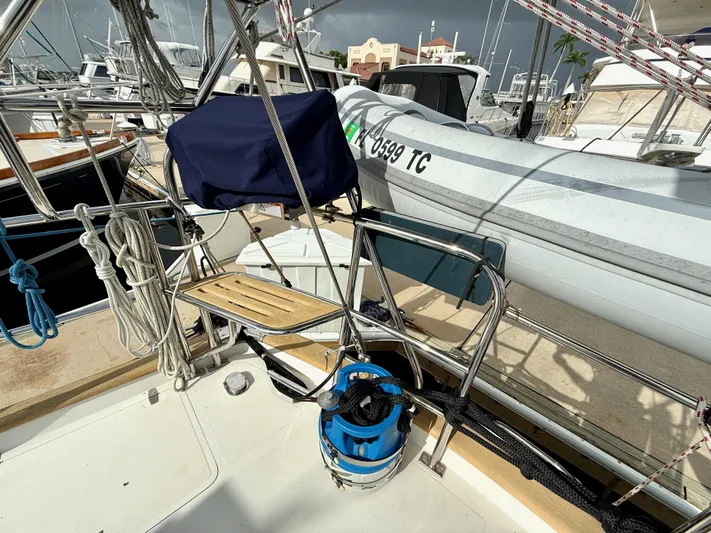

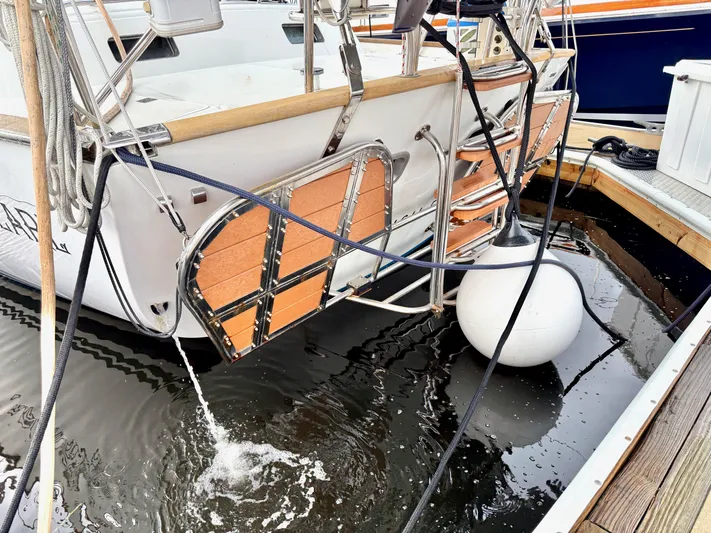

Custom folding stainless steel stern platform with polymer cedar decking

34” high 316 stainless steel stanchions with custom bases

Double stainless steel lifelines 20

Custom 1” stainless steel tubing replacing top lifeline from bow to stern 2022

Boarding gates port and starboard 2016

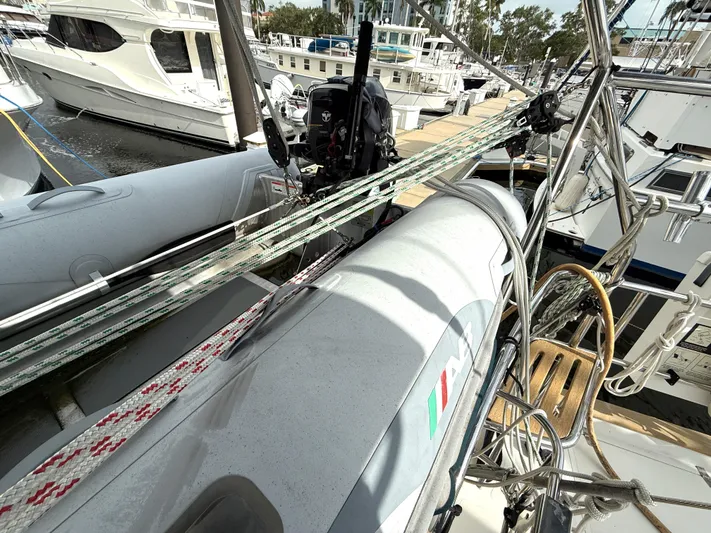

Custom stern rail mount for 20hp outboard dingy motor

Custom tender system for dingy

A custom stainless steel fixed laminated glass windshield

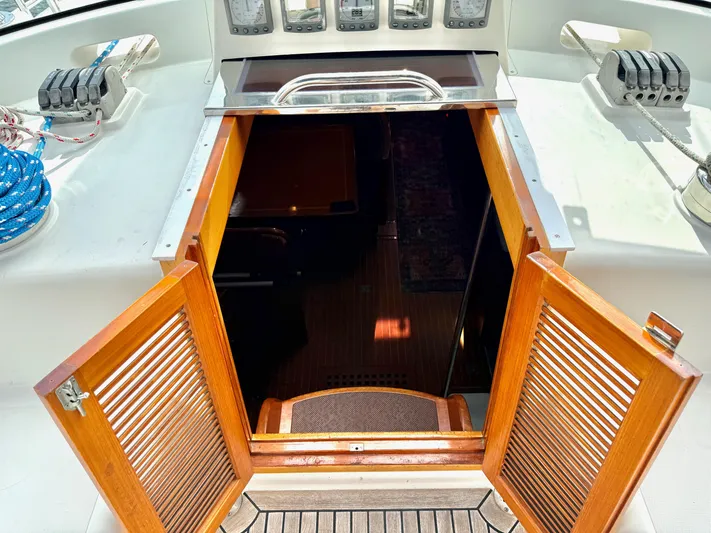

Teak companionway doors and tinted Lexan drop boards

Custom 316 stainless steel companionway sliding hatch with Lexan insert

Teak cockpit table with foldout leaves

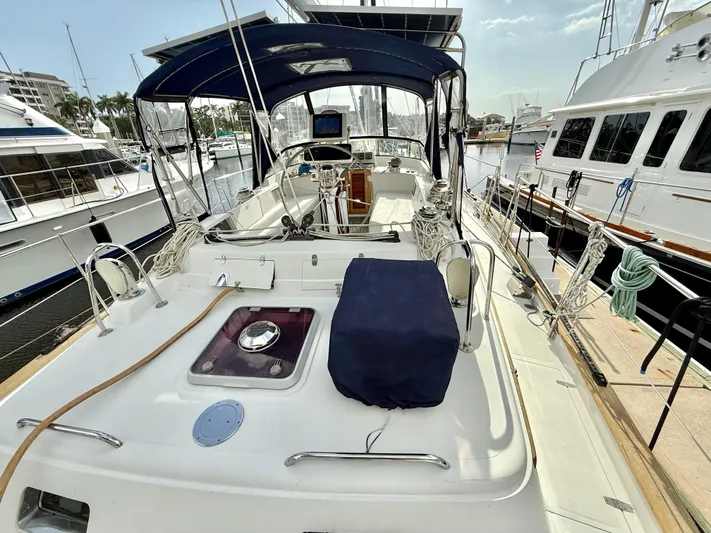

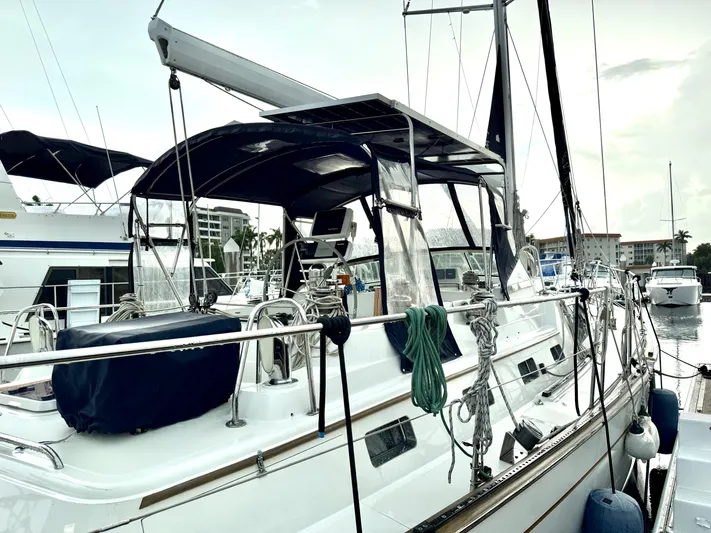

Sunbrella dodger with extra-wide removable 30 gauge strata glass front window and wrap around side panels 2016

Sunbrella dodger bimini with window with rollup cover and removable cover on bottom 2016

Bimini collapsible aft with cover

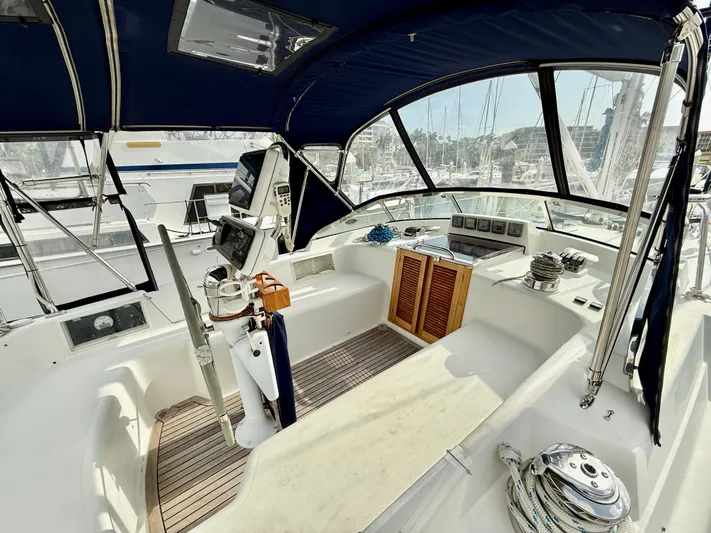

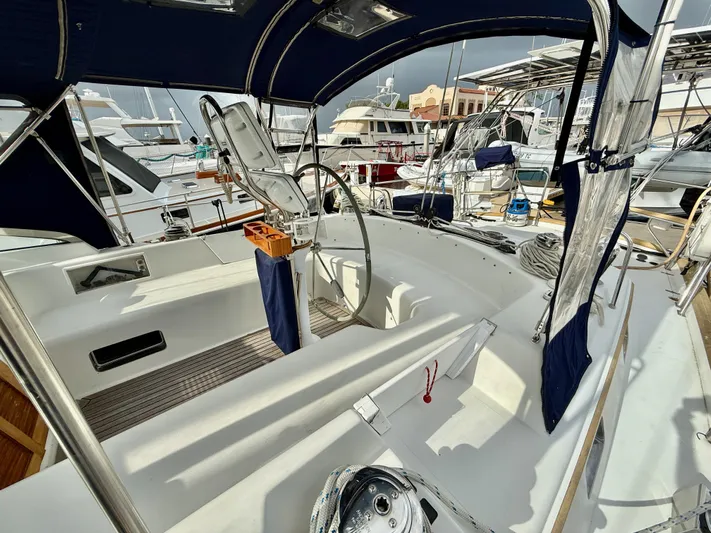

Full cockpit Nine-panel enclosure with winch access 2016

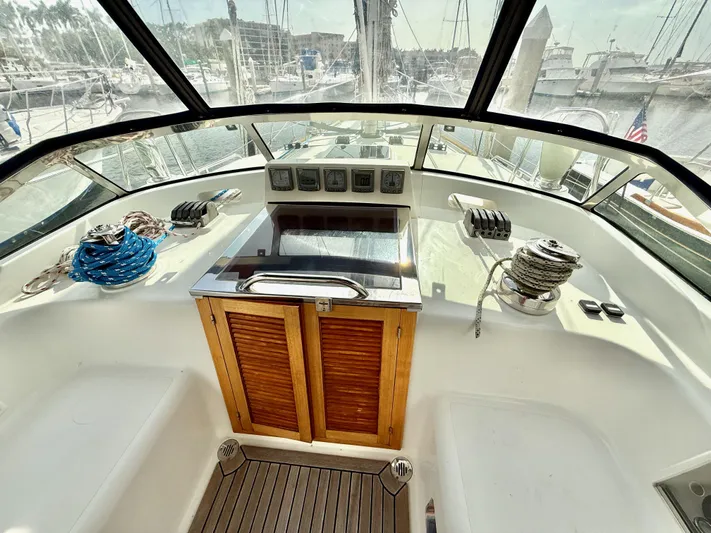

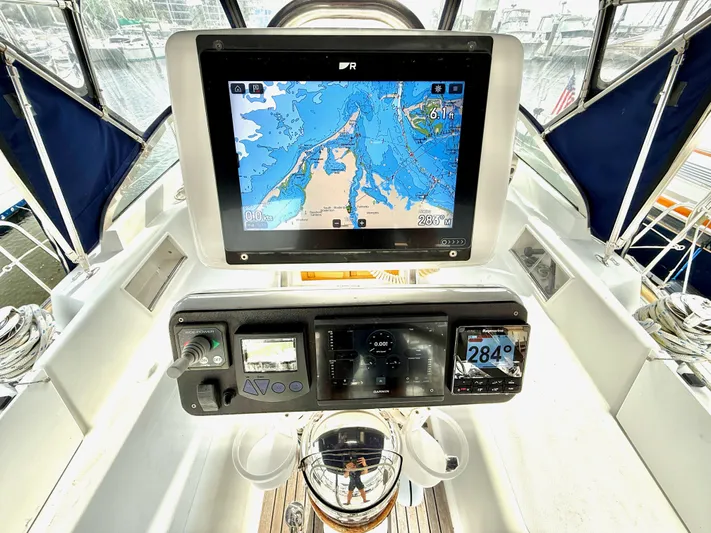

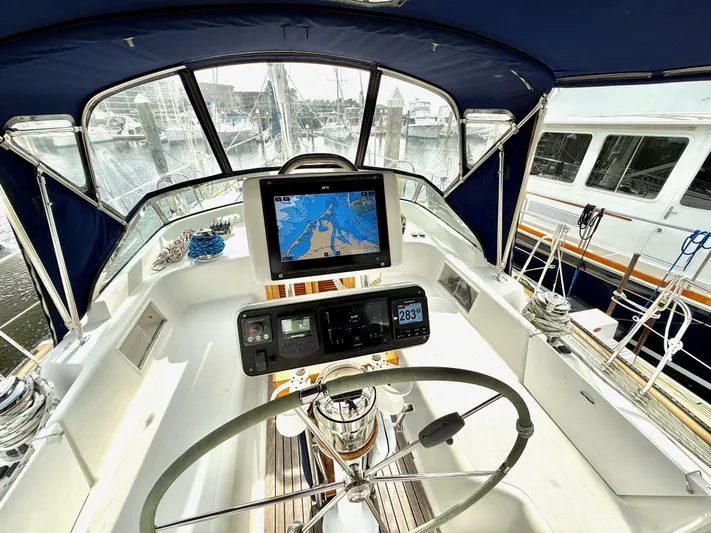

Custom NavPod (with Raymarine 12” chart plotter, Garmin 7” chart plotter/ forward facing sonar, autopilot control head, anchor chain control switch and counter, bow thruster joystick, horn, alternator cutoff

Edson pedestal steering

Folding leather-covered Edson stainless steel “Destroyer” type steering wheel

Two molded coming compartmentsin the cockpit with sliding Lexan doors port and starboard

Custom seat gates in cockpit port and starboard in walk out from cockpit

Emergency steering system with tiller

Teak cockpit sole

Teak eyebrows

Winslow Model 80SLO 8-person life raft (last serviced 7/2016)

Two teak seats aft

Teak seat at the bow

Teak cap rails with stainless steel strikers

Topside hot and cold pressure water shower on aft deck

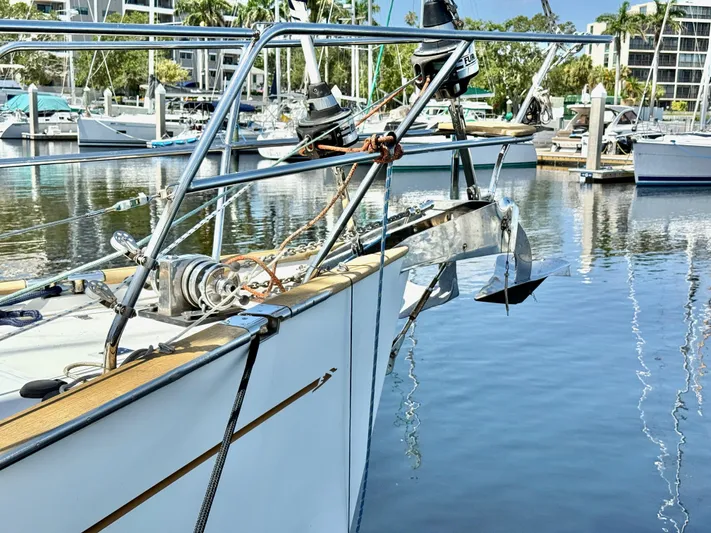

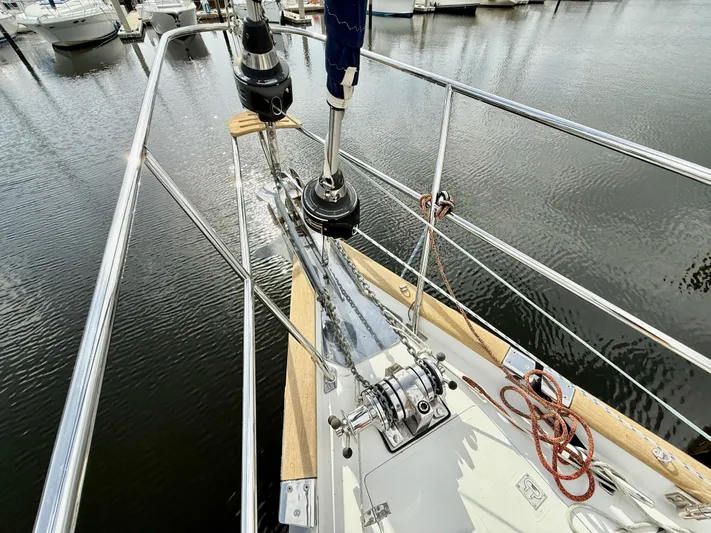

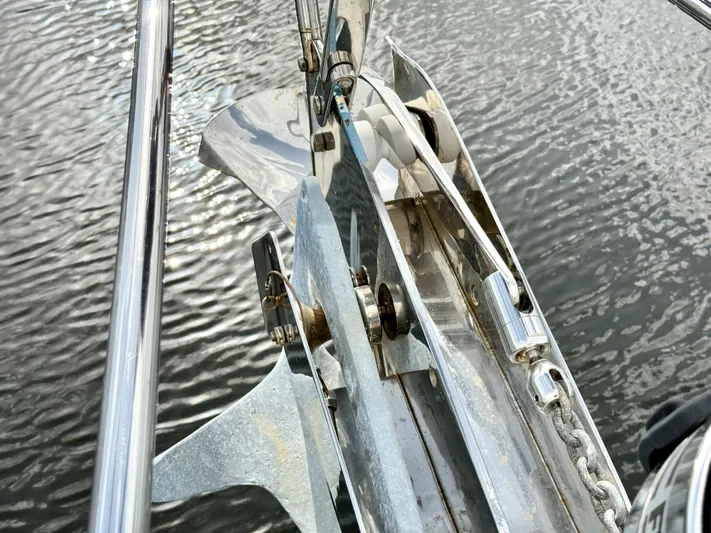

Custom 316 stainless steel double bow roller/stemhead fitting

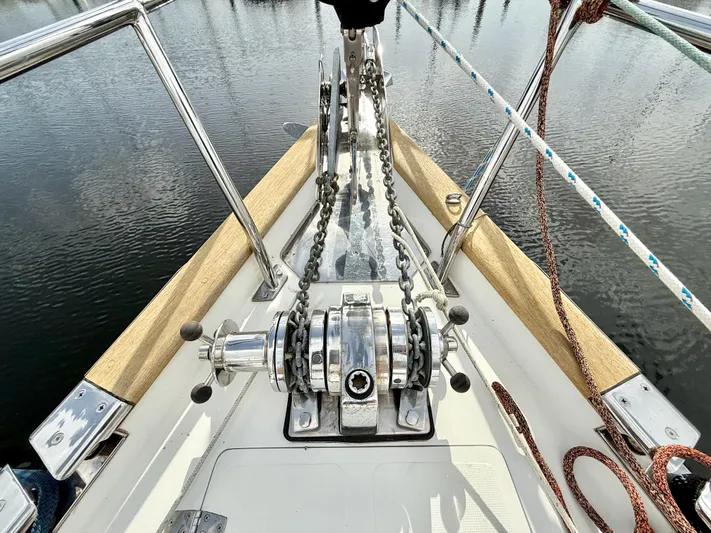

Lighthouse 1501 electric windlass with reversing circuit and up/down buttons, with double  wildcat and warping head, and remote control and chain counter at helm

New Lighthouse motor for windlass 2022

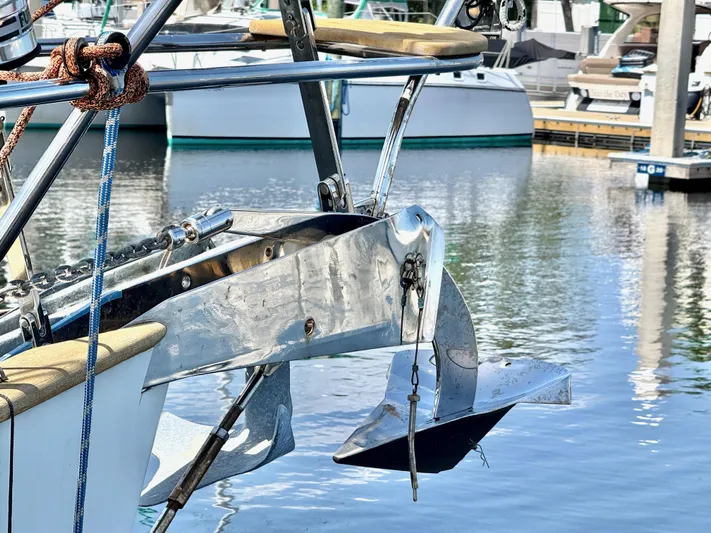

Ultra 60lb polished stainless steel anchor

Bruce style anchor with chain

Custom stern anchor roller, hawse stern anchor locker

Salt and freshwater deck wash pump forward

Dock lines and fenders

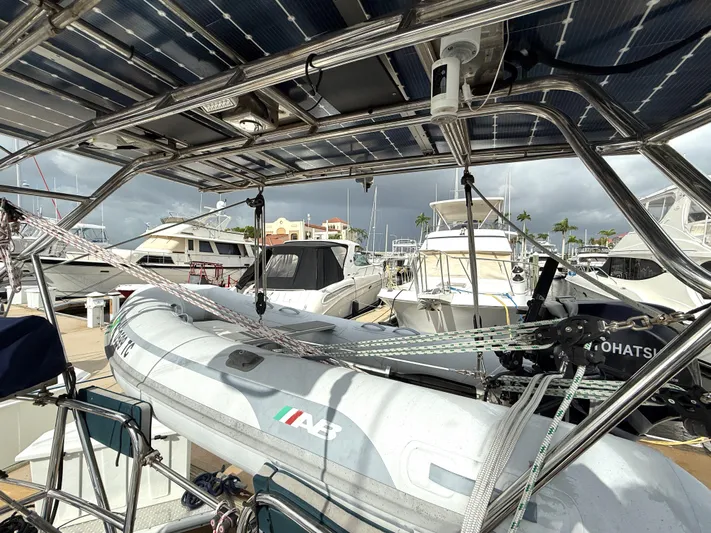

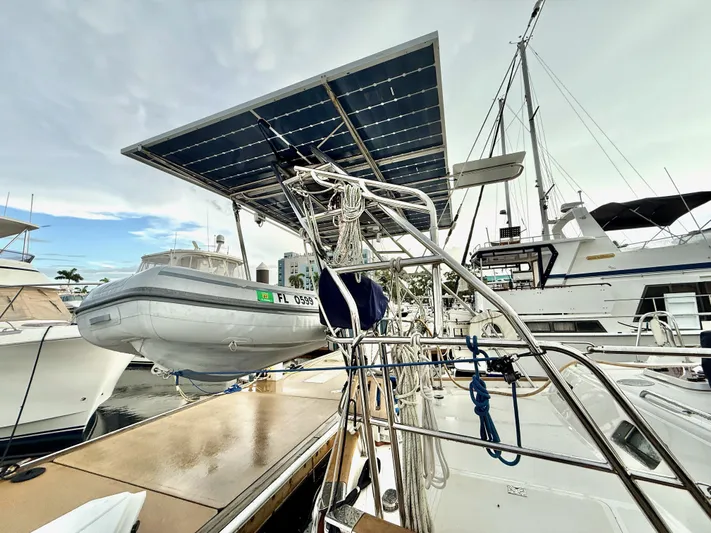

Custom stainless steel dingy arch/solar arch and dingy  and motor lift

Two led go lights on dingy arch

Ring camera on dingy arch

Custom Lexan storm windows made for quick installation to cover coach roof windows

Starlink

Nav lights converted to LED

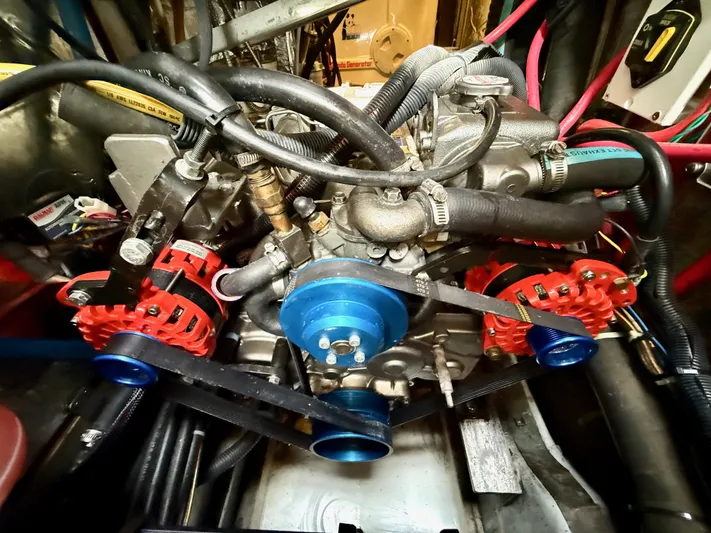

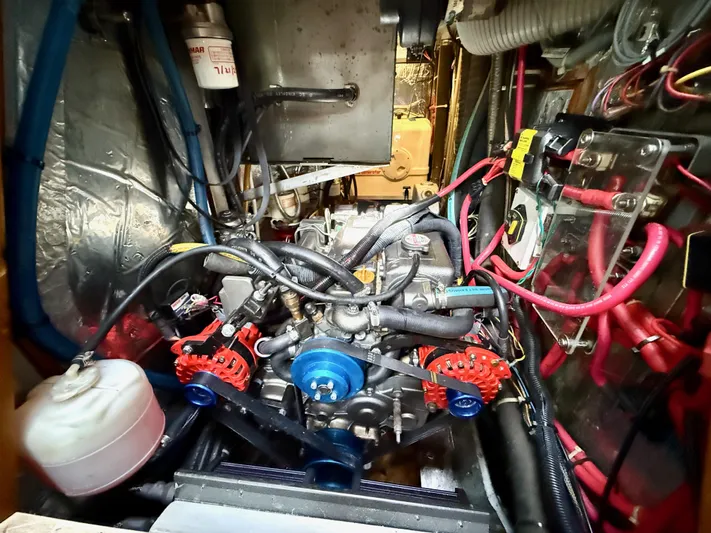

Yanmar 75 hp equipped with turbocharger and intercooler with 1100 hours as of July 2025 (new 2014)

Side power 8 hp bow thruster 2018

Edson single lever throttle/transmission control

1 ½” stainless steel shaft 2018

Shaft Shark line cutter

Bronze shaft strut with cutlass bearing

PSS dripless stuffing box 2018

22” Gori three-blade folding propeller (serviced 2018)

Scot anti-siphon valve

Raw water strainers for intake for engine and generator

Muffler/water lock system with water separator

Flexible engine mounts

Racor Dual 500 fuel filter system with selector

Fuel polishing system with Dahl filter/separator

Single Racor filter for generator

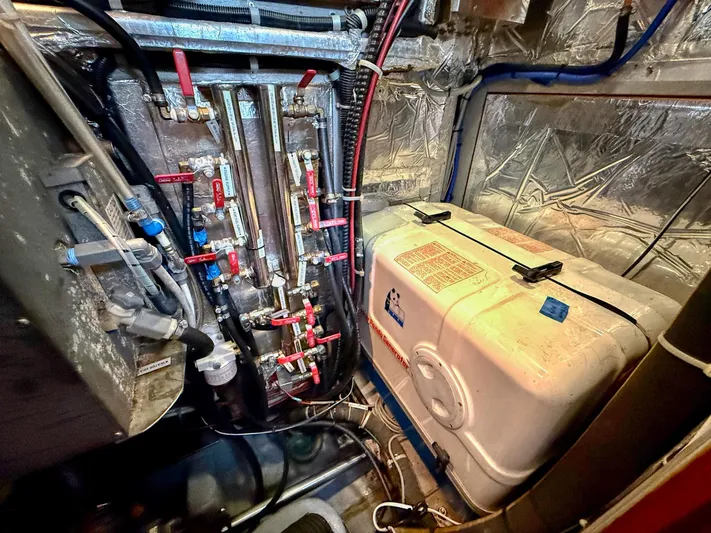

Custom fuel manifold

Three aluminum fuel tanks with baffles (250 gals. Total)

Engine alarm systems

12-volt exhaust fan for engine room

Two 12-volt engine room lights

Foam insulated engine room

Two Balmar 170 amp alternators

Two Arco Zeus alternator regulators

Seller states that she easily cruises under power at 1800 rpm=6.5 knots and at 2200 rpm=7-7.5knots. At WOT she turns 3200 and reaches a speed of 8 plus knots.

Spectra Newport 400c water maker with Z-ion (17 gph)

Two DC Mabru airconditioners one in each stateroom

One AC Mabru airconditioner in saloon

Shurflo self-priming freshwater pump (5gpm Aqua King 11) 2023

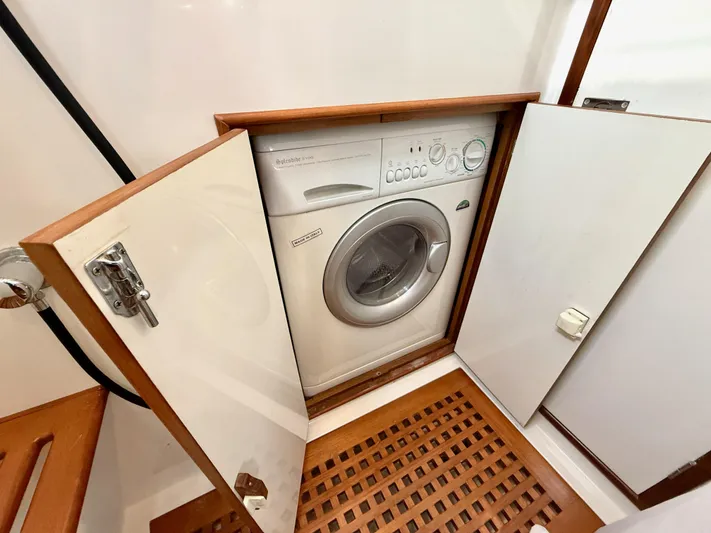

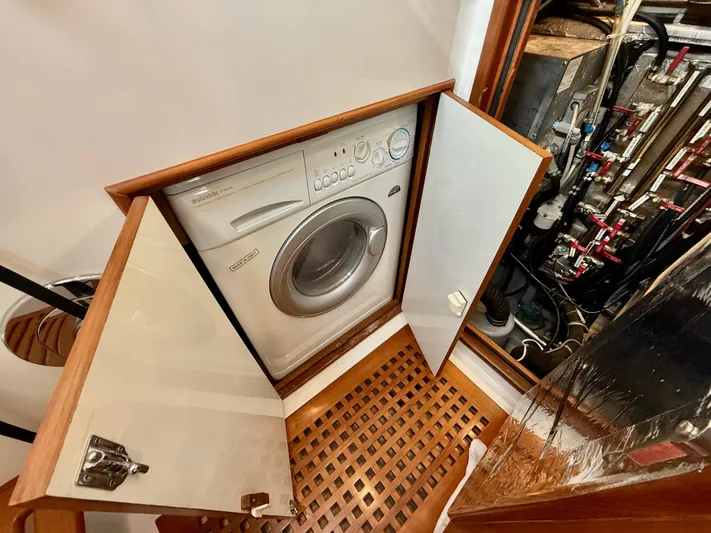

Splendide washer/dryer (access aft head shower)

Eleven gallon hot water heater (110-volt and engine)

Rule 3700 and Rule 2000 electric bilge pumps with automatic float switches and bilge alarm

Manual bilge pump

Bronze ball cocks for thru-hull fittings bonded to ships systems

Caravan stainless steel gas grill and 12 pond fiberglass propane tank mounted to stern rail

Dinghy:  AB10 AL Superlight ALU RIB 10’ 6” HYPALON GREY,TOHATSU MFS20EEF 4STR 21 20HP tiller ELECTRIC start capable, 15” shaft, less than 5 hours on outboard

A better layout for long-distance blue water sailing or live-aboard cruising you will not find in this size range, whether we are talking about the rig design: the cockpit with side walk-thru’s and dodger; the abundance of storage; on deck lounging areas aft; the two amazing cabins with large heads and separated showers; a Huge custom navigation/work station perfect for todays remote work scenarios; best-in-class headroom with modern ‘raised salon windows’; the galley (featuring easy to access refrigeration and freezer spaces, plenty of working counter tops; a household- sized Microwave/Convection oven, trash compactor, or the exceedingly comfortable main salon with bar area and a bonus standup Isotherm refrigerator, perfect for grabbing drinks without bothering the chef; icemaker, washer/dryer, Spectra water maker.  And there is more, plenty more: a walk in engine room; substantial arch for antennae, solar panels, davits to carry the tender, stern fold down platform for  access to tender in the water; push-button sail handling with electric winches and electric in mast furling. There is a propane BBQ grill with cover on stern rail plus 12 pound plastic propane tank.
