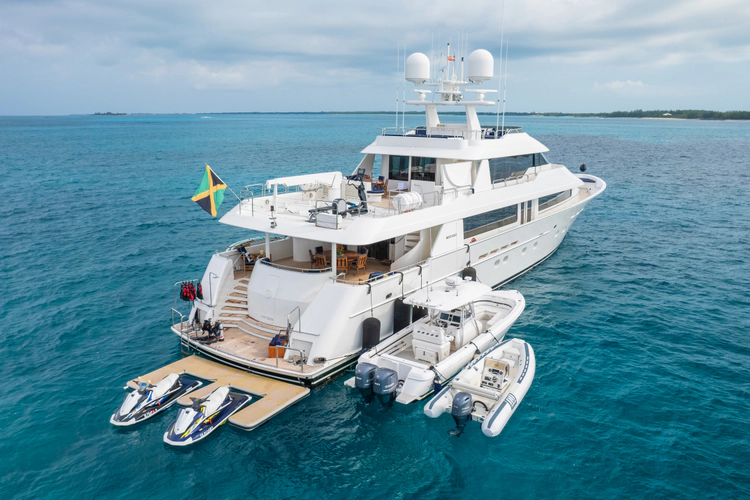

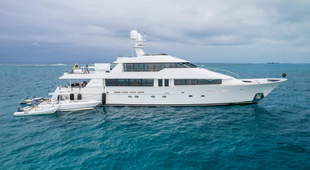

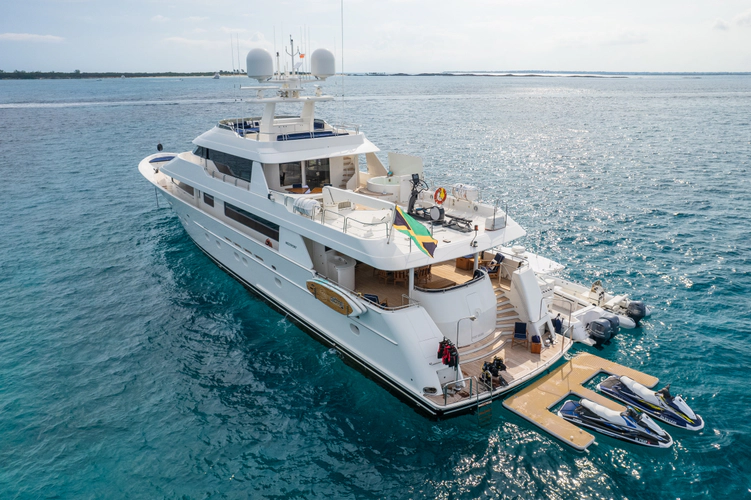

AVALINA Yacht for Sale

Length Overall: 130 ft / 39.6 m
Beam: 26' 3" ft / 8 m
Draft: 6' 6" ft / 1.98 m
Year Completed: 2003
Model Year: 2003
Refit: 2020
Type: Motor Yacht
Tonnage: 280 GT
Displacement: Semi Displacement
Guests: 10
Crew: 7

• Builder: Westport
• Naval Architect: William Garden
• Interior Design/Stylist: Pacific Custom Interiors
• Hull Material: GRP

• Maximum: 24 Knots
• Cruising: 13 Knots
• Range: 24 knots max. 2,500nm range @13kts/52gph/9,984 gallons
• Fuel: 9898.53 Gal / 37470 L
• Water: 1619.37 Gal / 6130 L
• Grey Water: 940 Gal / 3,560 L
• Black Water: 1,360 Gal / 5,150 L
• Lube Oil Capacity: 77 Gal / 291 L

• Engine Type: 2 x MTU 12V 4000
• Horsepower: 2,734 Hp
• Engine Hours: 3,400 hours since W-6 major overhaul
• Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard
• Generators: 2 x Kohler 65EOZD (@1,800 rpm)
• Port Generator Hours: 1,900 hours since overhaul
• Starboard Generator Hours: 1,900 hours since overhaul
• Shore power: ASEA 170‐520V, 3‐Phase, 60Hz
• Batteries: 3 x 12V sets, 6 x 24V sets
• Stabilizer: Naiad 521 with datum control for at‐anchor stabilization
• Stabilizer at Anchor: Yes
• Steering System: Jastram PTO pumps from main engines
• Water Makers: Sea Recovery SRV 1500‐2 AWM
• Bow Thruster: Wesmar Vortex V 2‐16
• Fuel Separator and Filtration: RCI Technologies water separator
• Fresh Water System: Aquabox pump 110V
• Air Conditioning: Dometic 6 ton with 72 BTU

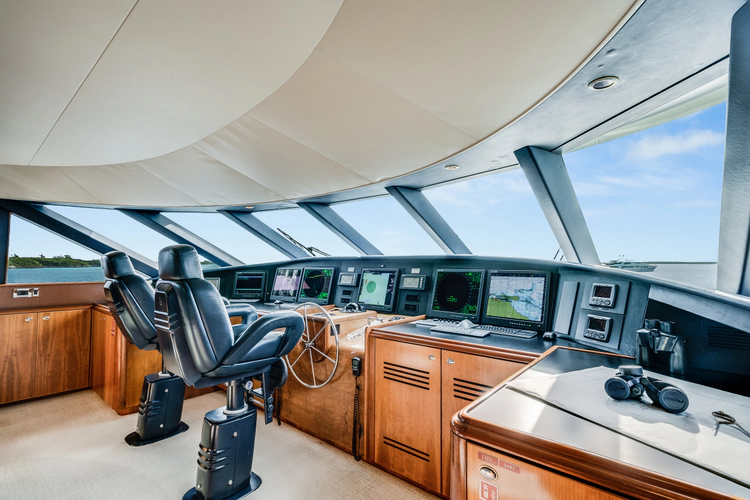

Pilothouse

• SAT COM: Fleet 33 Inmarsat
• Telephone System: Nortel 4 line
• VHF: Icom IC‐M602
• Navtex: Navtex Furuno NX700

Navigation Systems

• Radar: Furuno 2115B X‐band, Furuno 2115 ARPA X‐band
• Gyrocompass: Sperry Marine Navigat X MK2
• Auto Pilot: Sperry Marine Naviplot 4000+
• Depth Sounder: Furuno RD‐33
• GPS: Furuno GP‐33, Bridge Dash

Entertainment Systems

• VSAT1: Yes
• iPads: Yes

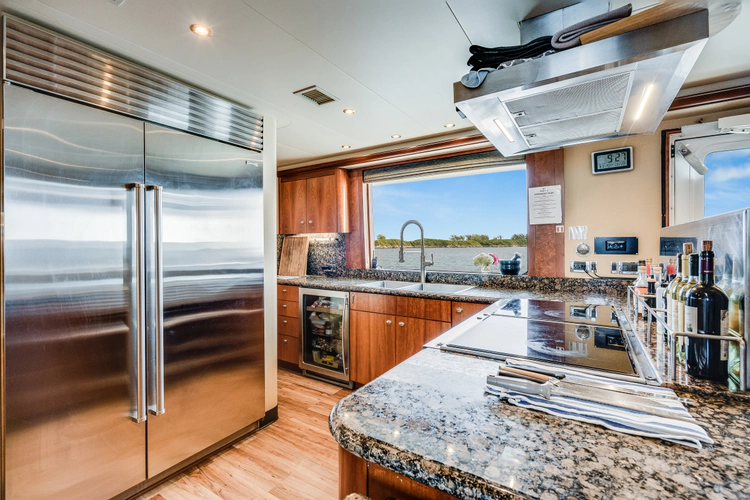

Main Galley Equipment

• Oven: 2 x Miele ovens
• Microwave: LG microwave
• Refrigerator: Kitchen Aid refrigerator
• Freezer: Kitchen Aid freezer

Crew Galley/Mess

• Fridge: Whirlpool refrigerator, Uline refrigerator
• Microwave: LG Microwave

Laundry

• Washing Machines: 2 x Miele Washing Machines
• Dryers: 2 x Miele clothes dryers

• Anchor Windlass: Maxwell VWC 6000
• Aft Warping Capstans:
• Anchors: 2 x Poole 600lb
• Anchor Chain: 2 x 400' 5/8"
• Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity
• Passarelle: Bensenzoni

• CCTV System: Pelco CCTV
• Cameras: 9 x cameras
• Monitors: 4 x monitors
• Fire Control System: Custom Westport manufactured system
• Fire Extinguishers: 26 x portable fire extinguishers
• Alarms: Yes
• Life Rafts: 2 x Zodiac Solas 25 life rafts
• Life Rings: 4 x Life rings
• EPIRBS: 2 x EPIRBS
• Flares: 3 x Flares
• Medical Equipment: Medical bag

• Full exterior paint (2017)
• MegaFend- mooring fender system- refurbished/renewed all fender hooks. Added additional fender hooks, for use on the stern
• MegaFend- fenders- purchased various new fenders, for the yacht
• New Furuno System - GPS Gyro
• Added a Master closet divider, for charter purposes
• Repainted boat deck non-skid
• New tender purchase - 16’ Walker Bay w/Honda motor (May 2025)
• Installed all-new exhaust system, for main engines and generators (May 2025)
• Remove and serviced hydraulic system- heat exchangers (3) (August 2025)
• Complete valve-job performed on both MTU- main engines (Mendol) (June 2025)
• Performed complete injector replacement on MTU- mains (2025)
• Installed new dishwasher, in stew pantry (galley)
