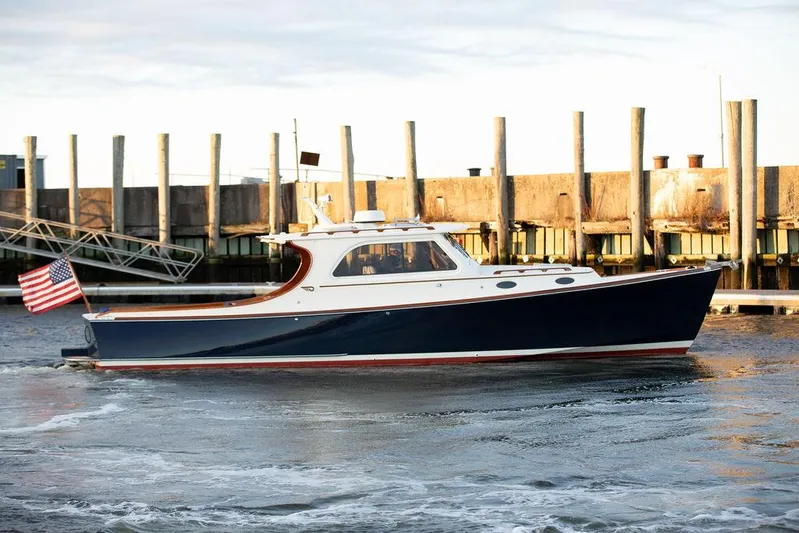

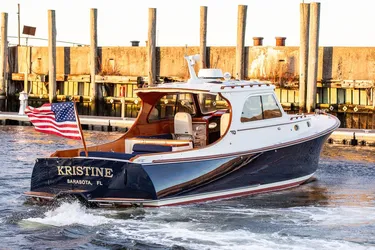

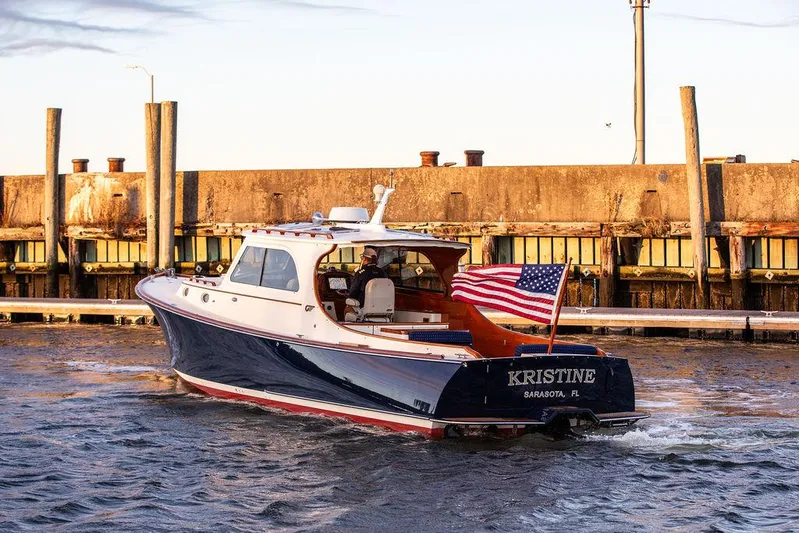

KRISTINE Boat for Sale

• (2023) Flag Blue HDT Awlgrip topsides
• Light Cream W520 gelcoat cabin house and deck
• (2023) Single Cream bootstripe
• (2023) red bottom

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin.  Aircraft grade end-grain balsa below the waterline. Carbon-fiber inner skin.  SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass with balsa and closed-cell foam core, SCRIMPED with vinylester resin.

• The deck has a molded nonskid pattern.
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline.
• Stainless steel half-round on fiberglass molded rub rail.

Heavy-duty fiberglass swim platform has teak insert treads (2023, refurbished), stainless steel bracket and half round

• (2023) Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Custom stainless handrail on transom, painted to match the hull.

Deck Features:

• (2023) Toe rail, handrail, eyebrow varnish stripped and re varnished with 10 coats
• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller.  There is a freshwater deck wash in the anchor locker
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical ports on house sides (all opening with screens)
• Hinckley pilothouse mast with spotlight, Radome, painted to match deck
• (5) Low-profile opening aluminum hatches with Ocean Air Sky screens
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit – pop-up mid-ship cleats
• Fender padeyes with toe rail chafe strips
• ACR spotlight - Masthead mounted with helm mounted electric remote control

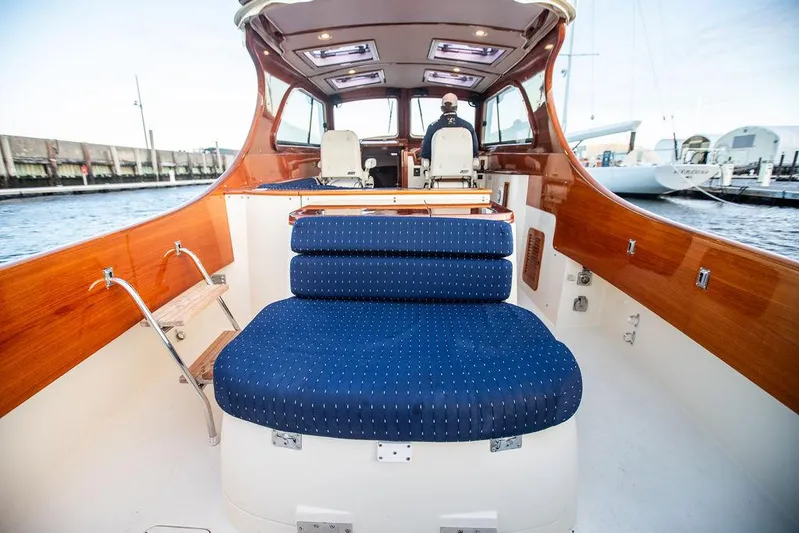

The Cockpit features cushioned seating at the transom forward facing and also facing aft molded in the engine box.

The Picnic EP teak covered engine box has a wet bar and an aft-facing cushioned seat.

• The wet bar includes a stainless steel sink with foldaway faucet and hot and cold pressure water, insulated and self-draining icebox, a storage drawer, and additional storage under the sink
• The entire engine box/wet bar and seat is hinged on the aft end and has electric lift for easy access to the engine

More cockpit features:

• Teak covered cockpit coamings and cap
• Transom door - Portside transom door from swim platform
• Courtesy lights under side decks port and starboard
• Direct drain scuppers
• Stainless steel cockpit step with teak treads, mounts port or starboard with stainless steel brackets
• Teak boarding step for port or starboard side deck
• Cockpit lockers with varnished louvered teak doors
• Cockpit shower with mixing valve at stern seat
• Stainless steel rod holders – mounted on port and starboard side deck
• (2023) Cockpit cover - Ivory-color Stamoid cockpit cover

• (2023, re varnished) Teak finished Pilothouse upper sides and dash
• (4) Pilothouse windows include:  (2) Sliding side gray-tinted windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers

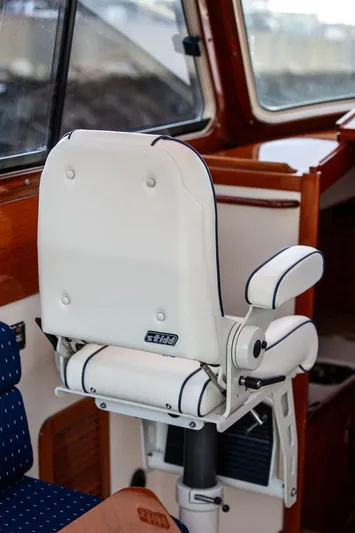

• (2023) Stidd helm chairs recovered  –Ivory Ultraleather with navy piping helmsman and passenger seats – pedestals painted to match deck

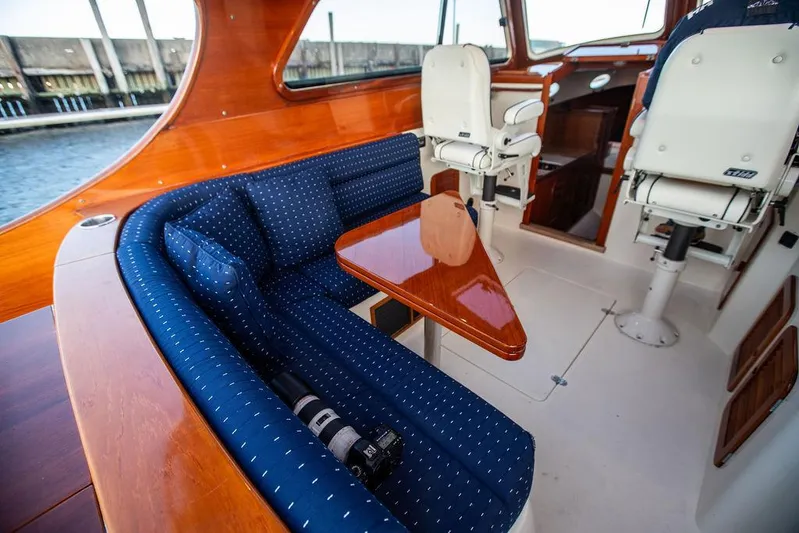

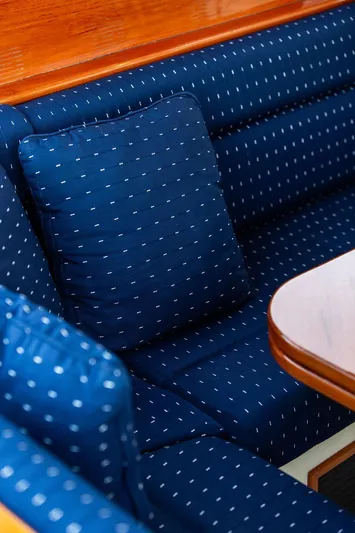

• Cushioned L-shaped settee aft to port
• Insulated white overhead has four (4) acrylic opening hatches with Ocean Air Sky screens/shades
• Additional illumination is by four (4) overhead low-voltage halogen lights.
• Storage locker under pilothouse settee
• (2) Hella fans - mounted port and starboard
• Waterproof 110-volt outlet in forward settee face

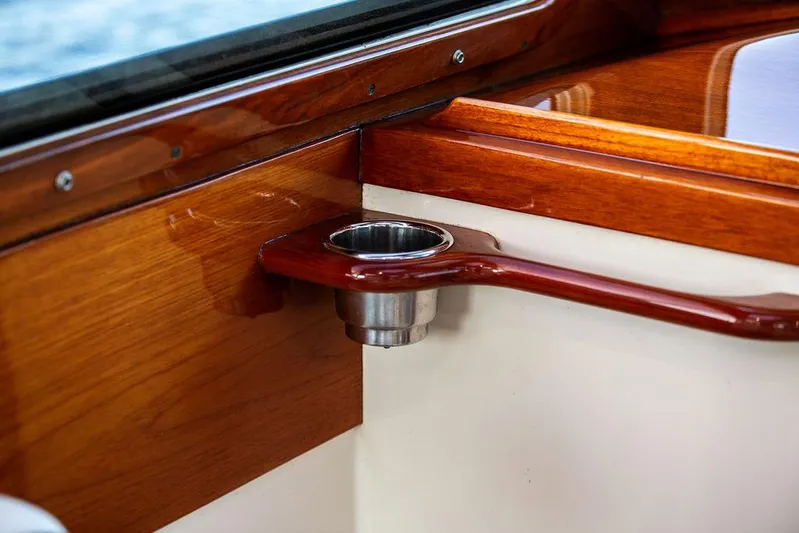

• (5) Cup holders
• Varnished teak locking companionway door
• (2) Varnished teak handrails are under the aft outboard ends of the pilothouse cabin top
• Ivory Stamoid window sun covers
• Ivory Stamoid 3-piece drop curtain with Eisenglass windows – can enclose the pilothouse
• Additional waterproof 110VAC outlet on forward face of pilothouse settee

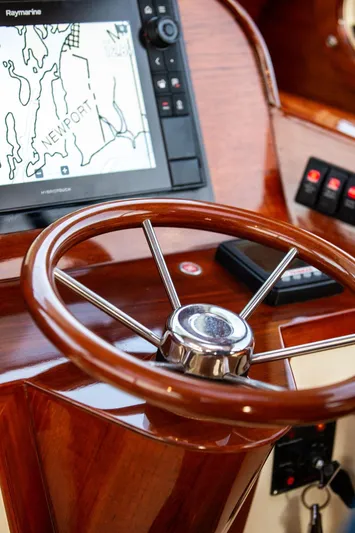

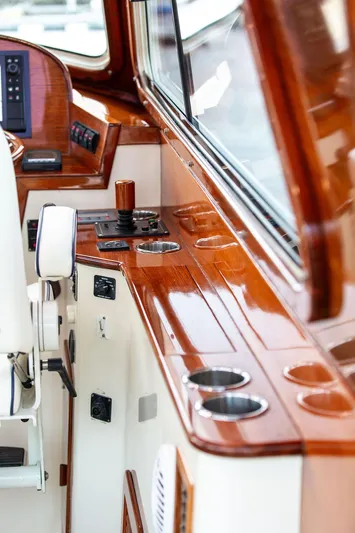

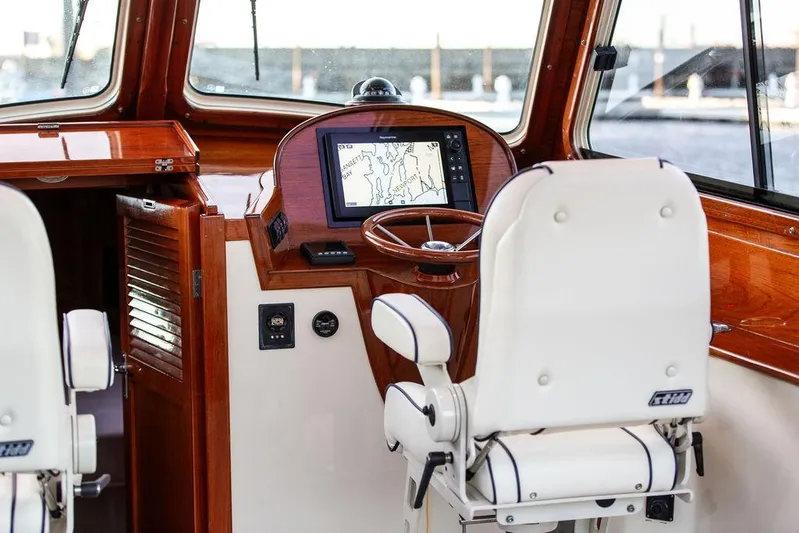

Helm Station (Starboard)

• Varnished teak custom instrument pod
• Stainless steel 14” steering wheel with varnished wood rim
• Hinckley JetStick® Gen 3 IQAN
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator
• Top-opening locker with chart storage
• 12-volt “cigarette style” outlet in chart pocket

Helm Electronics and Navigation Equipment

• Raymarine ST-6002 Autopilot - interfaced to GPS

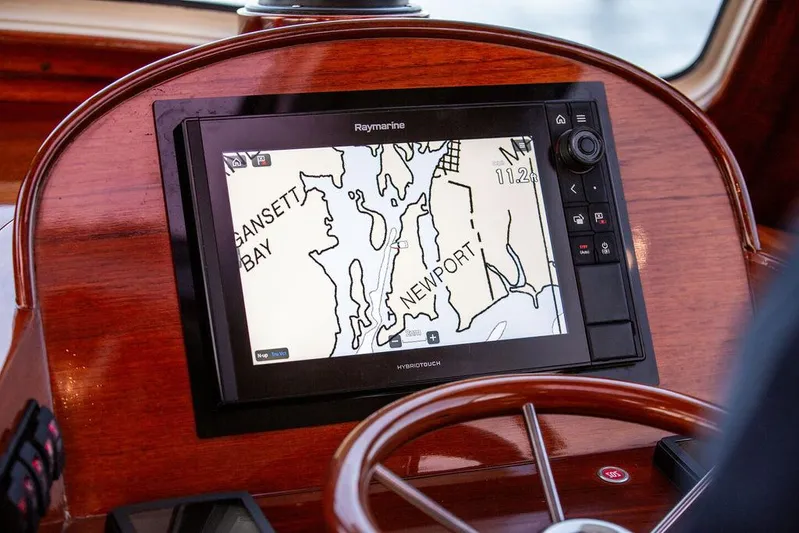

• Raymarine Axiom Pro RVX GPS, Chartplotter, and Radar
• Radome painted to match deck
• Raystar 120 WAAS antenna
• Raymarine DSM300 fishfinder sounder
• Standard Horizon PS-1000 VHF radio and Ram mike

Entertainment Electronics

• Alpine DVA-9857 AM/FM/CD Receiver, Changer/Controller – Reads CD,CD-R,CD-RW, MP3 and WMA format
• Alpine CHA-S634 6-disc CD changer integrated with Alpine Ai-Net. Reads CD,CD-R,CD-RW and MP3 format
• (3) Pair of Alpine MB Quart speakers – In V-berth forward bulkhead, pilothouse, and in aft cockpit.  Each pair has remote volume control

The interior is finished in satin-varnished cherry.  The (new, 2023) cabin sole is varnished teak and tulipwood and has a custom cabin sole cover.  Louvered cherry locker doors and (5) Frigast stainless steel bulkhead lights add to the cabin ambience.

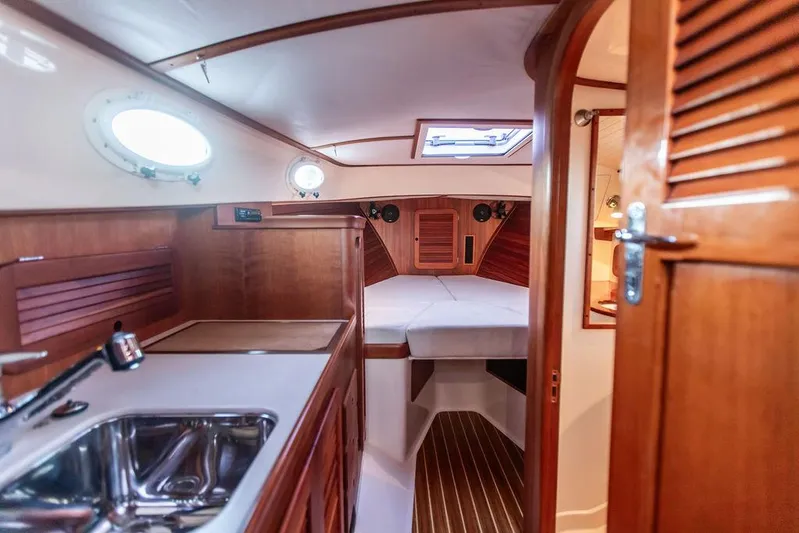

Entry is from the pilothouse companionway to the Galley to port, private Head to starboard and the V-Berth accommodations forward.

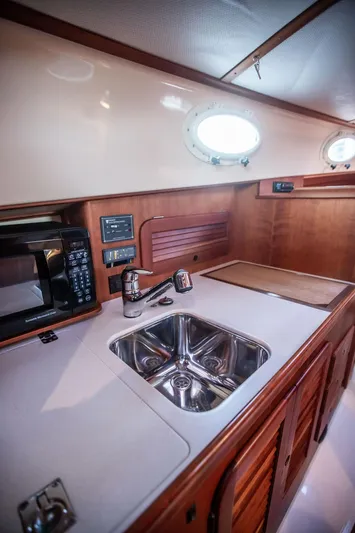

GALLEY (Port)

• Abalone Corian countertop
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water
• Adler Barbour refrigeration – 12-volt cold plate refrigerator in a self-draining insulated box
• Force 10 two-burner stainless steel stove with remote propane shut-off and wood cover/cutting board
• GE Microwave/Convection 600-watt 110-volt oven
• Wine storage in bottom of dry food locker at forward end of galley for three bottles of wine
• 110-volt outlet
• Built-in bin for dish stowage
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• LP gas sniffer and a propane shut-off valve
• Opening port with screen
• Additional storage is provided outboard and under the galley sink

The stove is set in the countertop forward and has a custom wood stove cover/cutting board that adds to the already ample counter space surrounding the sink.  Microwave is built in outboard. The refrigeration is mounted aft of the sink and is accessed by a counter lift-up top. A “pantry” locker with louvered door and several shelves separates the Galley from the forward V-berth area and houses the stereo system.

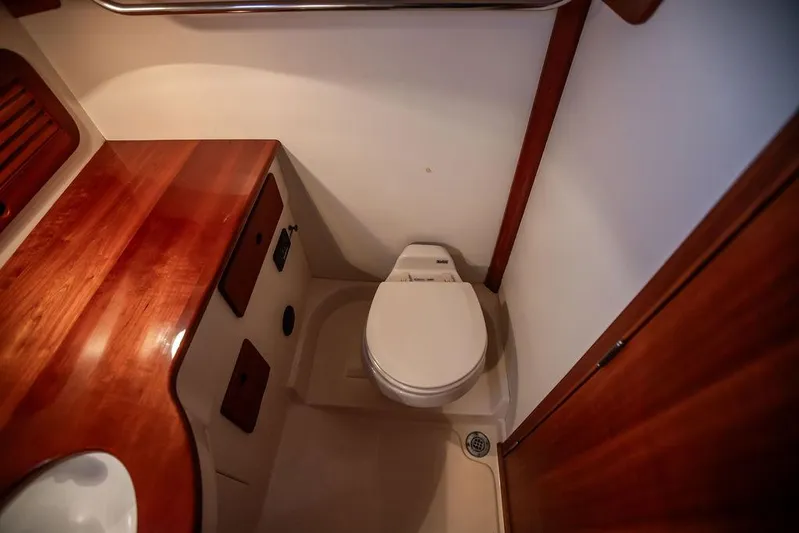

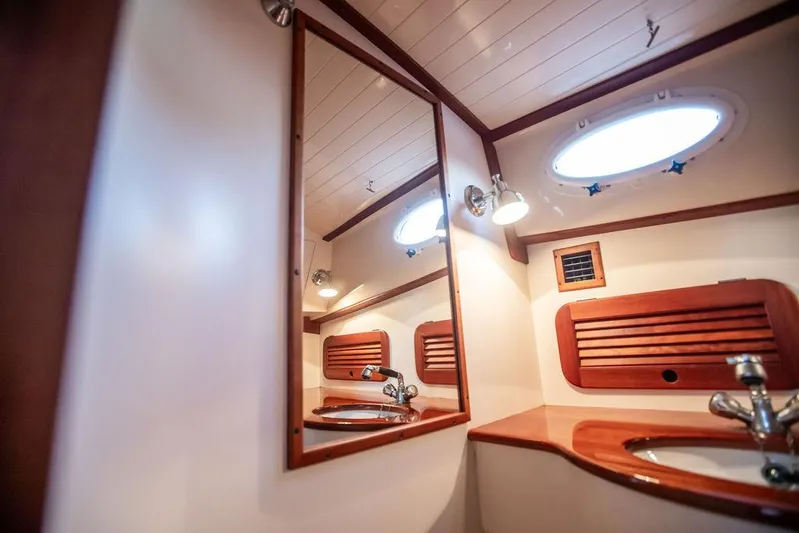

HEAD (Next aft starboard)

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning
• Varnished cherry countertop with an undermounted porcelain sink
• Grohe faucet/hand held shower provides hot & cold pressure water – bracket for shower is bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity
• 110-volt outlet
• Hella fan
• Opening port with screen, as well as forced ventilation

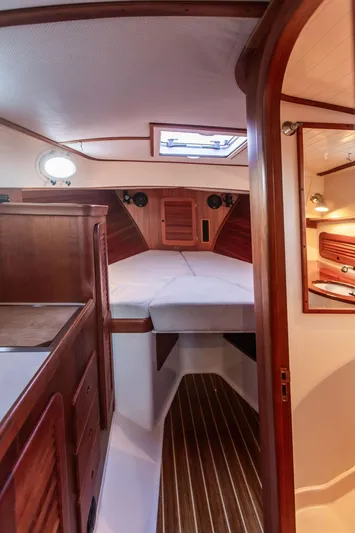

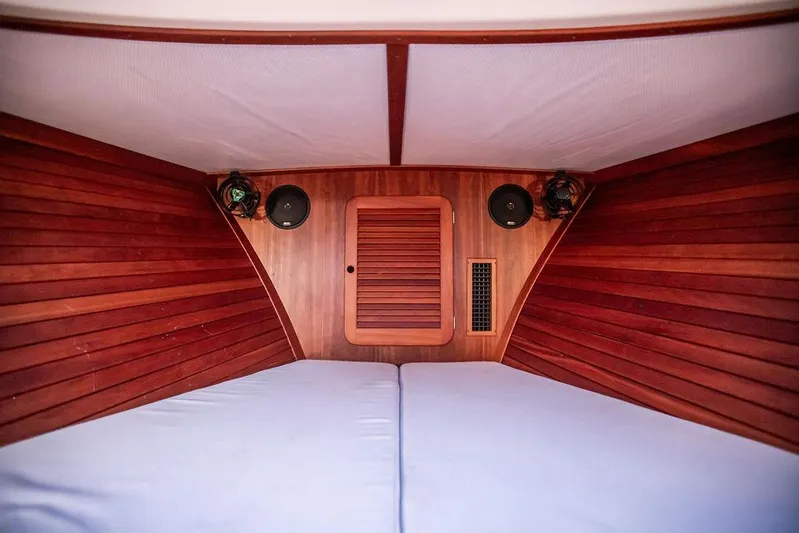

V-BERTH (Forward)

• A very comfortable double berth is formed with an insert
• Varnished cherry shelves port and starboard over V-berth
• Storage locker under a V-berth has a shelf and an easy-access cherry drop-front door
• Storage area in the forepeak behind a louvered cherry door
• Cedar-lined hanging locker is just aft of the V-berths to starboard
• (2) Stereo speakers are mounted port and starboard on the forward bulkhead
• (2) Hella fans – port and starboard bulkhead facing aft
• Overhead opening hatch with Ocean Air Sky screen/shade

Low resistance, copper wire and sacrificial zinc anode bonding system.  Zinc saver.

12-volt system:

• (3) 12-volt batteries for a total of 540-amps
• Start – 12-volt AGM Group 4D battery with 1100 CCA capability
• House – (2) 12-volt AGM Group 8D batteries – 210-amps each (2015)
• Heavy-duty battery parallel switch allows emergency starting
• 80-amp battery alternator on engine
• Mobile Power 110-volt alternator to power air conditioning system.
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter.

110-volt 30-amp AC electrical system

• 110-volt shore power inlet and relay
• 30-amp shore power cord with power indicator light
• Mastervolt Dakar Combi 1500 pure sine wave inverter/charger with 65-amp 12-volt multi-stage battery charging capability.

• Yanmar 6LY3 480-hp diesel engine
• (2023) Gear cooler
• (2023) Injection pump
• (2023) Stainless Steel exhaust riser
• (2023) Engine mounts painted
• Hamilton 292 Jet Drive
• ZF 220 reduction transmission
• (2023) Bucket cylinder seals
• (2023) Sterring transom seal
• (2023) Jet bearings, housing, and water seal
• Side Power 12-volt reversible bow thruster
• Hinckley custom “JetStick®" control system is integrated with the bow thruster.
• Lenco trim tabs
• Custom water-drop muffler
• Yanmar fuel filter/water separator
• Tachometer with engine hours gauge
• Fuel, oil pressure, and water temperature gauges
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure
• Water jet nozzle direction indicator
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• (2) Electric 1500-GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump - mounted in cockpit locker
• In-line 12-volt automatic shower sump pump
• 27-gallon aluminum holding tank with overboard discharge
• 6-gallon stainless steel hot water heater – shore power and engine heated
• 35-gallon stainless steel water tank
• (2) 80-gallon heavy gauge aluminum fuel tanks - total 160-gallons
• Mylar-faced acoustical foam-lined engine box insulation
• Engine box cover has double gaskets and an electric riser
• Engine box forced air exhaust fan
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down.
• Air Conditioning –18,000 BTU air conditioner unit in the pilothouse and one 10,000 BTU air conditioner unit in the v berth with outlets in cabin, head and pilothouse.

Ground Tackle System:

• Muir electric windlass pkg (2023 – New windlass motor):  Flush foredeck anchor locker houses a Muir electric windlass with polished stainless steel Delta 22# anchor + 15” stainless steel chain & 150’ anchor rode and polished stainless steel folding bow roller.  The windlass can be operated from the helm station or a handheld wired remote at anchor locker.  Freshwater deckwash in anchor locker.

Additional Equipment:

• (2023) cockpit mooring cover
• Bow varnished burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole & flush socket
• Boat hook - mounted under side deck
• Brass 6” Bell
• Dock lines
• Fenders with cover – and Wichard snap hooks for each fender line
• Deck shower/water outlet with hot & cold mixing valve
• Life jackets
• Handheld flare kit
• (3) 2.5# Dry chemical fire extinguishers
• 12-volt trumpet air horn with switch on dash
• Masthead and running lights
• Medical first aid pack
• Hinckley tool kit
• Spare parts kit
