Symphony V Yacht for Sale | 52 Hinckley Yachts Stonington, CT

Beam: 14' 0''
Hull Material: Fiberglass
Max Draft: 11' 0''
Displacement: 39,000 lb
Fuel Tank: 1 x 120|gallon
Fresh Water: 1 x 198|gallon
Holding: 1 x 44|gallon
Heads: 2

The Sou'wester 52' is a modification of Hinckley's popular SW51. The extra length comes from her reverse transom. (NOTE: SOUNDER DOES NOT HAVE A REVERSE TRANSOM). An additional 85 cubic feet of living area has been coaxed from the interior, allowing three private sleeping cabins or two cabins with the single master stateroom of considerable size and comfort forward. Adding to the open feel of the living area, the main salon is shifted amidships, to take full advantage of the 14-foot beam. The offset companionway frees up even more space for the generous quarter cabin. Other modifications include a spade rudder located further aft for an enhanced feel and maneuverability not only under sail but powering around docks and in crowded harbors.

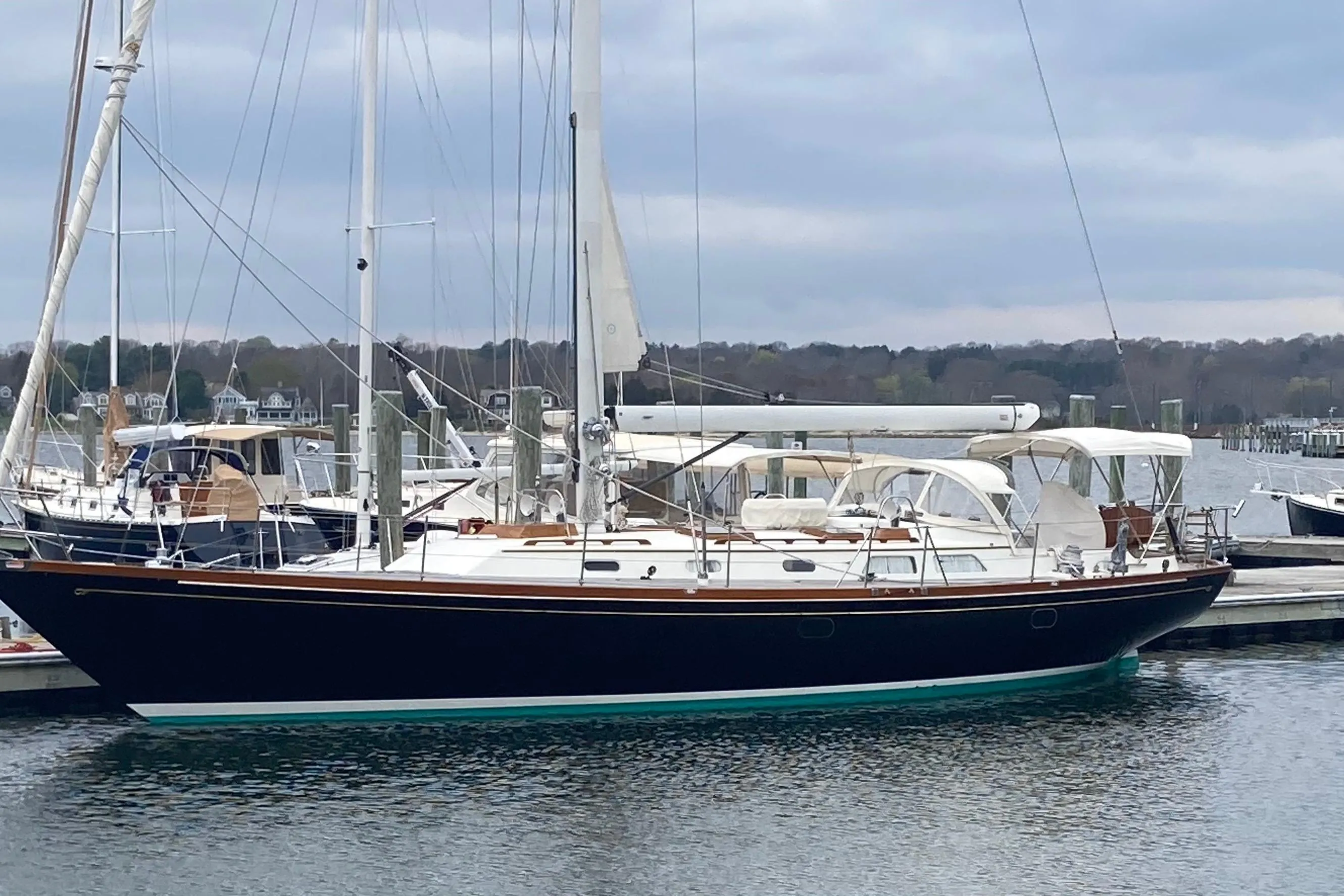

Black Awlgripped Topsides (2012) with single off-white boot stripe
Off White cabin house

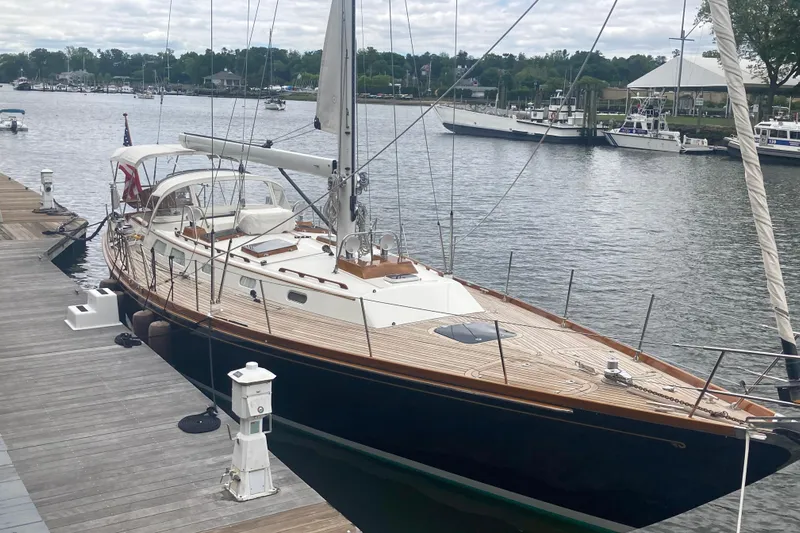

Teak decks
Conventional, classic transom

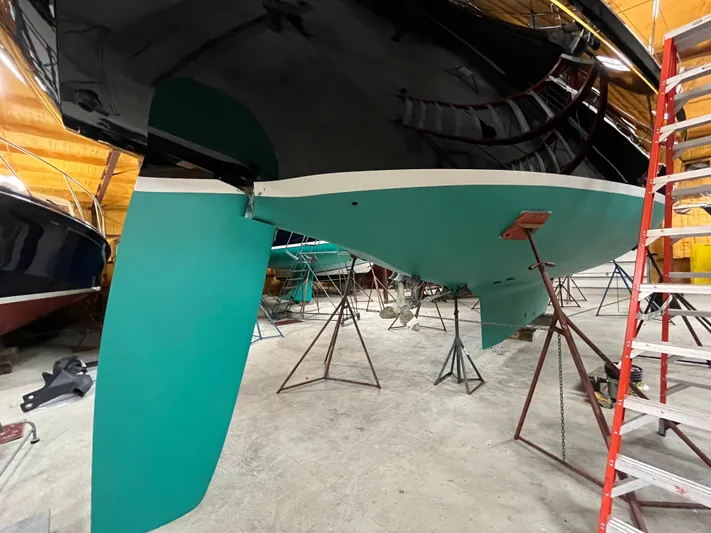

centerboard underbody
Carbon fiber spade rudder with carbon fiber rudder post.

CONSTRUCTION:

SCRIMP® process construction with hybrid Kevlar/E-glass hull cored with Divinycel for
additional strength and weight and reinforced with longitudinal stringers and additional grid work in high stress areas.

The teak covered deck is built of Kevlar hybrid E-glass as well, and cored with variable density Klegecell for exceptional strength as required by engineering specifications. The deck is set into a 6" flange in the hull and glassed and bolted in place.

The hull has a varnished teak guard rail with SS half round.

DECK:

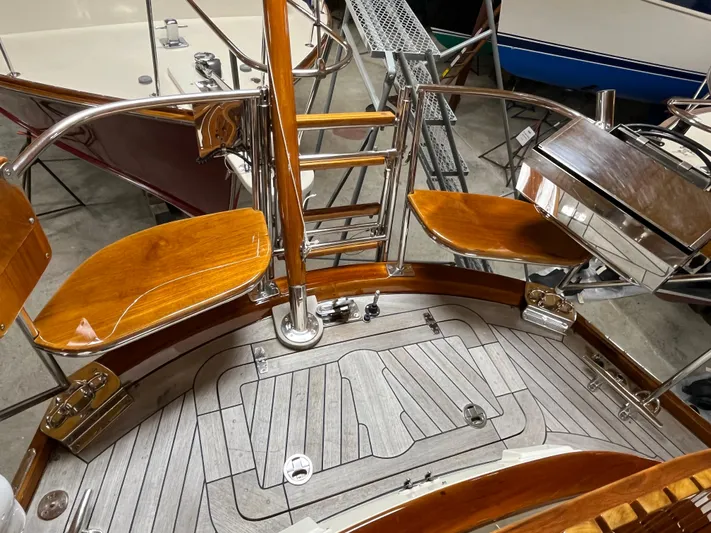

SS bow pulpit w/teak seat &SS stern pulpit w/p&s teak seats
SS stanchions and die-formed wire double lifelines w/gate

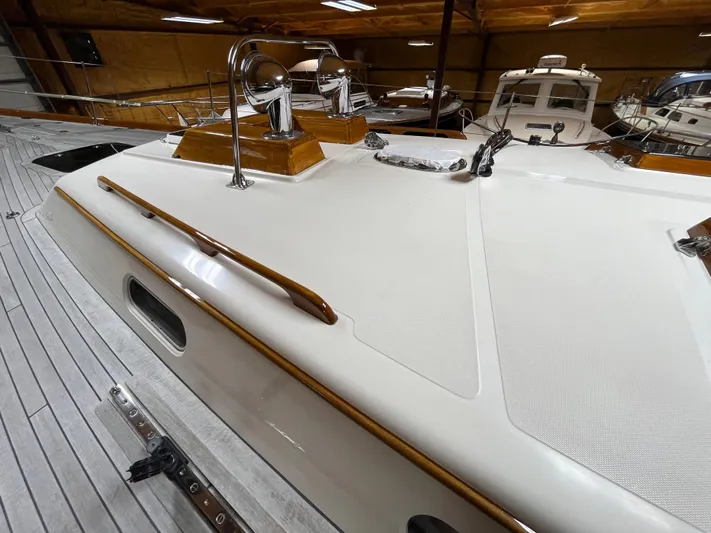

The Deck has seven ventilation hatches, four 5" cowl vents, two additional varnished teak dorade boxes w/stainless steel guards and sliding cherry ringed closures.

The Cabinhouse has varnished teak port and starboard hand rails and eyebrows.

There are Polished Stainless Steel genoa tracks with teak fairing strips. Running lights are also stainless steel.

The forepeak houses a flush chain/line locker. Foredeck has a teak chafe guard for chain
between a Hinckley stainless steel bow roller and the Lewmar windlass. There are two large flush storage lockers on the foredeck for fenders or anchor storage. There is an additional Hawse pipe for a second anchor rode and a saltwater deck wash for cleaning the rope/chain as it comes aboard.

The Aft lazarette has a flush teak hatch.

The spacious cockpit has a teak sole, and cockpit seats with teak tops (which open for

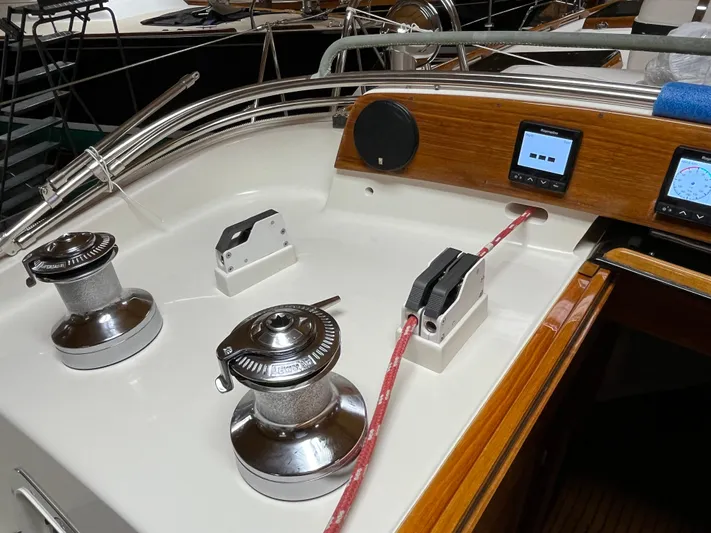

storage). There are polished stainless steel rings around the four cockpit coaming winch pockets and (4) stainless steel safety harness padeyes. An opening portlight from the aft cabin faces into the cockpit.

Features include:

White Weblon dodger w/elkhide covered grab rail
Bimini top on SS frame with custom SS side rails and removable partial side
curtains
Cockpit cushions - with removable backs

HELM STATION:

Custom one of a kind ash steering wheel
Hinckley varnished teak folding cockpit table with fold-out leaves
Three mug holders mounted on binnacle guard
Raymarine Chartplotter at helm with custom stainless steel mounting box
Raymatine autopilot control recessed to starboard of helm.
6" compass with stainless steel binnacle cover.
The Helm has a Hinckley custom pedestal with wheel steering, single engine control, and power switches for various navigational functions. Bow thruster control, and engine gauges.
Forward, Over the companionway is a varnished teak instrument pod easily visible from helm that has three Raymarine displays installed, as well as cockpit speakers.
Custom varnished teak helm seat

NAVIGATION & COMMUNICATION ELECTRONICS:

Raymarine Hybrid Touch chartplotter at helm (2017)
Raymarine Hyrid Touch chartplotter at nav station (2017)
Raymarine p70 autopilot controller (2017)
Raymarine EV-1 course computer (2017)
Raymrine i70 Displays - four. Three over companionway, one at nav station (2017)
NMEA gateway (2017)
Airmax UST800 speed and water temp transducer
Raymarine ITC5 analog to Digitaal transducer converter (2017)
Raymarine linear autopilot drive (2017)
Raymarine AIS Transceiver (2015)
ICOM M-504 VHF with remote command mic (2015)
Icom M-710 SSB with insulated backstay, and Icom AT-120 SSB Tuner

ENTERTAINMENT ELECTRONICS:

Alpine stereo in aft cabin
Pioneer stereo in main salon
Stereo speakers in the main salon, forward cabin, aft cabin and cockpit
Volume controls in the main salon, galley and cockpit
Vizio 32" TV
TV antennae at masthead

The interior features the 2-Cabin, 2-Head layout with berths for 7 and is finished in satin varnished cherry with gloss highlights.

Headroom throughout cabin is 6' 5".

The cabin sole is eye-catching - custom varnished maple and teak. All lockers doors are louvered with radius openings and the overhead is V-groove wood painted white. There are curtains with cherry valances in all cabins.

Interior cushions and curtains are finished in designer chosen fabrics. All fabrics, interior cushions and mattresses were all new in 2015.

Two Marineaire reverse-cycle air conditioners provide heating and cooling and
maintain comfortable temperatures within.
Three custom hull ports as well as multiple opening smoked plexiglass overhead
hatches with drop-in black out screens, dorade vents with closures, and five Hella
fans provide natural light and ventilation.
There are overhead dome lights throughout, additional halogen lighting with dimmers in alcoves and recessed halogen accent lighting.
LED reading lights throughout.
Every cabin has a 110-volt outlet with varnished cherry outlet cover.

Vessel Walkthrough:

Forwardmost is the PRIMARY STATEROOM with a large double berth on centerline with
curved laminated bunk rail and a large opening smoked plexiglass hatch over. Outboard, port and starboard are two large sliding louvered door storage lockers over storage alcoves. There are also two step storage lockers.

To starboard is a hanging locker with a shelf, louvered doors, automatic interior light
when opened and a drop front locker under. Over and outboard is another locker with shelf and louvered door. There is a bureau to starboard with two drawers and a drop front.
Aft, to port of the solid cherry entry door with full length mirror, is an additional 2 drawer locker with shelf over.
Ventilation and lighting is supplied by the large overhead hatch, a smal opening
hatch and dorade vents. There are dome lights and halogen lights with dimmers.
There is access to the chain locker through a flush deck hatch.
In 2015, The master forward bulkhead, side panels and head were painted white for contrast to the cherry finish.
New reading lamps were installed in 2015

The FORWARD HEAD is forward to port and offers the following:

Crema Bahia Granite stone countertop set on a honeycomb panel
Cherry vanity with an undermounted white enamel sink with stainless steel fixtures,
Hot and cold pressure water
Separate stall shower with clear plexiglass door, telephone style shower head teak seat and floor grate. The bulkheads in the shower are formica.
Sealand vacuum-flush head with holding tank and new hoses.
There is a large beveled miror and Hinckley stainless steel towel rack/grab bar.
Various storage drawers and lockers are under and outboard.
There is an opening port.
Cantalupi Toni overhead lights

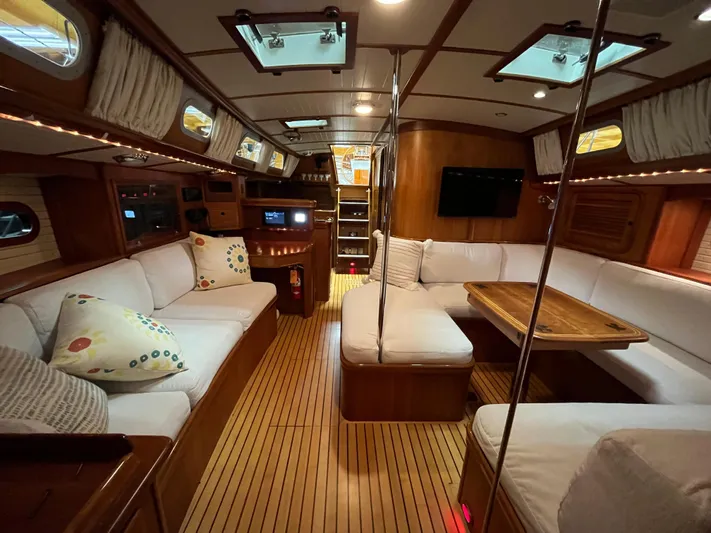

Amidship, the spacious MAIN SALON offers a spectacular gathering place. This salon will not disappoint even the most discriminating sailor.

To starboard, there is a curved settee with hidden storage behind seatback. Forward is a three drawer verticle cabinet with shelf and locker over and outboard that houses custom wine bottle and wine glass storage. Outboard is a locker and there is shelf storageforward.
To port, there is a U-shaped dinette with wrap-around seating and a stainless steel vertical hand rail at inboard end. Outboard, the entertainment center is located behind louvered doors. A stereo is in this locker and the 32" TV is bulkhead mounted. There are forward and aft lockers above the settee with an alcove bookshelf between them.
A Beautiful custom cherry dining table with inlaid ebony blackbirds, holly trim, removable leaves and adjustable pedestal. Halogen lights with dimmer are above the table.
There are four Cantalupi halogen lights and strip lighting port and starboard.
Port and starboard alcoves have hull portlights and custom bookshelves - these hull ports add to the spacious and bright feeling of the salon.

Next aft to starboard is the NAVIGATION STATION. The aft end of the starboard settee acts as a seat for the lift-top varnished nav table.

There is chart storage and drawers below the nav table.
There is 12V/110V distribution panel outboard with digital gauges and instrumentation built into the cherry cabinetry.
Radios, a chartplotter and a multi-instrument are located here.
A dome light, chart light and strip lighting under the overhang provide lighting.

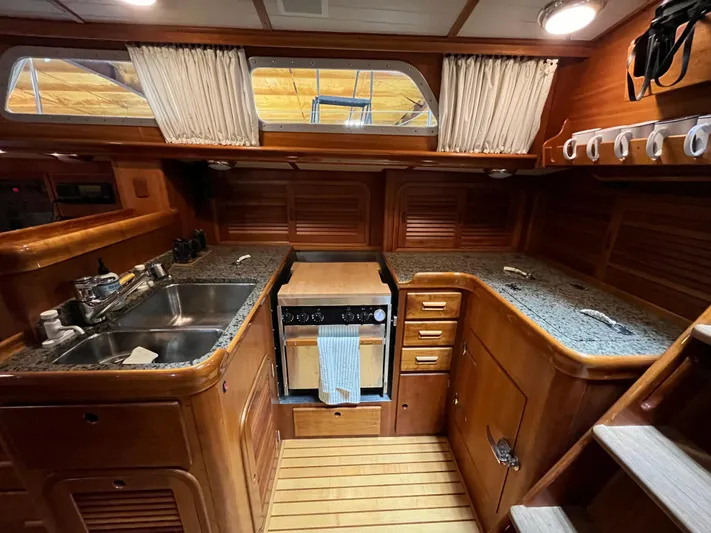

Starboard aft, the U-shaped GALLEY is aft of the nav station and separated by a varnished curved fiddle divider. The galley has everything a seagoing chef could ask for, and the entire area is located in the correct spot on the boat being adjacent to the companionway and near the salon.

The galley has a Crema Bahia Granite stone countertop set on a honeycomb panel on cherry cabinets. There are various drawer and storage lockers throughout.
The galley features a cherry mug rack and a binocular box reachable from the cockpit.
There are: an undermounted double stainless steel sink with polypropelene cutting board on one side, Grohe hot and cold pressure water faucet, manual saltwater and freshwater hand pumps, a knife rack and a 110 volt outlet.
Force 10 gimballed 3 burner propane stove with oven and broiler. A cutting board fits on the stove top.
Grunert AR-50 front-opening refrigerator and custom lift-top freezer (both with door switch lighting).
Panasonic Microwave
Galley has strip lighting under shelf overhang in addtion to dome lighting.
There is a pull-out waste basket, tip-out spice rack, and built-in fiberglass dust pan with teak grate cover in the cabin sole.

The COMPANIONWAY to the cockpit has teak treads, step light, and varnished teak hand rail.

Opposite the galley to port is a GUEST STATEROOM and ensuite head with stall shower. This is a very nice cabin for your guests and family member - they will not feel shortchanged one bit!

This stateroom has a large double berth with laminated fiddle rail. There is a recess at the head of the berth so that it can be used as two singles if so desired.
A locker and shelf are provided at the aft end of the berth.
There is louvered-door hanging locker with automatic lighting when open, a three drawer bureau with drop-front locker under and another locker over and outboard which contains an Alpine CD player and two speakers.
Two ports open to the cockpit and one hull port light provides a view and light.
The white hull ceilings (sheathing) is very classy and extends throughout this cabin as well as the rest of the boat.

The AFT HEAD to port is just forward of the guest cabin. This can be accessed from the main passageway or the aft stateroom, and therefore functions well as the "day head". This head features:

Crema Bahia Granite stone countertop set on a honeycomb panel on a cherry vanity with an undermounted white enamel sink with hot and cold pressure water.
A separate stallshower with separate mixing valve and telephone shower head, clear plexiglass door, teak seat and teak floor grate, and formica on bulkhead.
Sealand vacu-flush head with holding tank.
A beveled full-width mirror, storage lockers outboard and a Hinckley stainless steel towel rack/grab bar.
There is an opening overhead hatch, portlight outboard, andventilators overhead. There are lights in the overhead and a step light for safe access.

Carbon fiber, electric stoway double spreader mast (69' 5") and 2007 carbon fiber boom.
Navtec rod rigging with stainless steel turnbuckle covers.
Harken II headstay curler.
Removable inner forestay (includes halyard and winch).
Running backstays
Navtec hydraulic boom vang and backstay adjuster system with panel in cockpit.
Tri-color five function light, windex and TV antenna mounted at masthead.
Lensref radar reflector mounted on mast.

WINCHES:

Lewmar #66 SS ST electric primary winches
Lewmar #58 SS ST electric secondary winches
Lewmar #48 S ST main sheet & traveler winch, on cabin top
Lewmar #48 ST outhaul winch, on cabin top
Lewmar #48 ST centerboard winch on cabin top, to port
Two halyard winches on mast

SAILS:

TBA

12 Volt/110 Volt system with custom electrical panel (at nav station)

Separate 12 volt battery banks for engine starting and house, charged by separate
alternators - 80 amp for starting and 140 amp for the house.
APC Battery Bank Manager I.
Battery number, type and amp hours: TBA
Xantrex 20/12 charger/inverter with Xantrex Link 2000 controller
Bow thruster battery with separate charger
Shore power system with 50 ft. shore power cord, 30 amp
Nextgen 9.5 KW generator, 2022, 93 hours.
110 v outlets in both heads, galley, nav station and main salon and both cabins
Deck lights

1999 Yanmar 4JH2-DTE 88-hp turbo marine diesel engine with Hurth 2:1 reduction gear
Aquamet stainless steel shaft with line cutting spurs and 3-blade folding bronze Max-prop.
Racor fuel filter
Oil transfer pump
MaxxPower Retractable Bow Thruster (rebuilt 2015)
Electronic tank levelsystem with nav station control panel
Emergency tiller steering
(2) Electric bilge pumps
Sea Recovery 25 gal/hr water maker (new membranes 2015)
Allcraft 12 gallon SS hot water heater (engine or 110V shore power)
(2) Stainless steel 2 gal holding tanks - total 4 gallons.
(2) SS fuel tanks - total 120 gallons.
(3) S Water tanks - total 200 gallons
Fiberglass sump tank with electric pump
Engine space is accoustically insulated
Marine Air air conditioning / reverse-cycle heat
LPG tanks in dedicated propane locker with overboard drain
Remote solenoid for propane
Two electric bilge pumps
Manual bilge pump
Two electric shower sump pumps
Two macerator pumps, one for each holding tank
Marelon seacocks
